BHO 21 2 In 1 Cordless,Cord Antistatic ESD Stainless Wrist Strap Cord Antistatic Wrist Strap cordless 2 in 1 strap
- Category: >>>
- Supplier: BHO TECH SUPPLY CO. LTD.
Share on (60025501535):
Product Overview
Description

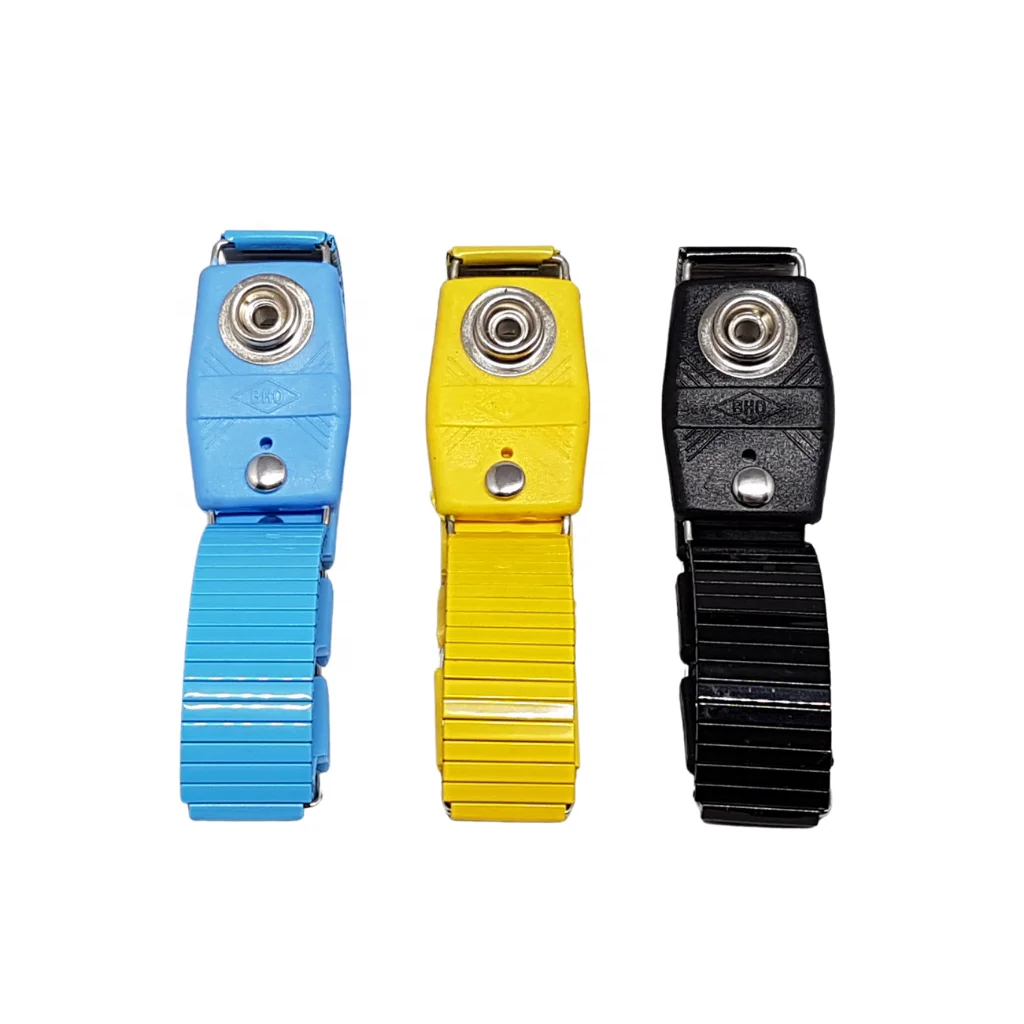

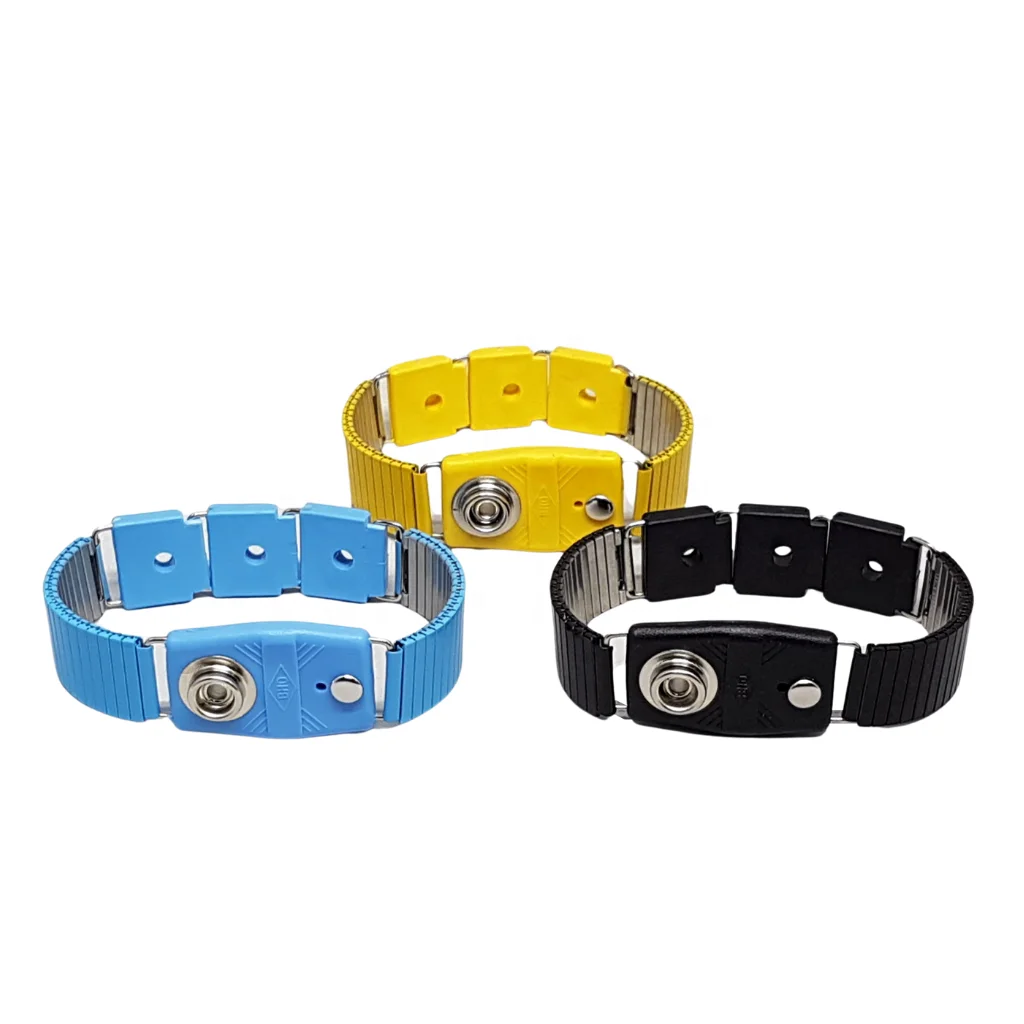

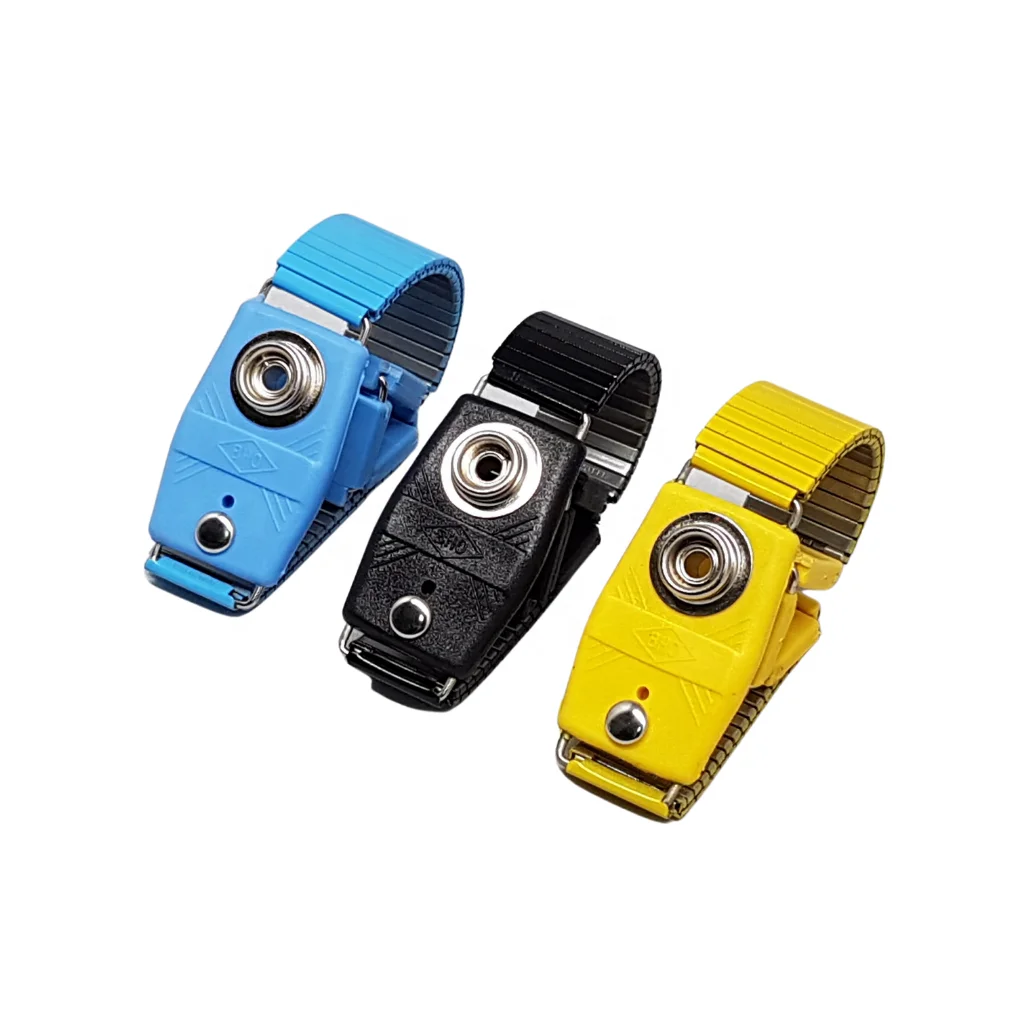

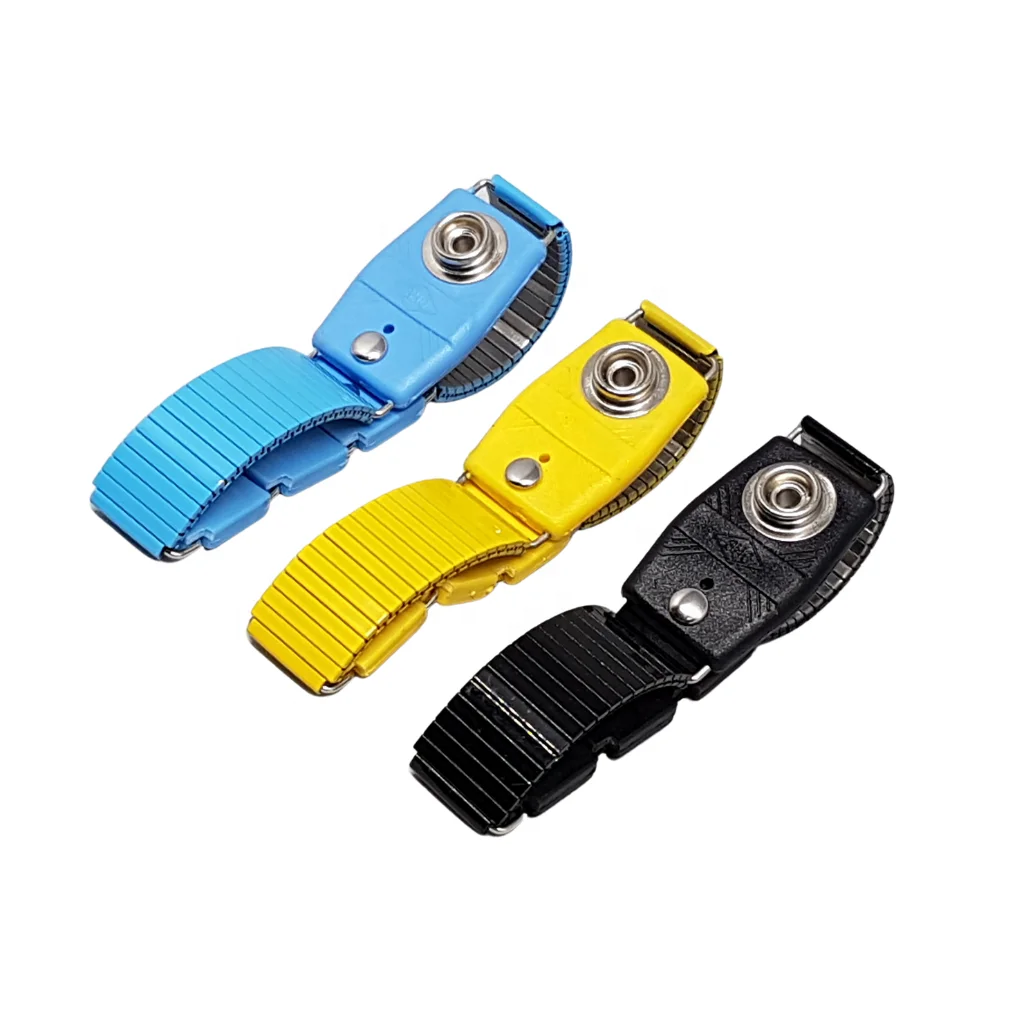

BHO-21 2-In-1 Cordless,Cord Antistatic stainless wrist strap
Product Description
Material components –
Wrist band :Adjustable type
(a). 300 series stainless steel expansion band , front side coating with insulate paint
(b). Soft Vinyl (PVC) material molding
(c). Insulating, blue ABS plastic connect buckle.
(d). 300 series stainless steel plate.
(e).7mm nickel plate brass stud and brass screw . Fit to 7mm spring type socket
Coiled Ground cord –
(1).2.3mm(D),#1 tinsel, consisting of 7 strands of polyester wrapped with copper. High flex life.
Polyurethane wire insulation. Rapid retraction coil cord compresses length with
Resulting benefit of les tangling and dragging along work surface.
(2). Thermoplastic polyurethane elastomer strain relief molded on. Banding life test
Average > 100,000 cycle ANSI/ESD S20.20.
(2-1). Resistor 1 meg ohms ±5%, 1/4 watt series resistor limits current for operator safety.
(3). 7mm Spring socket, brass with nickel.
(4). Barrel type banana plug with machined contour spring support. Crimped uniformly
From 4 sides for maximum strength. Fits industry standard banana jack.
(5). Alligator clip – metal with nickel plated.
Wrist band Resistance : < 10e2 ohm
Grounding resistance RTG : 10e6 ± 10% ohm
Packaging & Shipping
1 pcs/ color box
100 pcs /CTN/1.02' or 400 pcs / CTN/3'
Other type
Type | Item | Picture |
Assemble type Elastic band(Big main device) Color:blue/black | ML-301A ML-301B |
|
Assemble type Elastic band(small main device) Color:blue/black | ML-33A ML-33B | |
Assemble type Stainless metal band Color:blue
| ML-300A ML-30A |
|
Injection type Elastic band Color:blue/yellow/black | BHO-01 BHO-02 BHO-03 |
|

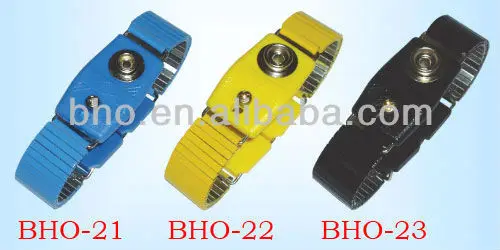

Injection type Stainless metal band Color:blue/yellow/black | BHO-21 BHO-22 BHO-23 | |

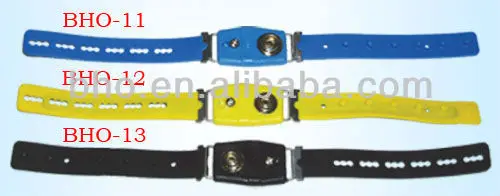

Injection type Silicone rubber band Color:blue/yellow/black | BHO-11 BHO-12 BHO-13 | |
Grounding cord match combination: Color.Length.Snap optional as per require *Cord length-6ft/10ft/12ft/15ft/18ft......or other. *Snap size: 10mm,7mm,4mm | ||
Company Information
Since 1988, BHO TECH has specialized working hard to develop and produce Static Control products. With near two decade of professional and responsible manufacturing manner and experience. The ESD product series manufactured in our company have been satisfied many BOTECH`s customers for well-known companies both in domestic and overseas. Also we have good reputation and be affirmative.
Due to our strong designing and efficient production, we soon expanded our services to include Anti-static OA Furniture, grounding system, plastic molding for customized OEM product designing and manufacturing. And further expand to plan and construct for the factory building.
We always depend on these achievement and continue to provide all our customer with the best services the most competitive prices wide product ranges, excellent quality and expect prompt delivery.
Hence, BOTECH will adhere to the goals of promote high product quality and increase output as per our positive Good service, to attain perfect for ESD products. Meanwhile, our R&D staffs still continue to work and develop New products to offer our customers the best superiority in the competitive markets.
Certifications-1
Production process
Shipping way
