Meet with the standards of Europe countries, provide SGS emission report.
Export countries
Huayin pyrolysis plants have been exported to 78 countries including Belgium, Ukraine, Romania, Russia,Cyprus, Finland, Thailand, Malaysia, Philippines, Turkey, etc.
Advantage
27 years manufacturing experience
Outstanding designs for pyrolysis reactor
High efficiency and No pollution
Profit analysis
Provide customers profit analysis report according to their local market.

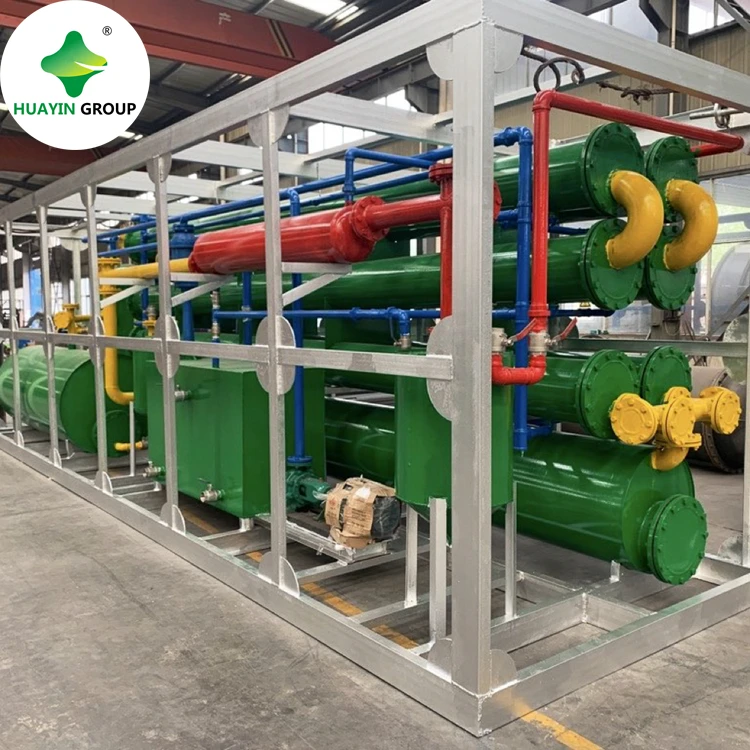

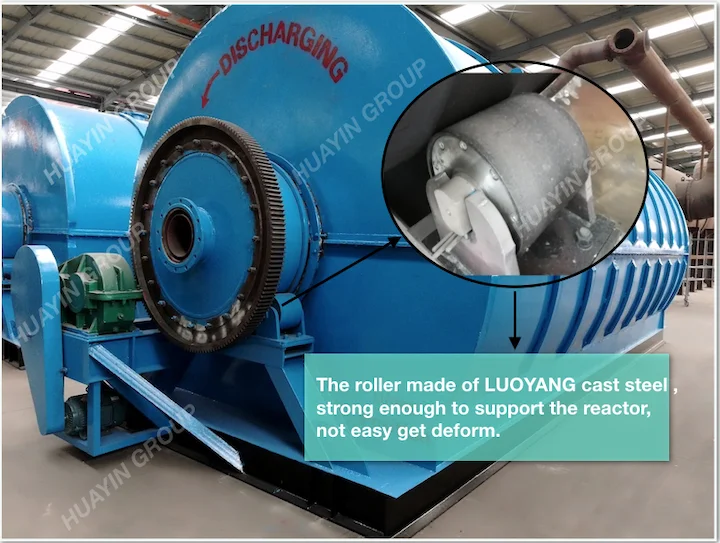

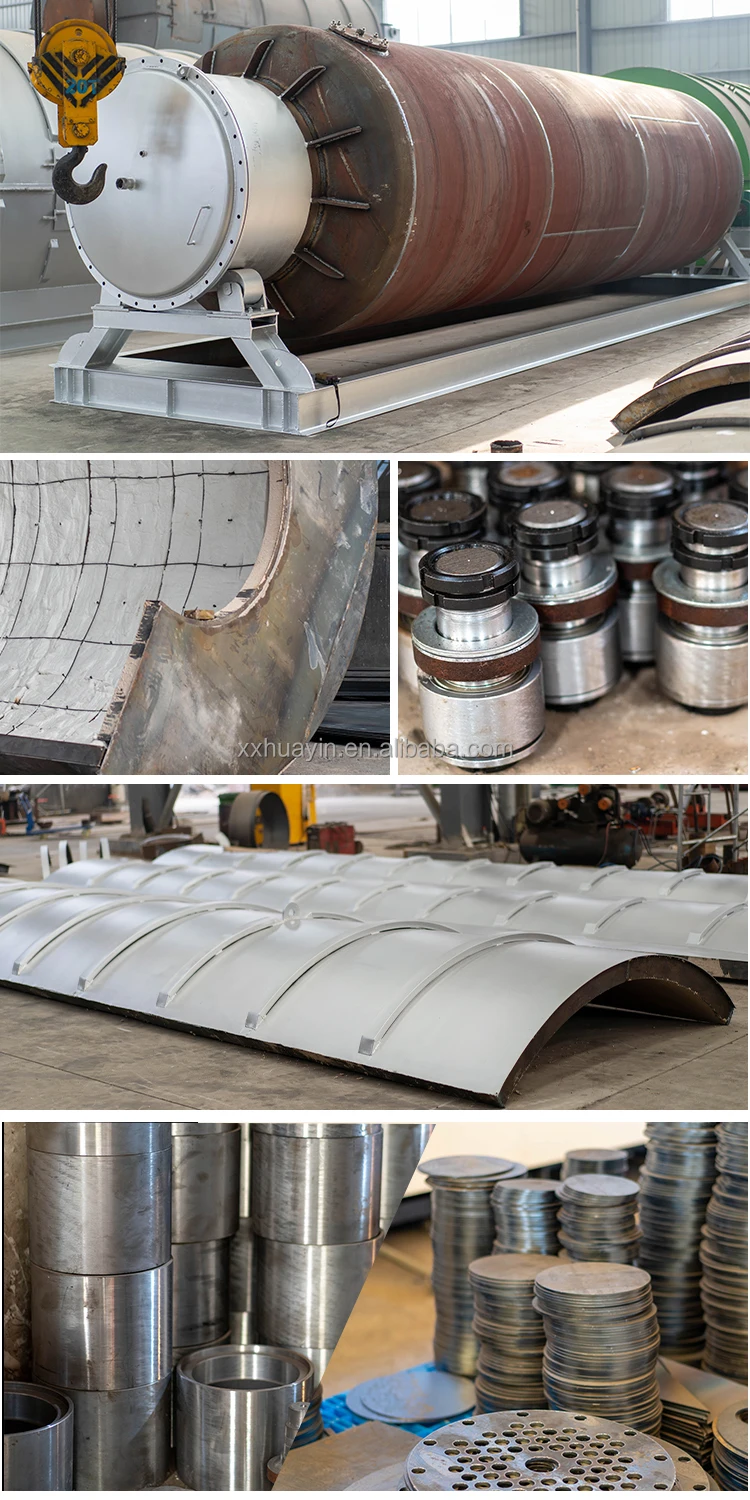

Main parts of the waste pyrolysis plant

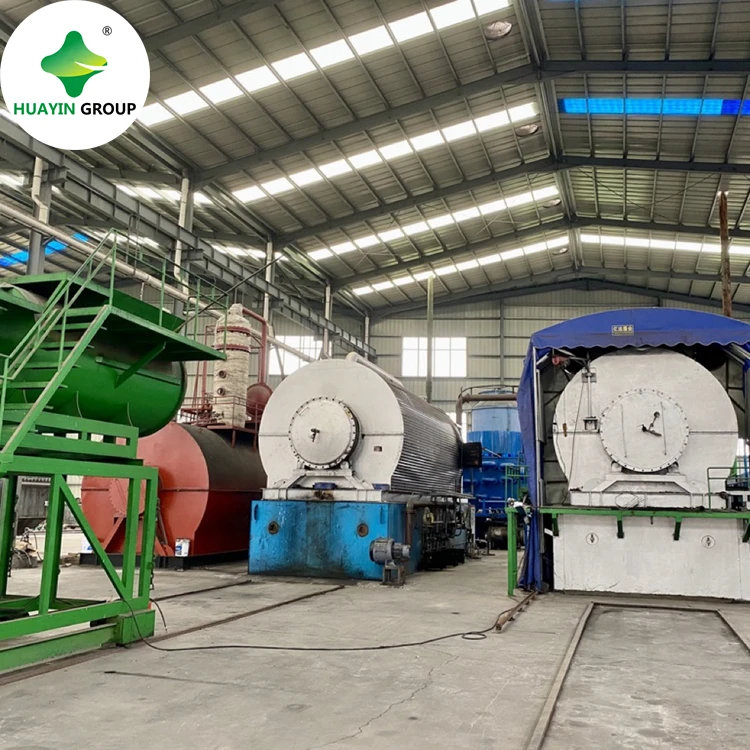

HUAYIN pyrolysis technology
1) Industrial batch type,different capacity from 1ton to 15ton per batch.
2) Exclusive low temperature pyrolysis technology, low consumption, enhance oil yield and quality, ensure long term, continuous and steady operation of production , dramatically expand equipment' lifespan.
3) Exclusive anti-cocking, thermal distribution technology, enable the material equally heated and completely pyrolized to achieved high quality product.
4) Perfect hot seal technology, to ensure operation safe and reliable.

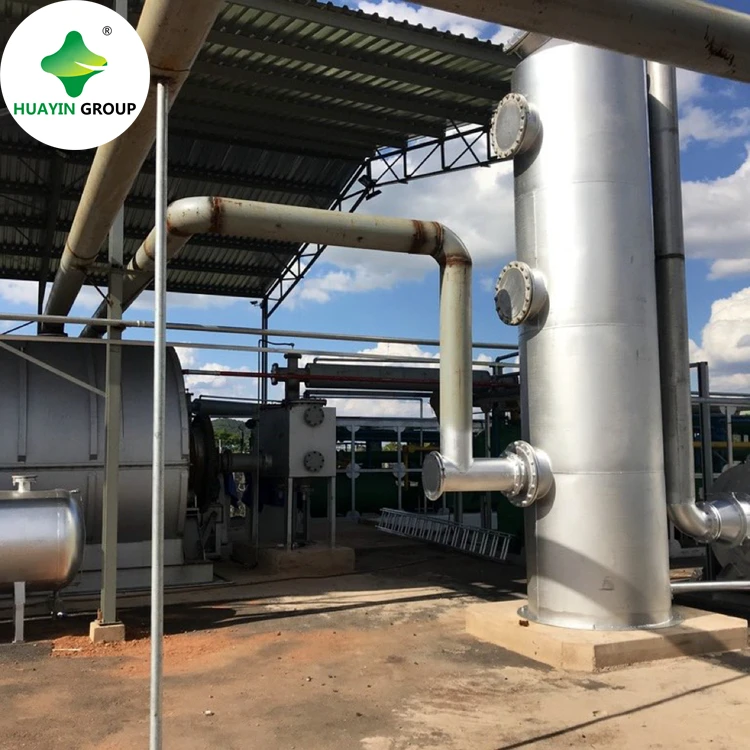

5) Gas purification and remaining heat recycling utilization technology, purified gas can be used for heating system as combustible gas, remaining heat can be dully utilized, realized self-supply for pyrolysis reaction without extra heating source, dramatically minimize running cost.
6) Exhaust gas of production line has been tested, all emission parameter meet the requirement of EU
7) Support PLC system ,warning, alarm and auto-correction function, insure operation under safety condition.
8) Low requirement for manpower, Low working intensity and clean production.
Profit analysis
Philippines Market Profit analysis report , please contact with us to get your profit analysis report.
10 tons waste tire pyrolysis plant feasibility
Cost
Name
Quantity
Unit price (PHP)
Total price (PHP)
Waste tire
10 tons
1000/ton
10000
Coal
500 kg
20000/ton
10000
Electricity
319.95 KWH
13/KWH
4159.35
Labor
4 persons
491/day/person
1964
Total cost
10000+10000+4159+1964=26123
Profit
Tire oil
4 ton =4400 liter
23/ liter
101200
Tire carbon black
3 ton
15000/ton
45000
Steel wire
1.5 ton
3000/ton
4500
Gross profit
101200+45000+4500= 150700
Net profit /batch
150700-26123=124577
Month / 25 batches
124577*25=3114425 PHP=62288 USD/month
20 tons waste tire pyrolysis plant feasibility
Cost
Name
Quantity
Unit price (PHP)
Total price (PHP)
Waste tire
20 tons
1000/ton
20000
Coal
500 kg
20000/ton
10000
Electricity
632.9 KWH
13/KWH
8227.7
Labor
6 persons
491/day/person
2946
Total cost
20000+10000+8227+2946=41173
Profit
Tire oil
8 ton =8800 liter
23/ liter
202400
Tire carbon black
6 ton
15000/ton
90000
Steel wire
3 ton
3000/ton
9000
Gross profit
202400+90000+9000= 301400
Net profit /day
301400-41173=260227
Month / 25 days
260227*25=6505675 PHP=130113 USD/month
Specification
Model
HY-05
HY-08
HY-10
HY-12
Raw material
Waste rubbers/tyres/plastic
Waste rubbers/tyres/plastic
Waste rubbers/tyres/plastic
Waste rubbers/tyres/plastic
Daily Handling capacity
5 tons
8 tons
10 tons
12 tons
Working pressure
Normal pressure
Normal pressure
Normal pressure
Normal pressure
Main engine rotating speed
0.4R /min
0.4R /min
0.4R /min
0.4R /min
Power
15KWH
15KWH
15KWH
15KWH
Cooling Mode
Water
Water
Water
Water
Floor Area
200m2
250m2
300m2
300m2
Heating Mode
Direct
Direct
Direct
Direct
Oil Yield
45%-50%
45%-50%
45%-50%
45%-50%
Noise dB (A)
<=85
<=85
<=85
<=85
Machine dimension(mm)
D2200*L5000
D2200*L6600
D2600*L6600
D2800*L6600
Working Mode
Intermittence
Intermittence
Intermittence
Intermittence
Company Information
Since 1993,Huayin began to go into this field , gotting 13 patents through 24 years' effort and increasing pyrolysis machine from first generation to the latest technology ,at the same time, gotting the latest technology for waste oil distilaltion machine to diesel without catalyst waste. With our own lab and R&D department effort and our own refinery working, Huayin will get more and more patents and improve pyrolsyis and distillation technology highly to satisfy our different clients' requirements.

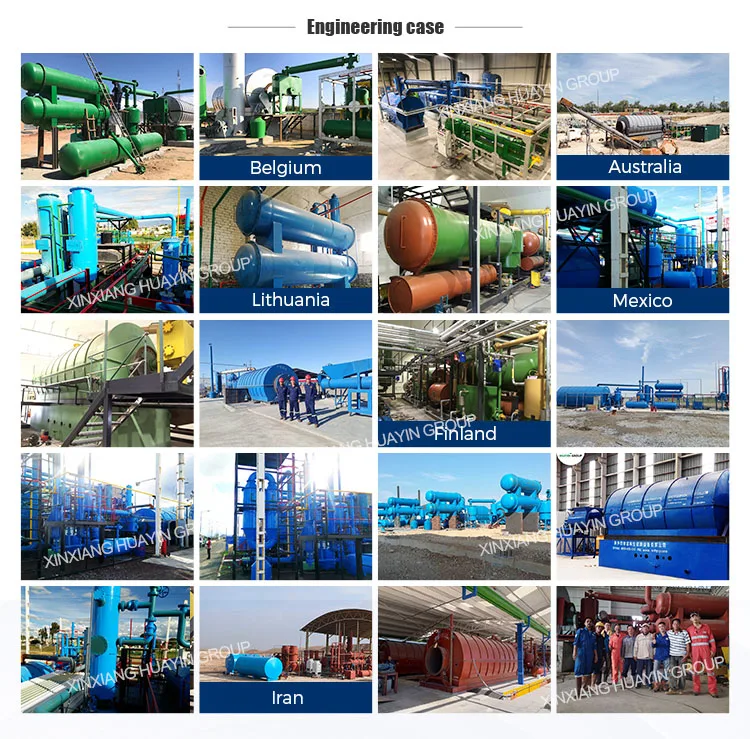

Installation sites
Our Services

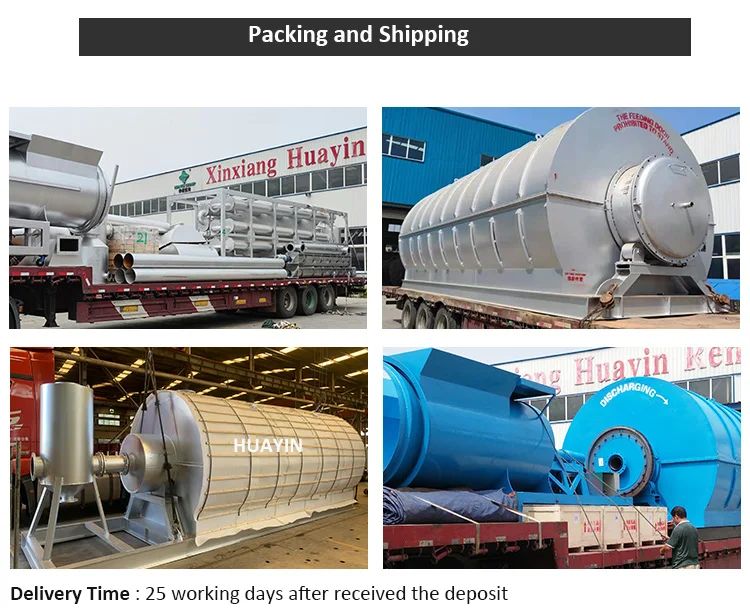

1. Delivery time- It will be 10-25 days after we receive the deposit.
2. Warranty- The warranty period for reactor and other parts except spare parts is 1 year.
3. Installation and Training- Our company will send one technician for guiding your installation, testing the machine and training your workers.
