flexible pipe UL pvc tubing
- Category: >>>
- Supplier: Guangzhou Kaiheng K&S Co. Ltd.
Share on (60026091047):
Product Overview
Description
Why Choose Us
Product Description
Application

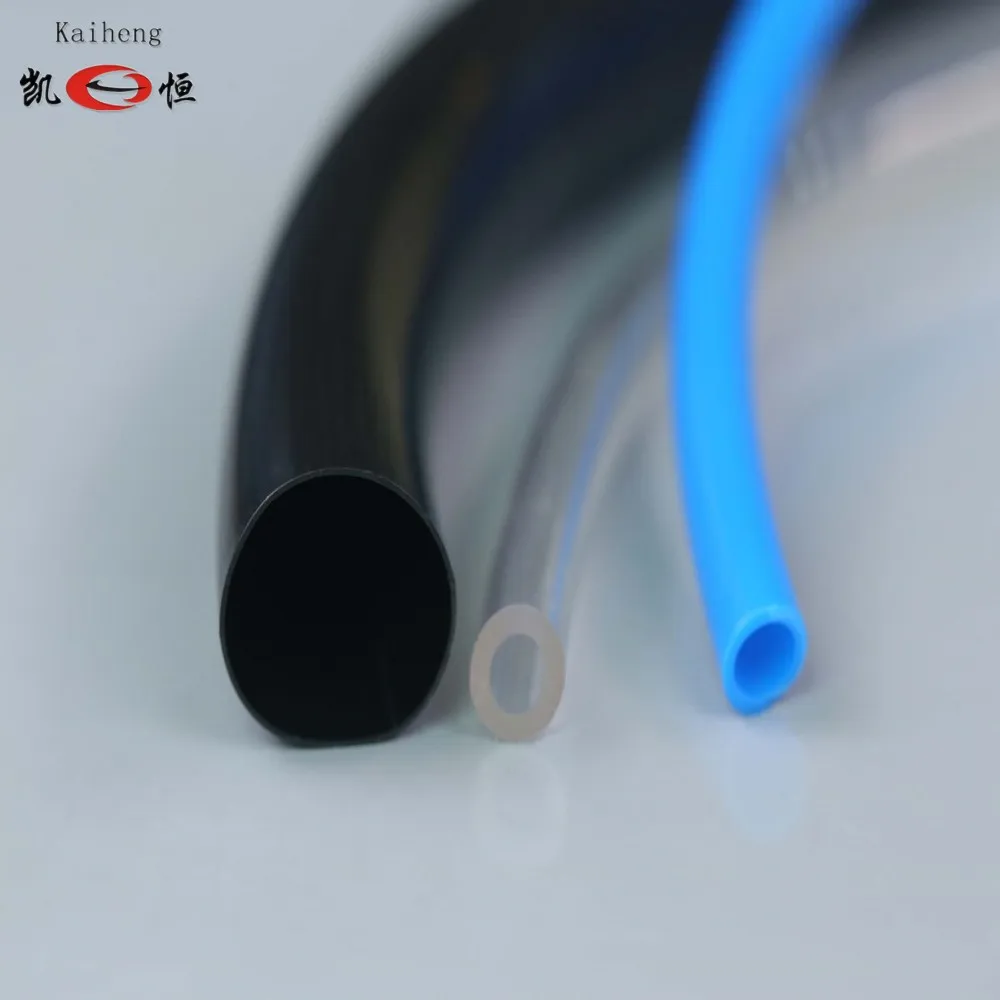

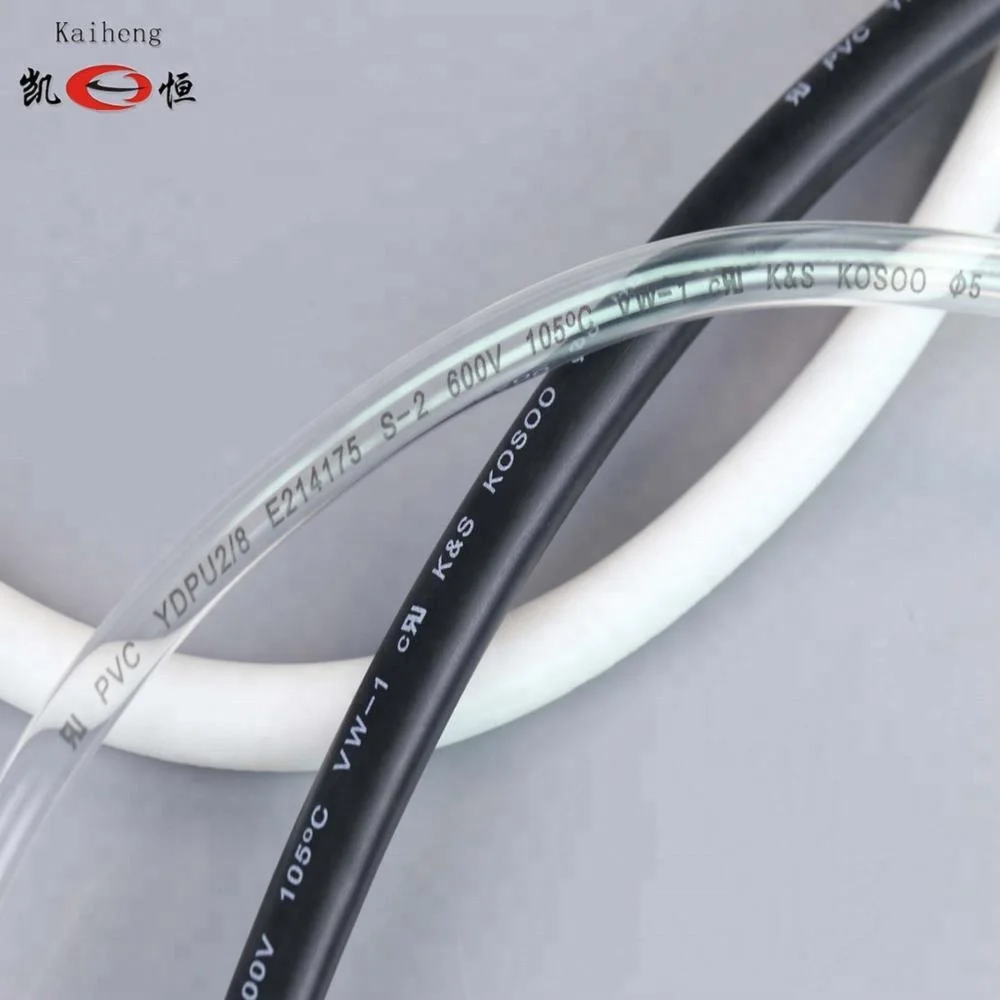

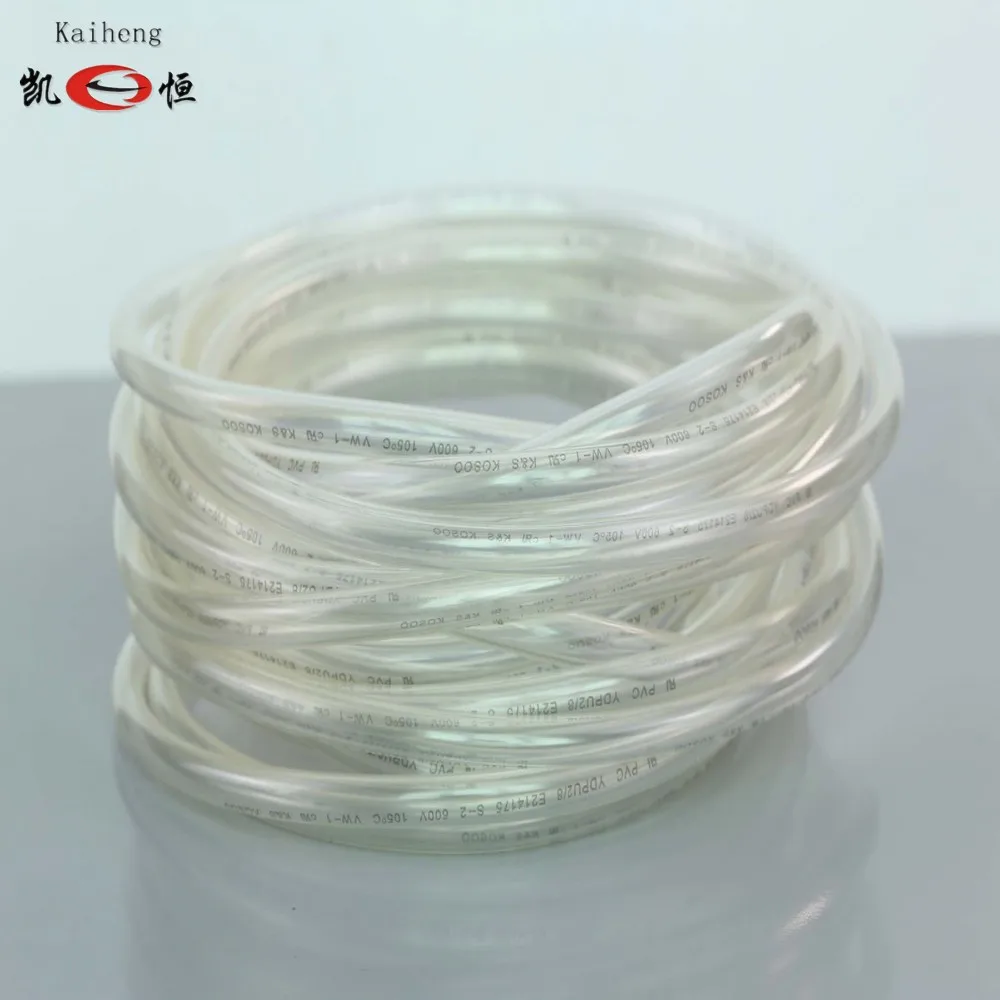

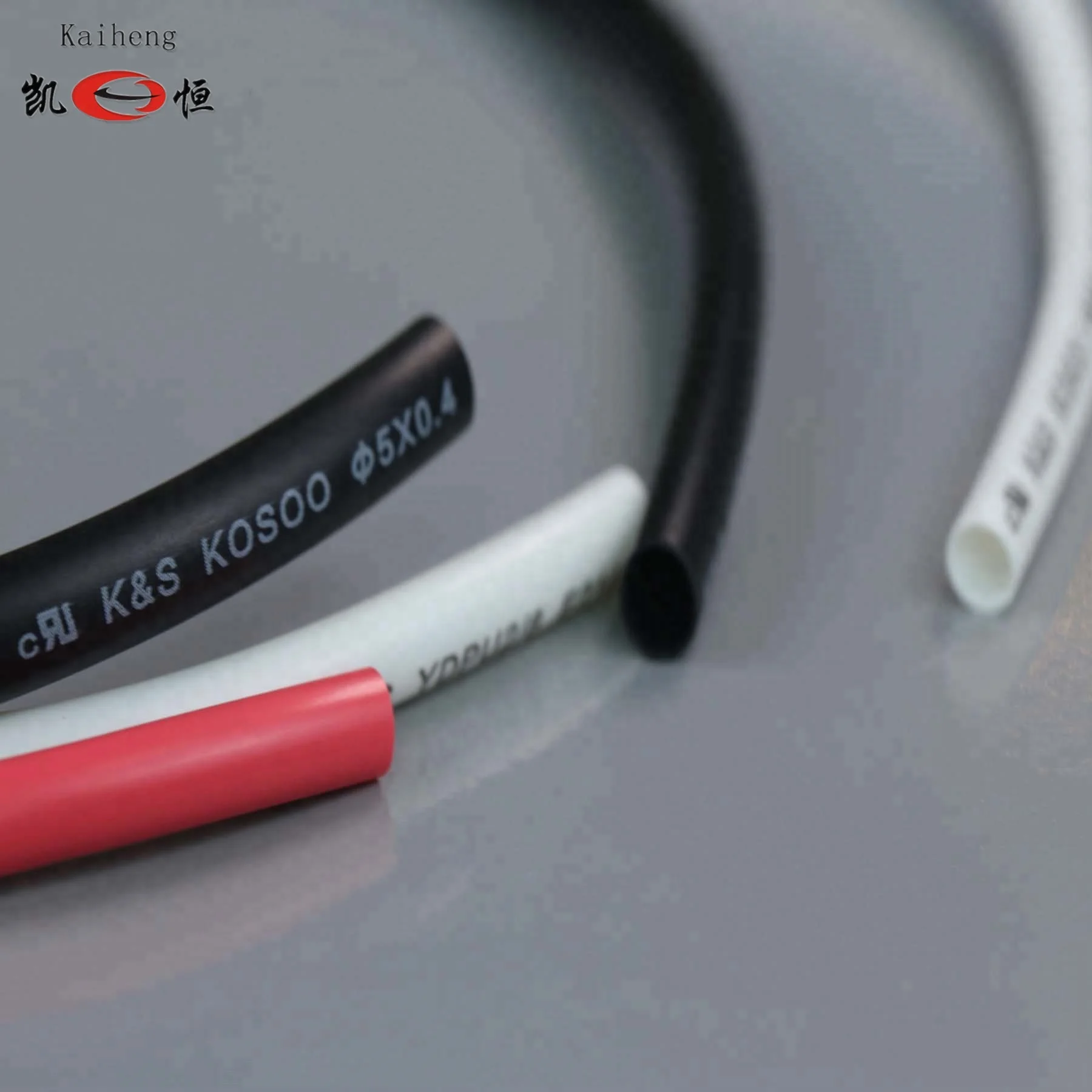

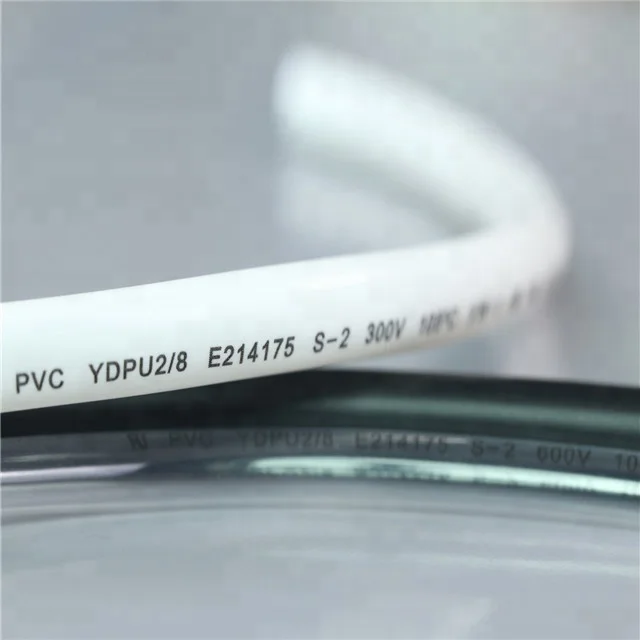

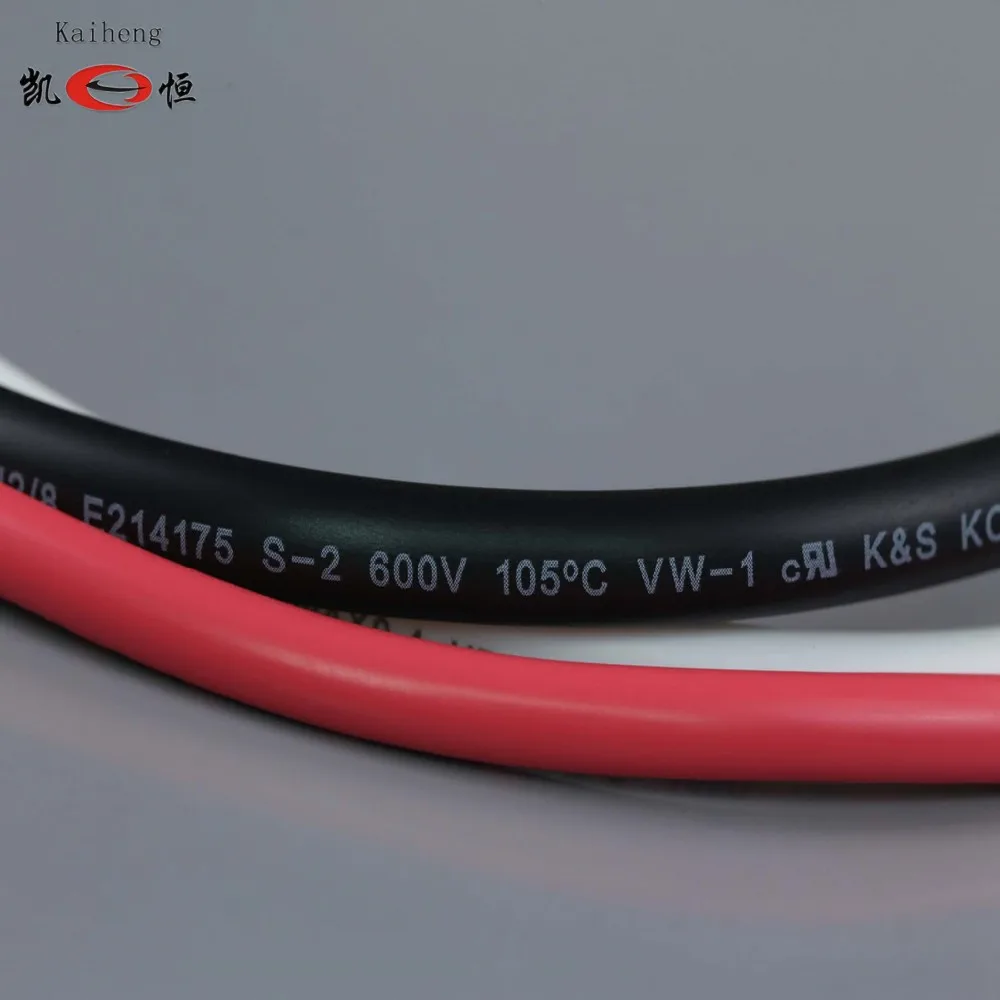

KOSOO S-2 is very flexible PVC tube for
protection of soldered points, insulation and capsule of electronic
components, anti-corrosive protection, identification and color coding, etc.
components, anti-corrosive protection, identification and color coding, etc.
Designed for wire bundling of home appliances,automobiles and motorcycles.
The insulating and protection of electronic components.
The insulating and protection of electronic components.
Features/Benefits
1.Outstanding electrical and mechanical properties.
2.105℃,VW-1,300V/600V
3.Conform to RoHS and Sony-ss00259 environmental directive.
4.Operating temperature range
-30℃~105℃
Specification Values
Property | Value |
Tensile strength | ≥10.4MPa |
Elongation | ≥100％ |
Tensile strength after aging | ≥7.3MPa |
Elongation after aging | ≥100％ |
Flexibility after aging | No crack,remain flexible |
Insulating voltage<2500V 60S> | Pass |
Minimum volume resistivity | ≥10^10 |
Cool bending <-30℃ 1h> | No crack |
Radial shrindage | ≥±5 |
Heat shock | No crack |
Sizes/colors
inside diameter: 5.0mm~19.5mm
wall thickness:0.3mm~2.0mm
colors :ALL colors are available.
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | KOSOO |
Model Number | S-2 |
Type | Insulation tube |
Material | PVC |
Application | High Voltage |
Rated Voltage | 300-600V |
Tensile Strength | 10.4Mpa |
Product name | Soft PVC Pipe Insulation Tube For Wire/Cable |
Color | all colors are available |
Inside diameter | 5.0mm-19.5mm |
Wall thickness | 0.3mm-2.0mm |
Operating temperature range | -30℃-105℃ |
Feature | 105℃,VW-1,300/600V |
Usage | Insulation Protection |
Packing | Carton |
Type | Round Pipe |
Sample | Avaliable |

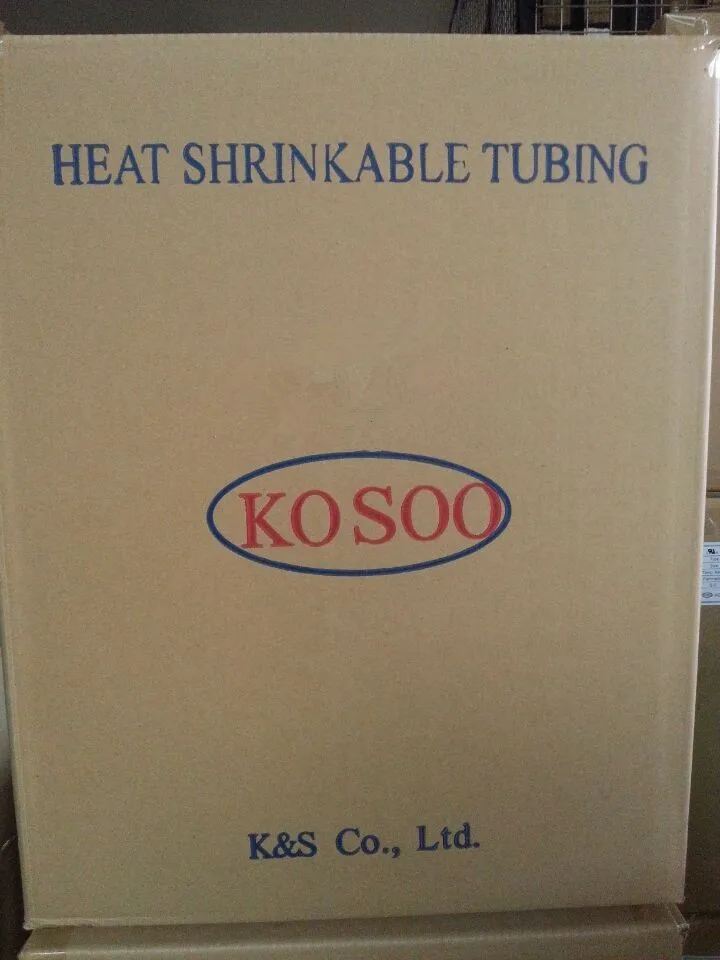

Packing & Delivery
spool packing, and carton out packing
Company Profile
Guangzhou Kaiheng Enterprise Group Co., Ltd. is a diversified group primarily involved in the research and development, sales and production of new polymer materials, heat shrinkable tubing, cross-linked special wires and cables, PVC tubing and other electronic products. Our company enjoys convenient transportation and beautiful surroundings.
Covering an area of more than 100,000 square meters, our factory is composed of modern standard plants, office buildings and R&D centers. Since our establishment, our group and our underling companies have kept up a strong development momentum by adhering to the corporate tenet to have good faith and be united, to stick to our words, to succeed with science and technology, and to keep abreast of the time.
We have a strong technical team consisting of professors, experts and engineers of profound background, and have set up a research and development center on polymer materials on a cooperative basis with the local government. Through both internal development of new solution for tomorrow's challenges and the acquisition of advanced equipment and technologies, we will deliver even more value to our customers. Our expertise in material science, product design and process engineering allows us to develop, manufacture and sell high-performance, superb quality products.
We sincerely welcome customers from around the world to cooperate with us for mutual benefit.
Covering an area of more than 100,000 square meters, our factory is composed of modern standard plants, office buildings and R&D centers. Since our establishment, our group and our underling companies have kept up a strong development momentum by adhering to the corporate tenet to have good faith and be united, to stick to our words, to succeed with science and technology, and to keep abreast of the time.
We have a strong technical team consisting of professors, experts and engineers of profound background, and have set up a research and development center on polymer materials on a cooperative basis with the local government. Through both internal development of new solution for tomorrow's challenges and the acquisition of advanced equipment and technologies, we will deliver even more value to our customers. Our expertise in material science, product design and process engineering allows us to develop, manufacture and sell high-performance, superb quality products.
We sincerely welcome customers from around the world to cooperate with us for mutual benefit.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in KOSOO standard paper rolls and cartons. If you have special request,we could do the OEM packing
for you.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customer have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ;
B.We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: Generally, we pack our goods in KOSOO standard paper rolls and cartons. If you have special request,we could do the OEM packing
for you.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customer have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ;
B.We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
