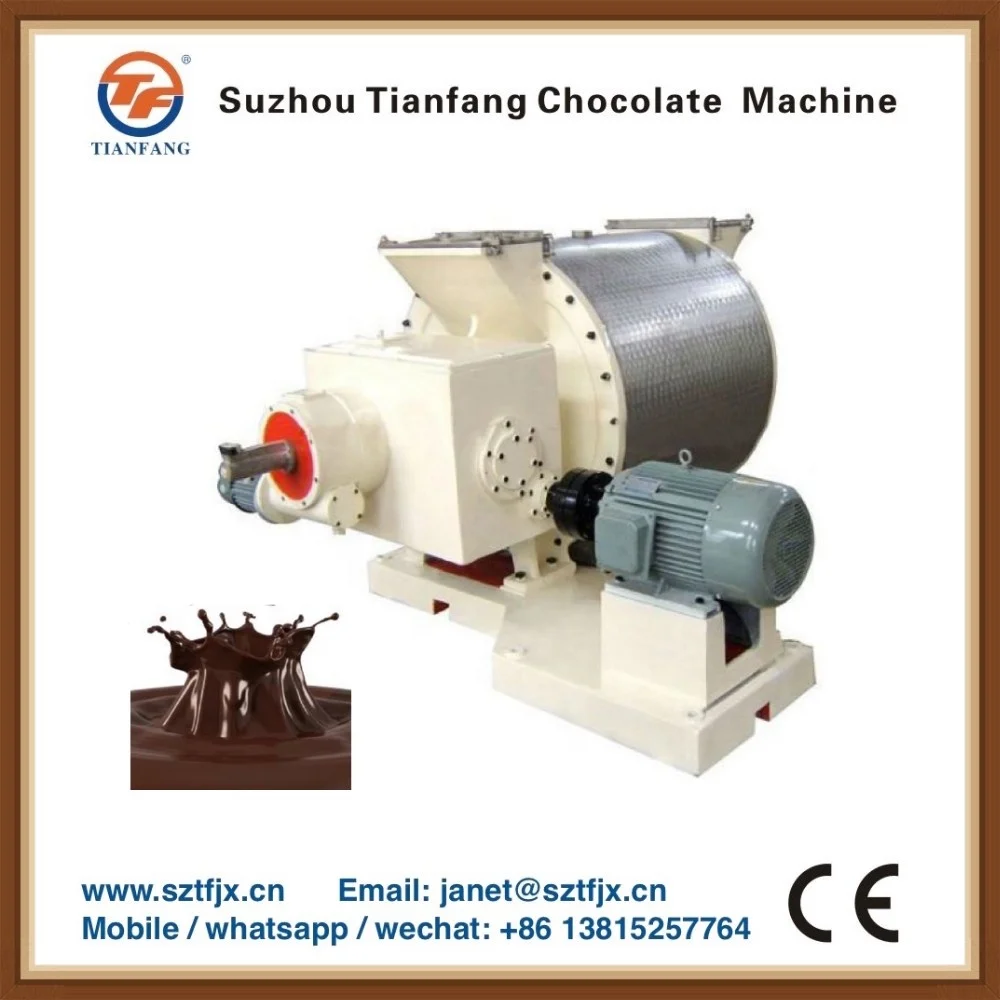

TJMJ500 machinery for producing chocolate

Product Overview

Description







USE:

1).chocolate refiner machine is one of the major chocolate equipment which is used for the fine grinding of chocolate material.

2).The fine grinding time is 14~20 hours for 500 litre chocolate, the average granularity can achieve 20μm to 25μm.

3).This machine has many merits such as tight structure, easy operation, convenient maintenance, few one-off investment, and so on.

4).It is suitable especially for the technical request of medium chocolate and candy factory.

Main parameter:

Model: TJMJ500

Maximum capacity: 500 Litre

Fine grinding granularity: 20-25μm
Fine grinding time: 14-20 hour
Motor power: 11kw

Heater power: 6kw
Net weight: 3000kg

Gross weight: 3350kg
Outside dimension: 2000*1860*1250mm

Packing size: 2400*1950*1900mm

machinery for producing chocolate



Option:1). Gear motor,hand tightening or electric tightening of adjustable grinding pressure.

2). Turbo motor,hand tightening or electric tightening of adjustable grinding pressure.





There are various models of chocolate milling machine as follows:

Model of machine	Maximum capacity (L)	Size of final chocolate (μm)	Fine grinding time (hour)	Overall power (kw)	Net weight(kg)	Outside dimension (mm)
TJMJ3000	3000	20-25	18-24	55	7000	3700*1900*2150
TJMJ2000	2000	20-25	18-24	37	5300	3000*1900*1750
TJMJ1000	1000	20-25	14-20	22	4100	2970*1320*1790
TJMJ500	500	20-25	14-20	11	3000	2000*1860*1250
TJMJ40	40	20-25	7-9	2.2	360	1000*800*800
