2,54 мм 8 pin ic базовой zif Розетка в паре с помощью 9,62/15,24 мм Сделано в Китае

Product Overview

Description





 8 pin ic base



We are manufacture of:



Pin header,female header,terminal blocks,box header(DC3),

shrouded header  (DC2),zif socket,edge card connector, sip ic socket,dip strip adapter,strip connector,LED display signal pin,

ic socket,dip ic socket,machine pin header ic,idc socket,dip plug connector,s-lot,din type,mini jumper,scsi connector,d-sub connector,centronic connector, grey flat cable,multi colour flat cable,dip switch,PLCC,dust  cover,

micro jack connector,pcb jack,bread board,digital pantel meter enclosure,etc.

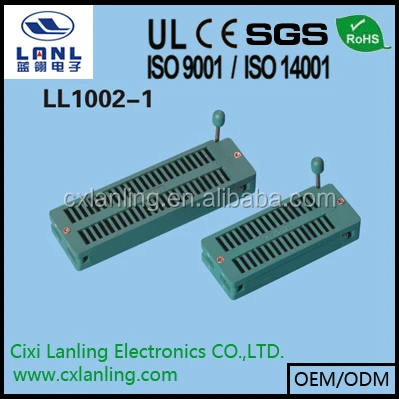

2.54MM ZIF SOCKET
Material:
Housing:	30%Glass filled PBT UL94V-0.
Contacts:	Phosphor Bronze.
Plating:	Gold plated:3U'' over 50U'' nickel.
	Tin plated:100U'' over 50U'' nickel.
Electrical Characteristics:
Current Rating:	1 AMP.
Insulator Resistance:	5000MΩmin,at DC 500V.
Contact Resistance:	20MΩmax,at DC 110mA.
Operating Temperature:	-55°C~+105°C.
Features:
For DIPs with .100'' lead spacing.
Lever actuated zero insertion force mechanism.
Socket easily disassembles for repairability.
Socket contact point of. 110" below top surface of socket.



1. Fast Delivery
2. Small order can be accepted
3. RoHS, REACH, CE
4. Free Samples
