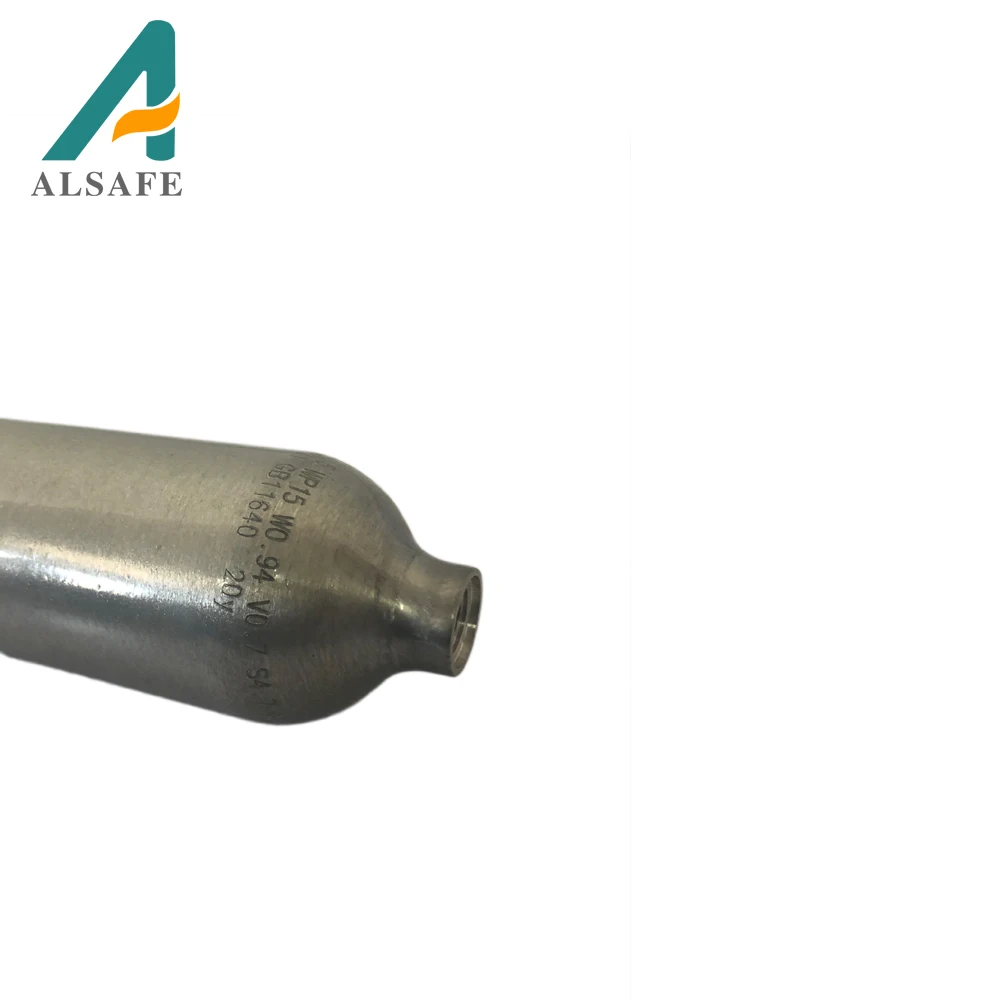

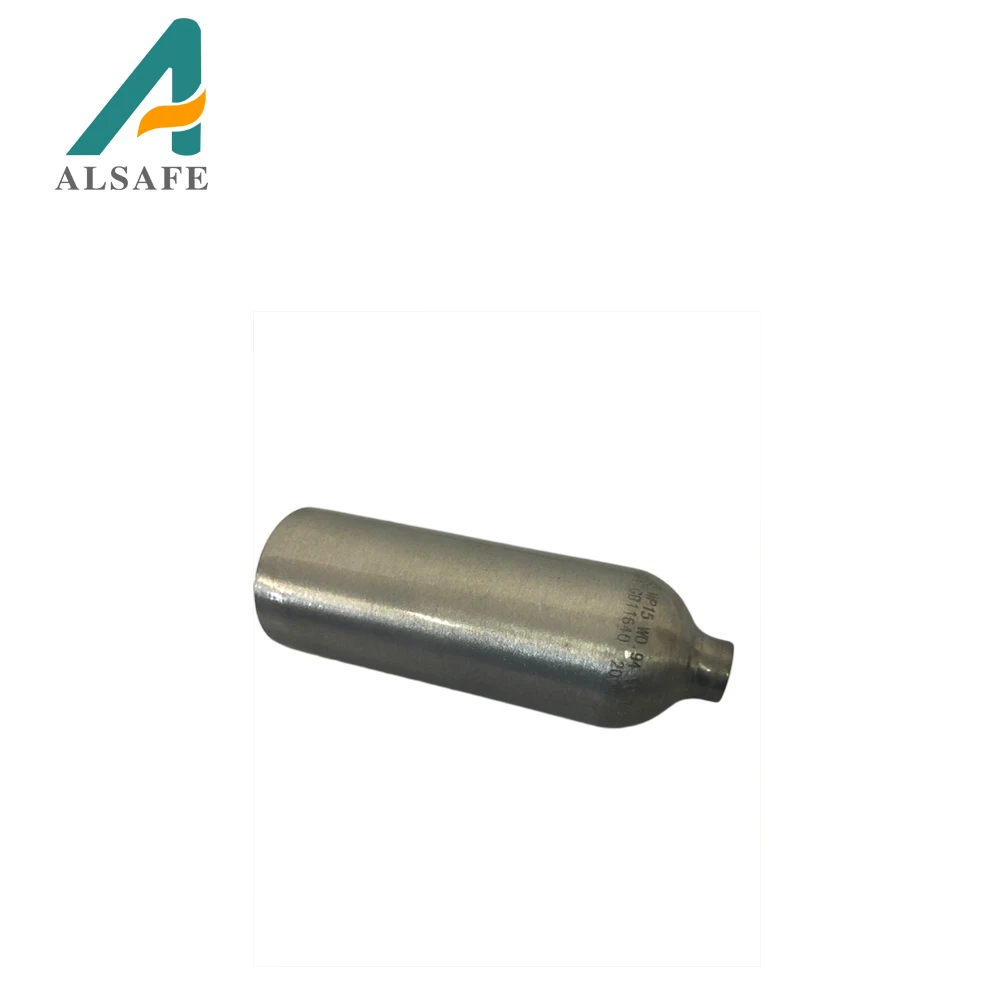

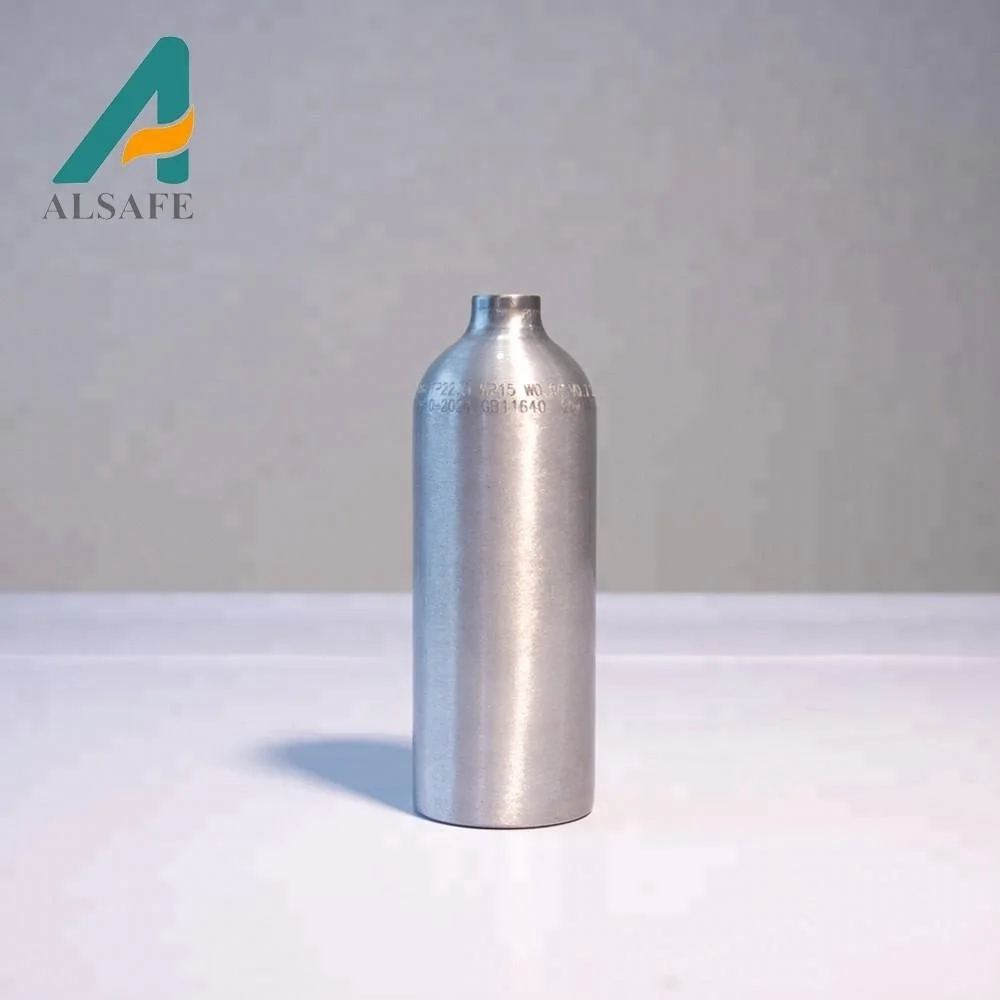

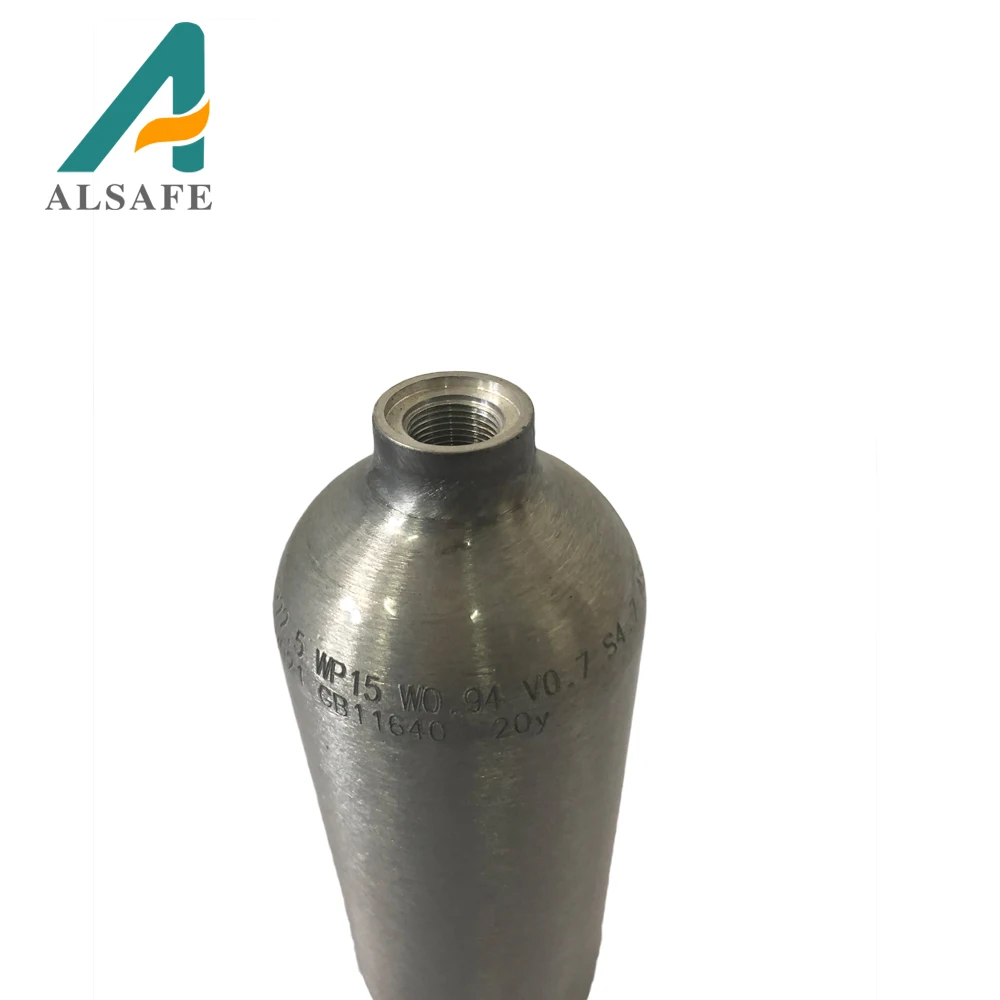

High pressure aluminum small industry o2 gas cylinder

Product Overview

Description

Product Name: High pressure aluminum small industry o2  gas cylinder

Manufacturer: Liaoning Alsafe Technology Co., Ltd.

Specification:   LW-81.4-0.7-15-H

Standard: ISO7866 or GB11640

Certificate: CE, TS

Third party Inspectors: TUV, CSEI, SGS

Filling content: Industrial gases / Specialty gases / Calibration gases

Color: gray or customed

Outside surface treatment:  Painting

Thread: PZ19.2, PZ27.8 or customed

Valve: Upon gases and working pressure

Form A, Form E avaliable.

Ideal choice of anhydrous liquid ammonia cylinder

Features:

·Made by aluminum 6061;

·40% lighter than steel cylinders;

·No magnetism;

·High corrosion resist and special inner surface treatment, ensure Industrial gases / Specialty gases / Calibration gases  clean and smelless;

·Stable performance;

·Widely used in Industrial gases / Specialty gases / Calibration gases manufacturers, research institutes,etc.

·Choice of worldwide top brands and enterprises.







Specification	Outside diameter	Water volume	Length	Weight	Wall Thickness	Working pressure
LW-60-0.5-20-H	60mm	0.5L	285mm	0.59kg	3.1mm	200bar
LW-75-0.7-15-H	75mm	0.7L	295mm	0.85kg	4mm	150bar
LW-82-0.7-15-H	82mm	0.7L	235mm	0.9kg	4.2mm	150bar
LW-89-1.0-15-H	89mm	1.0L	269mm	1.2kg	4.5mm	150bar
LW-89-1.4-15-H	89mm	1.4L	345mm	1.4kg	4.5mm	150bar
LW-108-1.0-15-H	108mm	1.0L	210mm	1.3kg	5.5mm	150bar
LW-108-1.4-15-H	108mm	1.4L	264mm	1.6kg	5.5mm	150bar
LW-108-2.0-15-H	108mm	2.0L	346mm	2.1kg	5.5mm	150bar
LW-108-2.5-15-H	108mm	2.5L	413mm	2.5kg	5.5mm	150bar
LW-120-2.0-15-H	120mm	2.0L	320mm	2.7kg	6.1mm	150bar
LW-120-2.5-15-H	120mm	2.5L	369mm	3.0kg	6.1mm	150bar
LW-120-2.8-15-H	120mm	2.8L	398mm	3.2kg	6.1mm	150bar
LW-120-3.2-15-H	120mm	3.2L	437mm	3.5kg	6.1mm	150bar
LW-140-4.0-15-H	140mm	4.0L	420mm	4.2kg	7.1mm	150bar
LW-140-5.0-15-H	140mm	5.0L	500mm	4.9kg	7.1mm	150bar
LW-140-6.0-15-H	140mm	6.0L	580mm	5.6kg	7.1mm	150bar
LW-140-8.0-15-H	140mm	8.0L	741mm	7.2kg	7.1mm	150bar
LW-140-5.0-20-H	140mm	5.0L	525mm	6.3kg	9.3mm	200bar
LW-140-6.0-20-H	140mm	6.0L	652mm	7.98kg	9.3mm	200bar
LW-159-10.0-15-H	159mm	10.0L	730mm	8.8kg	8mm	150bar
LW-184-9.0-20-H	184mm	9.0L	575mm	12.0kg	12.2mm	200bar
LW-203-21.3-15-H	203mm	21.3L	962mm	19.9kg	10.3mm	150bar
LW-204-12.0-20-H	204mm	12.0L	610mm	16.5kg	13.4mm	200bar
LW-204-15.0-20-H	204mm	15.0L	735mm	18.7kg	13.4mm	200bar
LW-204-20.0-20-H	204mm	20.0L	940mm	23.4kg	13.4mm	200bar
LW-232-29.5-15-H	232mm	29.5L	994mm	30.2kg	11.7mm	150bar
LW-232-30.0-15-H	232mm	30.0L	1010mm	30.5kg	11.7mm	150bar
LW-232-33.4-15-H	232mm	33.4L	1126mm	31.3kg	11.7mm	150bar
LW-232-40.0-15-H	232mm	40.0L	1340mm	36.5kg	11.7mm	150bar
LW-232-20.0-20-H	232mm	20.0L	750mm	26.9kg	15.4mm	200bar
LW-232-26.0-20-H	232mm	26.0L	921mm	30.7kg	15.4mm	200bar
LW-232-30.0-20-H	232mm	30.0L	1076mm	36.4kg	15.4mm	200bar
LW-232-31.5-20-H	232mm	31.5L	1096mm	38kg	15.4mm	200bar
LW-232-40.0-20-H	232mm	40.0L	1365mm	44.1kg	15.4mm	200bar
LW-250-40.0-15-H	250mm	40.0L	1150mm	36.7kg	12.6mm	150bar
LW-250-46.4-15-H	250mm	46.4L	1305mm	38.7kg	13.6mm	150bar
LW-250-47.5-15-H	250mm	47.5L	1340mm	42.0kg	12.6mm	150bar
LW-250-50.0-15-H	250mm	50.0L	1590mm	39kg	12.6mm	200bar
LW-250-40.0-20-H	250mm	40.0L	1227mm	46.3kg	16.5mm	200bar
LW-250-50.0-20-H	250mm	50.0L	1500mm	56kg	16.5mm	200bar



Note: The specifications of aluminum gas cylinders above are popularly used in Industrial gases / Specialty gases / Calibration gases storage. However, if you need other size or specification aluminum gas cylinders, please visit Alsafe aluminum cylinders overall collection (volume limitation from 0.5L-50L) or contact us directly. We always offer friendly service and knowledgeable advice.
