Mid speed Shredder/ Plastic Scrap Shredder/ Mini Plastic Shredder

Share on (60026703074):


Price:

Quantity:


Product Overview

Description

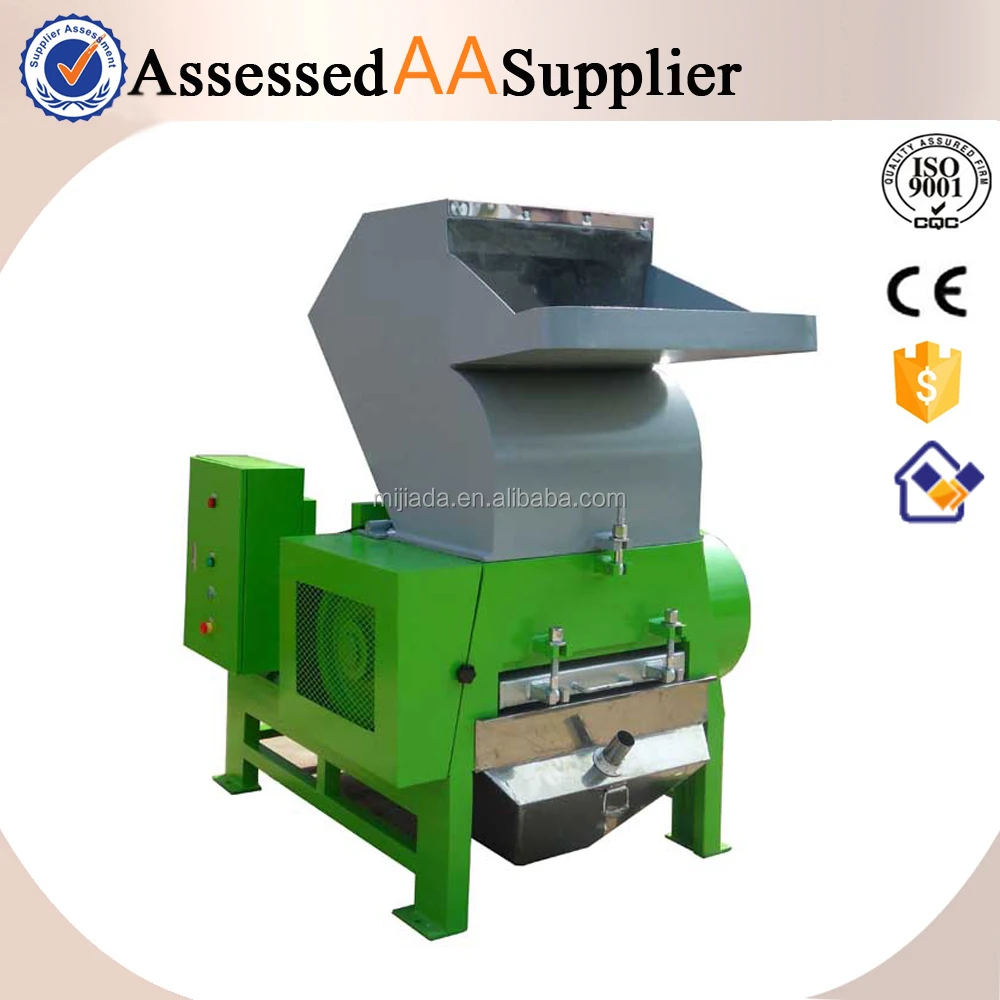

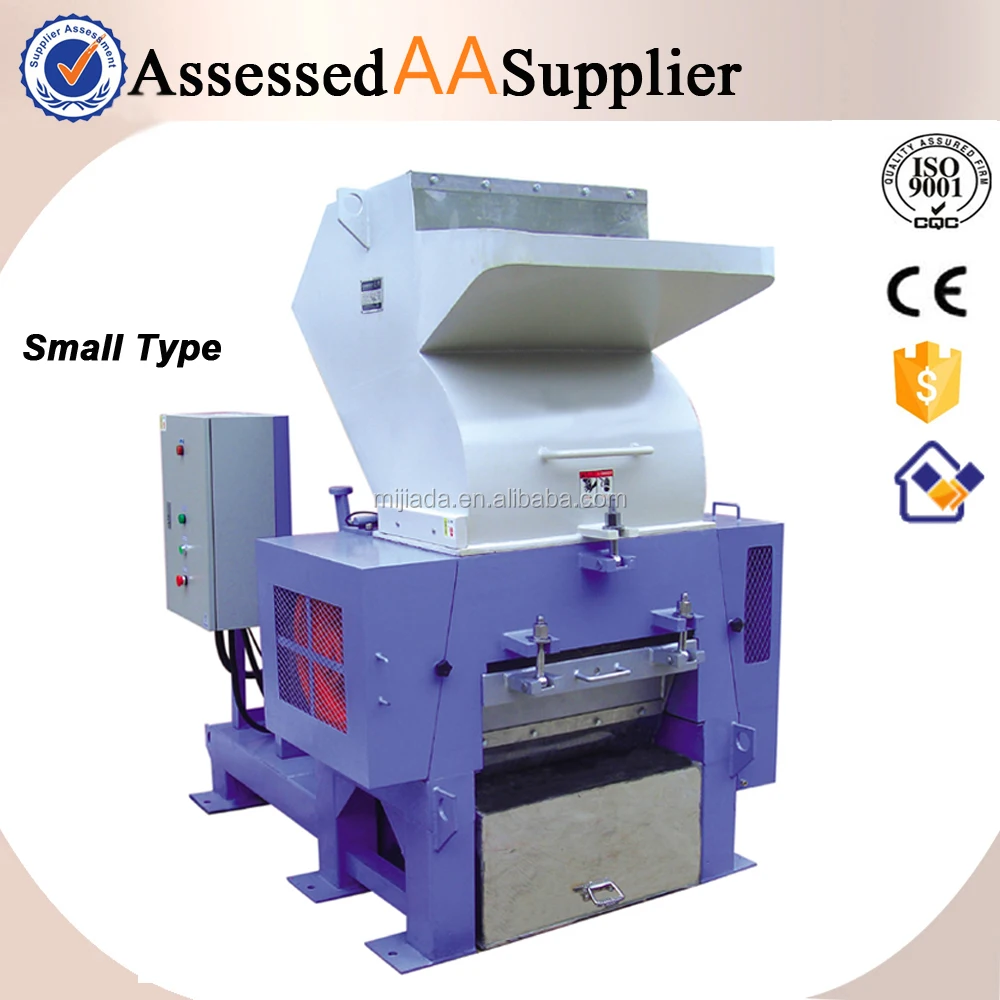

Mid-speed Shredder/ Plastic Scrap Shredder/ Mini Plastic Shredder:






Technical data

MSC Strong Plastic Crusher


 Strong Plastic Crusher display750x750.jpg

Feature of MSC strong plastic crusher:

1. Heavy-duty bearings, large inertial wheel and strong crushing ability;

2. Easy-disassembly design, simple and easy to clean and maintain;

3. Two-layer sound-insulated hopper to insulate noise;

4. High-speed quality cutter, sharp edge, durable in operation;

5. Interlock power protection to ensure poerational safety

6.Wide application:for waste plastic, bottle crusher, plastic film, plastic plum etc.



Specifications of MSC strong plastic crusher:

Model

Power

(HP)

Crushiong Dimension

(mm)

Crushiong ability

(kg/hr)

Rotary

Cutter

(Pcs)

Stationary

Cutter

(Pcs)

Dimension(mm)

Total Dimension

(CBM)

Net Weight (kg)

MSC-0305

5HP

250×210

150-300

3/15

2PCS

950×630×1100

0.9

290

MSC-0575

7.5HP

300×210

160-320

9/15

2PCS

1000×700×1260

1.2

330

MSC-7510

10HP

380×250

180-360

6/18

2PCS

1080×820×1330

1.6

520

MSC-7515

15HP

500×250

200-550

6/24

2PCS

930×1280×1400

2

750

MSC-1520

20HP

500×320

360-720

6/21

2PCS

1700×1350×1760

4.9

1000

MSC-2030

30HP

630×320

600-1200

6/27

2PCS

1700×1480×1760

5.3

1250

MSC-3050

50HP

700×480

800-1600

6/27

2PCS

2000×1600×2000

7.5

1600

MSC-5075

75HP

800×650

900-1800

6/27

2PCS

1600×2100×2620

10.5

2500

MSC-75100

100HP

1000×800

1000-2000

6/27

2PCS

1800×2100×3150

13.6

4000

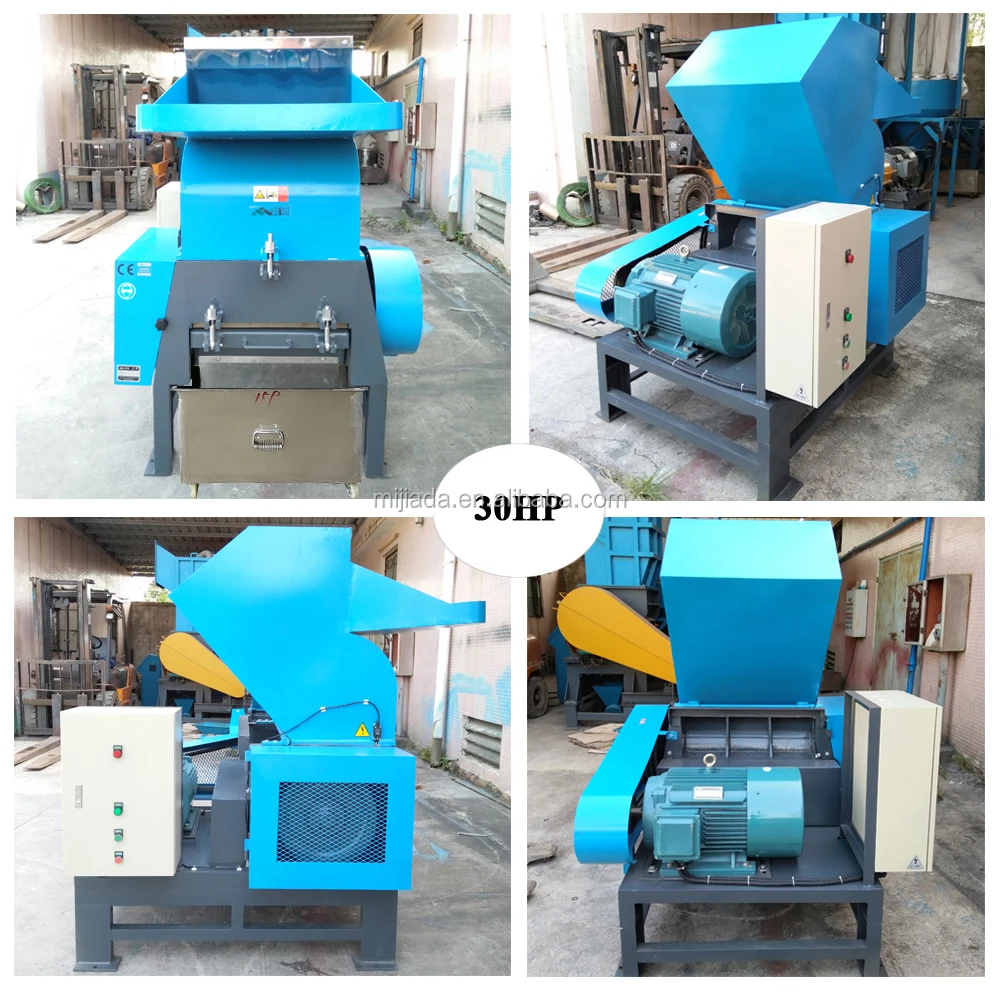

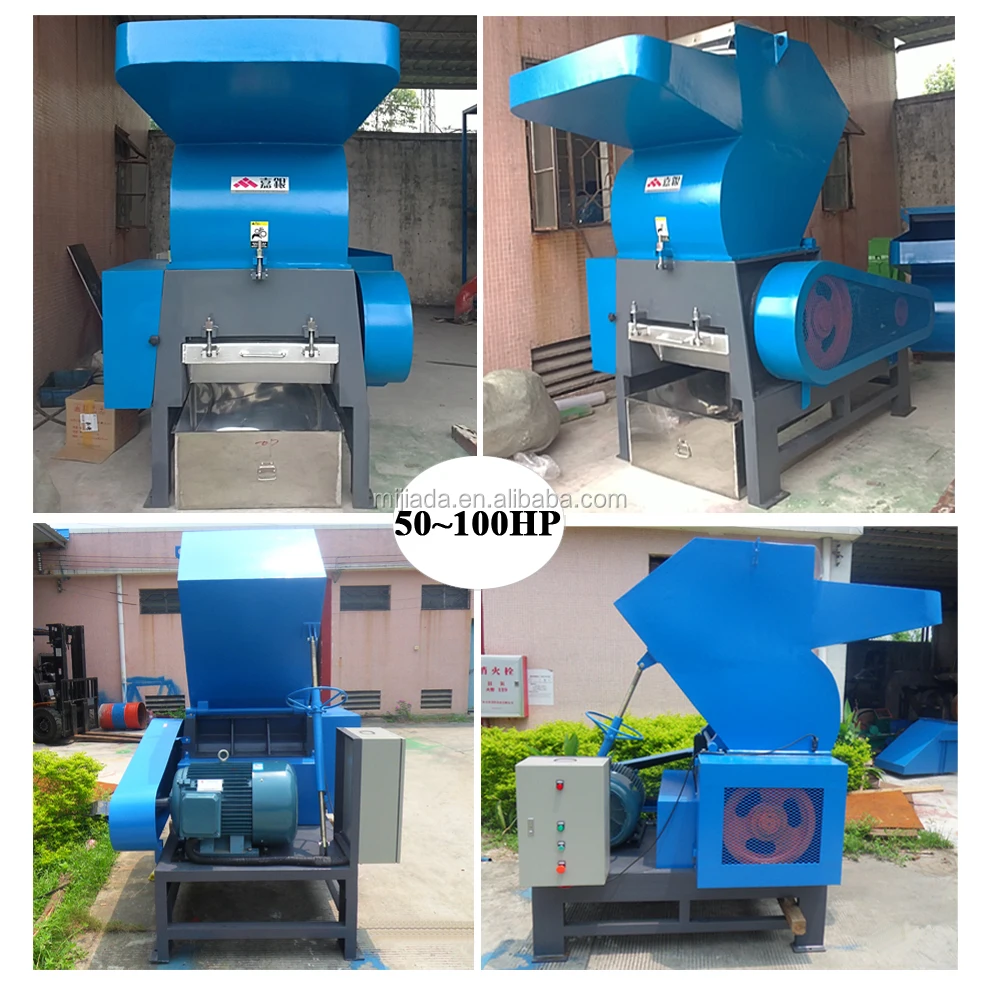

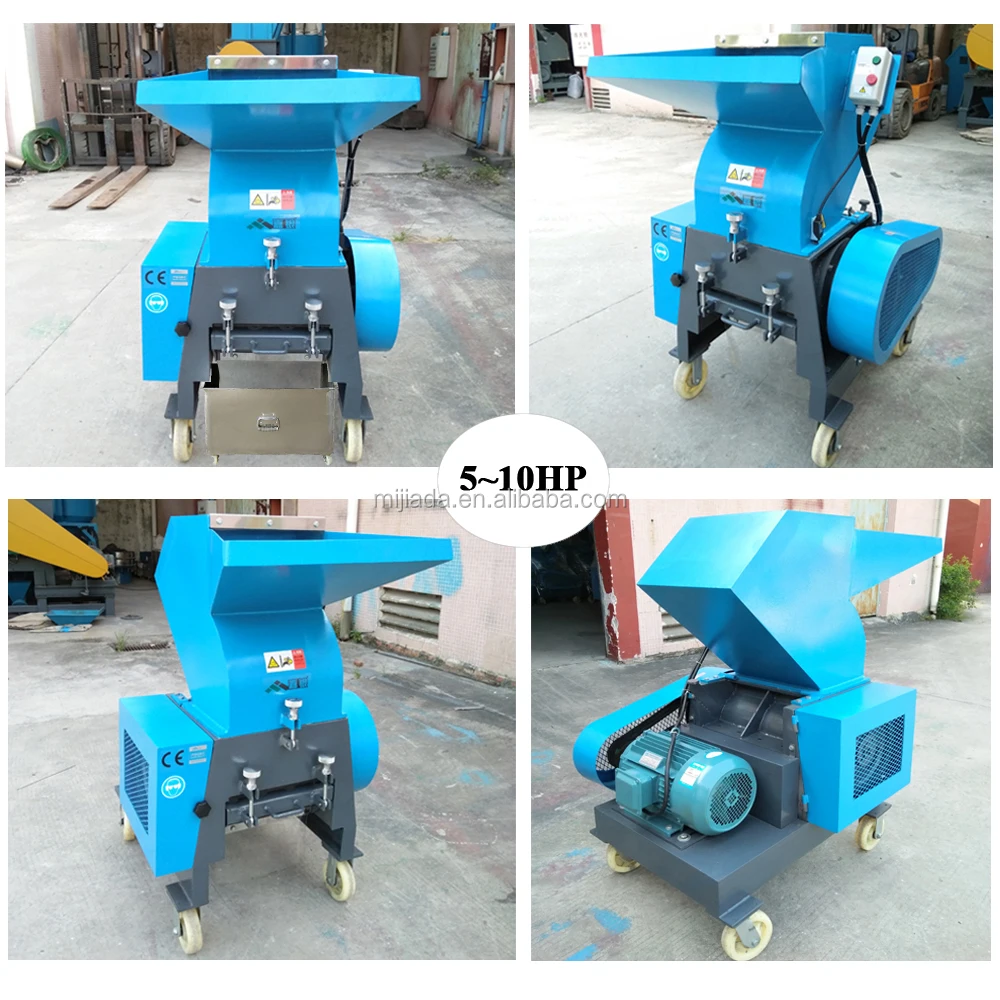

Crusher Details 750x750.jpg





Final Products750x750.jpg

Finished Products.jpg

     Guangzhou Jiayin Machinery Pte., Ltd.(Primitive name:Guangzhou Mikasa Machinery Pte.,Ltd) is one of the pioneers in auxiliary plastic forming equipment industry in China, specializing in research, design, manufacture and distribution and service of such equipment with the technology and experience accumulated over 20 years. To view our more information, please back to our home pag.



Certifications




------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Big Type PET Bottle Crusher



    This is a high efficient crusher which is specially designed for plastic bottle, Film and some other containers which with strong elasticity. It is also one machine of washing recycling line. Basing on the normal crusher, the crusher is added a water inlet for offering water during crushing. This watering function, which is optional, is to avoid damage of bottle’s nature quality. It is available in both dry crushing and watered crushing. Besides it equips with positive feed system if needing.



Standard type: only with watered crush;

Positive feed system: with both watered crush and positive feed.



PET Bottle Crusher Display.jpg PET Crusher Details 750x750.jpg

Feature of PET Bottle Crusher:

-- Outboard bearing: deep-set heavy bearing is fitted beside the machine, prevent the dust from dropping into the bearing; long life, easy maintain, especially excellent for the watered crush. Effectively avoid the damage of original quality of bottle. It also can work without putting water—dry crush.

-- 6pcs rotary Flat-cutter with ,mainly used for Plastic Bottle. High-quality cutter, sharp edge, durable in operation.

-- Easy operation; easy and quick to Change cutter.

-- Custom-made sound proof Bottle Grinder and grinder with standing station, Feeding Belt Conveyor and Discharging system etc.



Specification of PET Bottle Watered Crusher:

Model

MSC-5063

MSC-5080

MSC-50100

Type

Standard type

positive feed system

Standard type

positive feed system

Standard type

positive feed system

Crusher Motor Power (HP)

30

50

75

Positive Feed Power

 (HP)

/

3

/

4

/

7.5

Crushing Chamber (mm)

630x500

800x500

1000x500

Rotary speed

(r/min)

480

430

350

Output size of flakes (mm)

Customizing

Customizing

Customizing

Crushing ability (kg/hr)

500~900

800~1300

800~1200

1200~2000

900~1500

1800~2500

Rotary cutter (pcs)

6

6

6

Stationary cutter (pcs)

2

4

4

Dimensions(mm)

1280x1270x2210

1600x1800x2150

1800x1900x2300

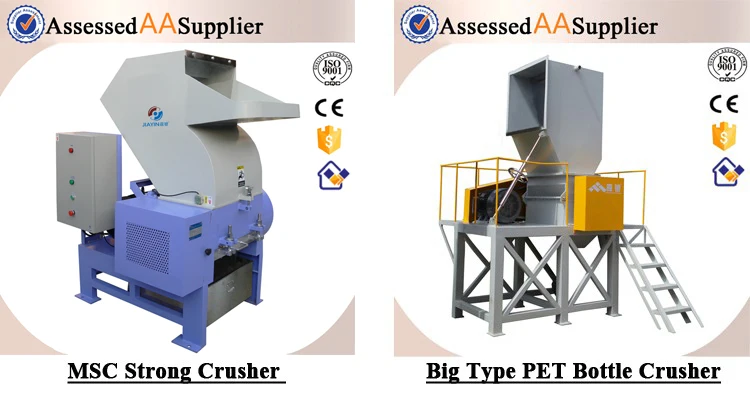

More Crushers

    Bottles/Film/Sheets Crusher           Sound proof Crusher                 Heavy Duty Crusher

Crusher seris.jpg

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Low-speed Double Shaft Shredder

.jpg

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

     Mid-speed Small Crusher         Low-speed & noise Small Crusher         Immediate Refill System

small crusher.jpg

Packaging & Shipping

2-2

Certifications


Our Services

Pre-sale service:

1) provide detailed information, picture, video & quotation for customer;

2) free testing;

3) Professional suggestions.

Guarantee and Repair:

Guarantee: 1 Year in common using condition (except damageable and aitificial)

Repair: 1) We provide technical guidance all life.

             2) Within the guarantee period, we will offer customers replacements free of charge for the broken parts.

Installation:

 We provide technical guidance, and also we can offer our technical engineer to buyer's factory for installation  If buyers require. Ticket, board and lodging and some related local expenses in Buyer's country for buyer's account.

FAQ

How about the quality of your product?

-- Our products manufactured strictly according to national and international standard.

-- We have  CE ,ISO certification

-- We take a test on every product before delivery.

How about price of this product?

-- We can give the lowest price  than market one.

-- We do quotation as soon as possible for any customer.

-- Discount can be given according to quantity.

What is the MOQ?

-- 1 set.

If you can be custom-made?

-- We can make products according to customer's requiments.

What is the voltage?

-- 380V 50hz 3 phase.(we can change it according to customer's requirement, charging fee)
