2Hz 100Hz 2D And 3D Seismic Detector Seismometer For Geological Detector

Product Overview

Description

2Hz-100Hz 2D And 3D Seismic Detector Seismometer for Geological Detector



Specifications

CDJ Series Digital Seismic Sensor (Geophone) are available frequencies from 1Hz to 100Hz vertical and horizontal direction, and
Geophones,Seismic Geophones,Digital Seismic Geophones,Seismic Sensor,Sensor

Digital Seismic Geophones CDJ Series Seismic Sensor



Description:

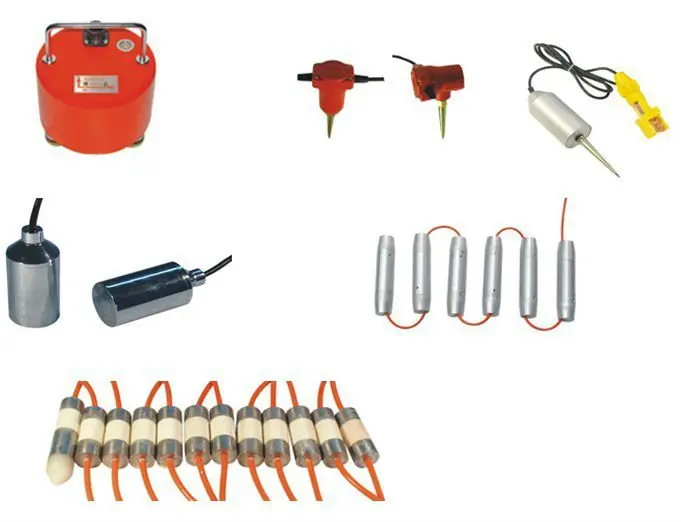

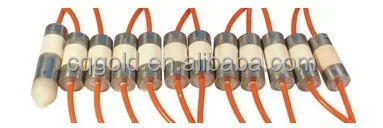

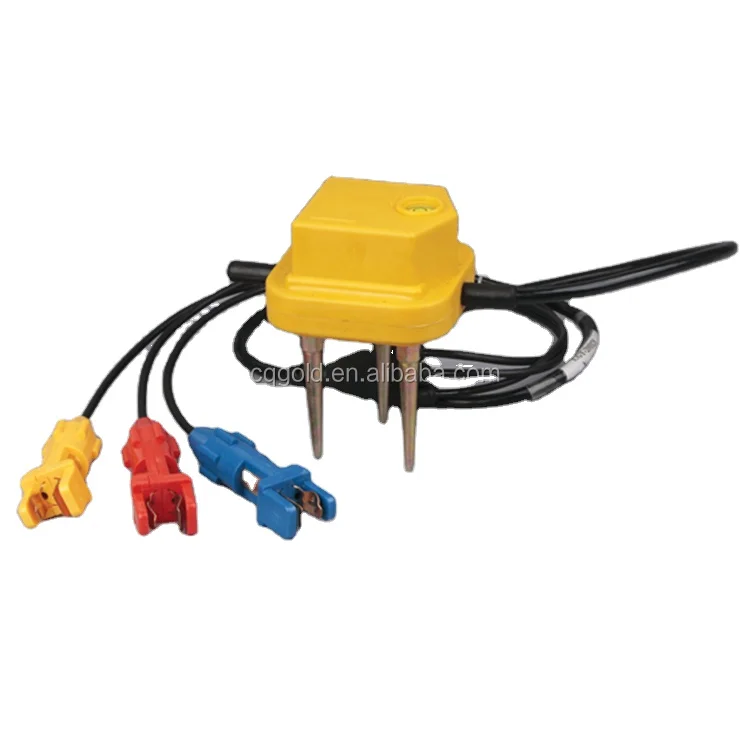

CDJ Series Digital Seismic Sensor (Geophone) are available frequencies from 1Hz to 100Hz vertical and horizontal direction, and geophone-consisted three-component geophones, borehole geophone, tomographic imaging geophone series with stable performance, high fidelity and consistent quality in oil, gas exploration and other fields.





Applications and Features:

1. 1~3Hz geophones applied for deep seismic prospecting, natural earthquake surveillance and prediction, pulse and microseismic measurement for bridge and highways, etc.
2. 4~100 Hz widely used to seismic prospecting of petroleum, coal, metallurgy, defense engineering and etc.
High sensitivity, low-distortion, reasonable damping coefficient, good linear response, good parameter conformity, higher resolution and excellent waterproof property.
3. Small-sized, easy to install, easy to operate, large ambient temperature range, can meet the demand of multi-wave component seismic data acquisition technology



Specification	4.5
Frequency (Hz)	4.5+/-0.5
Alias frequency	≥140
Resistance( Q )	375±5%
Dampener	0.56+8%
Sensitivity (v/m/s)	28.8±5%
Distortion (%)	0.3
Weight(g)	11.1
Displacement	3
Inclination	0
Diameter(mm)	25.4
Height(mm)	35.5      33.9 (horizontal)(vertical)
Weight(g)	82.6
Temperature	-40to+80
Temperature calibration	22 °C
