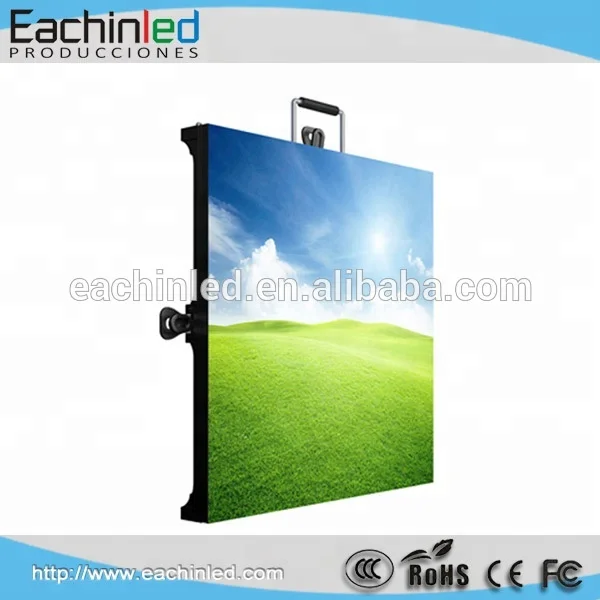

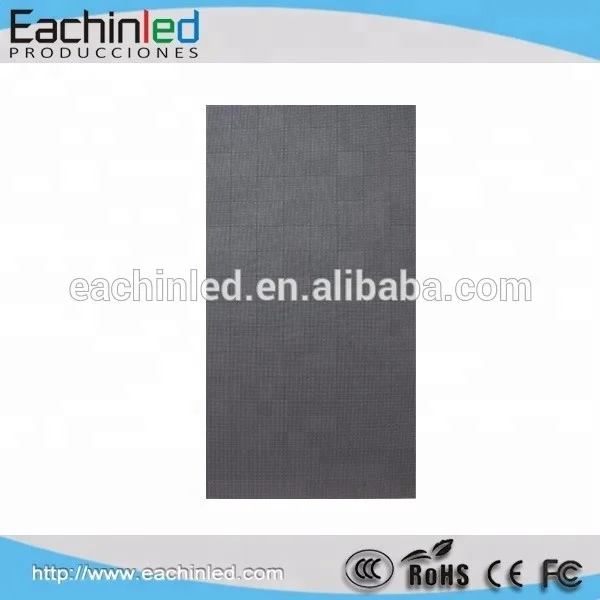

P5 indoor LED Signs board 5mm indoor led video wall oled billboard

1. High resolution and high pixel density, true reproduction of high-definition images.
2. Color uniformity, high contrast, clear picture Octavia.
3. Precision die-cast aluminum housing, to achieve smooth seamless.
4. Fanless design, good heat dissipation, keeping silent.
5. Case lightweight, easy to transport and handling.
6. Edge locks and hanging quick design, easy installation.

7. High stability, high reliability, long life.

3) Specifications


Outdoor Die casting Aluminum 640mm Rental LED Displays
Module	Pitch/mm	P6.67	P8	P10
	Module size/mm	320x320	320x320	320x320
	Density of pixel/(dots/m2)	22,478	15,625	10,000
	Led encapsulation	SMD3535	SMD3535	SMD3535
	Resolution of module	48X48	40X40	32X32
Main	Optimum viewing distance	7-75m	8-75m	10-150m
	View angle / °	140 H,120 V	140 H,120 V	110H,60V
	Max power consumption/W/M2	1100	1000	1000
	Size of cabinet/mm	640X640	640X640	640X640
	Resolution of cabinet	96x96	80x80	64x64
	Weight of cabinet/kg	≥15	≥15	≥15
	Driving method	1/8 scan constant current	1/4 scan constant current	1/4 scan constant current
	Refresh rate Hz/S	≥2000	≥2000	≥2000
	Luminance of white balance	≥5000 nits	≥6000 nits	≥5500 nits
	Operation of Environmental Temperature/°C	below 30 to above 50
	Working voltage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	256 levels of each color(manually),100 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	linsn(sending card, receiving cards and Hubs)
	Average of non-failure life	>50,00h
	Life span	>100,000h
	Functionless dot rate	<0.0001

Indoor Die casting Aluminum 576mm Rental LED Displays
Module	Pitch/mm	P4	P4.8	P5.33	P6
	Module size/mm	288x288	288x288	288x288	288x288
	Density of pixel/(dots/m2)	62500	43402	35,200	27,777
	Pixel composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B
	Led encapsulation	SMD0606	SMD3528	SMD3528	SMD3528
	Resolution of module	72X72	60X60	54X54	48X48
Main	Optimum viewing distance	3-15m	4-16m	5-16m	7.5-20m
	View angle / °	140H,120V	140H,120V	140H,120V	140H,120V
	Max power consumption/W/M2	1,100	1,100	1,000	1,000
	Size of cabinet/mm	576x576	576x576	576x576	576x576
	Resolution of cabinet	144X144	120X120	108X108	96x96
	Weight of cabinet/kg	8	8	8	8
	Driving method	1/9 scan constant current	1/15 scan constant current	1/9 scan constant current	1/8 scan constant current
	Refresh rate Hz/S	≥1500	≥1500	≥1500	≥1500
	Luminance of white balance	≥1500 nits	≥1500 nits	≥1500 nits	≥1500 nits
	Operation of Environmental Temperature/°C	below 30 to above 50
	Working voltage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	256 levels of each color(manually),100 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	linsn(sending card, receiving cards and Hubs)
	Average of non-failure life	>50,00h
	Life span	>100,000h
	Functionless dot rate	<0.0001

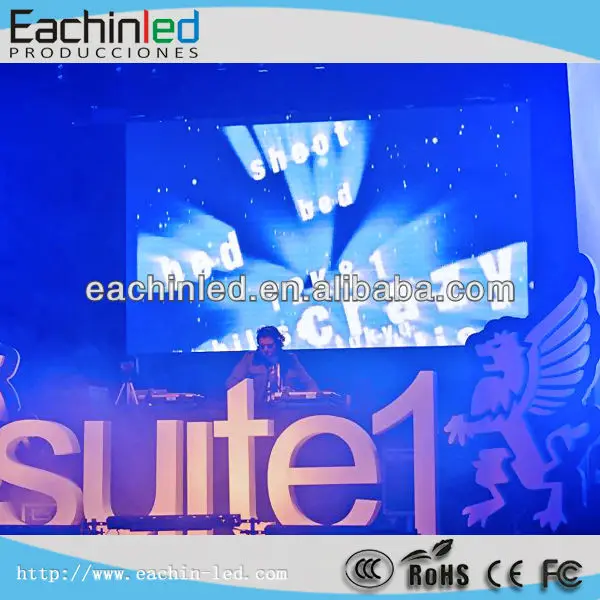

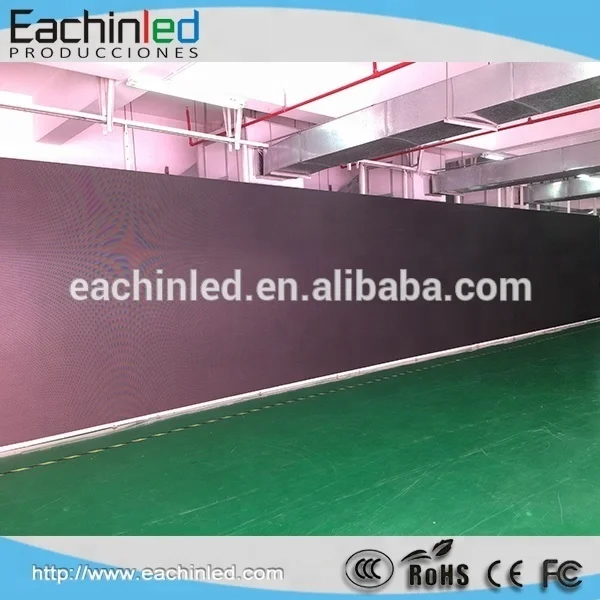

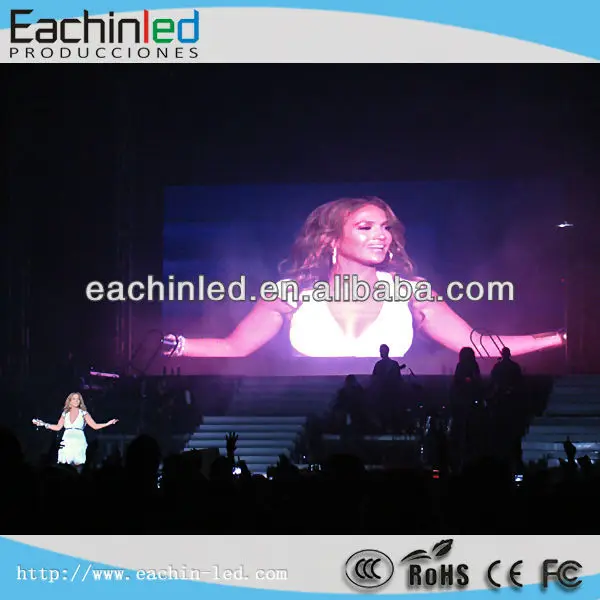

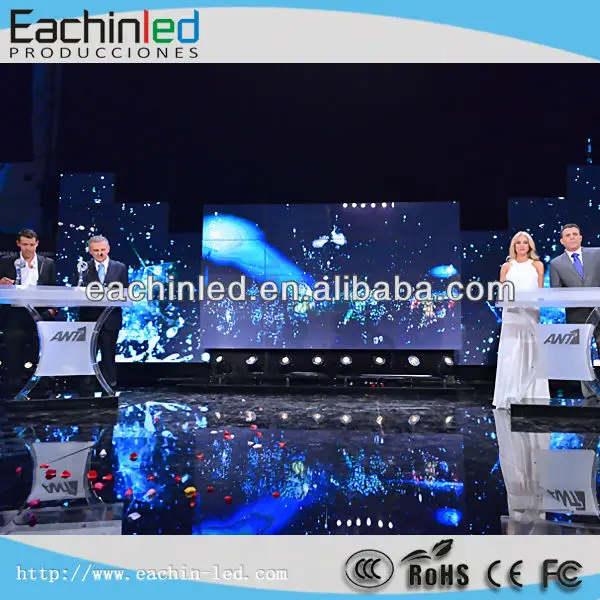

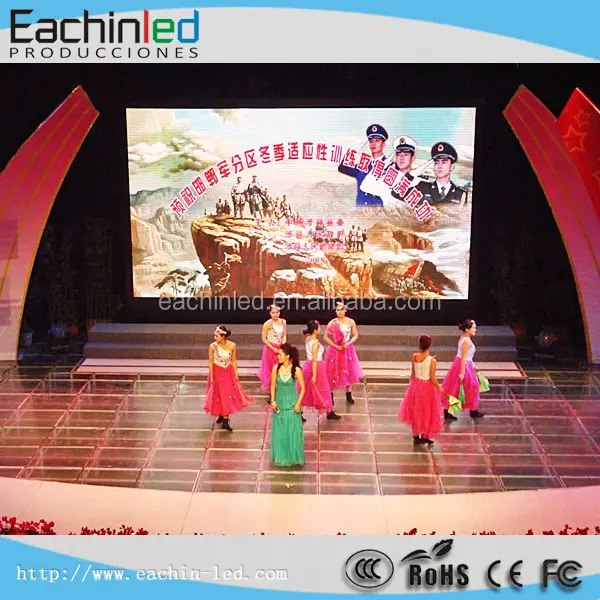

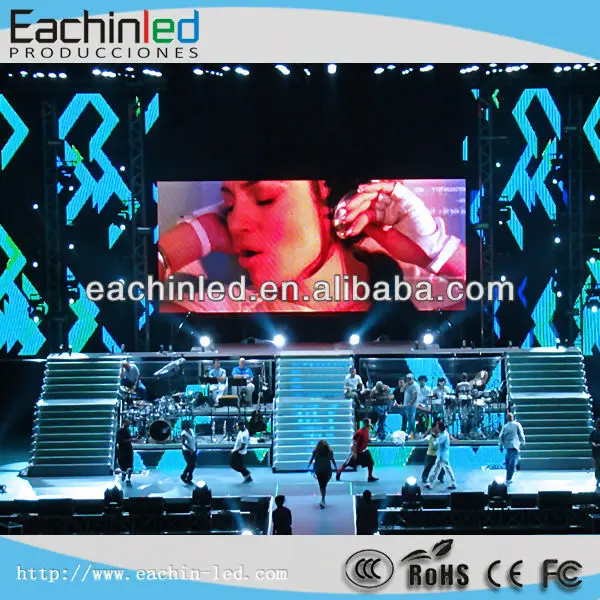

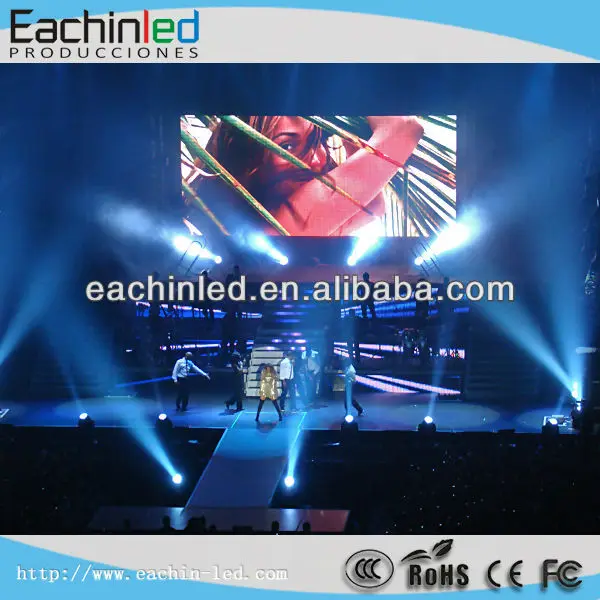

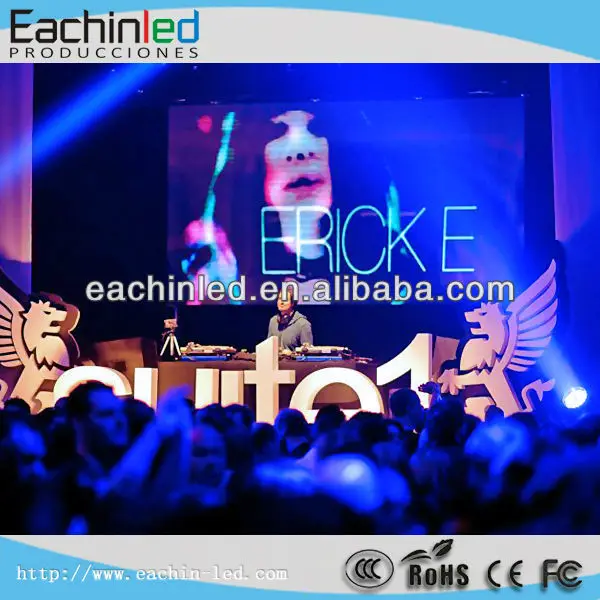

Gallery:

Our Services

1)Reply your inquiry in 24 working hours.

2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc

3)Customized design is available,OEM & ODM are welcomed.

4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

5)Special discount and protection of sales area provided to our distributor.

6)Warmly welcome your visit in our company if available.

7)Warranty: 24 months, a little investment for longer warranty time.
