SCM control superior lab size rock crusher table stand small crushing plant for stone, ore, coal
- Category: >>>
- Supplier: Jiangxi Guangming Intelligent Technology Co. Ltd.
Share on (60027470283):
Product Overview
Description
SCM control superior lab size rock crusher table stand small crushing plant for stone, ore, coal
Product Description
The lab size rock crusher typical application:
The small rock crusher is used for crushing medium hardnees ore,mineral,rock etc solid material for sample preparation in industries of laboratory, nonferrous metal, metallurgy, chemic industry, environment protection, scientific research fields and so on.
SP-80x40N lab rock crusher features:
The mini jaw crusher has the characteristics of uniform discharge size, simple and safe structure, reliable operation, SCM control, splas proof device on the feeding entrance,easy maintenance and inspection.
Working principle:
After starting the motor, triangle belt and motor belt wheel will drive the belt wheel and eccentric shaft to rotate, the movable jaw and movable jaw plate will do periodic movement, when the material passes through the no-rebound hopper and enters into crushing chamber, then the movable jaw plate and fixed jaw plate crush the material by friction.
SP-80x40N lab size rock advantages:
1. Legerity in shape, table operating, smooth running;
2.SCM control, turn button operation, ease of adjusting discharge size;
3.Splash proof device on the feeding entrance, safe and reliable;
4.Zero correction for the jaw plate distance assured the uniformity and repeatability of the discharge
size;
5.Eco-friendly design, equipped with dust extracting outlet;
6.Safety lifting handles, convenient to carry.
Technical Parameters:
SCM control superior lab size rock crusher table stand small crushing plant for stone, ore, coal | |||||
Model No. | GM/SP-80×40N | GM/EP-100×60X | GM/EP-150×125 | GM/EP-150×125X | GM/EP-250x150 |
Feeding entrance size(mm) | 80×40 | 100×60 | 150×125 | 150×125 | 250x150 |
Feeding size(mm) | ≤35 | ≤45 | ≤100 | ≤100 | ≤200 |
Discharging size (mm) | 0.5~5 | 0.2~3 | 3~38 | 6~38 | 10~40 |
Handling capacity(kg/h) | 60 | 60-250 | 500-1000 | 500~1200 | 1000-3000 |
Working power supply (V) | 220 | 380 | 380 | 380 | 380 |
Dimension (mm) | 360X580X510 | 570×1000×740 | 740×1140×985 | 740×1140×985 | 800×1670×1050 |
Motor power(kw) | 1.1 | 1.5 | 4 | 4 | 7.5 |
Total weight (kg) | 80 | 186 | 585 | 585 | 950 |

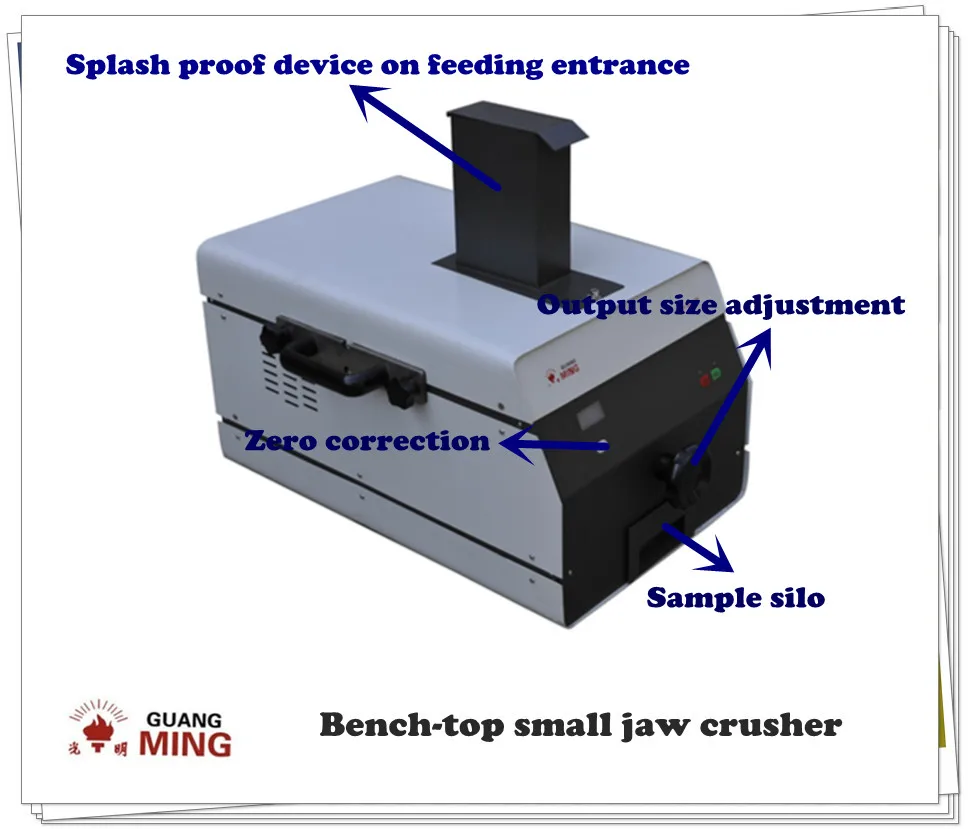

The small rock crusher detail photo:
Guangming laboratory series jaw crusher
Packaging & Shipping
Packaging way: Guangming each lab size rock crusher is packaged in a customized plywood case, which can protect the jaw crusher greatly during transportation process;
Shipping way: we have long-term cooperated shipping agent, sea shipping, air shipping and DHL shipping way are ok as customer's requirement.
Our Services
1.Engineer is available to service machinery oversea;
2.Customized laboratory equipment is available;
3.Flexible lead time and shipping way;
4.Quality and service is in the first place;
5.Superior scheme to solve your laboratory sample preparation problem;
FAQ
1. What's the lab size rock crusher warranty time:
=>One year
2. How long is the lead time?
=>It is flexible, normally 15-30days, 1-2days is also available when we have stock;
3. What's the laboratory jaw crusher power supply?
=> Our standard is 220V, 50Hz. We also can customize motor according to customer's local power supply.
Company Information
The laboratory size rock crusher supplier-Guangming company is a leading manufacturer that has 30years experience in laboratory sample preparation equipment, to achieve the goal of building world brand in the industry, Guangming units a number of high qualified engineer and talented managing persons to provide customers advanced product and good service.
Guangming factory covers about 18000 square meters production workshop, 3800 square meter technical center, and 2300 square meters staff living space.
Depending on rich experience and advanced technology, Guangming develop many patent products, such as the first set coal integrated sample preparation system, the first unmanned coal sample preparation system.
Guangming main products includes laboratory jaw crusher, roll crusher, hammer crusher, grinder, sieve shaker, divider, calorimeter, sulphur tester are Guangmings characteristic products. Jaw crushr, roll crusher and pulverizer have CE certificate.
Welcome to contact us for inquiry of the table stand small jaw crusher ore cand coal crushing plant!
