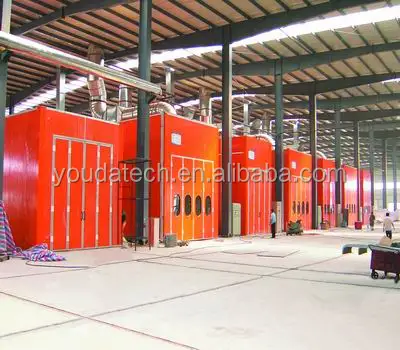

16M spray booth Industrial painting spray booth

Product Overview

Description

 Spray booth paint booth bake oven



Provide spraying, accelerated drying or baking in one clean, fast operation. Operators may herefore work with complete comfort and confidence, using virtually any type of today’s paint materials.



16M spray booth specification recommend



Inside Dimensions:	16000(L)X5000(W)X5000(H) mm
Outside Dimensions:	16150(L)X6750(W)X5600(H) mm
Booth	Without basement, pit type, 2 rows of grating; With 2 lifts inside of booth
Wall Panels:	Thickness: 75mm, double skined with polystyrene insulation(EPS) inside, tongue and groove interlock construction
Roof Panels:	50mm EPS ceiling panel; C-shape ceiling filter holders, powder coated.
Doors:	Drive Through of auto Main door, 4000(W)x4500(H) mm. 2 sets of personnel doors, 800(W)x2000(H) mm,with Tempered glass observation window; 1 set of middle auto door;
Generator Setting	Aluminum ally frame
Intake:	2 sets intake system, each set with 2x7.5KW centrifugal fan. Capacity:80000cmh
Extract:	2 sets extract system, each set with 1x11KW siemens motor; centrifugal fan, capacity:60000cmh  With manual value to adjust the pressure of inside booth
By-Pass:	Pneumatic damper from spraying to baking cycle
Heating System:	2 sets of heating system, each set with  Italy Riello 1xRG5S oil burner, total 520000Kcal/h heating capacity Stainless heating exchanger, heat exchange efficiency ≥85%





Special designs are available on request.
