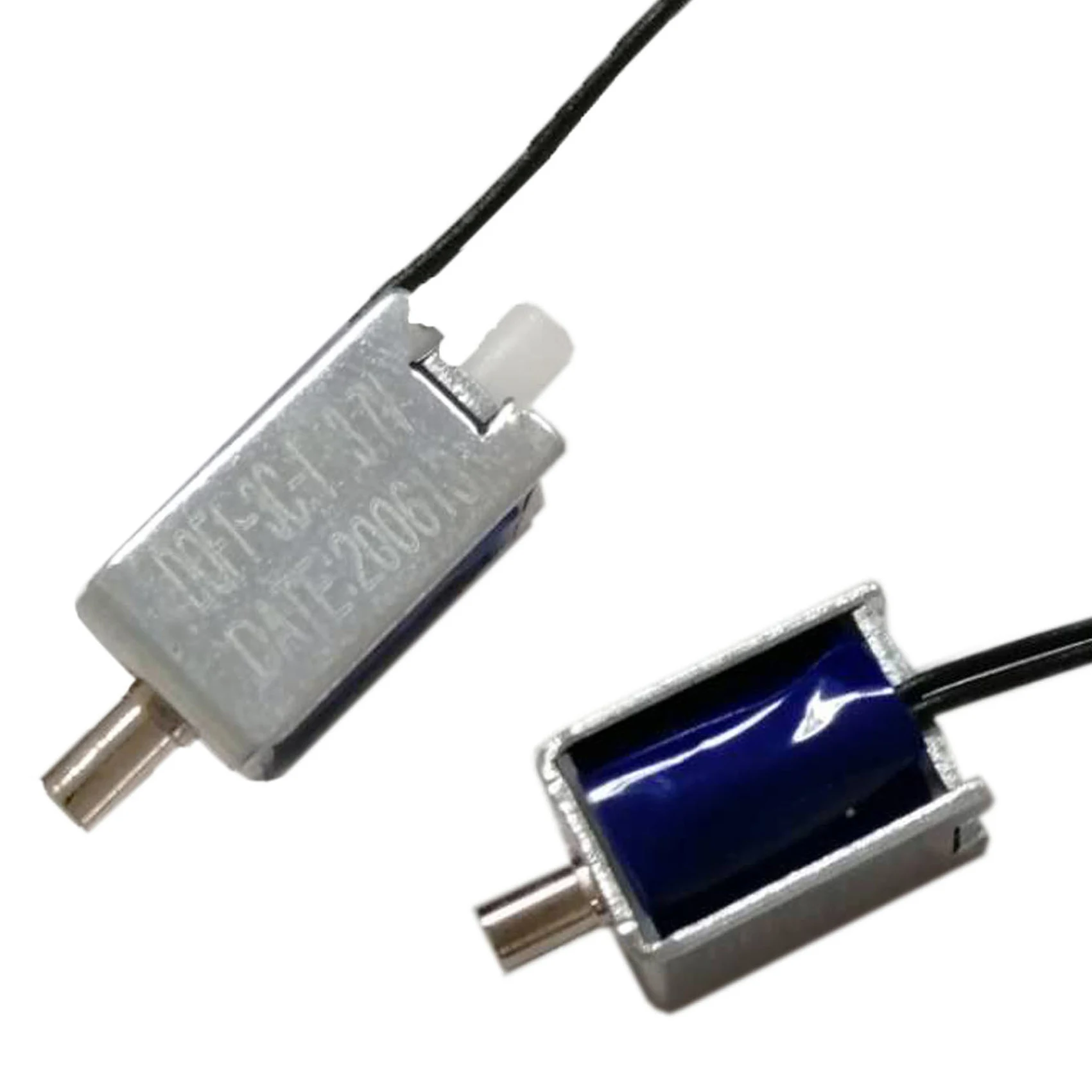

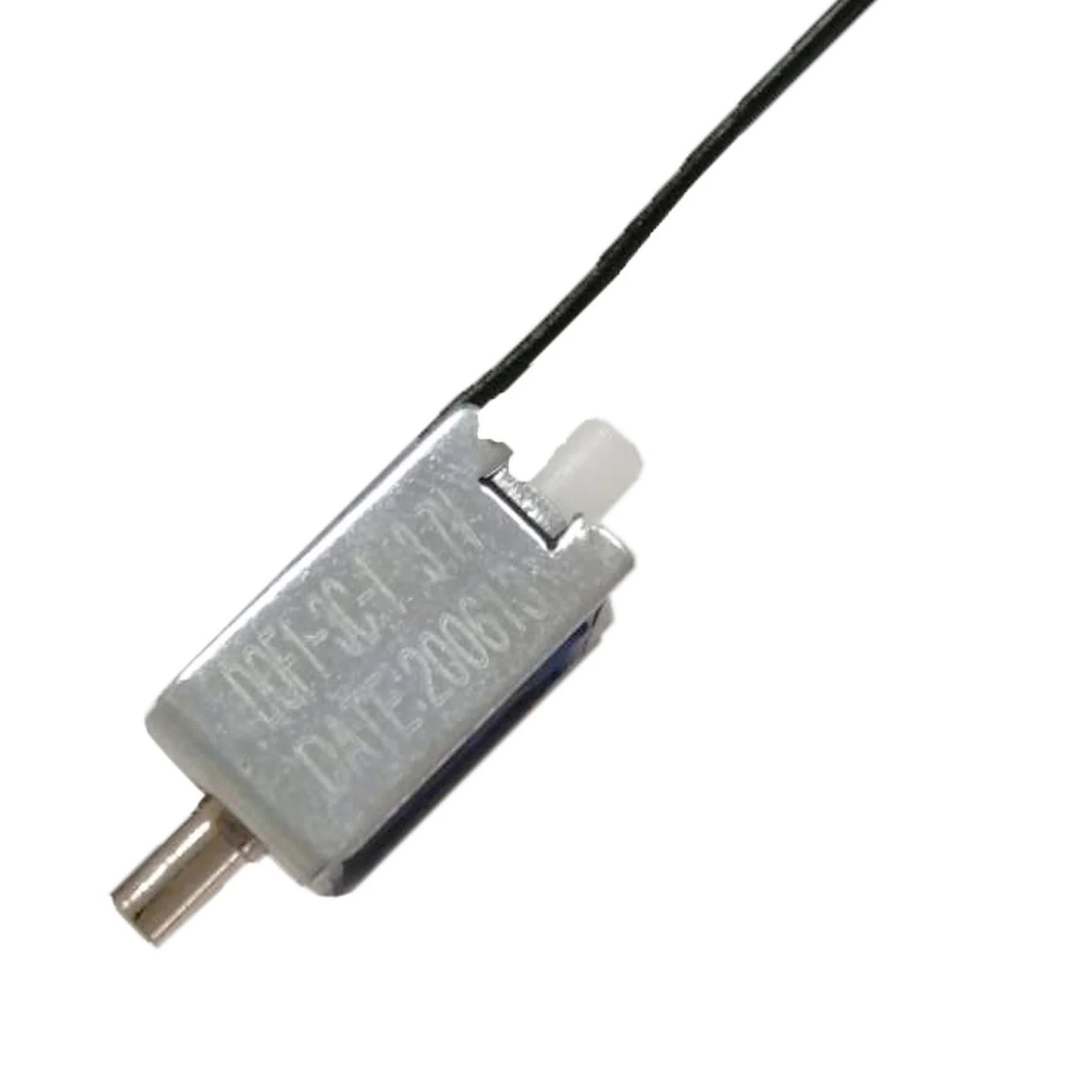

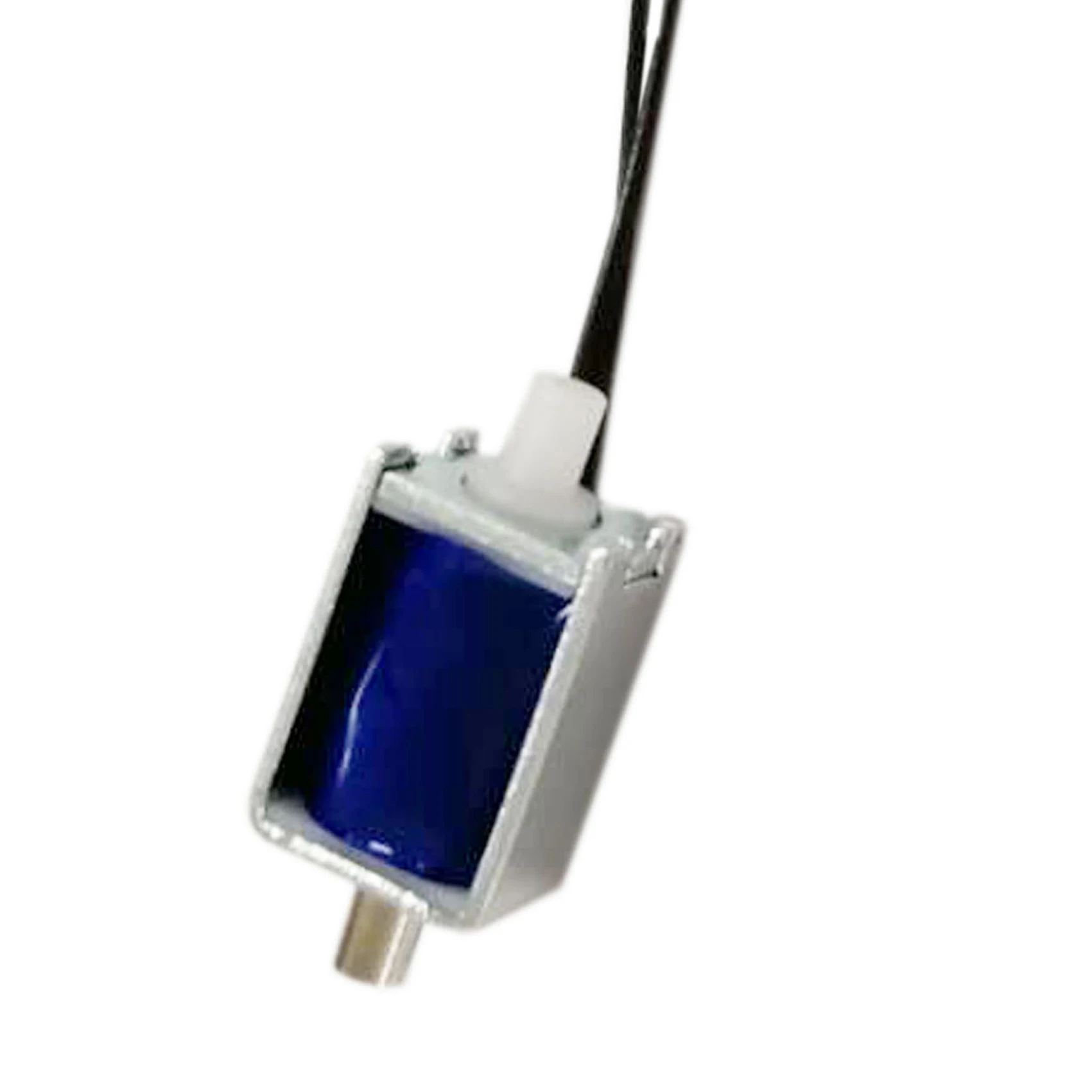

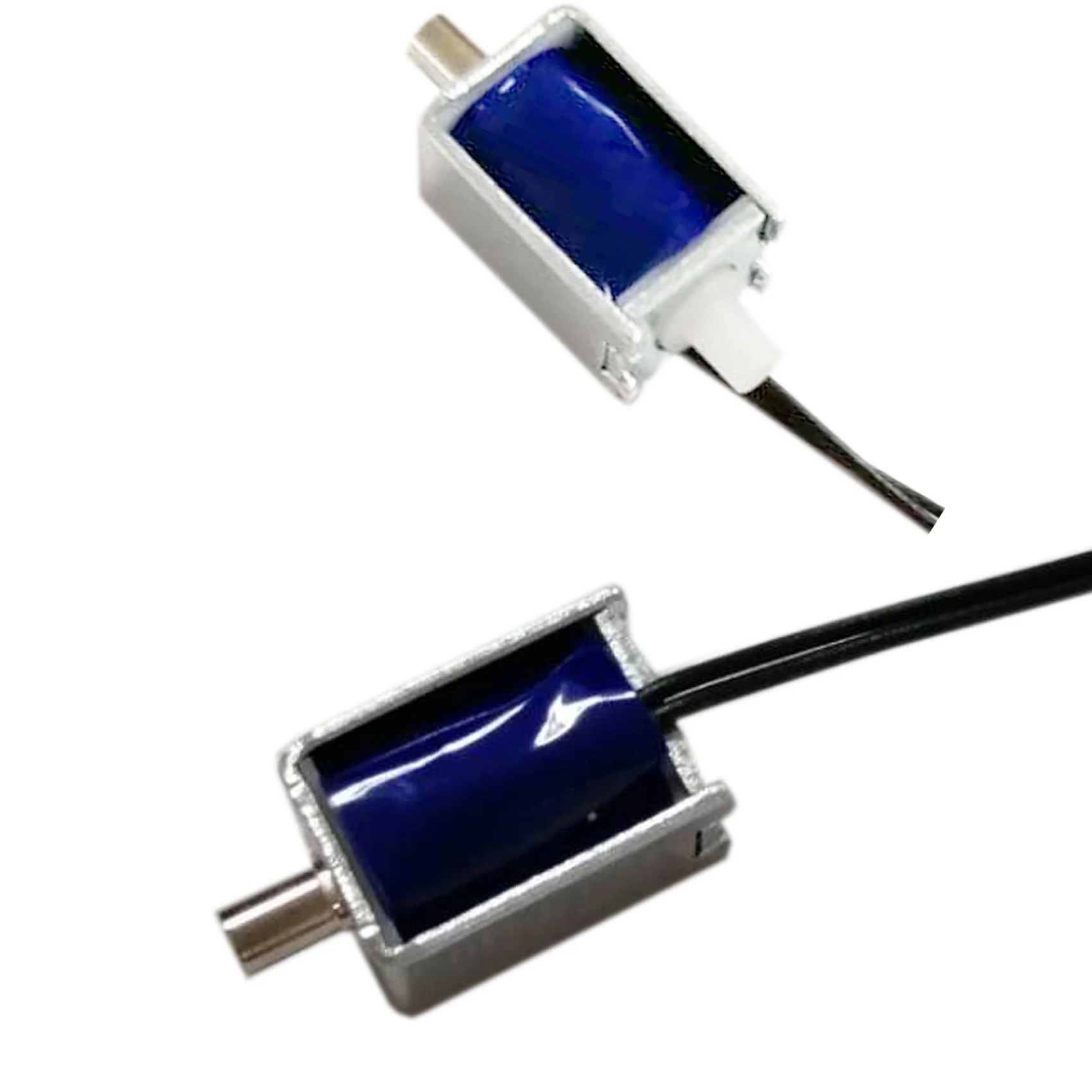

DC12V natural gas pressure regulator miniature stainless steel pressure reducing mini air valve DC6V/9V distributor

| Specification For Approval | ||||||
| Rated Voltage | DC3.0V | DC4.5V | ||||
| Rated Cwrent | <125mA | <110mA | ||||
| Rated Cwrent | 0.4-0.5W | |||||
| Pressure | 0-350mmHg | |||||
| Frustrated speed | <3s(in a 100cc tank, from 280mmHg to 15mmHg) | |||||
| Leakage | <3mmHg/min (in a 100cc tank, from 0 to 280mmHg±10mmHg, then stop for 30secs) | |||||
| Apply | Air | |||||
| Life Test | >200,000 times (in a 100cc tank, work for 10secs and stop for 4secs as a cycle) | |||||
| Product net weight | 8g | |||||
| Packing way | inner package | 100PCS/plate | 42g | 315*220*20mm | ||
| outer package | 1000PCS/box | 270g | 350*240*160mm | |||
| Environment | 5℃ ~55℃ | |||||
| General | Mainly used for electronic sphygmomanometer, massage, blood pressure monitors, eye protection device and other medical products | |||||

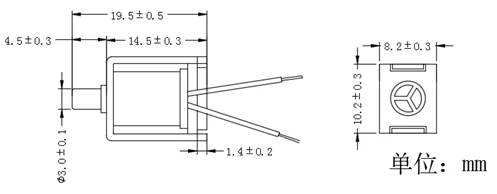

DIMENSION:
