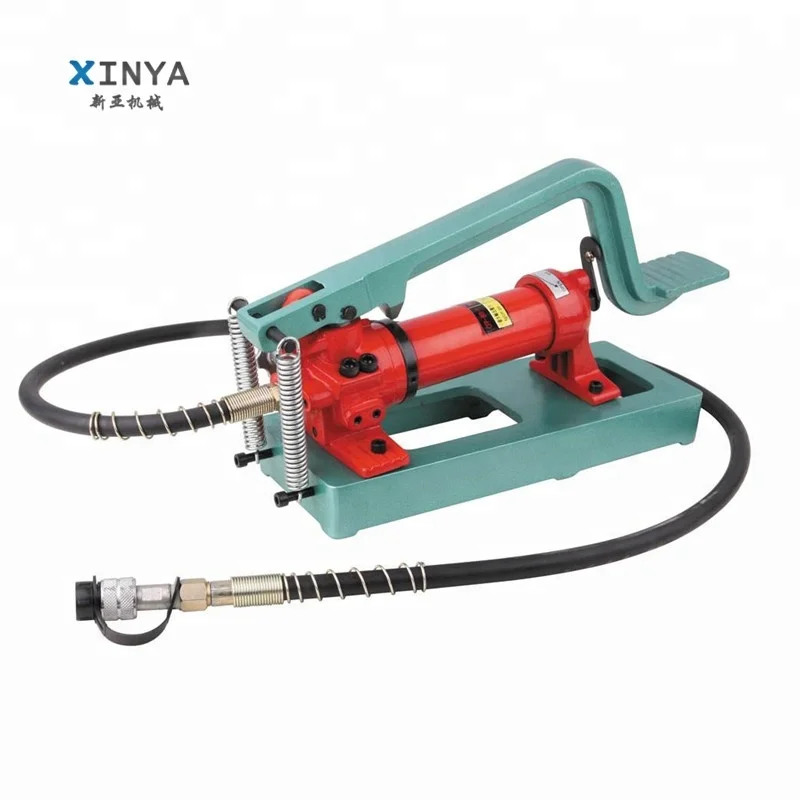

Double Circuit Hydraulic Foot Pump

Product Overview

Description





Double Circuit Hydraulic Foot Pump



Application

It can provide power for the cutting tool, the hydraulic compressor,

punching machine and other construction machinery,

which is operated in the wild field in electric power, railway, rescue, construction and other industries.



Features

1.Double loop piston

2.Iron box packing
3.Use No.15 Antiwear hydraulic oil

4.Save time and labor

5.High efficiency



Technical Data for Hydraulic Foot Pump

Product No.	Model Type	Max Pressure(kg/cm2)		Oil Flow Per min(cc)		Oil Capacity(cc)	Dimension(mm)	Weight(kg)
		Low pressure	High pressure	Low pressure	High pressure
80050	CFP-800	20	700	13	2.3	700	450*150*200	9
