Product Overview
Description

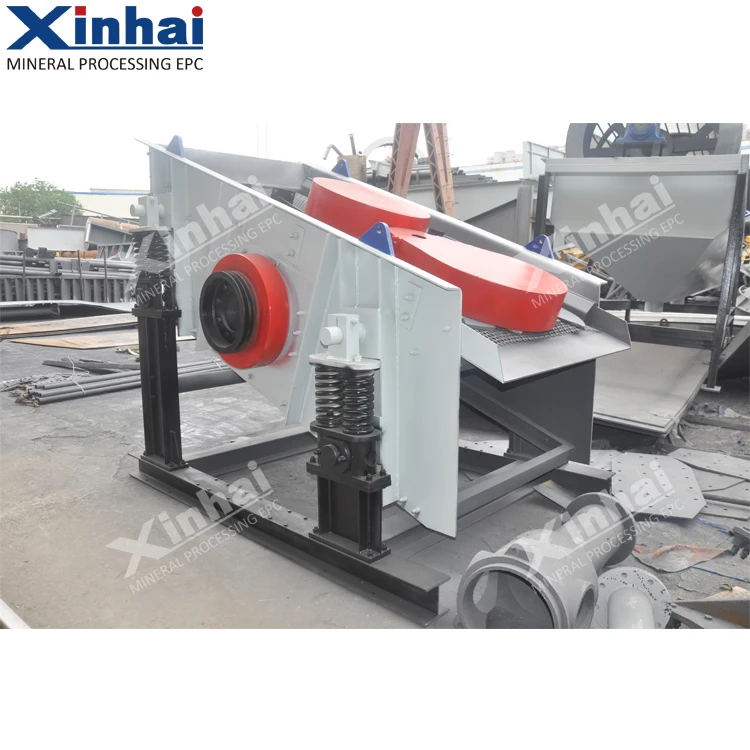

Round Sieve Machine Vibrating Screening Machine
Product improvement
Vibrating Screening Machine — Product Improvement
Ring groove rivets connection, plate type screen box, advanced structure, strong and durable
Vibration exciter with eccentric shaft and eccentric block, high screening efficiency, large capacity
Advantages
Vibrating Screening Machine — Advantages
Screen mesh is made of wear-resistant rubber with long service life
Screen frame with high strength
Large clearance bearings operating with low temperature lift
Reasonable mechanical structure, low noise and high screening efficiency
Ring groove rivets connection, advanced structure, strong and durable
Large capacity, strong versatility of components and convenient repair
Classification
Vibrating Screening Machine — Classification of screen mesh
Screen mesh is main wearing parts. According to the materials and requirement of clients, there are manganese steel weaving meshes, punching screens and rubber screen plates with single or double layers.
According to the loading, wear-resistant screen mesh of Xinhai round vibrating screen is divided into light screen mesh (HD60 rubber), medium screen mesh (HD 70 rubber), heavy screen mesh (HDS rubber)

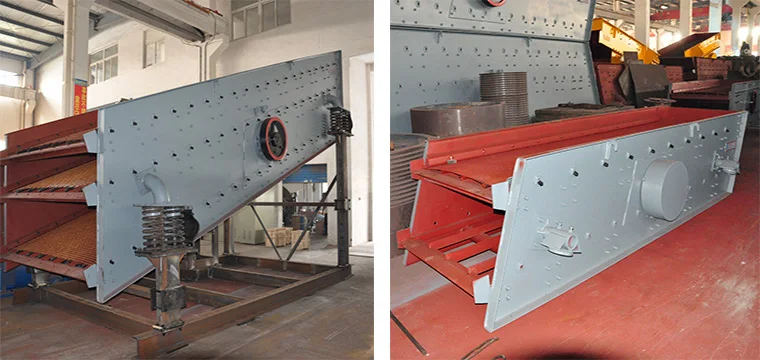

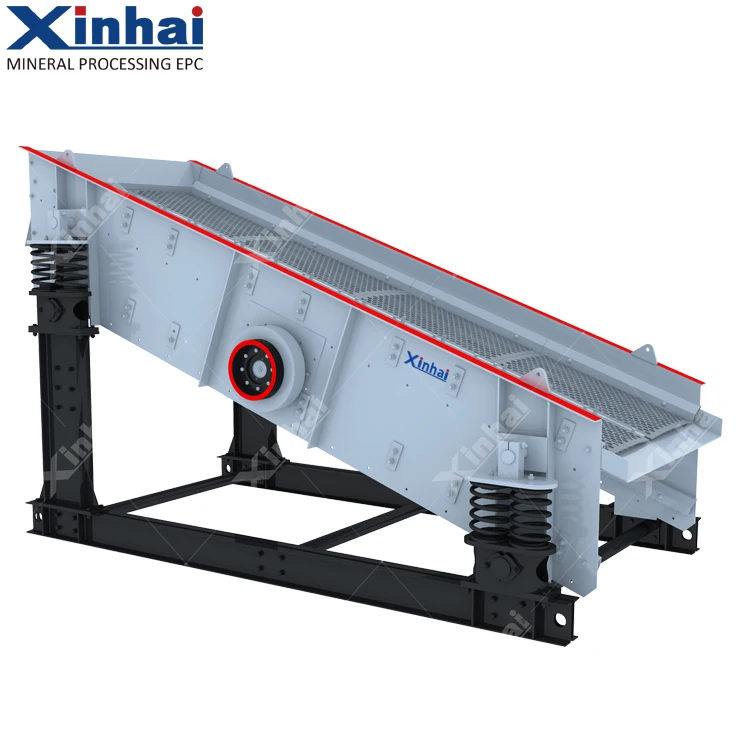

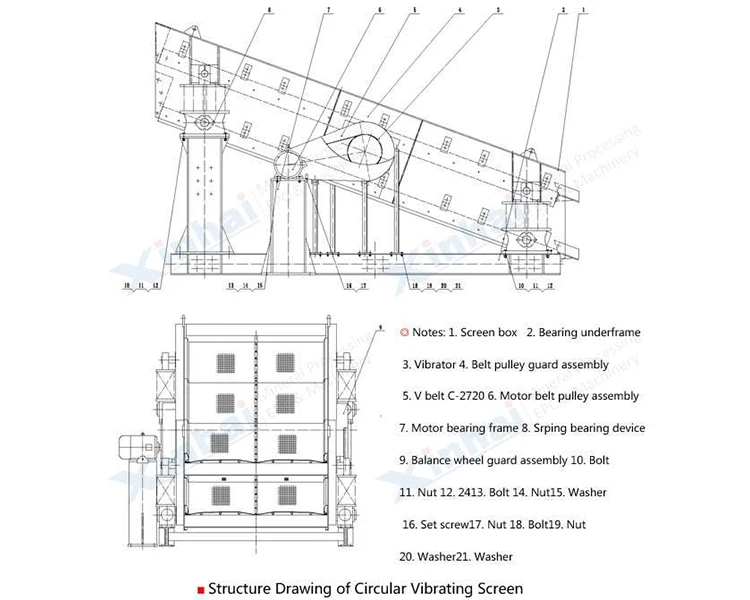

Product Structure
Vibrating Screening Machine — Product Description
Round vibrating screenadopts eccentric shaft vibration exciter and eccentric block to adjust amplitude. The vibrator installed on the sideboard of screen box forces screen box to vibrate by the driving of motor. The sideboard of vibrating screen is made of high quality steel plate. Connect sideboards, beams, and the exciter base by high strength bolts or ring groove rivet. Vibrating screen adopts seat installation, and screen angle can be adjusted by changing the height of spring support.
The motor of round vibrating screen are installed on the right side of screen box, and can also be installed on the left side of screen box. If no special requirements, the motor is installed on the right side.
Application
Vibrating Screening Machine — Application
Round vibrating screen is applied in quarry for screening sandstone or for product classification of coal, mine, construction materials, electric power and chemical industry.
Technical Parameters
Vibrating Screening Machine — Technical Parameters
| Spec. | Screen Surface | Maximum Feeding Particle Size(mm) | Capacity (t/h) | Motor | Weight (kg) | |||
| Area (m2) | Dip Angle (°) | Mesh size (mm) | Spec. | Power | ||||
| YA1236 | 4.3 | 20 | 6~50 | 200 | 80~240 | Y160M-4 | 11 | 4905 |
| 2YA1236 | 80~240 | Y160M-4 | 5311 | |||||
| YA1530 | 4.5 | 80~240 | Y160M-4 | 4675 | ||||
| YA1536 | 5.4 | 100~350 | Y160M-4 | 5137 | ||||
| 2YA1536 | 400 | 100~350 | Y160L-4 | 15 | 5624 | |||
| YAH1536 | 30~150 | 160~650 | Y160M-4 | 11 | 5625 | |||
| 2YAH1536 | 30~200 6~50 | 160~650 | Y160L-4 | 15 | 6045 | |||
| YA1542 | 6.5 | 6~50 | 200 | 110~385 | Y160M-4 | 11 | 5515 | |
| 2YA1542 | 30~150 | 110~385 | Y160L-4 | 15 | 6098 | |||
| YA1548 | 7.2 | 6~50 | 120~420 | Y160L-4 | 5918 | |||
| 2YA1548 | 6~50 | 120~420 | Y160L-4 | 6321 | ||||
| YAH1548 | 30~150 | 400 | 200~780 | Y160L-4 | 6842 | |||
| 2YAH1548 | 7.2 | 30~150 | 200~780 | Y160L-4 | 7404 | |||
| YA1836 | 6.5 | 30~150 | 200 | 140~220 | Y160M-4 | 11 | 5205 | |
| 2YA1836 | 6.5 | 30~150 | 140~220 | Y160L-4 | 15 | 5946 | ||
| YAH1836 | 6.5 | 30~150 | 400 | 220~910 | Y160M-4 | 11 | 5900 | |
| 2YAH1836 | 6.5 | 30~200 6~50 | 220~900 | Y160L-4 | 15 | 6353 | ||
| YA1842 | 7.6 | 6~150 | 200 | 140~490 | Y160L-4 | 15 | 5829 | |
| 2YA1842 | 7.6 | 6~150 | 140~490 | Y160L-4 | 15 | 6437 | ||
| YAH1842 | 7.6 | 30~150 | 400 | 450~800 | Y160L-4 | 15 | 6352 | |
| 2YAH1842 | 7.6 | 30~150 | 450~800 | Y160L-4 | 15 | 7037 | ||
| YA1848 | 8.6 | 20 | 6~50 | 200 | 150~525 | Y160L-4 | 15 | 6289 |
| 2YA1848 | 8.6 | 150~525 | Y160L-4 | 15 | 6624 | |||
| YAH1848 | 8.6 | 30~150 | 150 | 250~1000 | Y160L-4 | 15 | 7122 | |
| 2YAH1848 | 8.6 | 30~150 | 400 | 250~1000 | Y160L-4 | 15 | 7740 | |
| YA2148 | 10 | 6~50 | 210 | 180~630 | Y180M-4 | 18.5 | 9033 | |
| 2YA2148 | 10 | 6~50 | 210 | 180~630 | Y180L-4 | 22 | 10532 | |
| YAH2148 | 10 | 13~200 | 400 | 270~1200 | Y180M-4 | 18.5 | 10430 | |
| 2YAH2148 | 10 | 30~150 | 400 | 270~1200 | Y180L-4 | 22 | 11190 | |
| YA2160 | 12.6 | 3~80 | 200 | 230~800 | Y180M-4 | 18.5 | 9926 | |
| 2YA2160 | 12.6 | 6~50 | 200 | 230~800 | Y180L-4 | 22 | 11249 | |
| YAH2160 | 12.6 | 30~150 | 400 | 350~1500 | Y200L-4 | 30 | 12490 | |
| 2YAH2160 | 12.6 | 30~150 | 400 | 350~450 | Y200L-4 | 30 | 13858 | |
| YA2448 | 11.5 | 6~50 | 200 | 200~700 | Y180 M -4 | 18.5 | 9834 | |
| YAH2448 | 11.5 | 6~50 | 400 | 310~1300 | Y200L-4 | 30 | 11830 | |
| 2YAH2448 | 11.5 | 30~150 | 400 | 310~1300 | Y200L-4 | 30 | 13012 | |
| YA2460 | 14.4 | 6~50 | 200 | 260~780 | Y200L-4 | 30 | 12240 | |
| 2YA2460 | 14.4 | 6~50 | 200 | 260~780 | Y200L-4 | 30 | 13583 | |
| YAH2460 | 14.4 | 30~150 | 400 | 400~1700 | Y200L-4 | 30 | 13096 | |
| 2YAH2460 | 14.4 | 20 | 30~150 | 400 | 400~1700 | Y200L-4 | 30 | 14455 |
