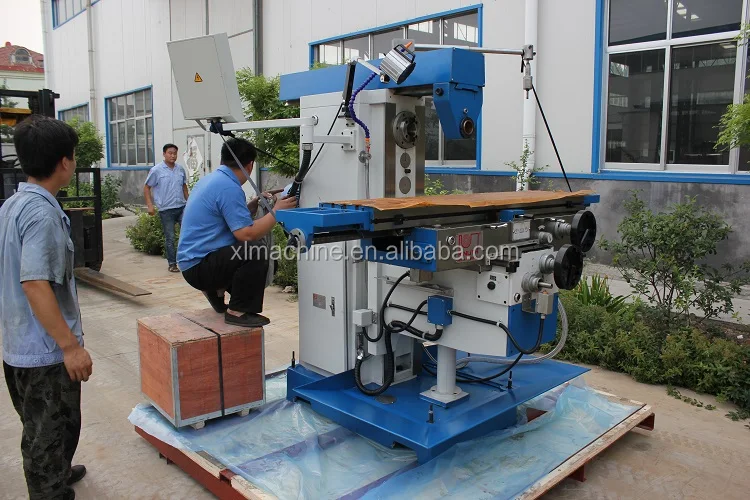

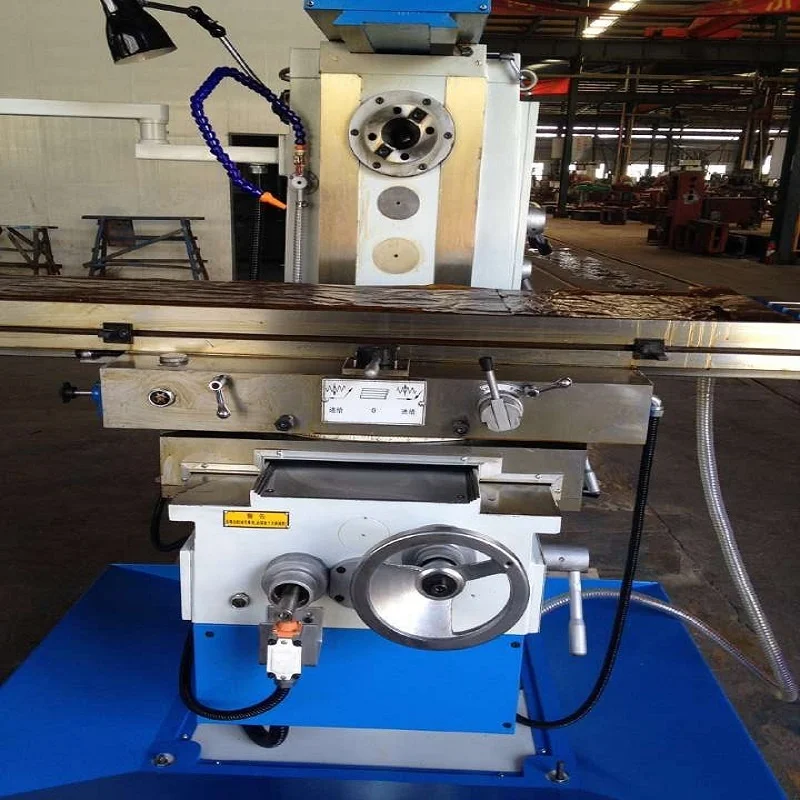

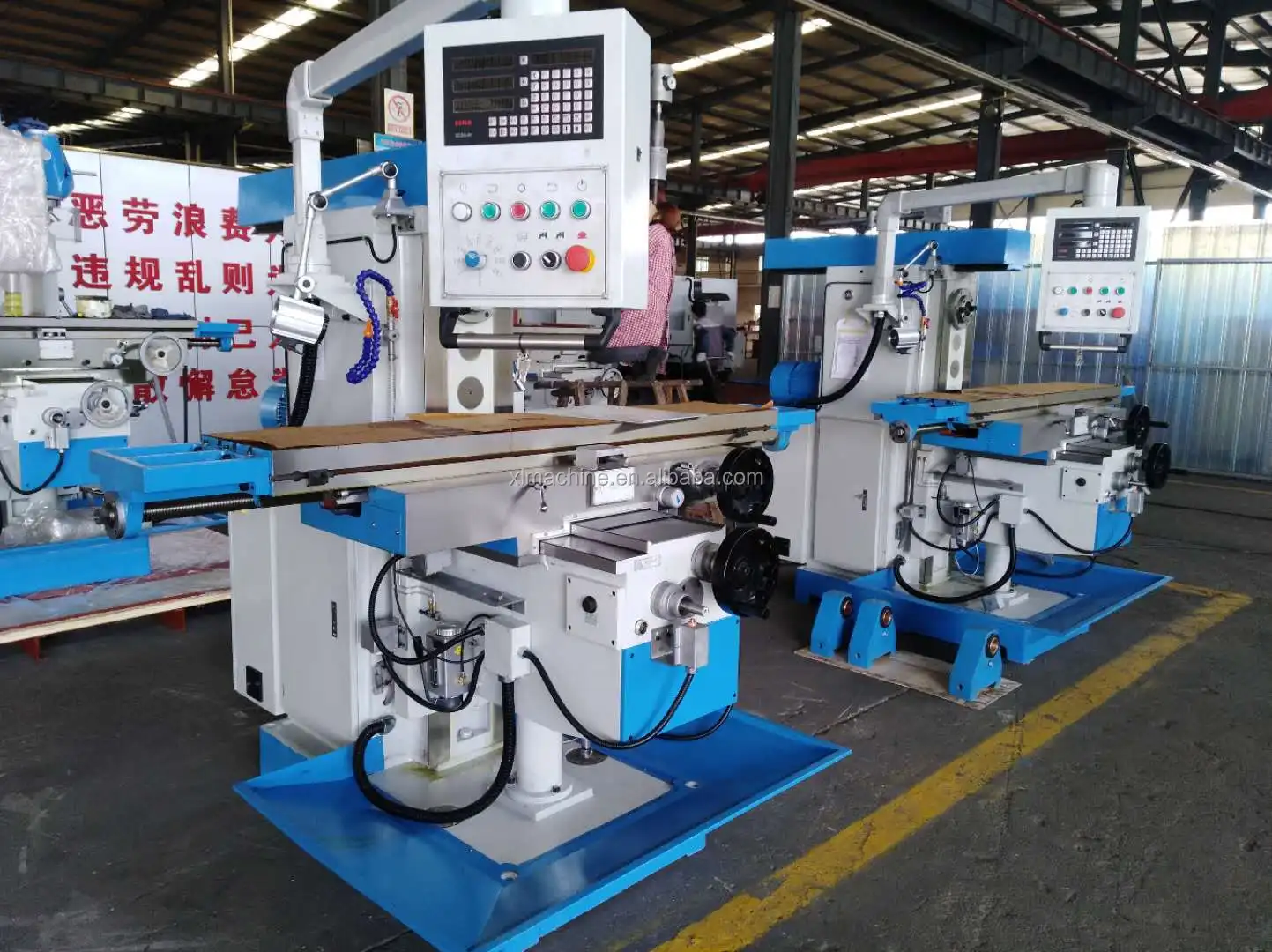

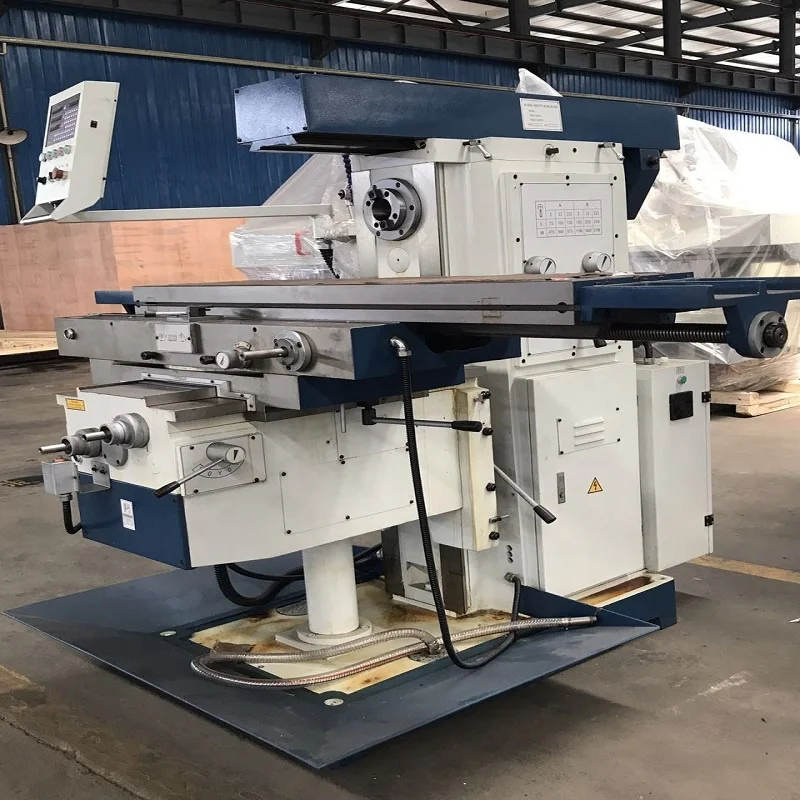

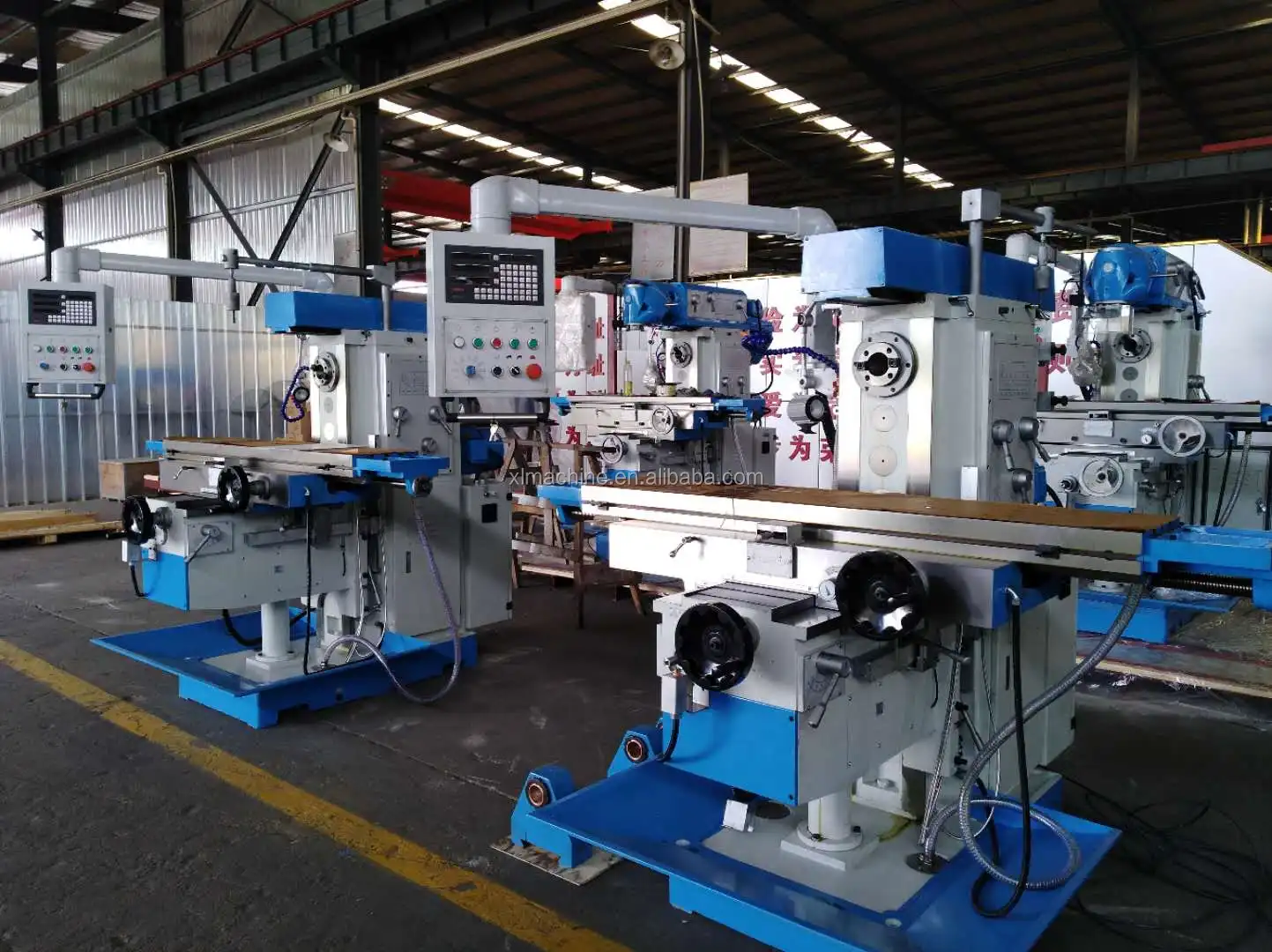

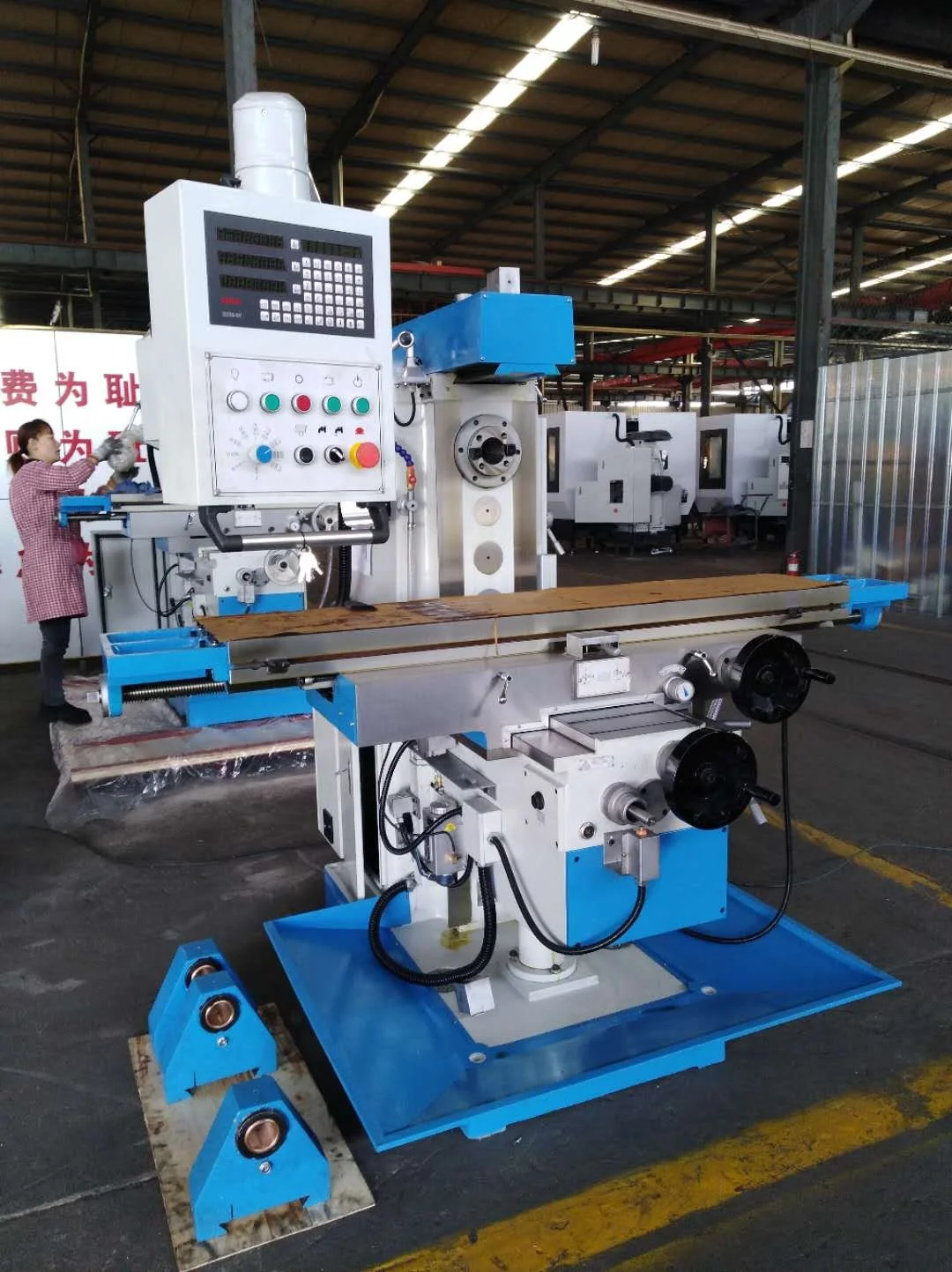

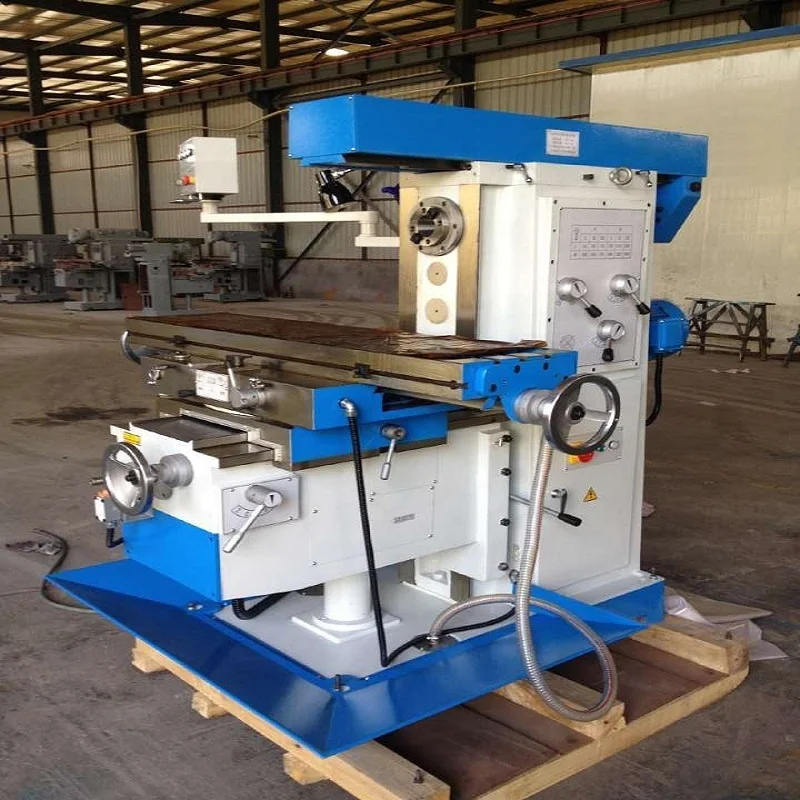

XL6136CL China DRO universal milling machine for metal cutting
- Category: >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (60028440856):
Product Overview
Description
XL6136CL China DRO universal milling machine for metal cutting
Specification | Unit | XL6036 | XL6036C | XL6036CL |
Spindle taper | - | 7:24 ISO50 | ||
Distance between spindle nose and table | mm | 20-480 | 20-470 | |
Distance from spindle axis to arm | mm | 175 | ||
Spindle speed range | - | 12steps 60~1800r.p.m | ||
Table size | mm | 1325X360 | 1600X360 | |
Table travel(X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
Table feed(X/Y/Z) | mm/min | 30-750 / 20-500 / 15-375 | ||
Table rapid speed (X/Y/Z) | mm/min | 1200/800/600 | ||
T-slots(NO:/width/pitch) | mm | 3/18/70 | ||
Arm travel | mm | 500 | ||
Main motor power | kw | 5.5 | ||
Torque of X/Y/Z axis AC servo motor | N.m | 10 | ||
Overall size | mm | 1800X2100X1870 | 2245X2100X1870 | 2520X2100X1870 |
Net weight | kg | 2450 | 2515 | 2560 |
Rotating worktable can be ordered at special request
Model | Table size | Max table travel - X/Y/Z | Max rotary angle of table | Distance between spindle center line and table surface |
XL6136 | 1325×360 | 750/320/400 | ±45° | 20-420 |
XL6136C | 1100/320/400 | |||
XL6136CL | 1600X360 | 1300/320/400 |

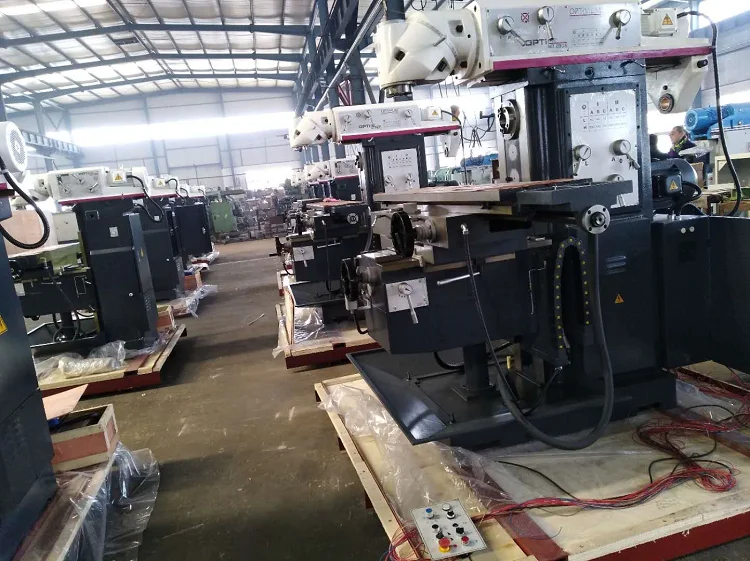

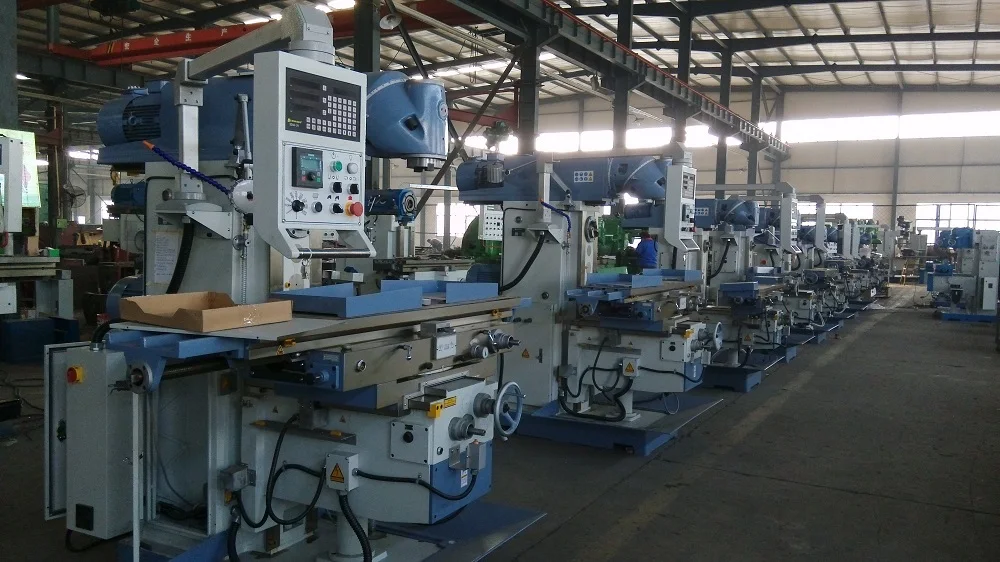

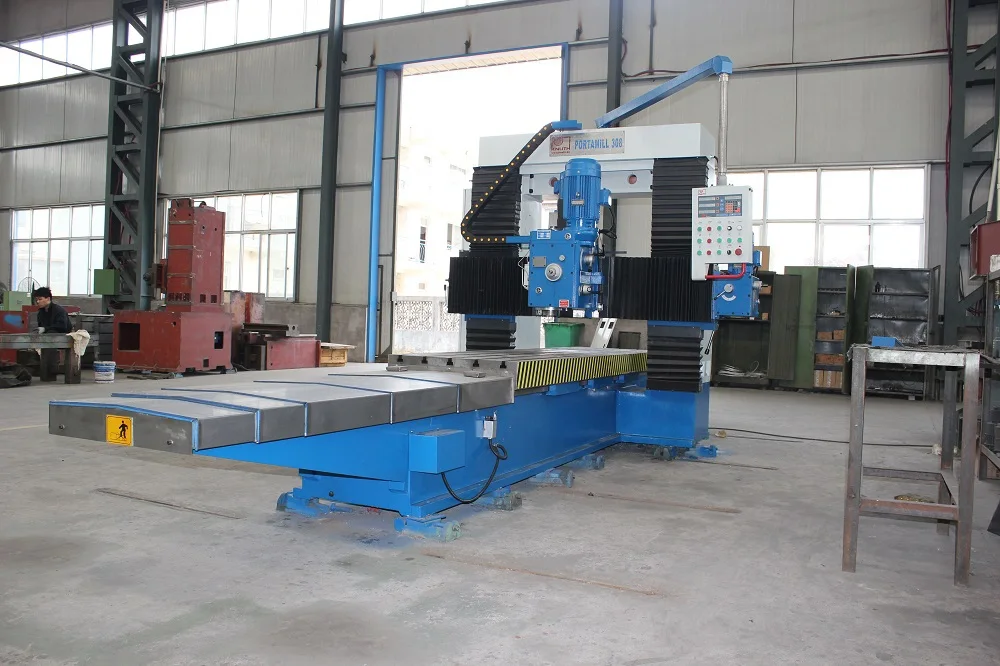

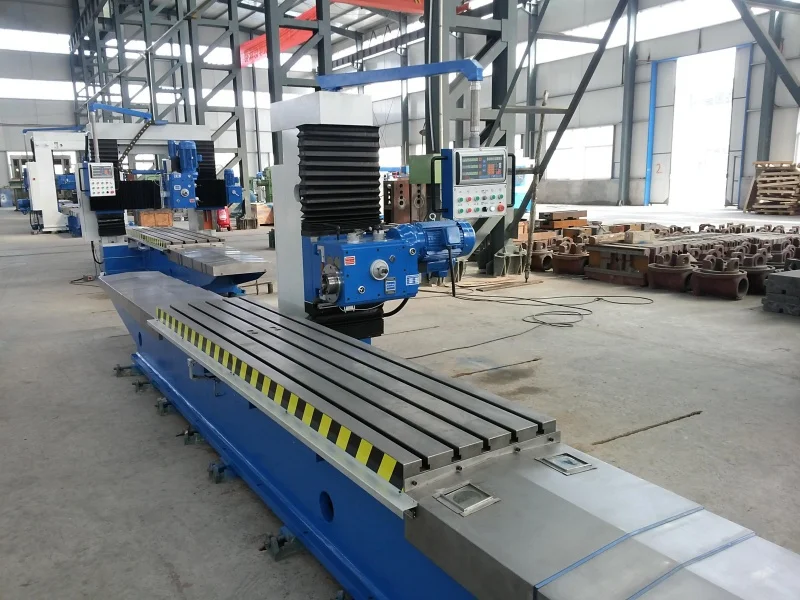

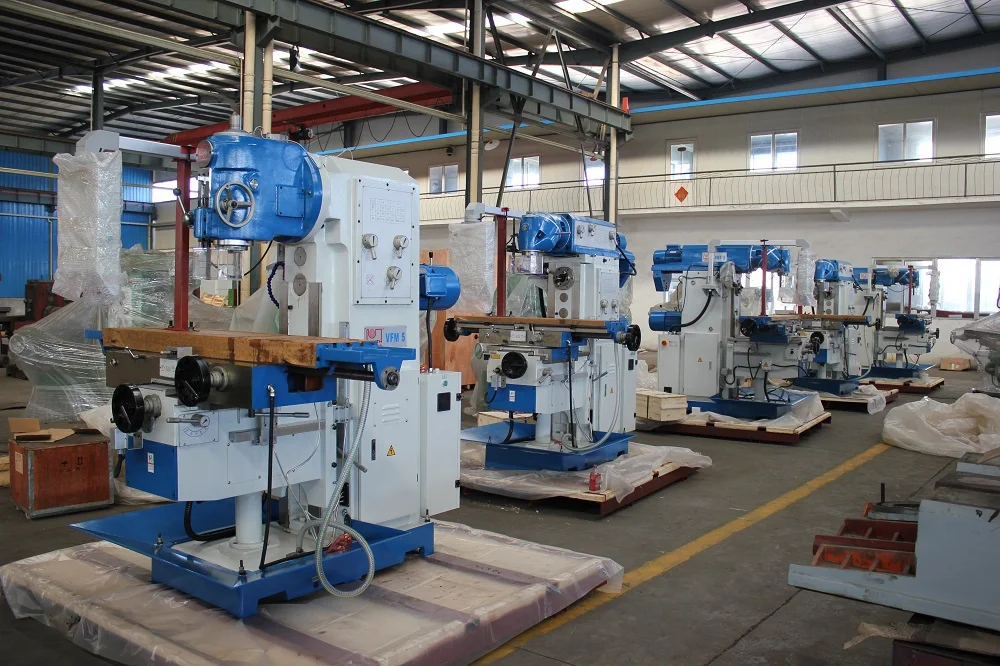

XILI --- OEM Service

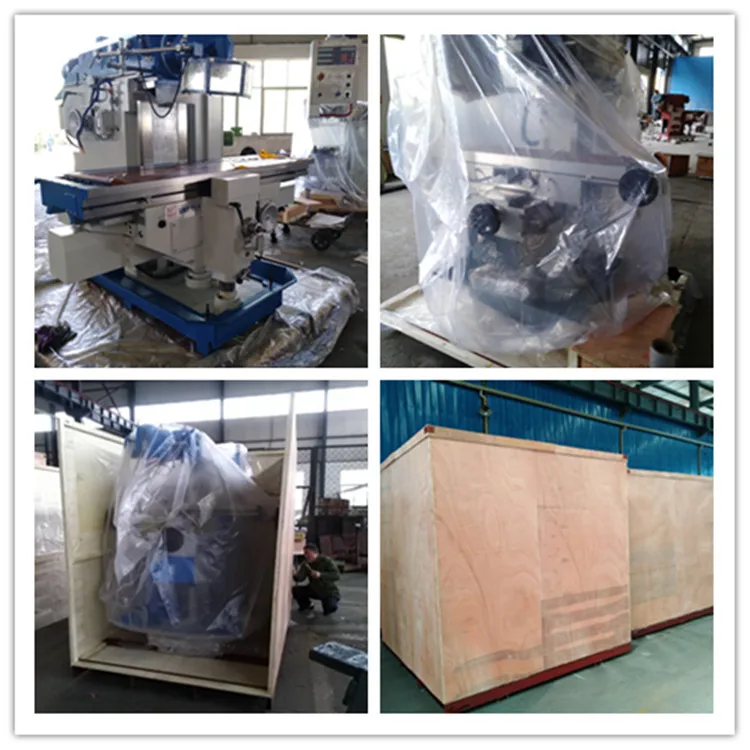

XILI --- Packaging
Plywood Case and Steel Pallet
XILI --- Customers
Every year, there will be many customers from different countries to visit us. Some of them are our regular customers. We meet with each other as good friends and talk about our cooperation for next year. Some customers are our potentional customers, they visit us to see our factory for future cooperation. Everyone will satisfy with our factory after visiting. Because we are a large manufacturer with good reputation. We have the alibity to supply best machines . So we warm welcome for everyone's coming. After visiting, you will trust us.

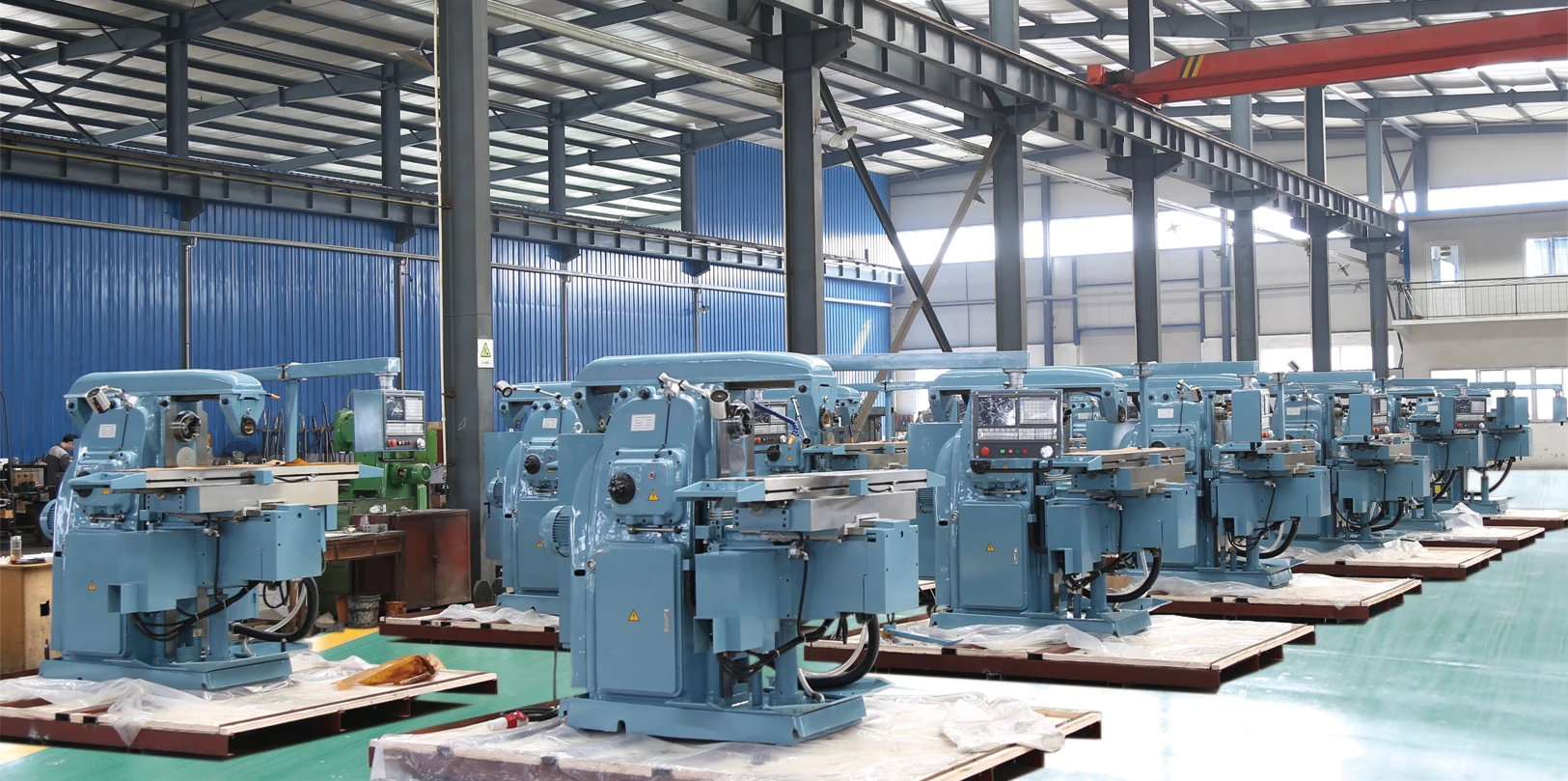

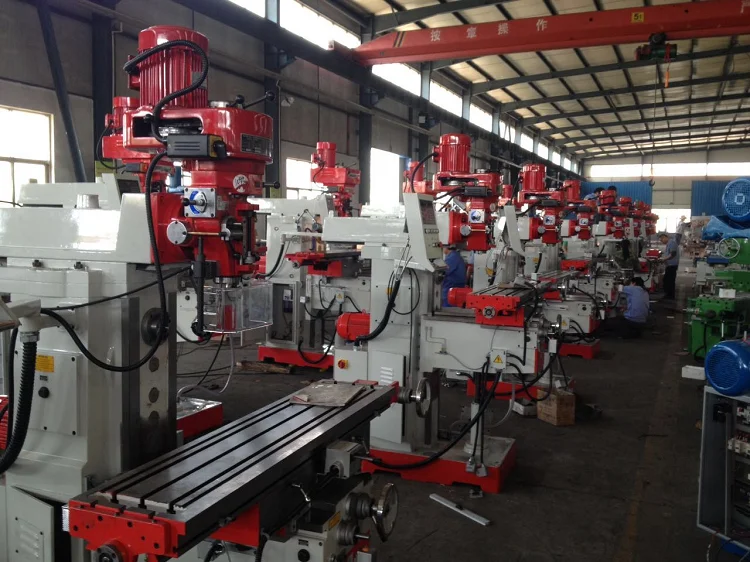

Company Information
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. are special on milling machine and CNC drilling machine We have more than 30 years manufacturer experience. All our products passed CE, ISO9001. We also do OEM for Germany Knuth, Optimum, Austria Bernado and so on. You can trust our quality and service.
Hope we can build long-term business relationship with you.
