Bare shaft pump with hydraulic motor

Product Overview

Description

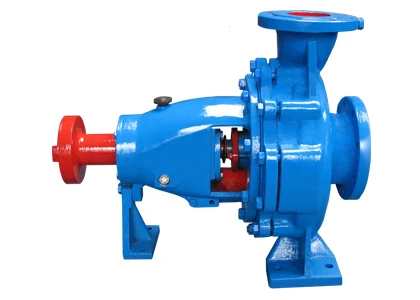

Bare-shaft pump with hydraulic motor

IS(R) TYPE

Specifications:

Capacity	6.3-400m3/h
Heads	5-125m
Temperature	≤80℃
DIA of inlet	50-200m
Speed	1450/2900r/min

Structure and design features:

1) Standard ISO2858

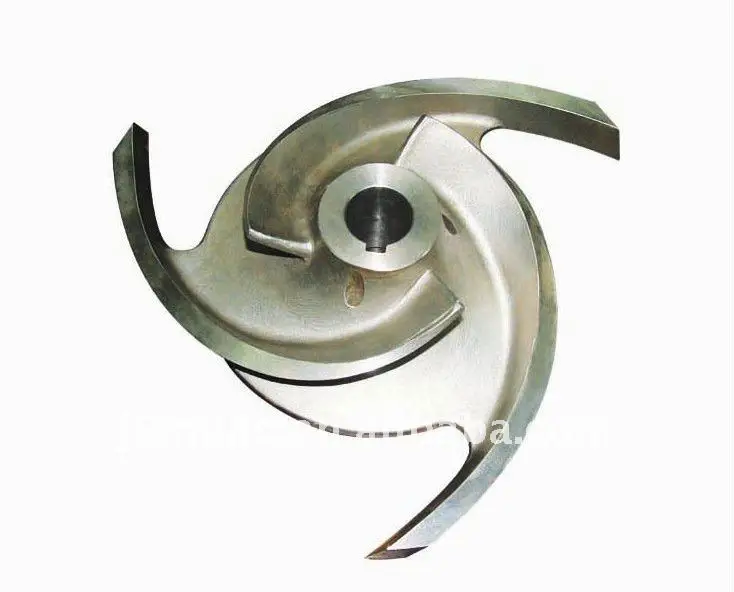

2)main parts: casing,casing cover,impeller,shaft, seal ring, impeller nut, brake washer, shaft sleeve, packing gland, packing ring, packing, bearing housing etc.

3) The parts of pump casing and cover is splitted from the back of impeller which is named back pull out structure. Advantages: easily manintenance.

4) The series include 34 basic models and 242 specifications acquired by cutting impeller and changing speed. The shaft seals have two kind of soft gland packing and mechanical sea. The main parts of the pump are generally made of grey cast iron and high-grade carbon steel, can also be used stainless steel shaft and copper impeller depending on the application.

5)The IS pump can be used for transporting medium at temperature below 80º C, the medium temperature of the ISRseries up to 130º C

6)Electric motor:

·       TEFC motor, IEC standard

·      Aluminum casing, 50HZ or 60HZ, Single phase or 3-phase.

·      Protection class: IP55, Insulation class: F



Our advantages:

1) Much more experiences in pump exporting

2) Strong research and development and engineer teams

3) QC controlling and Quality Assurance

4) Delivery on time

5)Professional and thoughtful after-sales service
