High quality China design plastic shredder blade price QL 500

Product Overview

Description

High quality China design plastic shredder blade price  QL-500



QL series of powerful crushers is a powerful crusher with multiple applications. Its main function is to crush all kinds of hard and soft plastics, grind block or strip shaped and outlet plastic into granules. It plays a vital role in prompt recycling and processing of plastic scrap, waste and recycling materials, enhancing the utilization of plastic.

It can be installed beside the main machine to crush recycled materials during the operation of the main machine. It can also be used to crush centralized materials collected from a production line.





Features of plastic shredder blade price



1) Strong structure, easy to operate, low electricity consumption & durable

2) Uses high quality steel material especially for making knives of the crushers, the machine stands long use under severe and continuous service conditions.

3) The blades can be grinded for many times and can be used repeatedly

4) Blades base is made of high quality steel, hard to be broken and damaged; Blades base structure is stable and durable

5) With flat type, claw type and cross type blade and screen with different hole size for chose to suit various demand.

6) With double reduce noise layer design to reduce noise output.

7) Has protection system with the power supply to ensure the equipment safe

8) Easy to clean and maintain, the hopper, crusher room, blades and screen can be removed and mounted easily.

9) Necessary for the plastic extrusion machines and other plastic recycling industry.

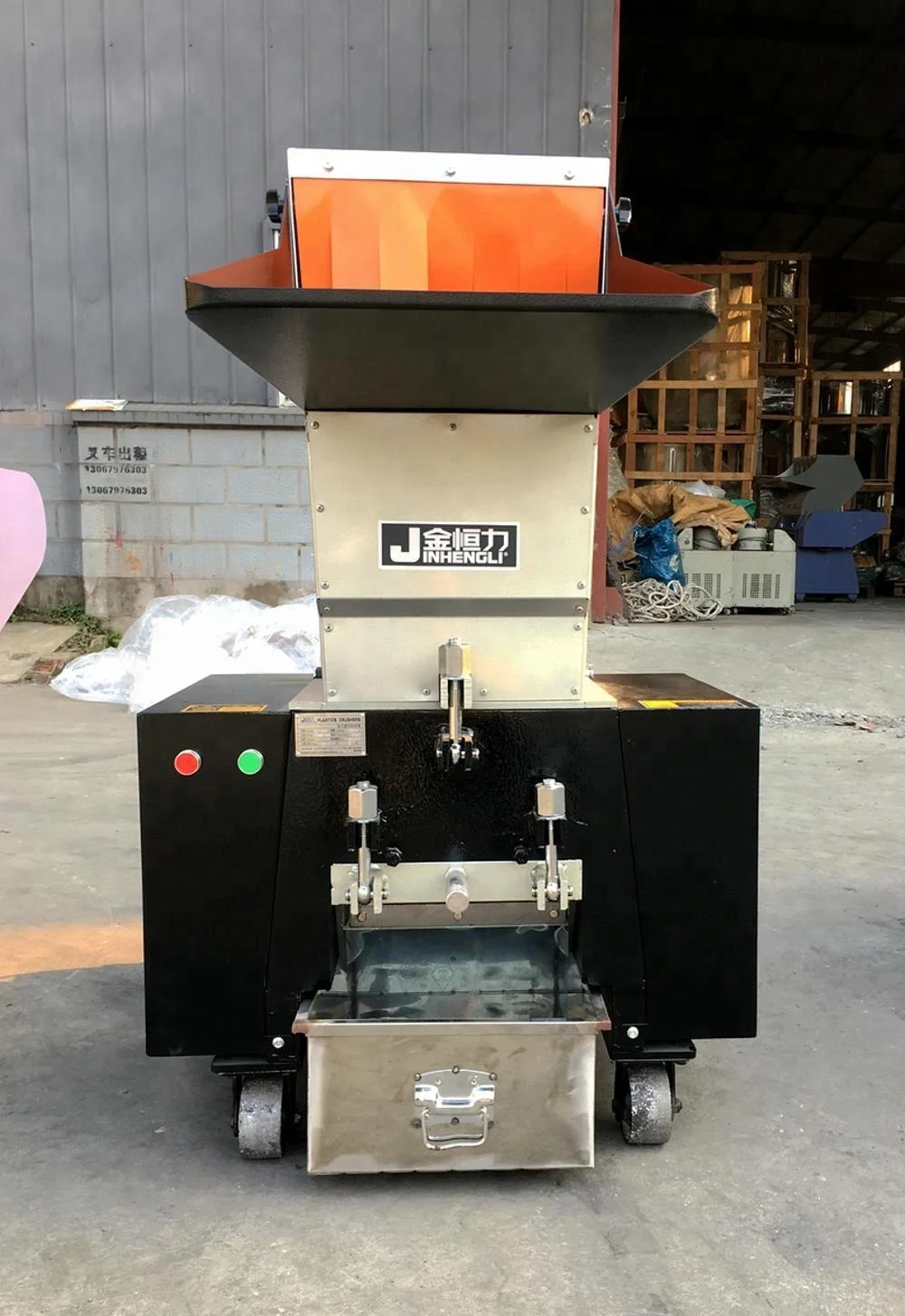

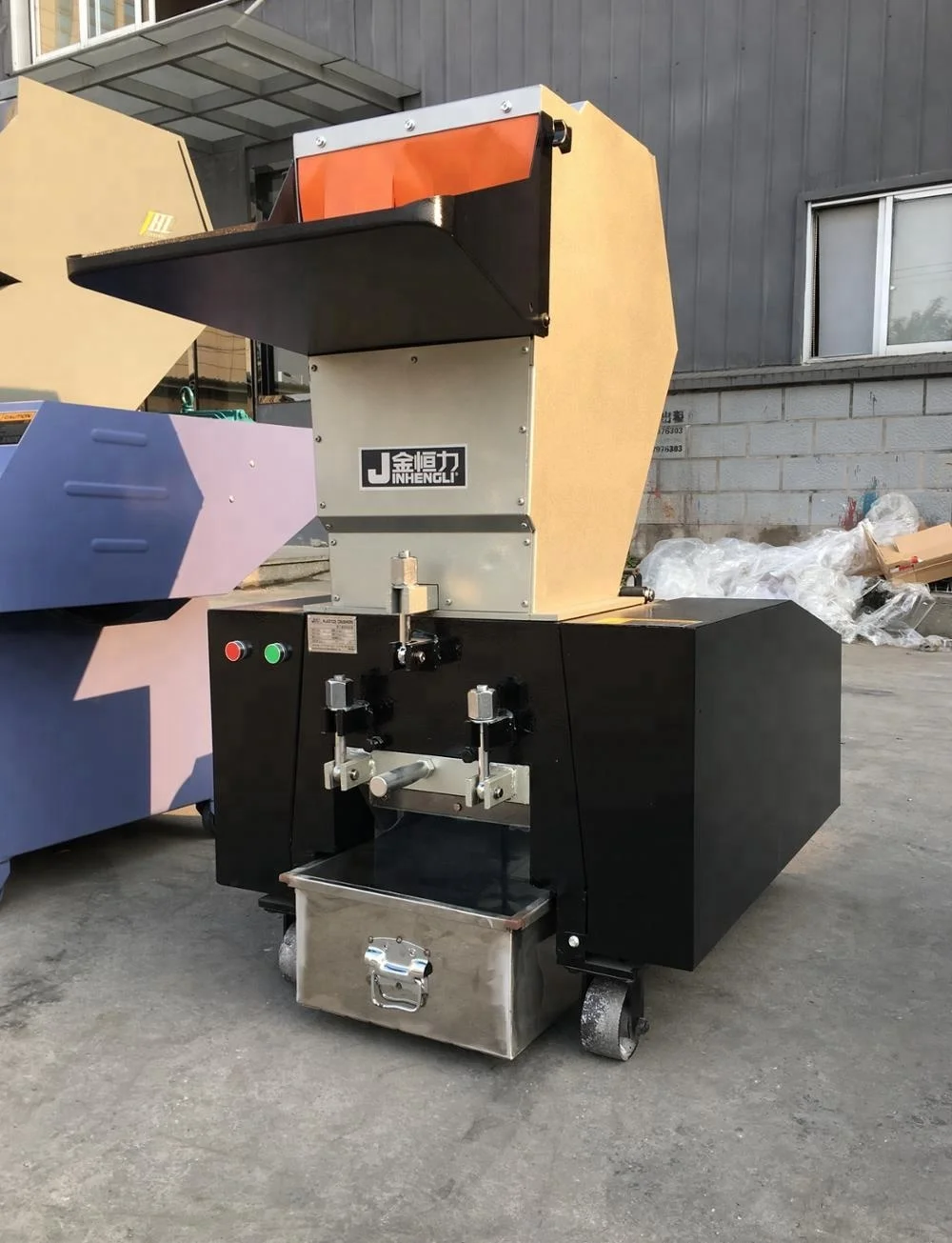

Pictures of plastic shredder blade price











Specifications

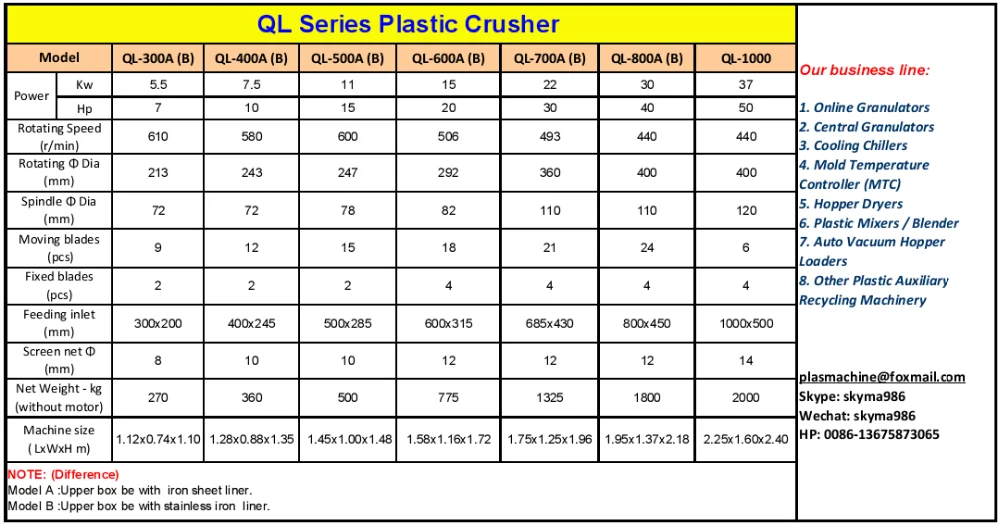

QL series Plastic Granulator/Crusher
Model		QL-300A (B)	QL-400A (B)	QL-500A (B)	QL-600A (B)	QL-700	QL-800	QL-1000
Power	Kw	5.5	7.5	11	15	22	30	37
	Hp	7	10	15	20	30	40	50
Rotating Speed (r/min)		610	580	600	506	493	440	440
Rotating Φ Dia   (mm)		213	243	247	292	360	400	400
Spindle Φ Dia   (mm)		72	72	78	82	110	110	120
Moving blades  (pcs)		9	12	15	18	21	24	6
Fixed blades  (pcs)		2	2	2	4	4	4	4
Crushing ability (kg/h)		150-200	250-400	300-500	500-600	600-700	700-800	900-1000
Feeding inlet  (mm)		300x200	400x245	500x285	600x315	685x430	800x450	1000x500
Screen net Φ (mm)		8	10	10	12	12	12	14
Net Weight - kg  (without motor)		300	430	550	800	1325	1800	2000
Machine size ( LxWxH m)		1.07x0.72x1.08	1.29x0.86x1.18	1.37x1.00x1.39	1.54x1.15x1.66	1.75x1.25x1.96	1.95x1.37x2.18	2.25x1.60x2.40
NOTE: (Difference) Model A :Upper box be with  iron sheet liner.  Model B :Upper box be with stainless iron  liner.

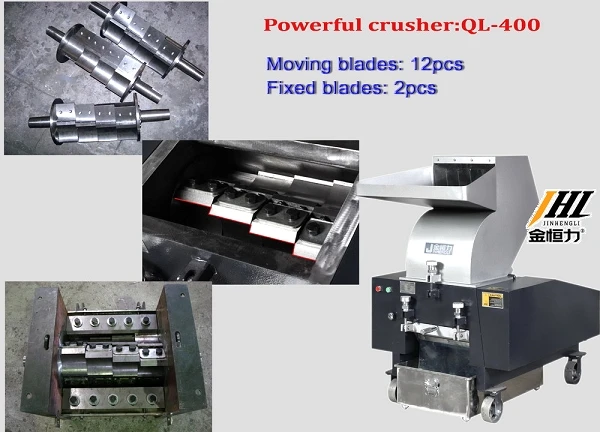

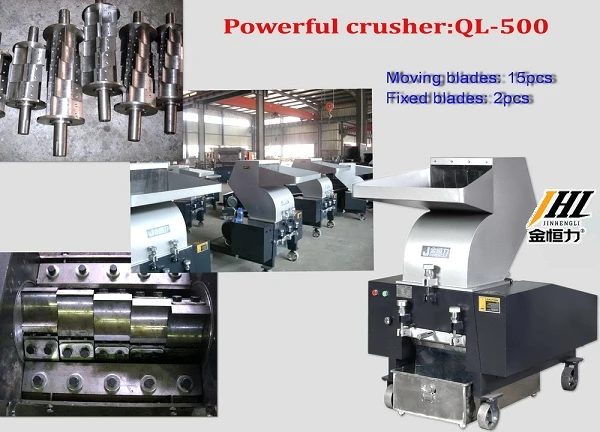

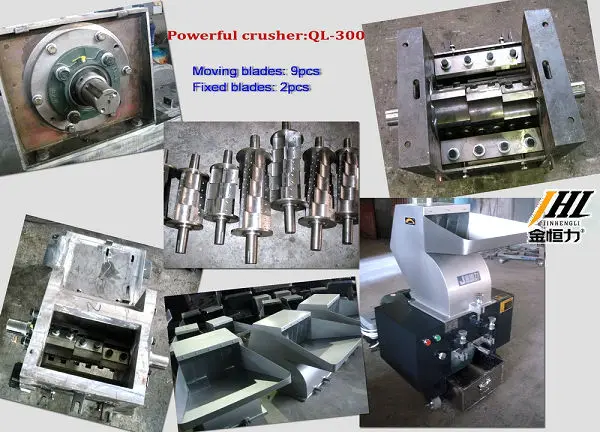

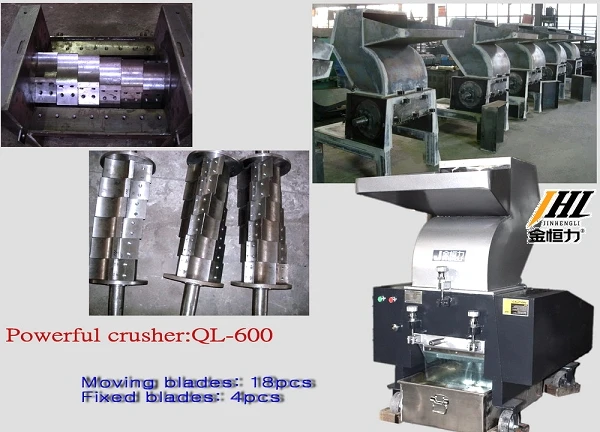

Below is plastic granulating crushing machine QL series base machine

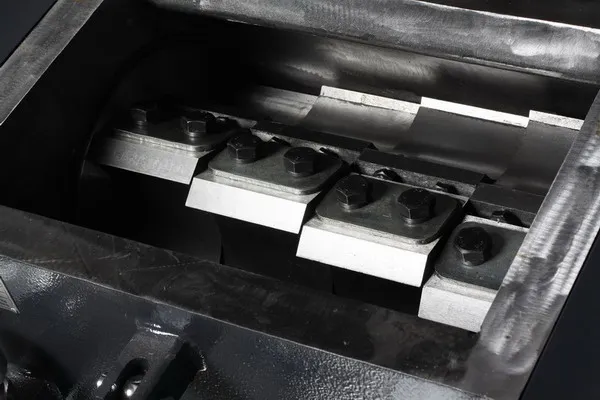

Claw blades type:

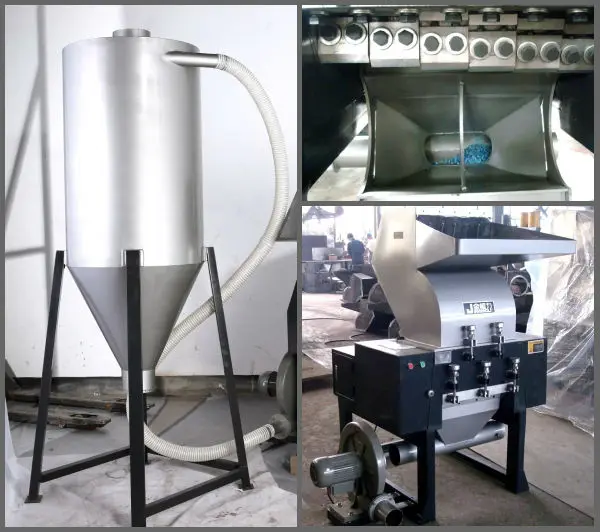

Below is  plastic granulating crushing machine QL series optional with

blower & cyclone silo.















F.A.Q



1) What's warranty and after-sale service of machine?

1. 12 months Warranty for main machinery part like motor and electric

2. 24 hours service both online and on telephone

3. 24 hours door to door in domestic

2) Can we test our material by your machine free?

Yes, please bring your materials so that we can test for you; If it is not available for you to come to our factory, you may deliver to our address and we can take video of machine operation for you

3) Are you a factory or trading company?

We are a factory and manufacturer and also a trading company can do exporting

4) Why Choose us?

1. More than 25 years of manufacturer experience, supplying stable and sound quality with competitive price.

2. High quality, with thicker product material and stronger structure and brand name parts

3. Many of our products have stock, timely delivery

4. We have professional sales service team,we will respond immediately

5. Customized made machine is available with professional engineer

6. Our goods are of CE certificate for EU market

7. Long years sales engages us the richful experience in helping our clients to find the most suitable machine and we can offer the custom clearance documents at clients request to help smoothly importing the gooods

5) How to contact with the company?

It's very easy to contact us. Just pull down to the page bottom and find the "Send your message to this supplier", then enter your idea and click "Send". We promise to reply and offer help for you immediately

6) Can we order on alibaba.com?

Yes! Of course! We also give you more discount if you order on alibaba.com

7)Don't know which type you need?

Please contact us!

8)Don't know how the machine working?

Please contact us to see the video and get further information
