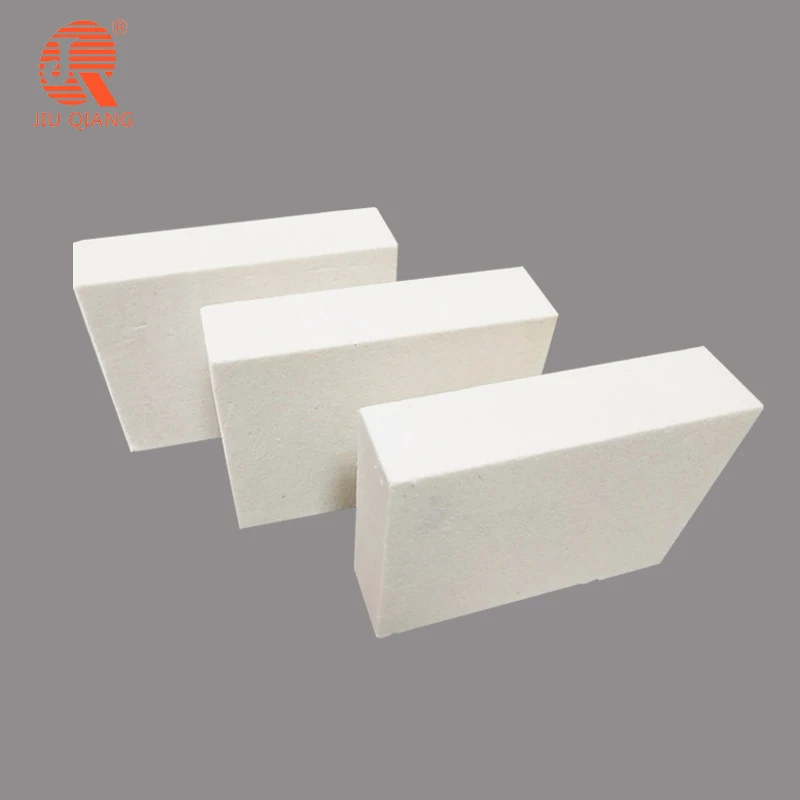

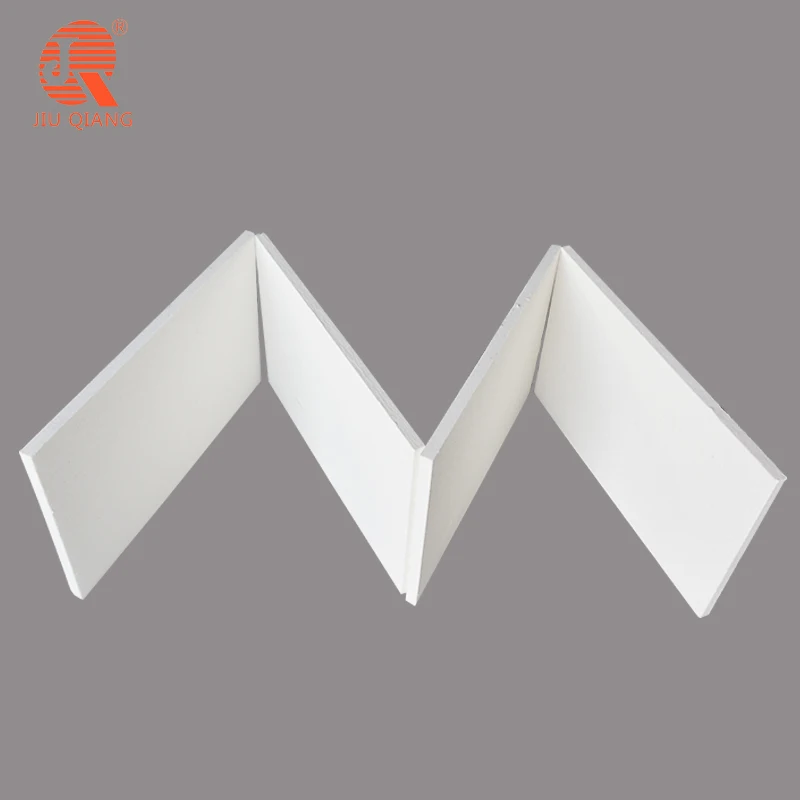

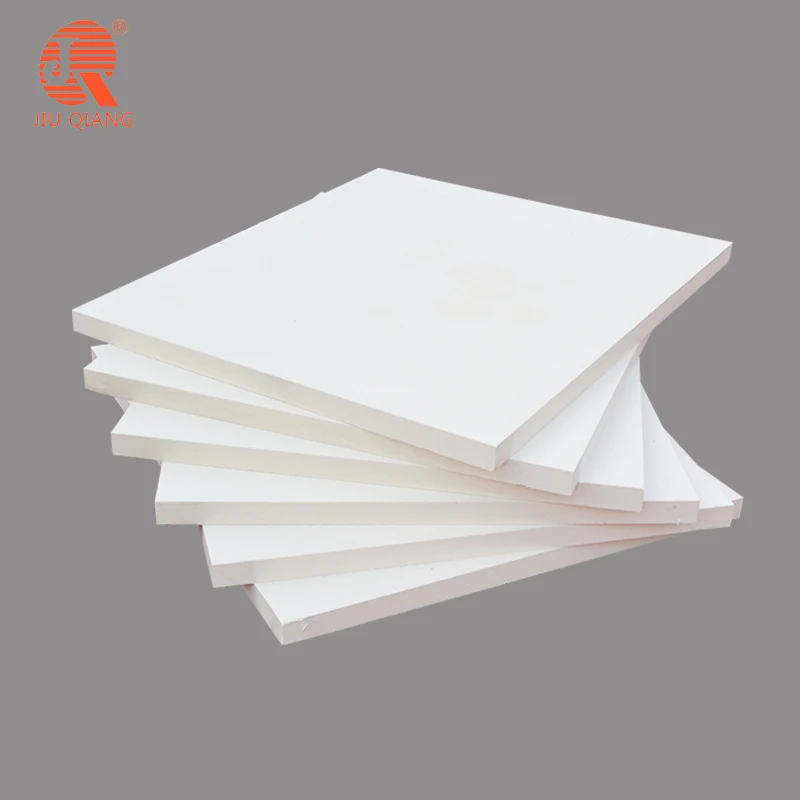

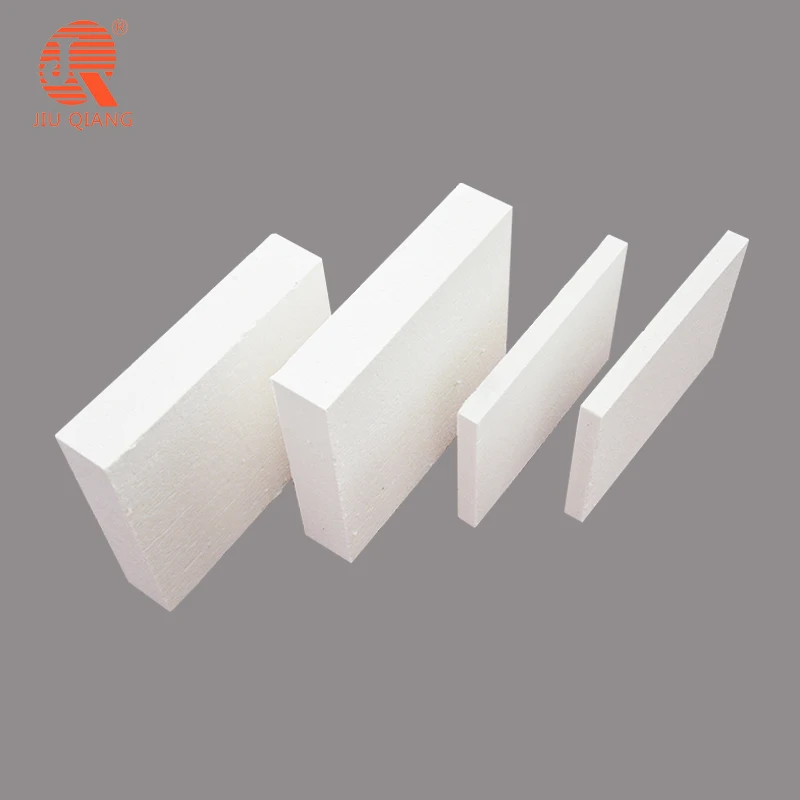

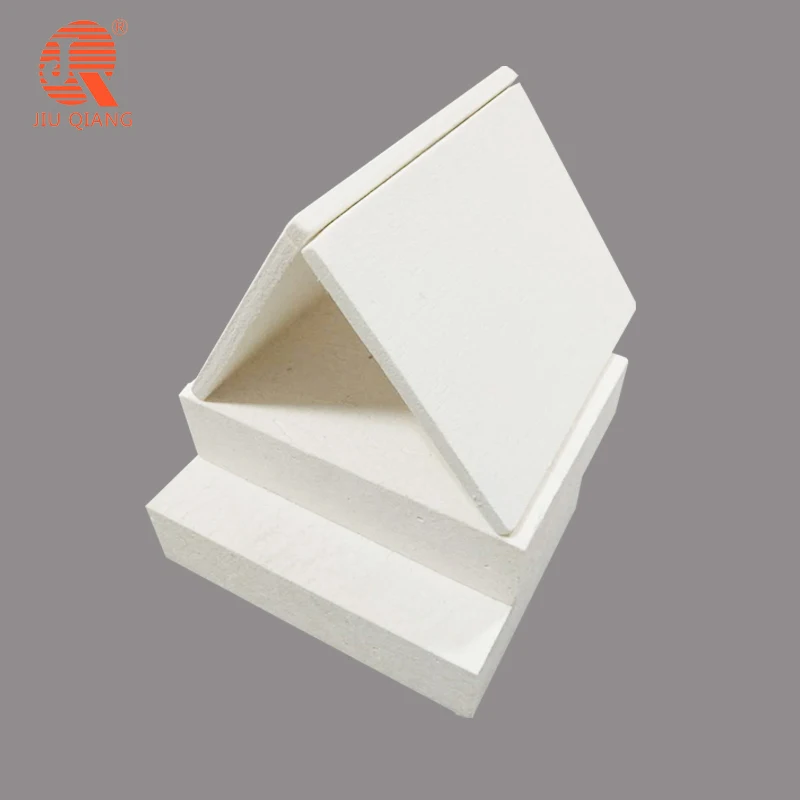

Ceramic Fiber Board High temperature Fireplace Fireproof Insulation Sheet
- Category: Heat Insulation Materials >>>
- Supplier: Zibo Jiuqiang Refractory Co. Ltd.
Share on (60029078727):
Product Overview
Description
Product Description
Jiuqiang ceramic fiber board are made of different refractory fiber bulks with excellent chemical stability, organic and inorganic bond by wet method and vacuum forming processing which is applicable to many kinds of industries .The fiber board with a characteristics of hard, flexible, excellent strength and resistance against corrosion.
Grade | 1260 standard ceramic fiber board |
Size & specification | 1. Length: 1200,1000,900,600mm2.Width:1000,600,400mm 3.Thickness:6-50mm |
Density | 280--500kg/m3 |
Working temperature | 1260 standard---1050℃(1922℉) |
Certificate | MSDS, ISO9001, CE Standard: TUV,BV,SGS |
Sample | We can supply sample for free. |
Package | Carton or Pallet |
Details Images
♦ Low heat storage and low thermal conductivity
♦ High compression strength
♦ Non–fragile materials and good toughness
♦ Accurate dimension and good paleness
♦ High compression strength
♦ Non–fragile materials and good toughness
♦ Accurate dimension and good paleness
♦ structure homogeneity and easy machining
♦ Even fiber with stable property
♦ Excellent heat stability&thermal shock resistance
♦ Easy to install
♦ Even fiber with stable property
♦ Excellent heat stability&thermal shock resistance
♦ Easy to install
♦ Cement building industry, kiln back lining-thermal insulation
♦ Ceramic industry-lining of various kilns for thermal insulation
♦ Petrochemical and metallurgy industries- back linings, wall linings, and ling thermal insulation
♦ Glass kiln lining and back lining thermal insulation
♦ Heat treatment furnace kiln back lining thermal insulation
♦ Aluminum factories-reduction cell firebricks back linings
♦ High temperature reaction, heating device-wall lining and back linings
♦ Ceramic industry-lining of various kilns for thermal insulation
♦ Petrochemical and metallurgy industries- back linings, wall linings, and ling thermal insulation
♦ Glass kiln lining and back lining thermal insulation
♦ Heat treatment furnace kiln back lining thermal insulation
♦ Aluminum factories-reduction cell firebricks back linings
♦ High temperature reaction, heating device-wall lining and back linings

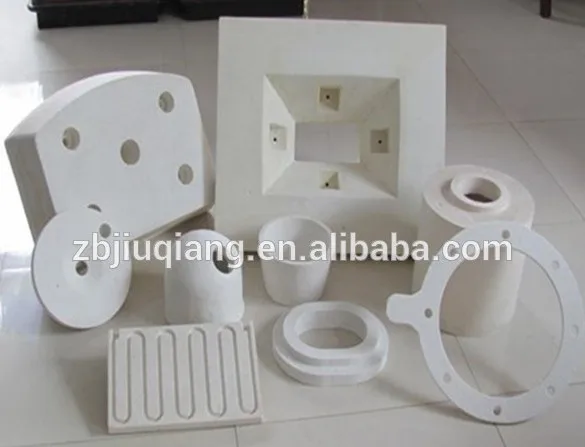

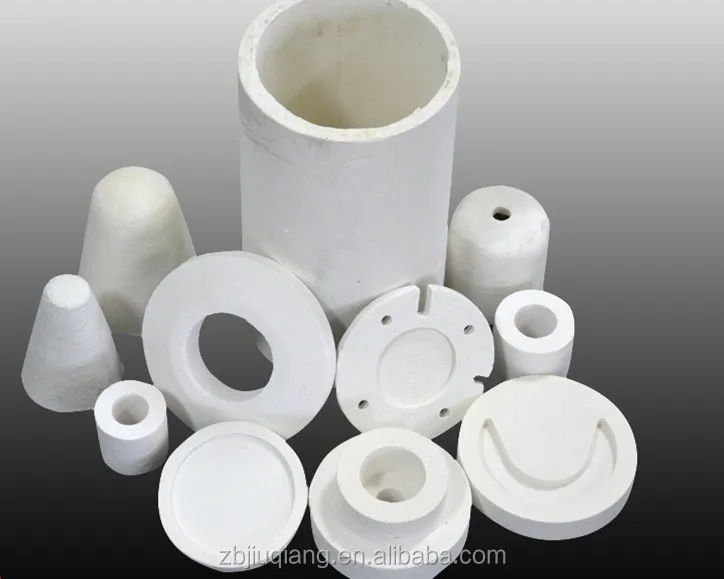

Special-shaped products can be processed according to drawings and samples.
Technical Date
Grade | 1050 Common | 1260 Standard | 1260 High pure | 1350 High aluminum | 1450 Zirconium | ||||||
Working temperature (°C) | 950℃ 1742°F | 1050℃ 1922°F | 1100℃ 2012°F | 1200℃ 2192°F | 1350℃ 2462°F | ||||||
Color | White | Pure White | Pure White | Pure White | Pure White | ||||||
Density (kg/m3) | 260-350 | 260 32 | 260 320 | 260 320 | 260 320 | ||||||
Shrinkage on heating (%)(Temperature 24 hours, density as 320kg/m3) | -4 (1000°C) | -3 (1000°C) | -3 (1100°C) | -3 (1200°C) | -3 (1350°C) | ||||||
Thermal conductivity of various temperatures (w/m.k) (density 285kg/m3) | 0.085(400°C) 0.132(800°C) 0.180(1000°C) | ||||||||||
Compressive strength (Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||||||
Chemical composition (%) | AL2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 | |||||
AL2O3+SIO2 | 96 | 97 | 99 | 99 | - | ||||||
AL2O3+SIO2 +ZrO2 | - | - | - | - | 99 | ||||||
ZrO2 | - | - | - | - | 15-17 | ||||||
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | ||||||
Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | ||||||
Regular Specifications | 600*400*10-50mm, 900*600*10-50mm, 1200*500*10-50mm, 1200*1000*10-50mm, 1000*600*10-50mm It can be customized. Special shapes can be processed according to drawings and samples. | ||||||||||
Packing&Shipping
1.Carton and plastic bag inside
2.Pallet, for load and unload consideration
2.Pallet, for load and unload consideration
Payment and Delivery
According the goods, we send by sea, by air, or by express.
Company Profile
Our Services & Strength
1.Zibo Jiuqiang Refractory Co., Ltd is a professional manufacturer and
exporter of the heat insulation material.
2.Senior R&D team and quality management guarantee the product quality.
3. Large-scale production lines ensure the fast delivery time.
exporter of the heat insulation material.
2.Senior R&D team and quality management guarantee the product quality.
3. Large-scale production lines ensure the fast delivery time.
4.Our ceramic fiber products passed CE certificate. At the same time, we passed ISO, MSDS.
