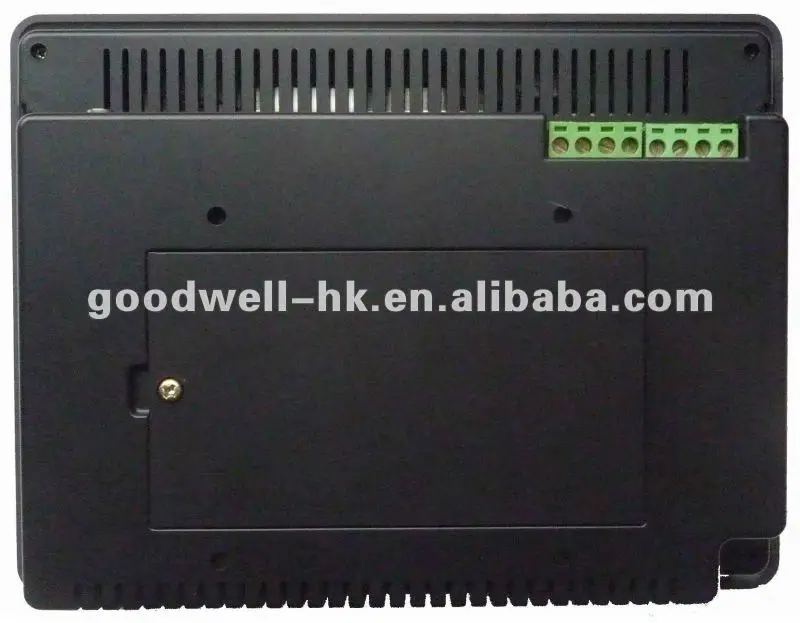

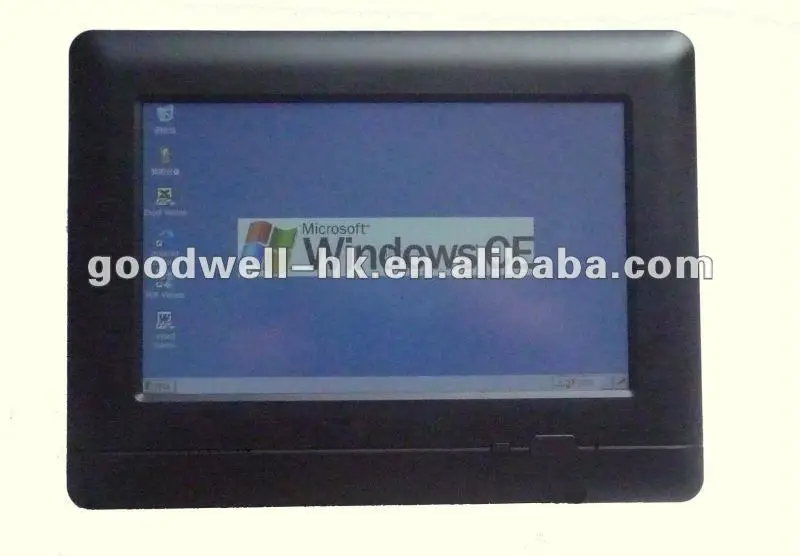

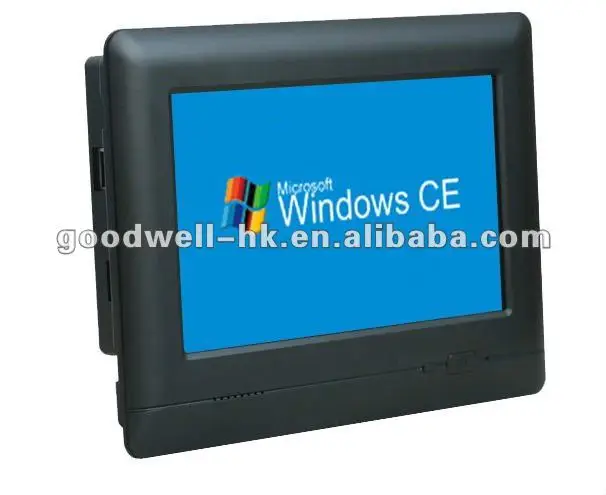

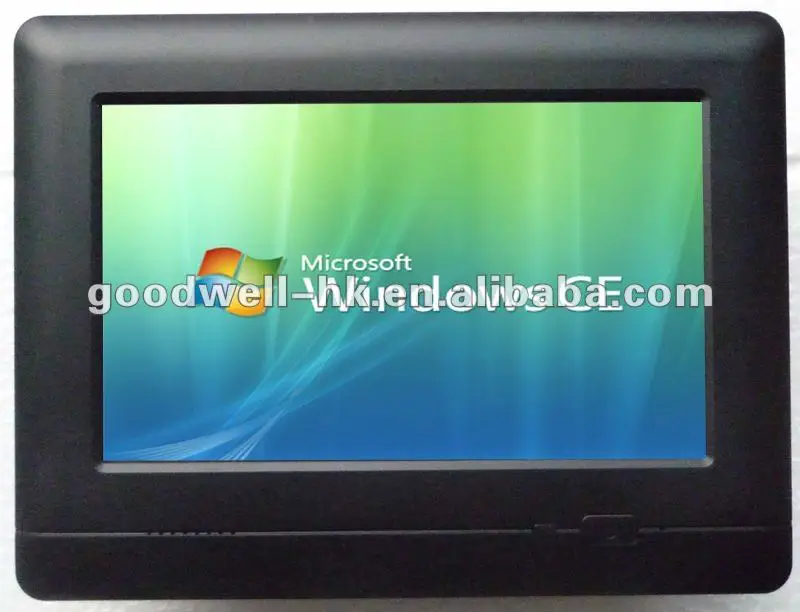

7 Inch Industrial Touch Tablet PC Windows Embedded 800x 480 with RS232, RJ45 Port for Automation System

Product Overview

Description



  7 Inch Industrial Touch Tablet PC Windows Embedded





Applications:



Multifunction Human Machine Interface,Service Terminals in hotels, hospital and stores, Industrial Machines Maintain Monitoring, Video Conferencing Systems, Dinner Ordering Systems ,Automation system ,Data Terminal .



Main Features :



1. CPU: Samsung S3C6410  667MHz CPU, DDRII SDRAM 256MB ,2G Nand Flash

2. WIN CE 6.0 OS ,Net Framework 3.5,Support  Visual Basic ,EVC.

3. Support 1W Speakers , Support Keyboard and Mouse .

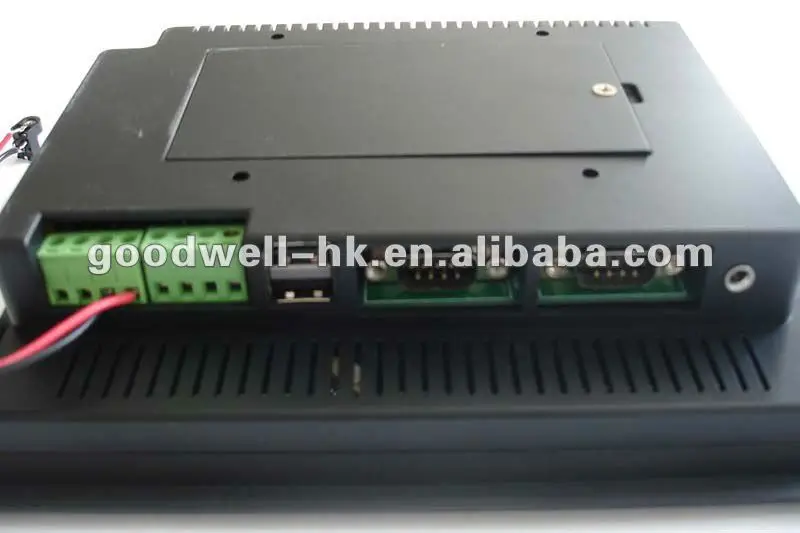

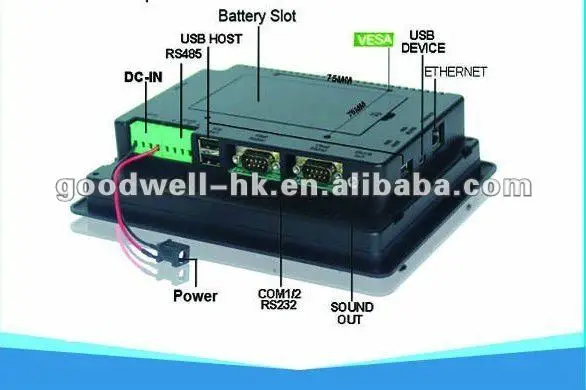

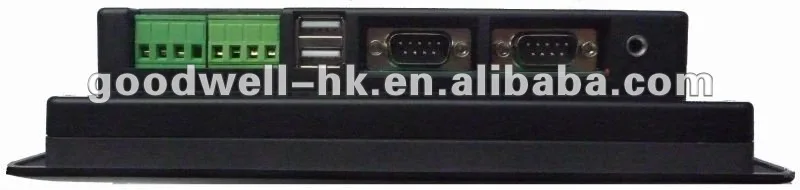

4. Interfaces :USB Host 1.1 x 3,  Mini USB x 1,  RS232 x 2, RS 485 x 1, Earphone Jack x 1, SD Card slot x 1.

5.Built in WIFI, Bluetooth ,Rechargeable Battery (Optional ).

6. 9-24V DC Input





















Specifications :







Description	7inch Embedded Touch Screen  Industrial PC with  RS232 / RS485

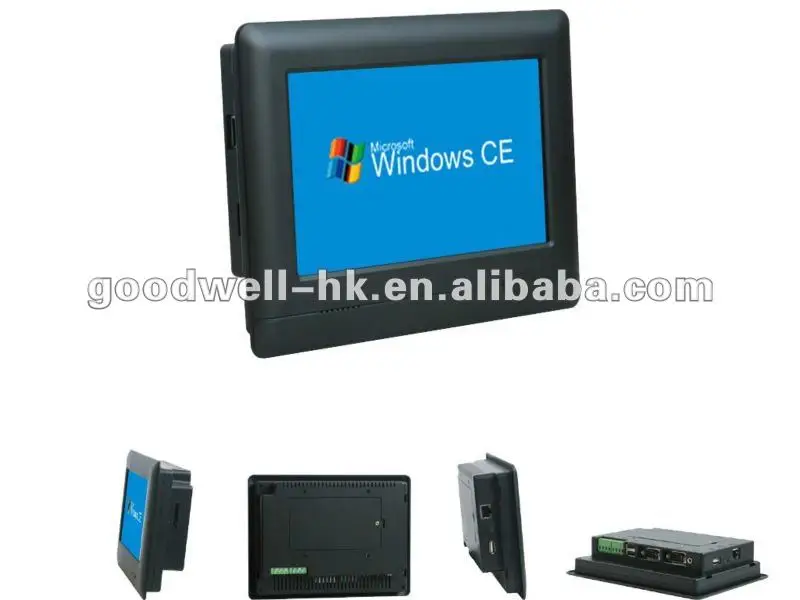

Model No.	W7-6410
Panel	7" color TFT LCD Digital Panel,  4-wire Resistive touch panel
Pixels	800×480pixels
Brightness	400 cd/m 2
DC input	9V-24V
Audio output	1W
Power consumption	8W
Support interfaces	RS232 x 1/RS485 x 1 or RS232 x 2 ,SD card (support to 32G)
Processor CPU	Samsung s3c6410  667MHZ
Memory	DDRII SDRAM 256MB
Unit size	200×150×50 mm
Unit weight	546g(without battery) / 610g (with battery)
CPU	Samsung s3c6410  667MHZ
NAND flash	2GB
SDRAM	DDR II256M
Wired network interface/Ethernet	YES
USB HOST1.1	3
MINI  USB interface	1
RS232 port	2
RS485 port	1
Audio output earphone block	1
Bluetooth	built-in(optional)
WIFI	built-in(optional)
SD Card slot	1(Support  up  to 32GB)











Accessories:



• Touch pen x 1
• USB connection line x 1
• Driver disk x 1
• Screw & Iron sheet: 4 pieces x 2
• Operating user's manualx 1



    Optional:



• 802.11 b/g Wi-Fi (built-in)
• 2,000mA battery (built-in)
• Power switch cable
• VESA 75mm rail slot
