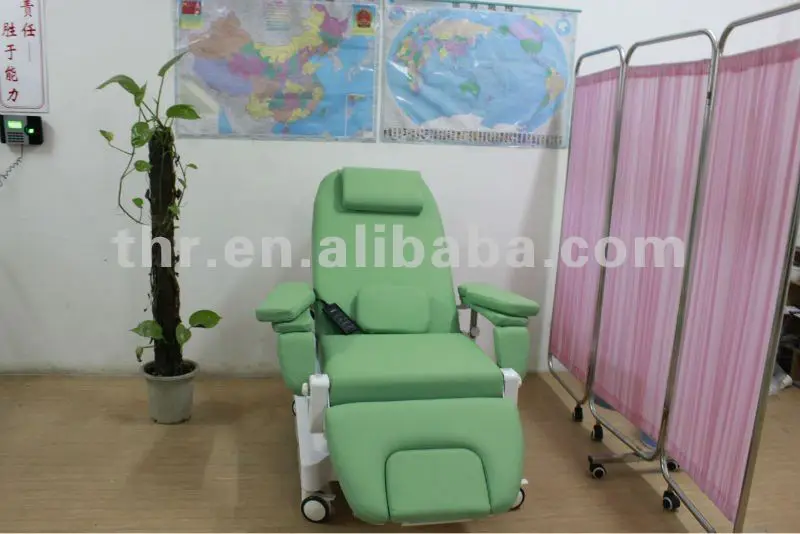

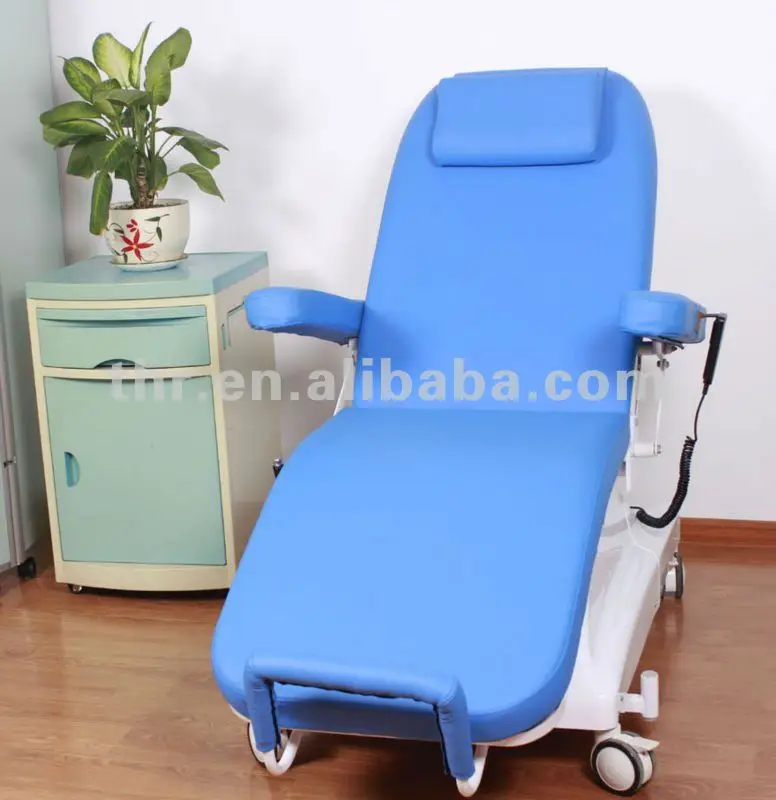

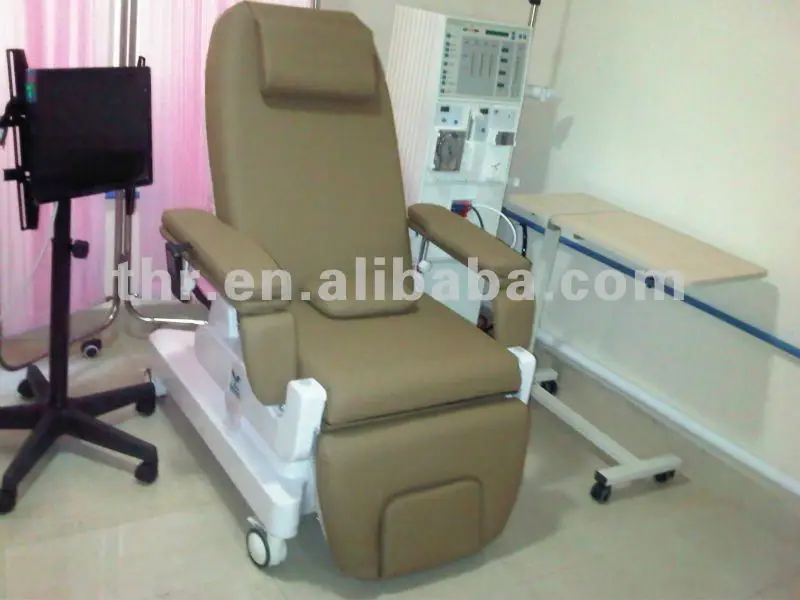

THR DC510 Hospital Multifunction Electric Donation Chair

Product Overview

Description

THR-DC510  Hospital Multifunction

Electric Donation Chair





Brief Introduction of Electric Dialysis Chair :

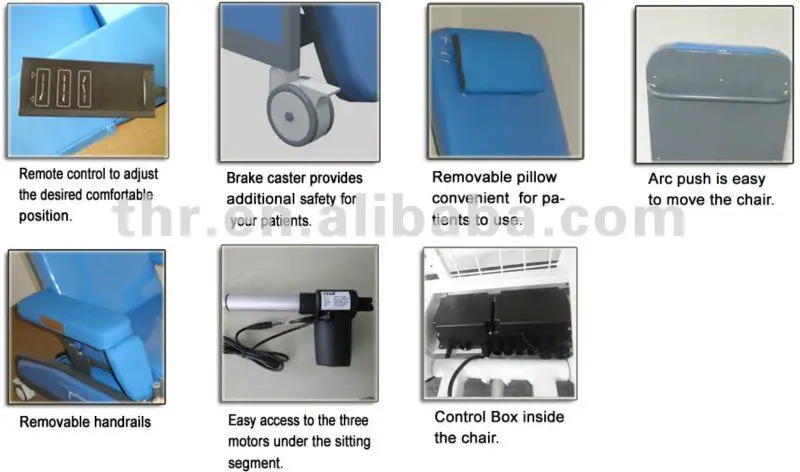

Modern design, high quality materials and an detailed finishing of the upholstery as well as mechnical and electrical parts underline the high standard of the comfort-line. Continuous adjustment to all sitting and lying positions. A 3-dimensional adjustable armrest, an electrically adjustable footrest as well as a height adjustable headrest provide comfort for your patients. The base frame with a maximum safe load of 240kg offers a high stability also in the horizontal position.









Humanization design



Comfortable design



Taking the aero seat as the prototype improvement, upholstery with polyurethane, luxurious, comfortable and durability. We’ve designed the chair to work with a patient’s body.

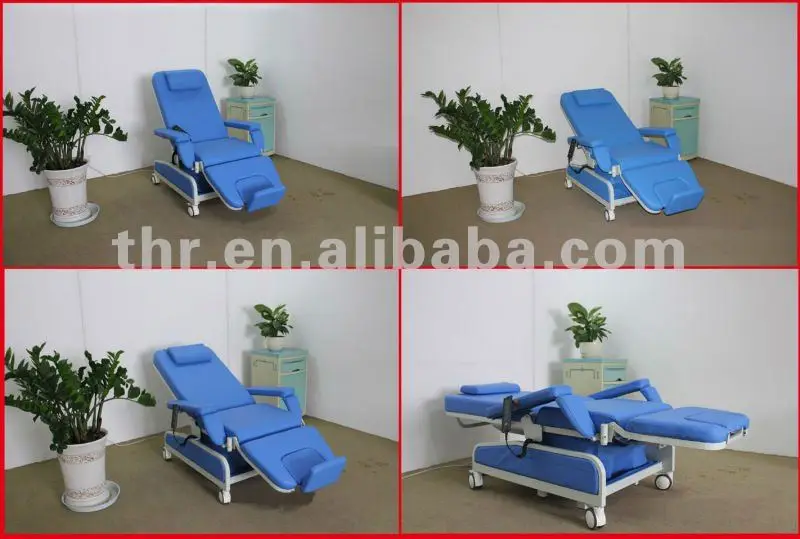

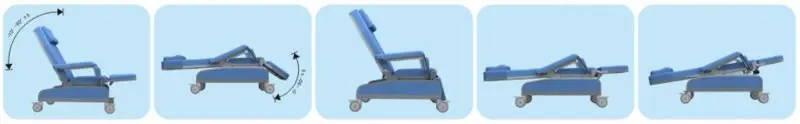

Multi-position adjustment



Adjusting backrest and legrest, the overall increase and full trendelenburg position by electromotion through reliable static motor.





Saving Space:

Only 1.2 Square Meters. Space required, saving about 40% space than the tradition medical bed.



Technical Data of Electric Dialysis Chair :

Dimension		Adjustments
Seat segment width	600mm	Back segment angle	-10°-80°
Chair width, including armrests	920mm	Seat segment angle	0°-30°
Total length	1880mm	Leg segment angle	-80°-10°
Total weight	85kg	Height adjustment	290mm
Ground clearance	120mm	Electrical specifications
Caster	dia.100mm	Power supply	AV220±20V/50HZ 100VA
Back cushion	190*490*120mm	Motors	3
Cushion	PU foam	Safety
Upholstery	PVC leather	Safe maximum load	240kg
Frame	Q235 steel

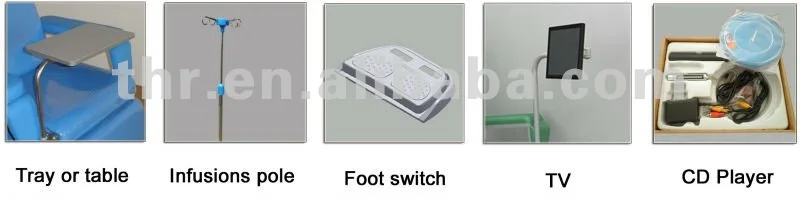

Optional Accessories:

1. Instrument trays

2. Infusion stand

3. TV for MP3, MP4

4. CD player



Color Available: Blue, Green, Gray



Our advantages

1. Original Manufacturer, the producing workshop is more than 40000 Square Meters 2. All parts are produced by our factory 3. Strict Material Inspection & Quality Controlling 4. ISO9001, ISO13485(SGS) Quality Management System 5. More than 10 years experience in producing and engineering 6. CE (SGS) Certificate 7. Products are exported to more than 30 countries



If you have this need ,plese feel free to contact us!
