KB125C machines for sale

Product Overview

Description

KB125C machines for sale

Machines for sale:concrete roof tile machine,cement roof tile machine



Kebo machinery for making press machine to produce roof tiles,then paint the roof tiles wit h color.

Before painting :



After being paint:



Color:oil paint or water paint or oxide iron pigment



Raw material: cement and sand as a fixed ratio to make roof tiles.

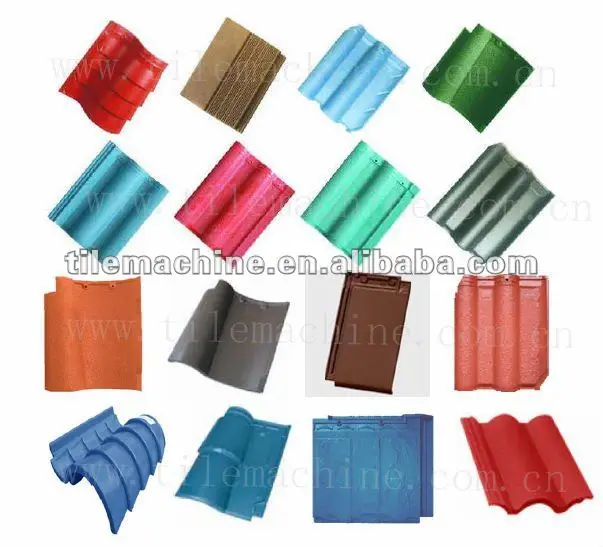

Popular concrete roof tile style; Roman roof tile,wave roof tile,spanish roof tile,japanese roof tile,Korean roof tile,european roof tile etc...





Features of cement/concrete roof tiles:



Part 1:The parameter for concrete cement roof tiles:



Normally size:424(L)*337mm(W)



9.1pcs/m2



Weight: 4kg/PC,



Appliance grade: 0°90°,



Proportion: 2.2



Water absorption rate ≤6



Folding strength 2000N



Part 2: The feature of concrete roof tiles



1. Unique Waterproof Structure .

2. High strength,the pressure

3. Extra Intensity.

4. Excellent Heat-Shielding Performance.

5. Extra Windand snow resistance.

6. Convenient Construction



Installation for roof tiles

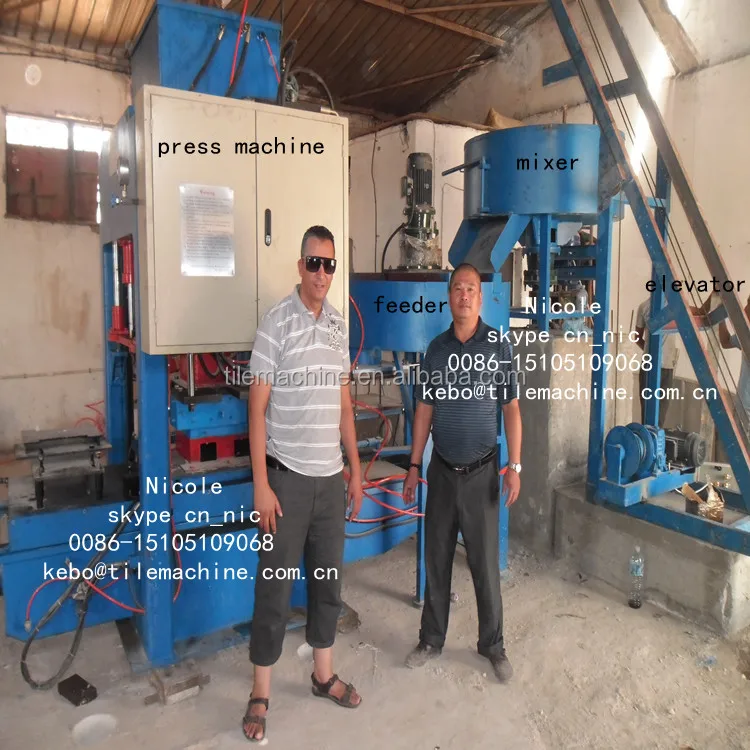

Working process of roof tile making machine production line:





1. Frist step,put  cement and sand into the bucket elevator, then transport automaticlly  into the rolling mixer,at the same time,you must add some water into the mixer to fully mix the raw material.



2. Second step,after mixing, the mixture concrete raw material are transported into the dosing feeder,then measurable mixture lay down the raw material into the roof tile press machine.



3. Third step,concrete tile can be formed by high pressure and hydraulic press,the pressure is about 125 tons. So the produced tile is very stable and strong.



4. Fourth step,the pressed tile needs to dry for about 10 days.Then you can paint the roof tiles.

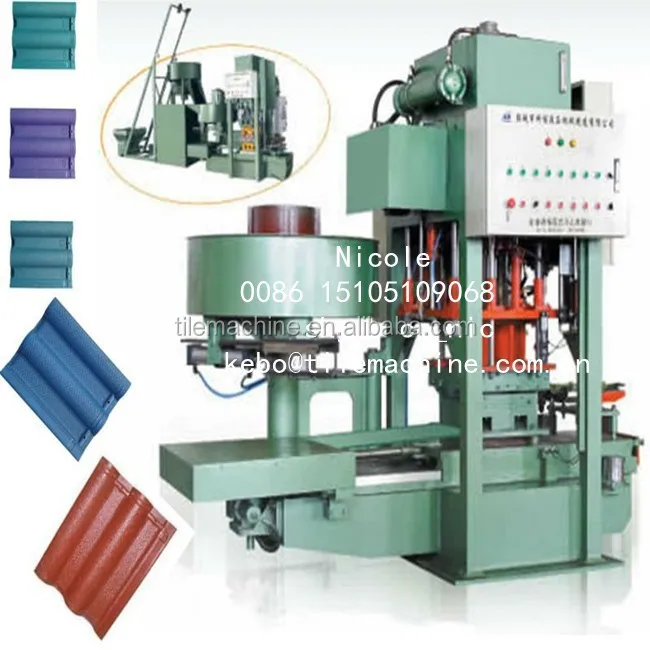

Main Technical  Parameter of roof tile making machine:



Model	KB125C
Overall Dimension	2700×1600×2480 mm
Moulding Cycle	8-10 s
Moulding Pressure	1250 KN
Weight of Main Engine	5T
Equipped Capacitor	5.5 kw
Production Capacity	3000-4000 pcs/day
Tile Size	424×377 mm







The Consist of roof tile making machine:



1	roof  tile making machine	1 set
2	Constant feeder machine/Quantitative feeder machine	1 set
3	Mixer for concrete roof tile	1 set
4	Elevator with bucket	1 set
5	Mould for concrete roof tile	1 set
6	Pallets for concrete roof tile	2000 pcs
7	Concrete roof tile painting machine	1 set
8	Air comprssor	1 set



Hydraulic press machine 100 ton for making roof tiles



Different roof tile saples made by hydraulic press machine for sales

Manufacturering factory:

Floor tiles--multi-functional machines for sale  of making concrete roof tiles

For more details of roof tile making machine,pleasekindy contact Miss Nicole:

Welcome you visit Kebo factory,professional manufacturer for roof tile making machine in China
