CE approved SGS A1 fireproof upgraded waterproof drywall gypsum board

Product Overview

Description

WELCOME TO VISIT US!



CE approved SGS A1 fireproof upgraded waterproof drywall gypsum board



General Introduction



Terasun CE approval class A1 fireproof waterproof upgraded gypsum board is known as TSM---Terasun Silicate Magnesium board (upgraded gypsum board). Using foam particles, cement, plant fiber, glass fiber cloth, non-woven fabrics, etc as raw material, Terasun Silicate Magnesium board (upgraded gypsum board) is made through gelling, pressing and other special techniques and is a new type material renonwn for stability in performance.



Terasun upgraded gypsum board---TSM, is characteristic of fireproof, waterproof, high intensity, thermal and sound insulation, long endurance in use, low shrinkage and convenient for construction.



Terasun upgraded gypsum board---TSM, is your best choice for buiding, construction and decoration.



Technical Data



Commodity	Terasun Silicate Magnesium Board---TSM
Raw Material	Foam particles, cement, plant fiber, glass fiber cloth, non-woven fabrics, etc
Density	≤ 0.95  g/cm³
Size	1220*2440mm or 1200*2400mm Customerization is available
Thickness	6~20mm
Moisture Content	≤ 12%
Fire Rating Test	SGS Class A1 incombustible
Moisture Movement	≤0.12%
Bending Strength	≥8.5 Mpa
Maximum Service Temperature	1200  °C
Water Permeability	No water vapor after 24 hours' test
Refractoriness	4H
Features / Merits	WATERPROOF; fireproof; termite proof; light-weight; flexional; easily to be shaped, perforated, bended; long service life; environmental friendly, etc
Applications	Interior&exterior wall board; gypsum board; ceiling; free access floor; desktop board; sandwich panel; kitchen and bath wall board; decoration, etc
Terasun upgraded gypsum board---TSM especially suits to grand exterior&interior wall, ceiling projects of office, conference room, hotel, hospital, plant, lab, commercial center hall, tunnel, subway, airport, warehouse, etc.



Features

With Great Fireproof

    The non combustible upgraded fireproof gypsum board is rated class A1 and would lead to no noxious fumes.

With Excellent Waterproof

    The upgraded waterproof gypsum board can maintain stability in performance and not expand in places of high humidity.

With High Intensity

    The CE approval upgraded gypsum board is solid that even board in 6mm are more solid than paperbacked plasterboard in 9.5mm. The wall made from magnesium composite board is very solid and substantial, not easily damaged by shocks.

Thermal Insulation and Sound Insulation

    The upgraded gypsum board has great thermal insulation and heat preservation. The partition wall with 100mm thickness is better in terms of heat preservation than normal brick wall. In the meantime, it has very good sound insulation.

Long Endurance in Use

    The upgraded gypsum board has a stable performance, acid and alkali resistance. In addition, it has no getting damp and there's no afraid of insects, which will ensure a super long endurance.

Low Shrinkage

    The board is made through advanced techniques like pressing by advanced components. The dry state shrinkage ration and expansion rate are well controlled and it's the best boards among all inorganic boards with respect to the performance.

Convenient for Construction

    It has good mechanical properties and able to be saw, shave, nailed without being warped or cracks.

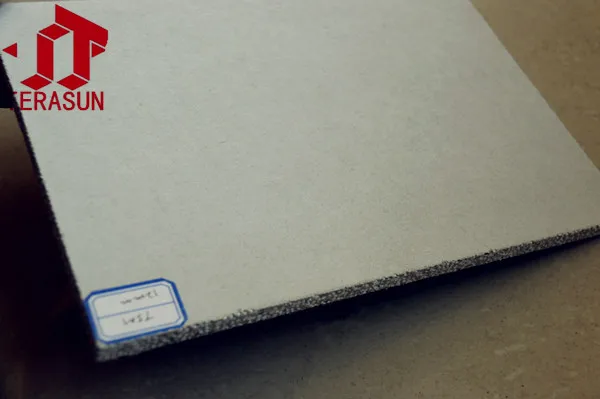

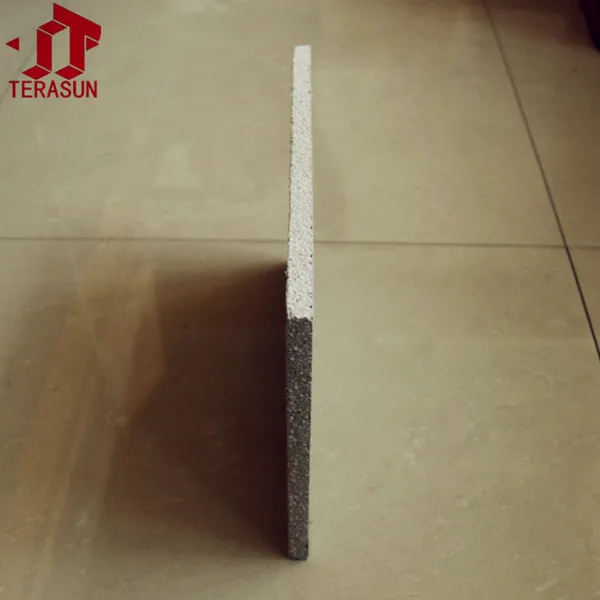

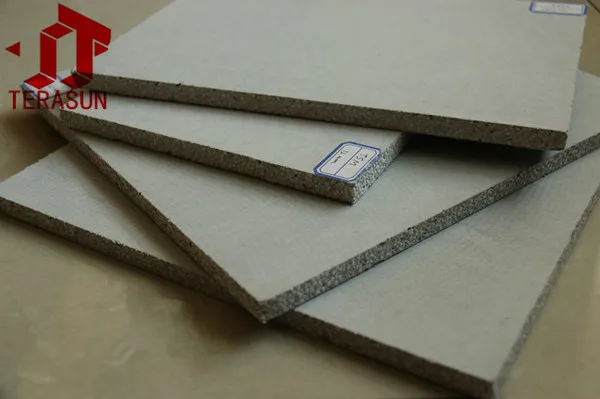

Detailed Images







Production Flow



All the products are manufactcured under stricktly control. With high technology, advanced equipments and experinced workers, every finished boards are of highly quality, with great performance and stable performance.



Preparation → Manufacturing → Processing → Finishing → Packing → Shipping





Packaging & Shipping



Packing & Loading

Usually packed with strong wooden pallet, also packed according to cusyomers' request is also available.

Delivery & transportation

1.For large quantity or big order, transportation by sea is highly recommended.

2.For small orders or medium quantity, all transportation are available.



Usage & Handling



Tool
Use the regular tools for working with woods, no special tools or skills are needed.

Cutting
Use finer saw or electric saw to make sure the cut surface is smooth.

Drills
Both high and low-speed machines are fine (put a scratch material underneath the place to be drilled so that the drilled surface is smooth too)

Sanding
Regular sandpaper is good enough to ensure a smooth surface.

Moving
Avoid damaging the edges of the board made rail during transportation.

Nails
Directly put the galvanized nails into the board but the location should be more than 8mm far away from the edges.

Bolts
The locations of bolts should also be more than 8mm away from the edges. If necessary, workers can drill holes before putting in the bolts.

Paint
Both oil and water-based paints are appropriate. To increase the resistance to moisture, use rubber or Epoxy paints.

Wallpaper
All kinds of wallpaper or plastic wall cloth are good but the size and the location of the wallpaper needs to be accurate.



Main Applications



Terasun CE approval class A1 fireproof waterproof upgraded gypsum board, is of high quality and with great performance. The upgraded gypsum board---TSM can be widely used as suspended ceiling board, exterior&interior wall board, partition board, floor board, other decoration&construction board.



Main Usages	Application Spots
Suspended Ceiling	Residential Houses
Interior&exterior Wall	Office buildings
Partition Wall	Commercial Center
Flooring Underlayment	Manufacture facility
Sandwich Panel	Hotel/Hall
Decoration Board	Transportation Center
Kitchen&bathroom Wall	Factory/Plant
......	......









About Us



Company Introduction



ZheJiang Terasun Air Duct Co., Ltd is a professional company which is specialized in manufacturing air ducts and composite boards, we are a leader in R&D new type environment friendly energy-saving building materials and composite materials.



Our company is established in 1989, and we have independently researched and developed over ten new types of building material products,and have obtained 18 national patents (including 3 patents for invention). Our company's R&D and technical ability keep ahead in the world, and our company is honored as "ZheJiang Province High-tech Enterprise'' and ''ZheJiang Patent Pliot Enterprise". Our company also is in charge of drafting two national standards about glass magnesium composite air ducts.



All of our TERASUN Boards are 100% without asbestos & formaldehyde, and have already passed the test of National Building Material Quality and Inspection Center, which are energy-saving and enrironmenal friendly building materials and advocated by our country. TERASUN boards industry fully implements the ISO9001 and ISO14000 quality control syestem, strictly control products' quality and satisfy customers' requirements of different applications in building, decoration and contruction.



Enterprise Honor

Why Us ?

1.Our ultimate goal is to make every customer satisfied, providing you with right products and come up with correct solutions.

2. Your inquiries will be replied in 24 hours.

3. With professional R&D team and technicists, our experienced sales will answer all your doubts and questions in fluent English.

4. Shipping will be the most economical and freight cost is informed in advance for your referrence. Decision for the shipping terms is up to you.

5. Delivery time is guaranteed. You will be informed with new delivery messages if there is any updates.

6. As a professional manufactory, products specification and pakage can be customized. Pls free to contact us on this.

7. Prompt delivery & professional after-sales service are our priority.

Waiting for Your Kind Inquiry !
