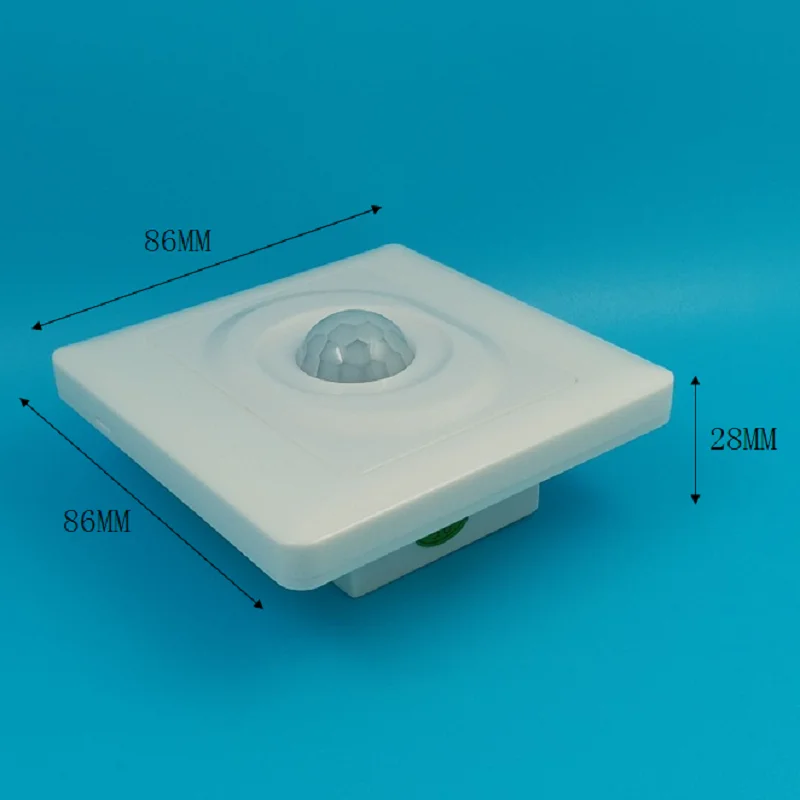

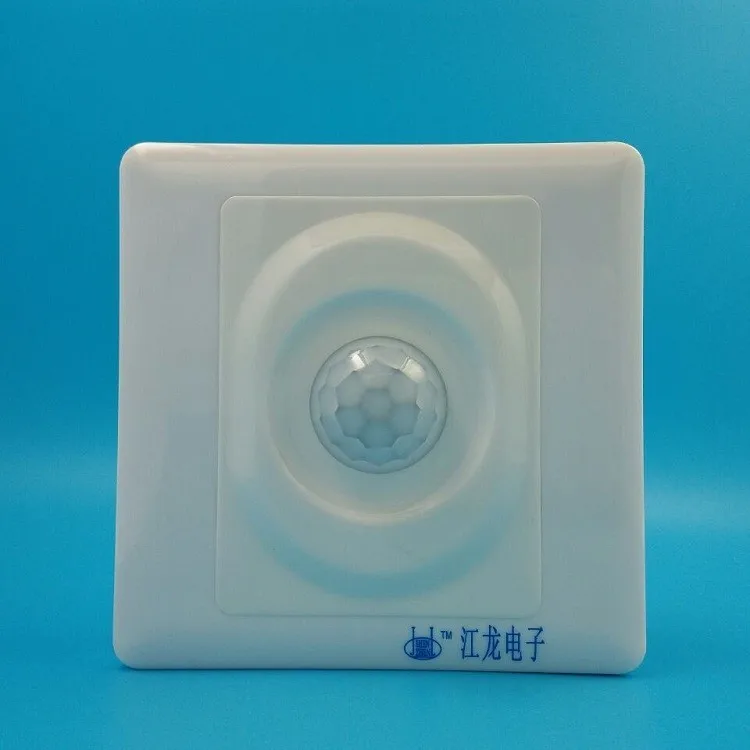

86 мм белый 2 провода видео телефон двери пассивный инфракрасный датчик движения Выключатель 86 мм коридор времени автоматический контроллер светодиодный энергосберегающий переключатель (60030956653)

Share on:


Price:1,76 $ - 1,97 $
Price in USD:Details

Quantity:


Product Overview

Description





The company for customers to design various types products of electronic, provide solutions, the price is cheap, first-class service.












We also take OEM, ODM orders upon request, if you any questions, please feel free to contact us.





The human sensor switch operating instructions


Model:JL-003





1. Features:





Our products adopt the most advanced imported internal sensor and circuit, when pedestrians into the sensing range light will start automatically. (light on), when they leave light will delay and shut down automatically.





1,Super saving electricity, power consumption0.08 degrees per year





2,Wide working voltage, normally working in100V-250V





3,Large power, impedance biggest load can reach200W





4, Non-contact, simple installation(single wire system,just like ordinary switch connection)





5,Delay time: 20-30second





6,Sensitivity: 5LUX





7,Strong anti-jamming capacity, more safe and reliable





Components have been doing rigorous testing and screening, before delivery we have been doing aging test, please be assured to use





2. Specification:





Working power:AC100V~250V 50/60HZ





Load power:LED≤40W,Energy saving≤80W,Incandescent≤200W,Fan≤50W





Standby power:0.0088W





Delay time: 30second





Illumination:5LUX





Sensor distance:6~10m





Sensor angle:110~140degree





3. Application





Corridor,toilet,basement, warehouse,garage ,and other places of automatic lighting, exhaust fan convulsions and other automatic control electrical, can be used for security purposes at the same time.





4. Attention





1.to turn off power when installation, must be installed by professional





2.This switch can work normally after 45 seconds when electricity, it is infrared sensor preheat time





3.Do not overload to use

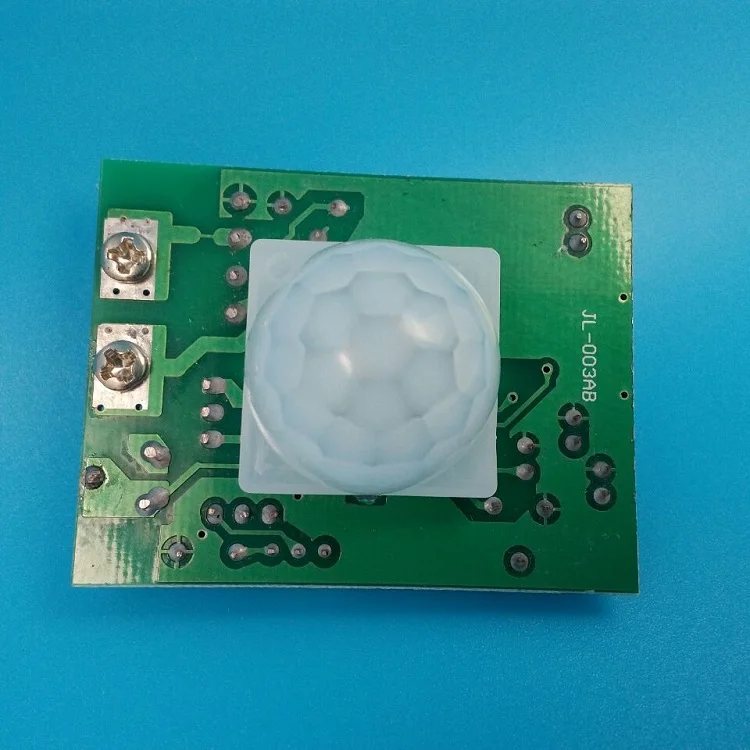

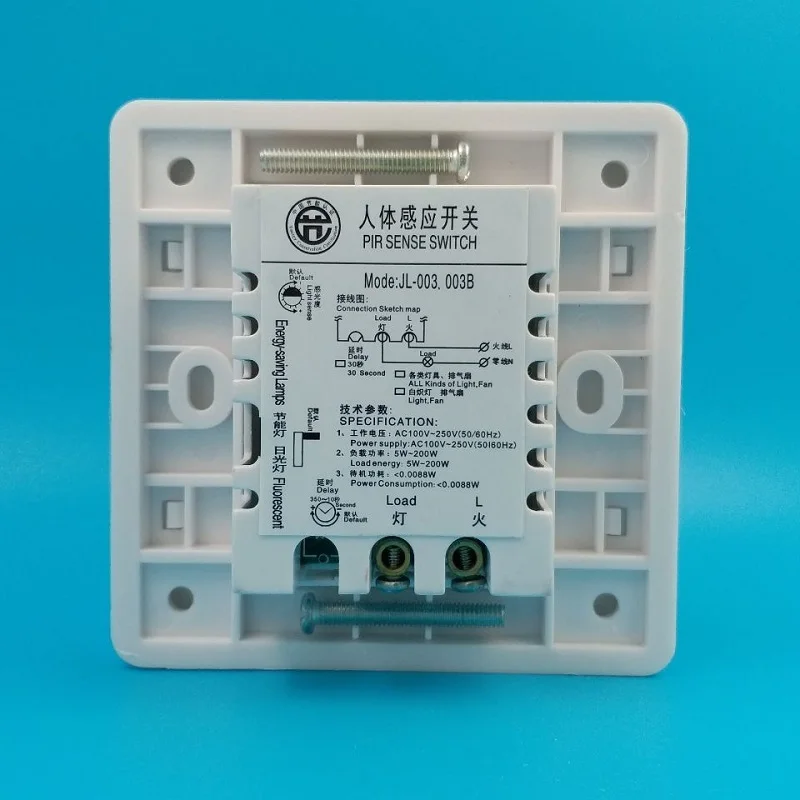

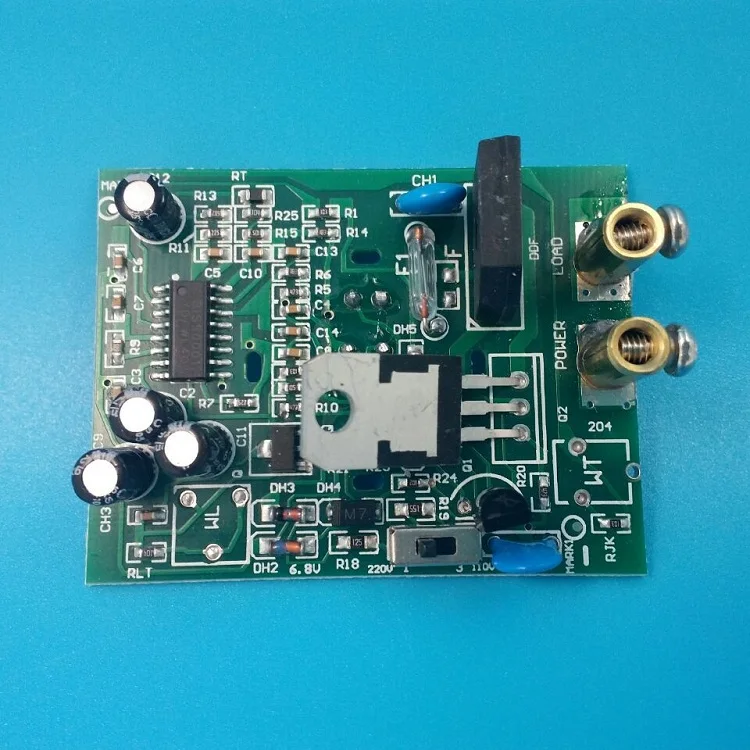

003B.jpg003A.jpg003.jpg003B (2).jpg003B (3).jpg
