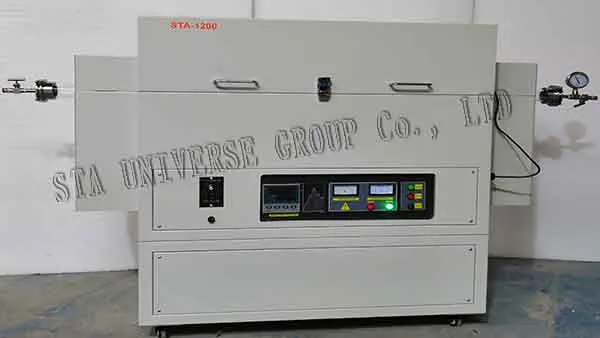

STA High Temperature Laboratory tubular Furnace for sintering heat treatment

Product Overview

Description

 STA High Temperature Laboratory tubular Furnace for sintering heat treatment

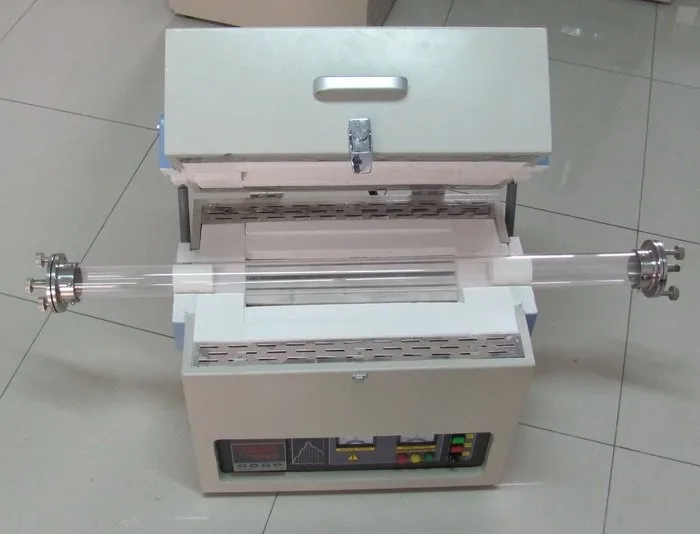

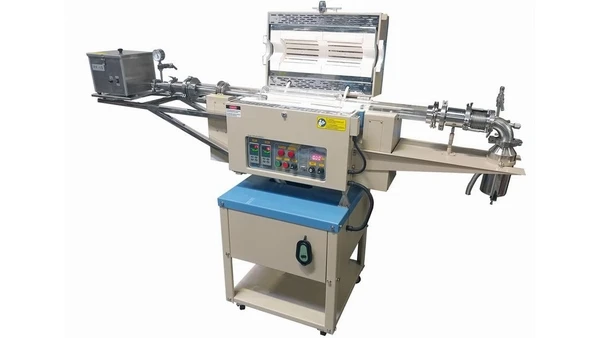

Vacuum tube furnace is the development of special graphene growth furnace, also applies to the faster heating and cooling requirements of a CVD experiment. STA-1700TF vacuum furnace using open-type tubular furnace, bottom rail is mounted straight, when growing after the pulling furnace so there is sufficient space to ensure the test sample out of the furnace, to achieve rapid cooling requirements





Characteristics:





1. Quick diffusing rate
2. Large loaded-amount, low procession cost
3. Surface friction coefficient is small
4. Low brittleness
5. Stable performance
The furnace atmosphere and temperature are uniform and controllable, assuring the process stability and improving the quality of working nitriding.
6. Easy for operation
When the furnace is working, the inner pressure presents periodical change, so does the nitrogen potential, which allows one segment of nitride to replace two or even three segments, simplifying the process and the operation is simpler as one furnace can replace 4-5 sets.
7. Wide adaptability, uniform diffusion layer



technical data of tubular furnace



Model: STA-1700C-TF
Main Specifications:
Inside Chamber Size	Dia60x300mm(diameter2.5" x 12") (support customized size)
Standard Working Temperature	1500oC ( continuous )
Maximum Working Temperature	1650oC  ( < 3 hrs)

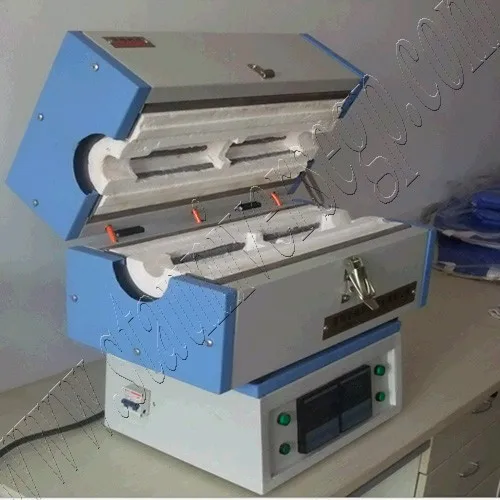

Furnace chamber	split type
Max. vacuum	-0.1MPa
Temperature Control	30 steps programmable and PID automatic control
Heating Rate	0~ 40.C/ min (suggestion: =< 20.C )
Temperature Accuracy	+/- 1 .C
Furnace structure	Double shell with fan cooling
Heating Element	MoSi2 heating elements
Thermocouple	B type
Working Voltage	AC 208-240V  Single/Three  Phase  60/50 Hz (or according to your requirement)
Max. Power	7KW
Net Weight	150kg
Detailed Description
STA-1600C-TF tube furnace is a precision bench-top furnace using quality ceramic MoSi2 rods as heating elements. It is widely used for materials or chemical lab to sinter all types of new materials samples under vacuum or other gases condition. It is controlled by high precision SCR ( Silicon Controlled Rectifier) digital controller with accuracy +/-1.C and 30 segments programmable up to 1600.C

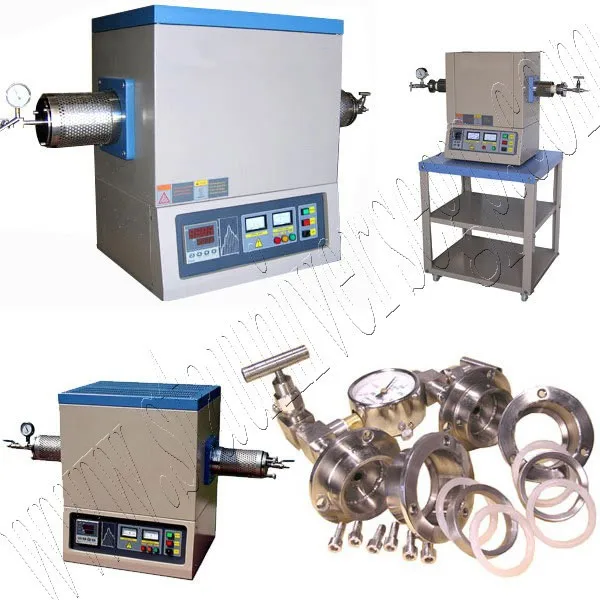

Standard package included with the furnace
Part description		Quantity
Tube plug		4pcs
quartz tube		1pc
vacuum pump		1pc

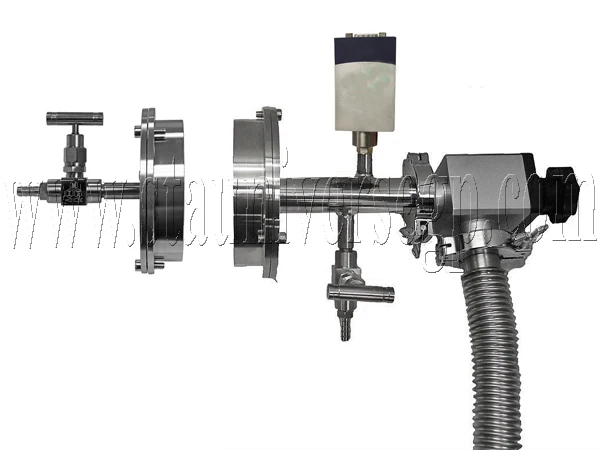

Sealing flange		1set
vacuum gauge		1pc
Thermal couple		1 pc
Stainless steel hook		1 pc
Thermal gloves		1 pair
Operation manual		1 pc
Standard Sizes:
Model	Chamber size (Outer diameter of furnace tube x heating length)	Max. Temperature
STA-1600MT	Dia40x300mm (1.5"x12")	1650.C
STA-1600MT	Dia40x450mm (1.5"x18")	1650.C
STA-1600MT	Dia60x300mm (2.5"x12")	1650.C
STA-1600MT	Dia60x450mm (2.5"x18")	1650.C
STA-1600MT	Dia80x300mm (3.0"x12")	1650.C
STA-1600MT	Dia80x450mm (3.0"x18")	1650.C





if you have any other requirment,we could produce according to your size or drawing!!!



Welcome to contract me .





Main applications:



Used for universities, research institutions, industrial and mining enterprises to do high temperature sintering



atmosphere, atmosphere restoring, CVD experimental and vacuum annealing.

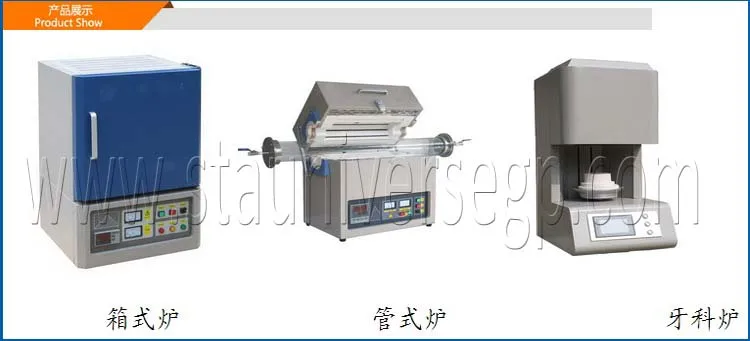

♥♥♥ products showing ..........
