1. Short cycle hot press for door skin 2. Door skin laminating hot press 3. Melamine MDF door skin 4. Veneer MDF door skin
Descriptions:
NYJ-800T to 1600T Series hydraulic press machine for door skin suitable for moulding and veneering of melamine door skin,natural wood door skin. This hydraulic press machine for door skin adopts spring synchronous closed structure, can stop at any position according to the production preocess(or position-limit control), and the residence time can be adjusted. The press holding time and pressure set automatic control. Two operaing mode(manual and automatic) are convenient for customers to choose.
Technical parameters of Door skin laminate sheet machine:
Type
Finished Board Size(ft)
Nominal Pressure(KN)
Hot Pressboard Size(mm)
Layer Spacing(mm)
Main Oil cylinder(diameter×number)
NYJ-800T
3layer
3×7
8000
1150×2250×70
250
Φ440×920×4
4layer
3×7
8000
1150×2250×60
250
Φ250×1000×8
5layer
3×7
8000
1150×2250×60
250
Φ280×1250×6
NYJ-1200T
3layer
3×7
12000
1150×2250×70
300
Φ320×920×6
4×8
1400×2600×70
4layer
3×7
12000
1150×2250×60
250
Φ320×1000×6
4×8
1150×2250×60
5layer
3×7
12000
1150×2600×60
250
Φ280×1250×8
4×8
1400×2600×60
NYJ-1400T
3layer
3×7
14000
1150×2250×70
300
Φ340×920×6
4×8
1400×2600×70
4layer
3×7
14000
1150×2250×60
250
Φ340×1000×6
4×8
1400×2600×60
5layer
3×7
14000
1150×2250×60
250
Φ440×1250×6
4×8
1400×2660×60
NYJ-1600T
3layer
4×8
16000
1400×2600×70
250
Φ380×920×6
4layer
4×8
16000
1400×2600×60
250
Φ380×1000×6
5layer
4×8
16000
1400×2600×60
250
Φ380×1250×6

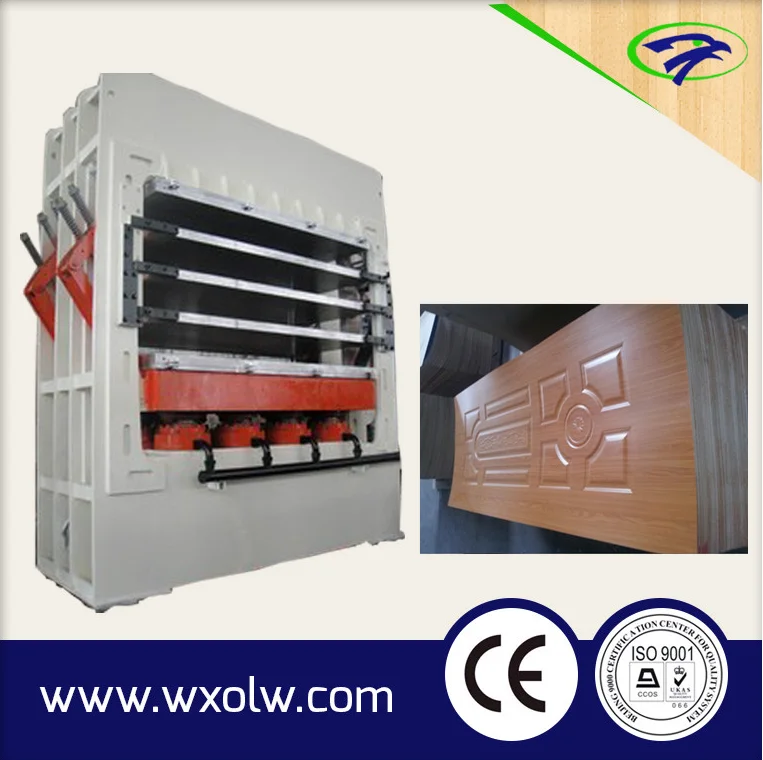

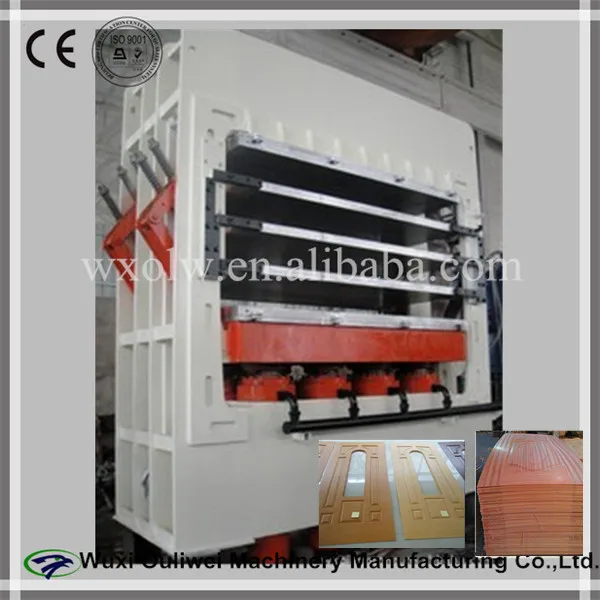

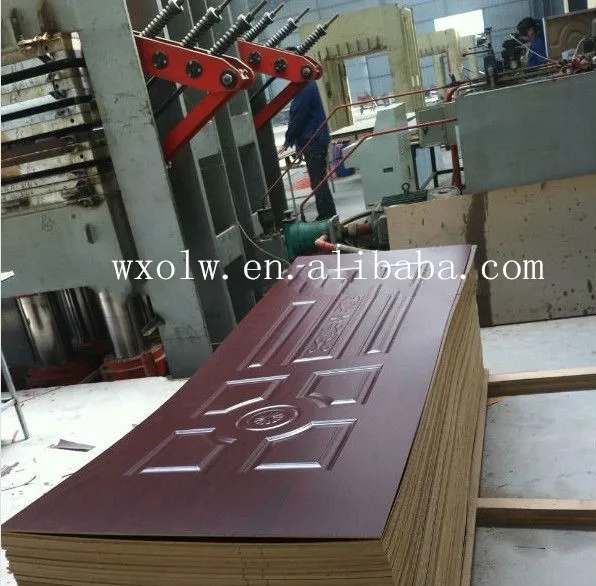

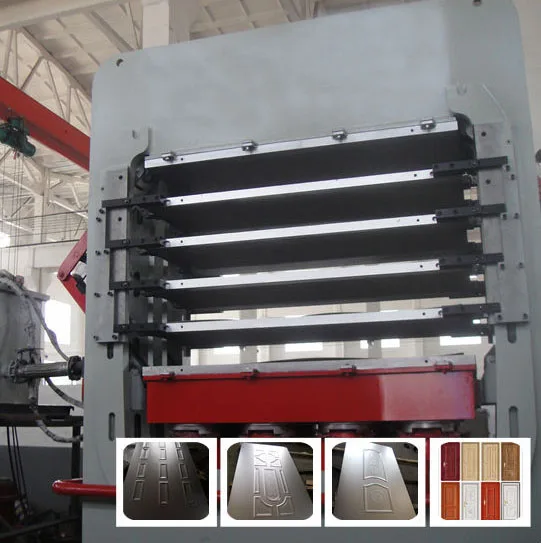

Door skin laminate sheet machine:

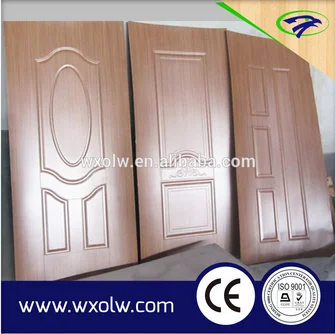

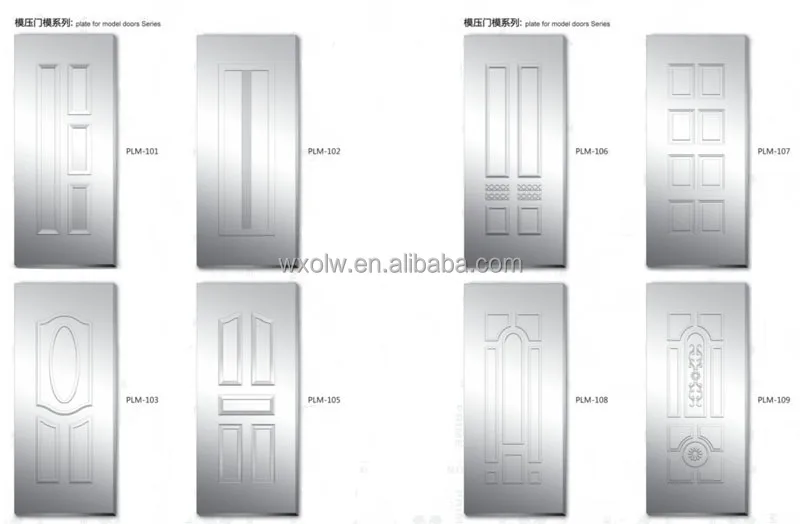

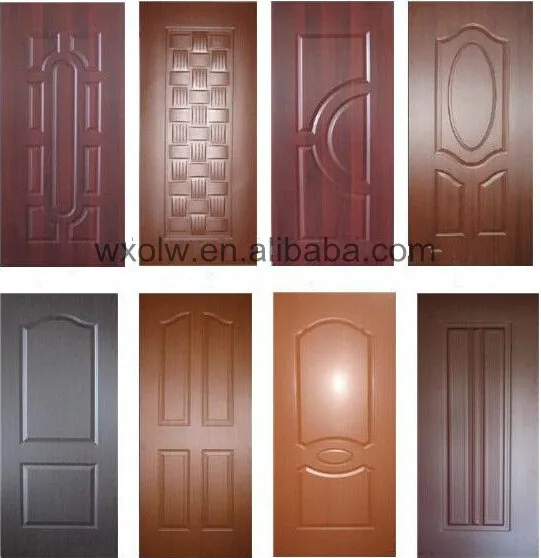

Door skin moulds:
Contact Person
Name: Eva
Mobile:+86 152 6158 6539
Viber&Whatsapp:+ 86 152 6158 6539
Skype:evayuya
Wechat: 1114032605
Wuxi OULIWEI Machinery Manufacturing Co.,Ltd
Add:No.6 Tianshun Rd, Yangshan, Huishan district, Wuxi city, China
P.C:214000
FAQ
1.Q:Are you a factory or trading company? A: We are the professional machinery manufacturing factory,with own excellent machine design team.
2.Q:Where is your factory located? How can I visit there? A:Our factory is located in Wuxi, Jiangsu Province, China, about one hours train from Shanghai .
3.Q:What is the material of your products?
A:Our machine material adopt high-quality Q235B steel from well-known Shagang Group company.
4.Q:How does your factory do regarding quality control? A:Quality is priority.Our machine has gainedCE and ISO certificate.
