Milk Pasteurization Machine Plc,pump Provided 2 Years United States CN;JIA 985kg Low Noise Level 2200*2000*2400mm 380V Mars 9kw

Product Overview

Description

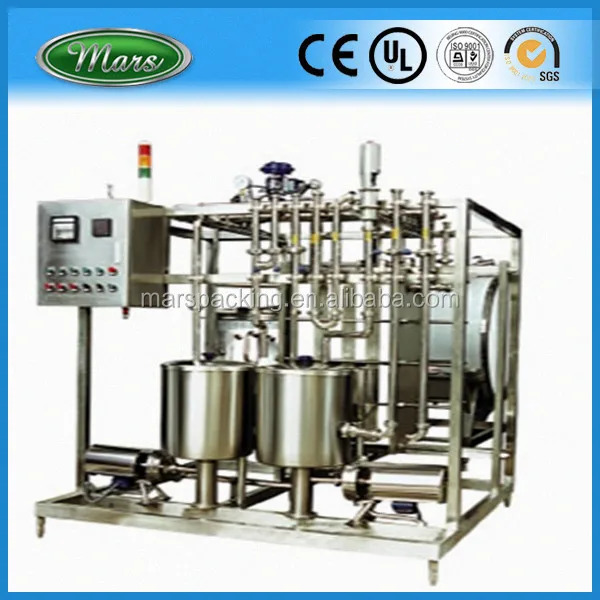

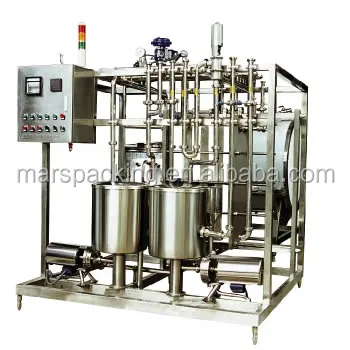

Milk Pasteurization Machine





The Plate Pasteurizer is a multifunctional equipment.  It can heat, sterilize, keep warm and cool down heat sensitive liquid such as fresh milk, beverage, juice and wine.

This machine has a high heat recycling system, energy saving, economical, simple structure, simple operation, and convenient maintenance.



Controlling methods:

Semi-automatic and fully automatic options (PLC control, tactile screen)

Main parts:

Material pump, balance bucket, hot water system, temperature control and record, and electric control system.

Production capacity: 0.5-20t/h. S

terilizing temperature: 85-95º C.

Warm keeping time: 15-30s.



Technical parameter:



Name-Unit- Model	HTST-1	HTST-2		HTST-3		HTST-4		HTST-5		HTST-10
Production capacity (L/h)	1000	2000		3000		4000		5000		10000
Heat exchanging area (m2)	12	15		20		25		28		52
Material inlet temperature	5ºC
Material outlet temperature	5ºC
Sterilizing temperature	85-95ºC
Warm keeping time	25 s
Ice water temperature	1ºC
Ice water consumption	20400 L/h
Joint size (mm)	Φ 38		Φ38		Φ38		Φ51		Φ51		Φ68
Weight (Kg)	928		985		1050		1200		1350		1800
Size (mm)	1500x1500 x2000		2200x2000 x2400		2200x2000 x2400		2400x2000 x2400		2400x2200 x2500		2500x2200 x2500



Terms and Conditions:

1. Package- all equipments packed in wooden cases worthy of sea shipping.
2. Payment- 30% of total amount paid by T/T in advance and the balance paid by T/T after inspection and before shipment.
3. Delivery- in 60 days upon receipt of down payments.
4. Warranty-all machines & equipments are of one year warranty and life long maintenance offered by seller.
5. Installation- the seller arrange engineer to set up the equipments and train the operation workers for free, till qualified products are produced and maintenance in normal running, the buyer bear the round air tickets and local accommodation for the seller's engineer.



Product show
