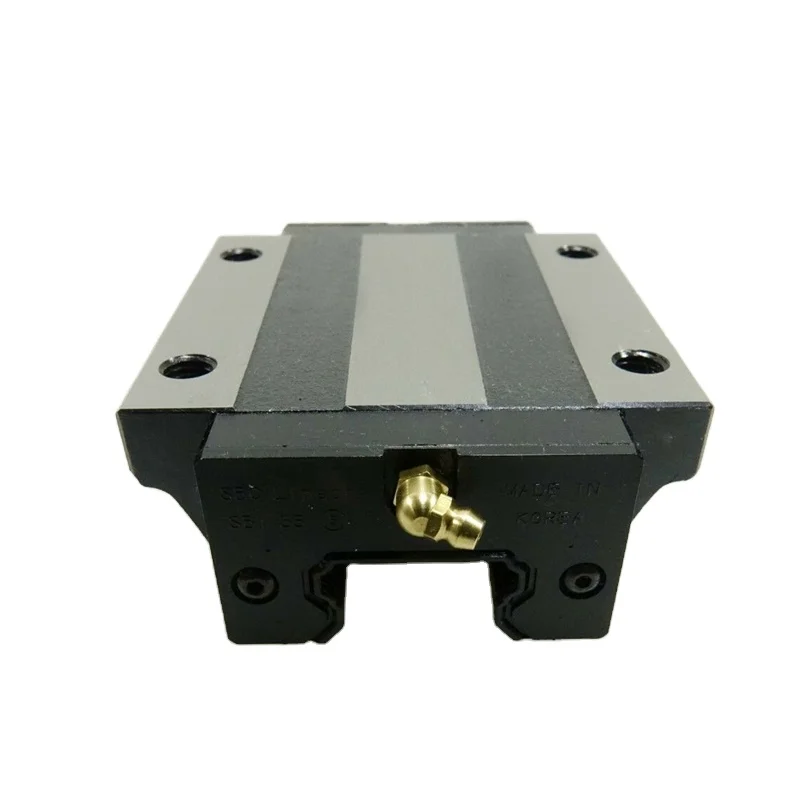

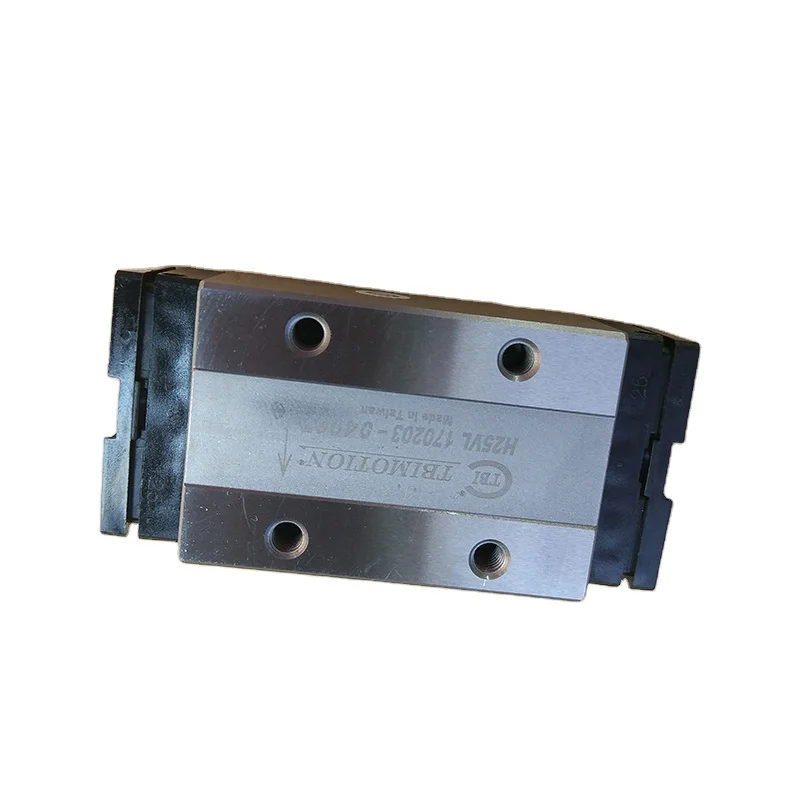

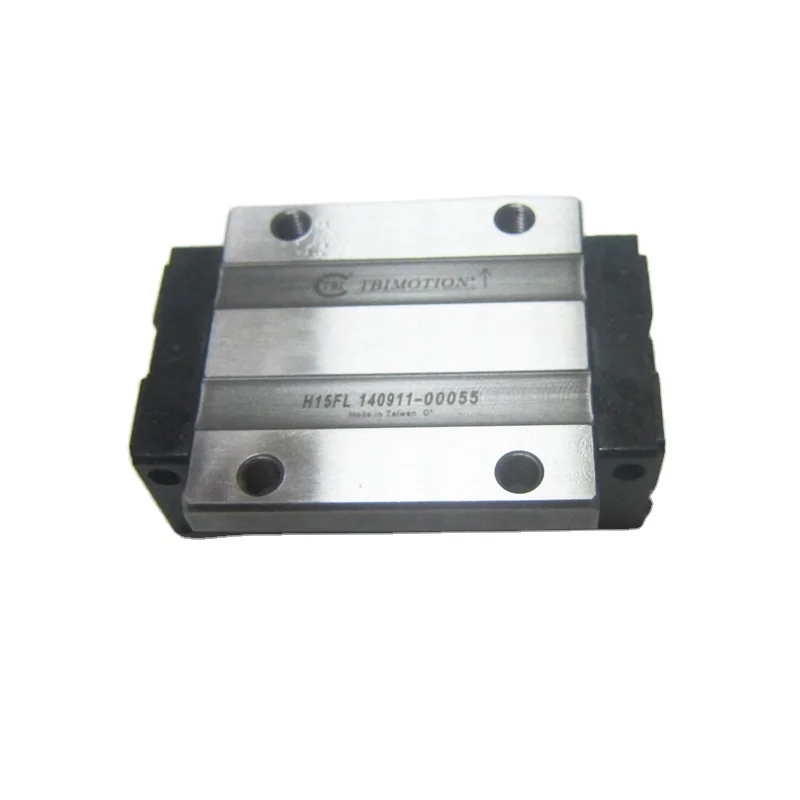

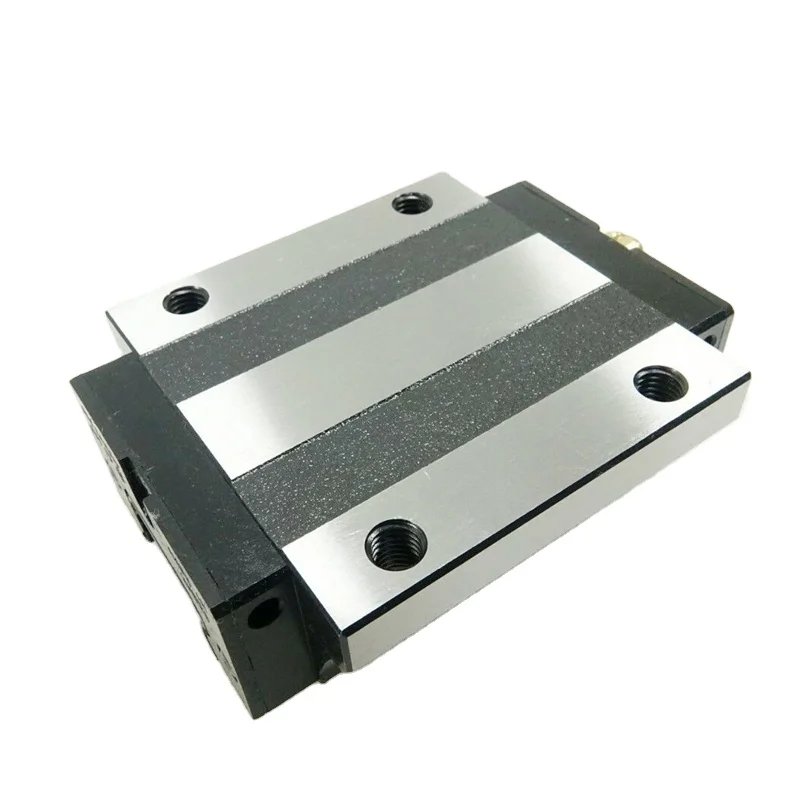

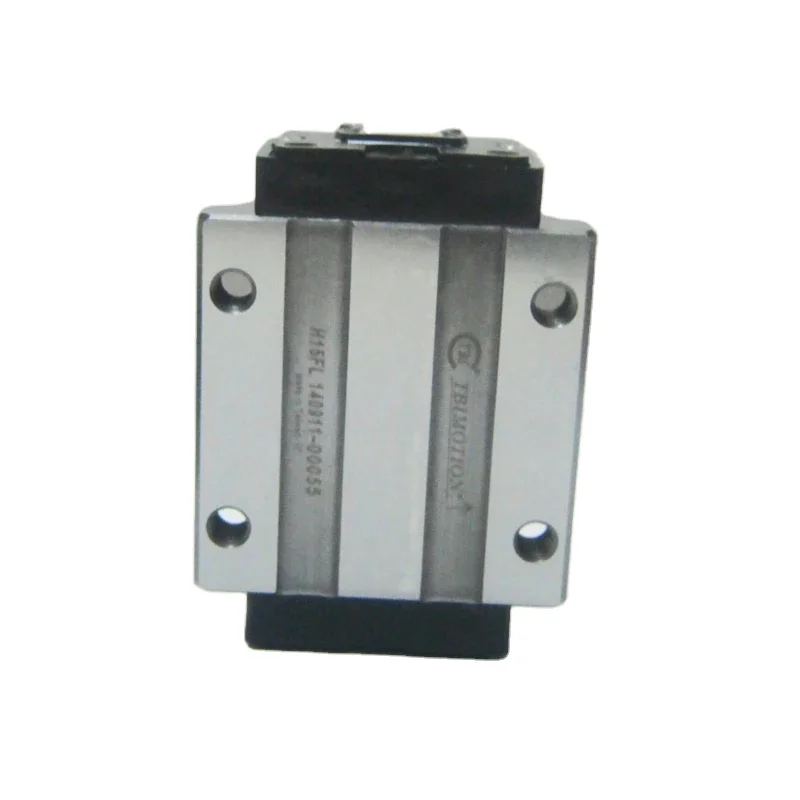

High speed TBI square type ball slide TRH65VE linear motion block

Product Overview

Description

High speed TBI square type ball slide TRH65VE linear motion block





TBI Linear guide description

• TBI linear guideway has a little friction resistance,only a small driving force is needed to move the load.Low fircitional resistance helps the temperature rising effect be small,Thus the frictional resistance is decreased and the accuracy could be maintained for long period than traditional slide system.


• TBI linear guide block,linear carriage ,linear rails,and ball apply by conact point of rolling system,Due to the characteristic of low frictional resistance,the required driving force is much lower than that in other systems,thus the power consumption is small,moreover,the temperature rising effect is small even under high speed operation.


• TR series linear guide can achieve a long life with high speed, highly accurate and smooth linear motion.


• TBI TR series block respectively flange type block and square type block.


• Country (Region) (Region) (Region) of origin:Made in TaiWan.


• Please be advised the linear guide is the 4000mm/piecse, We can cut the length for you need.



Feature of  Linear guide rail

• Easy lubrication


• Interchangeability


• Self-aligning capability


• High rigidity,highly accurate


• Heavy load radial linear guides


• Smooth runningHigh speed and accuracy


• Low friction & vibration


• Low noise and non-pollution


• Achieve a long life with high speed

Application of Linear guide rail

• Lathe machine


• Marble cutting machines


• Heavy cutting machines


• Woodworking machinery


• Machine centers,Machine tools


• Precision machining machines


• Heavy cutting machines,Punching machines,


• Automatic equipments,Grinding machines


• Semiconductor manufacturing equipment


• High speed transfer equipments


• Injection molding machines


• Measuring equipments


• High Precision measuring equipments

Linear guide rail Details:
A Different Name	linear guide rail, slide block, linear motion, linear guide
	linear guideway, linear module, linear actuator,linear guideway
Brand	TBI
modele	TRH65 VE
rail lenght	80mm/-4000mm lenght can provide
size:	following list
Minimum quantity:	1 piece slide block and 100mm linear rail
Precision:	N, H, P, SP, UP
Pre-pressing	ZF, Z0, Z1, Z2, Z3
Lubrication:	grease
Seal Types	open or sealed
Material:	chrome molybdenum alloy steel
Packing	original color box packaging





• Standard size:1pc or 100pcs or 1000pcs accept,(Different model and size have different requirement)


• Non-standard size::500PCS to 1000PCS

Payment:

• T/T ,L/C, Western Union,PayPal, Credit Card

Sample:

• Free sample after deposit,or sample cost at buyer's cost(refundable)

Shipping:

• For Small orders (1pc-50pc)and samll Size,we send by express UPS,DHL,FEDEX, or EMS,china post with Thracking number


• For Big quantity (1000pc-100000pc), we will ship by sea.

Before-Sales:

• Providing guidance for bearing type selection ,choosing the optimal desidn,reducin H the customer cost and esuring the operating performance of equipment


• Hlping customers design bearing applications and providing overall solutions


• Reducing operating cost for customers

In-Sales :

• Providing customers with transportation arrangements and related service


• Assisting customers in handling icoming inspection.

 After-sales:

• Providing customers with trainings about bearings installation,operation and maintenance


• ENsuring the stable operation of equipment,improving


• Providing bearing failure analysis
