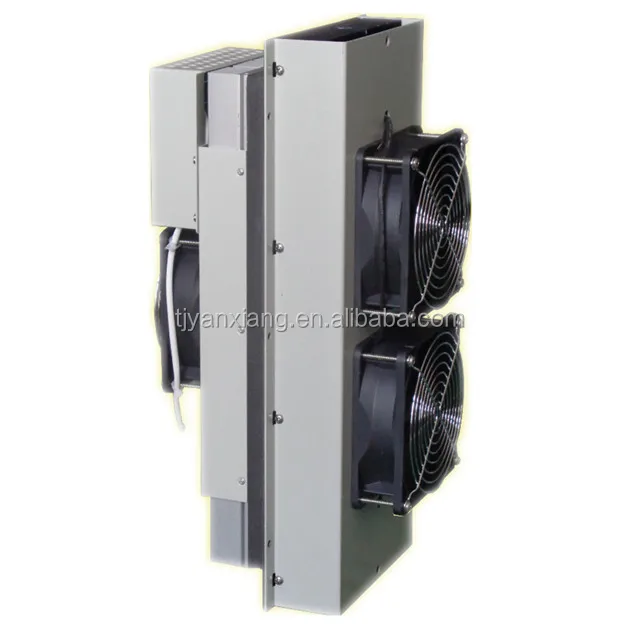

200W industry peltier cooler TEC air conditioner for outdoor cabinet AC TEC 200

Product Overview

Description

100W-400W industry peltier cooler TEC air conditioner for outdoor cabinet



1. Feature

 1. Do not use the refrigerant. Has no effect on the environment

 2. Small size, light weigh

 3. Meet cooling and heating requirement

 4. No mechanical friction and noise, Can work under arbitrary Angle

 5. Easy maintenance

 6. Life is up to 200000 hours

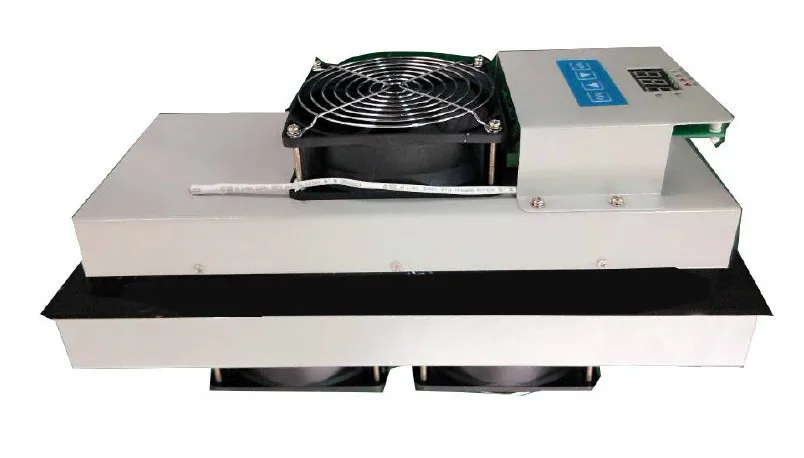

2. Picture





3. Technical data





Model		100W TEC	200W TEC	300W TEC	400W TEC
Working Voltage		DC48V	DC48V	DC48V	DC48V
Specifications
Rated input current-A	L25	3.5	7.0	8	10
	L35	3.85	7.5	8.5	10.4
Cooling Capacity-W	L25	100	200	300	400
	L35	110	230	330	440
Rated Power Input-W	L25	168	336	384	480
	L35	184	360	408	500
Heating Capacity-W		250	500	650	850
Air volume-m³/H		50	70	100	100
Noise-dB(A)		55	57	60	60
Operation Temperature		-20℃-50℃	-20℃-50℃	-20℃-50℃	-20℃-50℃





Mechanical Data



Install Method	Side mount	Side mount	Side mount	Side mount
Height-mm	281	400	530	530
Width-mm	185	180	430	430
Thickness-mm	179.9	190.9	220	220



Controller Data



Working Voltage	DC48V/50HZ
Operation Temperature	-30℃-70℃ <90%RH
Temp Accuracy	0.1	0.1	0.1	0.1
Power Consumption	5	5	5	5
Communication Mode	Dry contact/RS485/RS232/GPRS optional

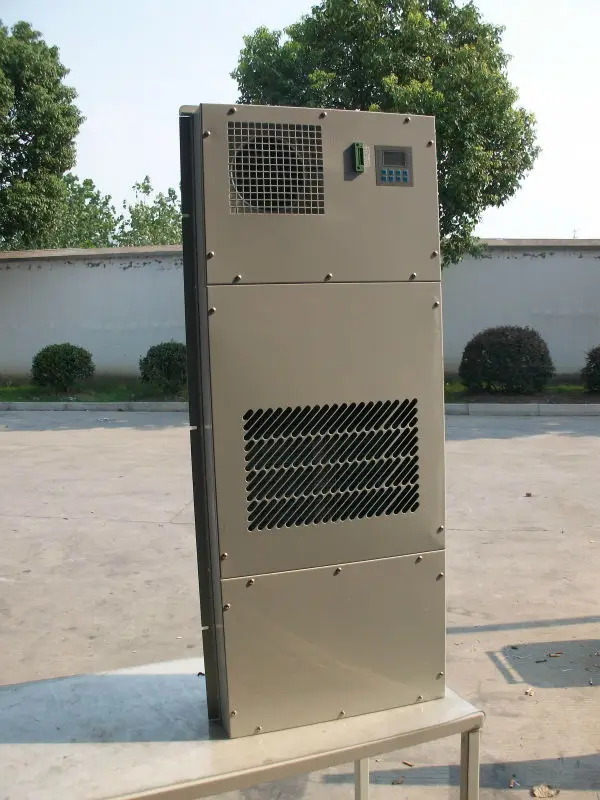

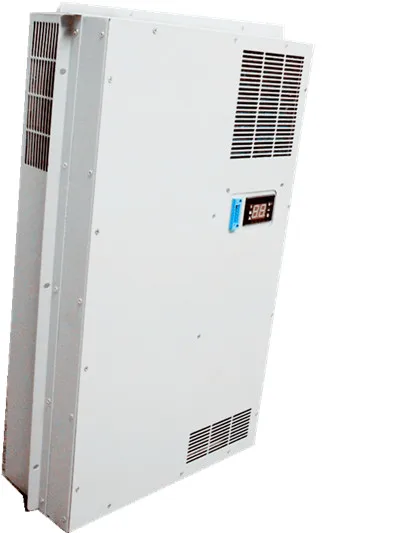

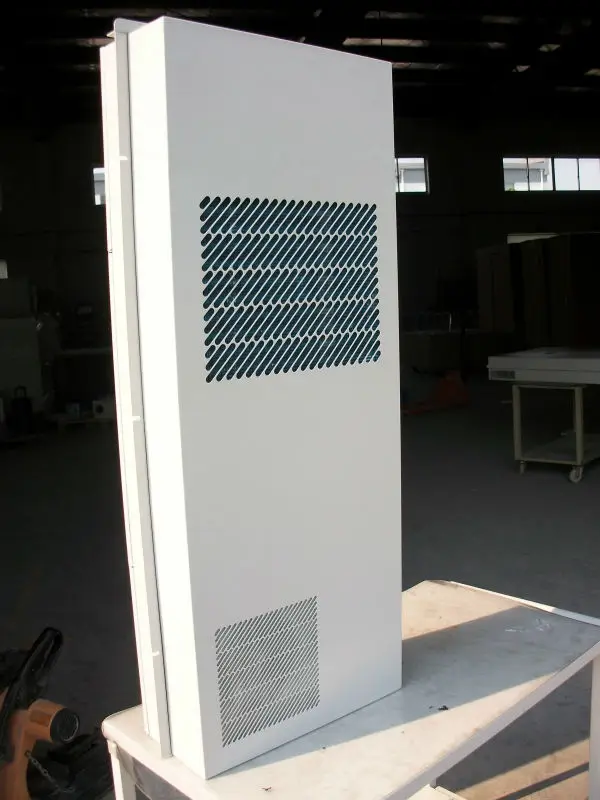

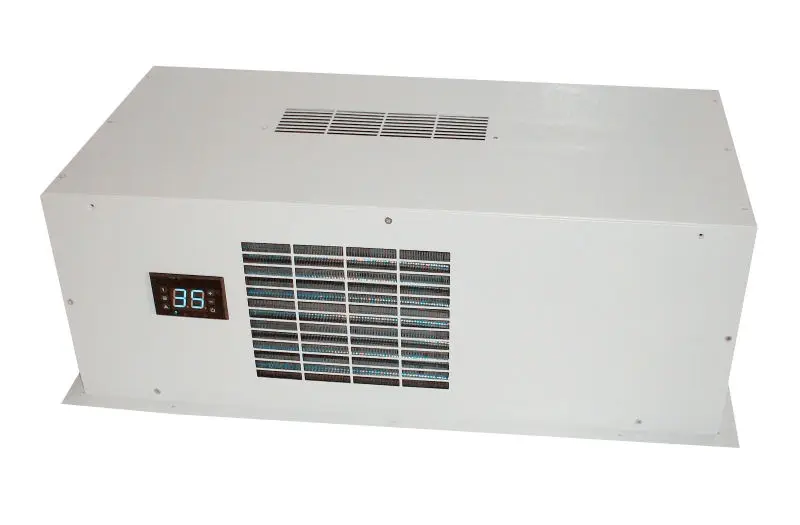

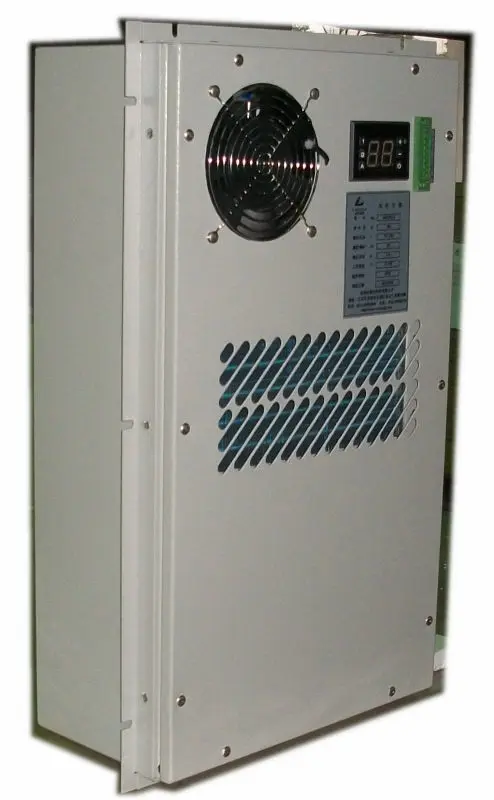

4. Other Products













General information

Application of Outdoor Telecommunication Cabinet

Outdoor telecommunication cabinet is widely used in the industries of power and energy,

communication, broadcasting, traffic, climate and advertising and so on.

Waterproof outdoor telecommunication cabinet is composed of outer metal enclosure or

rack and inner base station equipment or power equipment or temperature control

equipment or transmission equipment or other assorted equipment.



Company Profile

Tianjin Yanxiang Electronic Science and Technology Co.,Ltd. which combined R&D, production and sales together is established in 2001. Its occupation is more than 3000 square meters, and there are 5 Production lines. ISO9001:2008 certificate has been granted in 2004. Products covers heat exchanger, heat exchanger communication cabinet, air conditioner battery cabinet, outdoor integrated communication base station, network communication cabinet and so on. We are not only a qualified supplier of well-known domestic enterprises, such as Huawei Technology Company, Tianjin Broadcasting Network System, TT&C Network of China etc. but also trustworthy manufacturer for clients from USA, Russia, Vietnam, Peru, South Africa and more. Welcome to receive your comments and inquiries.





Why choose us?

1. Many years manufacturer selling

2. Wholesale/ Customize sample/OEM ODM are available

3. Competitive price

4. High product quality ,Strict quality control

5. Best service !



Trade tips:

Price Terms : FOB Tianjin, others can discuss

Payment Terms : T/T, at sight LC, others can discuss

Valid : 30 days

Lead time :15-20 days

Package: wooden case

Remark: The price will change with any requirement changes



Certification and patent
