AC220V e27 adjustable pir sensor motion switch and lamp holder LED Energy delayed saving switch 86mm

Product Overview

Description

The company for customers to design various types products of electronic, provide solutions, the price is cheap, first-class service.









Hello! We also have alibaba China  store, please click link for  details: //jianglongdianzi2011.1688.com

We also take OEM, ODM orders upon request, if you any questions, please feel free to contact us.

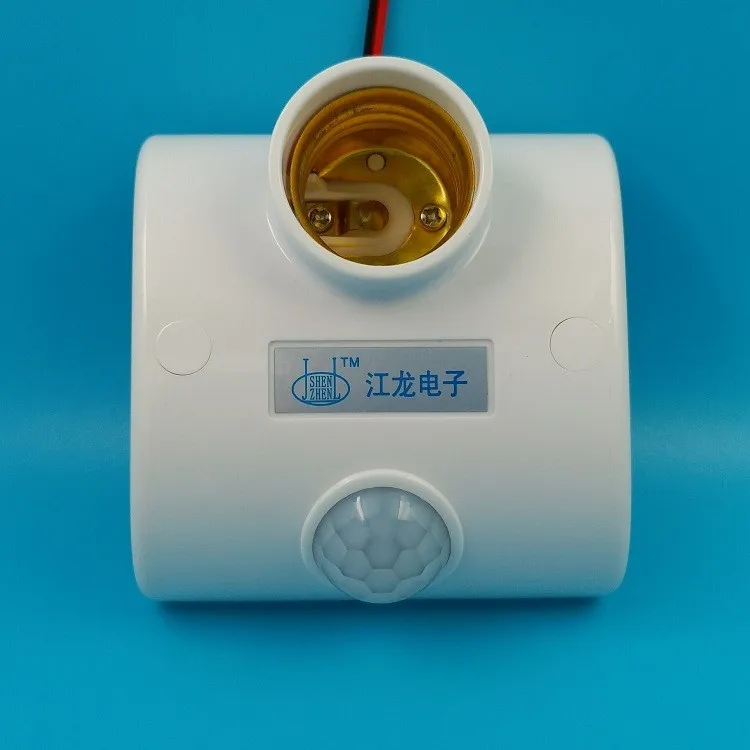

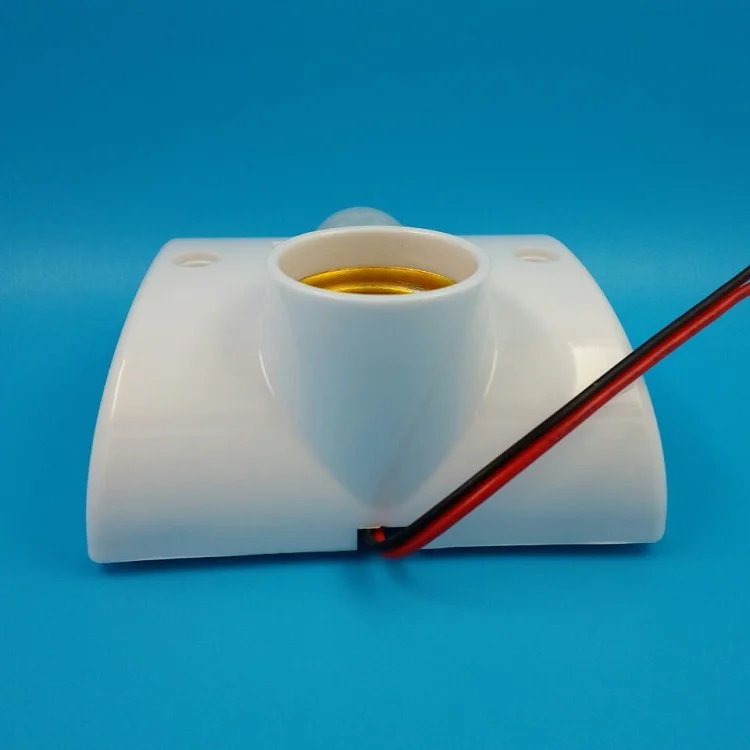

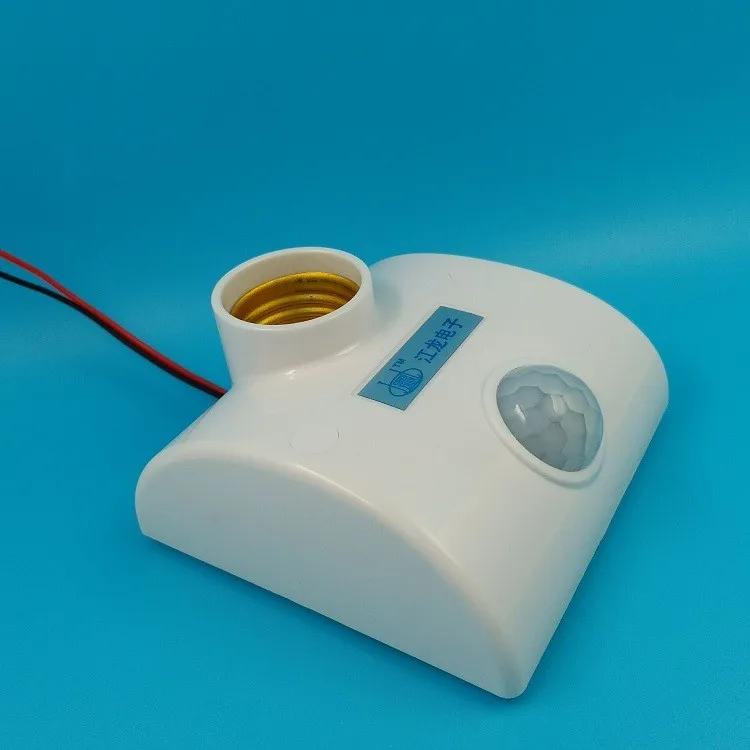

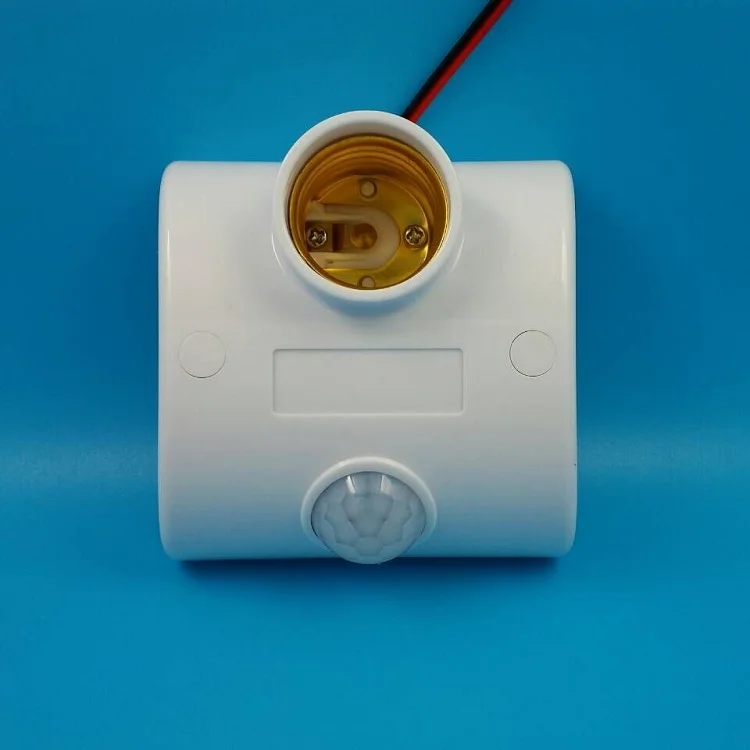

The human body induction lamp holder operation instruction



          (JL-009D Adjustable     sensitivity and time)



1. Suitable for places



Corridor,toilet,basement,garage ,and other places of automatic lighting.



2. Features:



Our products adopt the most advanced imported internal sensor and circuit, when pedestrians into the sensing range light will start automatically, when they leave light will delay and shut down automatically. It has:



1,Wide working voltage, normally working in170V-250V,50/60HZ



2,Large power, impedance biggest load can reach200W



3,Delay time adjustable(JL-009D specific)



4,Sensitivity adjustable(JL-009D specific)



5,Lightning protection, strong anti-jamming capacity, more safe and reliable



3.Specification:

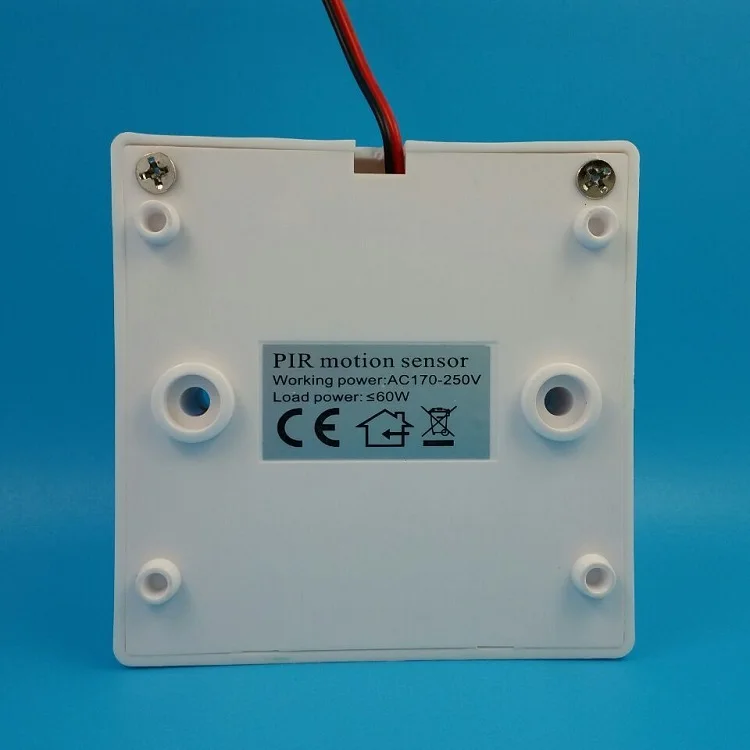

1,Working power:AC170V~250V,50/60HZ



2,Load power:≤60W



3,Power consumption Idling:≤0.1W



4,load characteristic:energy saving lamp,LED



5,Delay time:15~300second(default 30S)



6,Illumination:5LUX~5000LUX(default 5LUX)



7,Induction distance:110°,5~8m



4. Attention:



1,To turn off power when installation, must be installed by professional



2,Do not overload to use



3,This product should not be used for the incandescent light bulb



4,This switch can work normally after 45 seconds when electricity, it is infrared sensor preheat time

Components have been doing rigorous testing and screening, before delivery we have been doing aging test, please be assured to use
