Product Overview
Description
Product Description

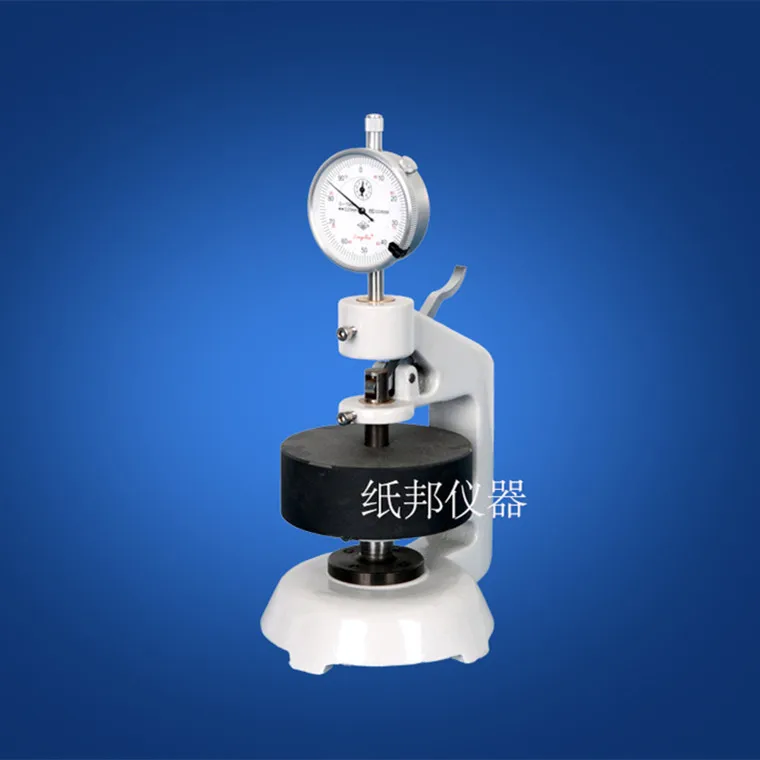

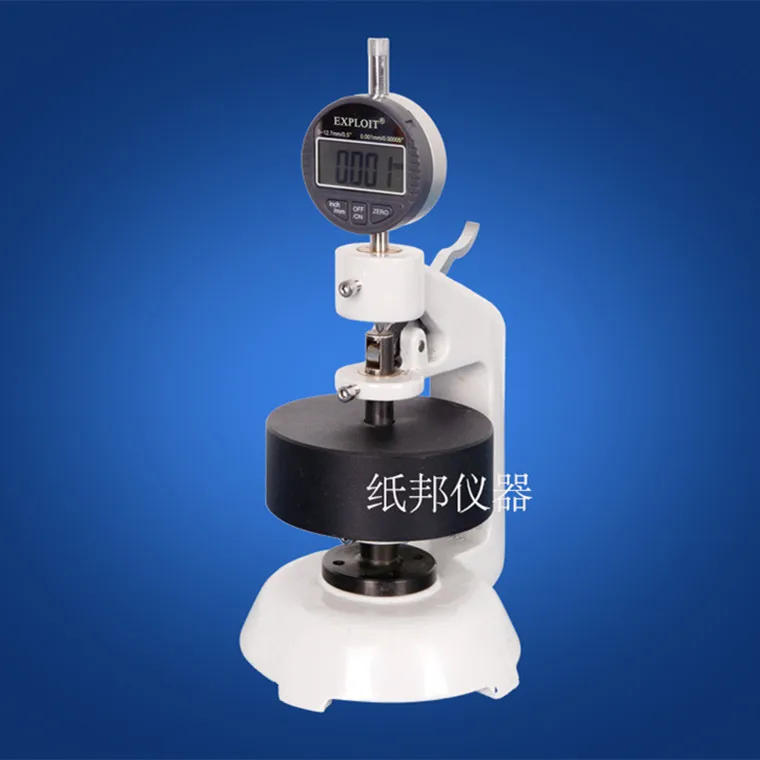

Hangzhou good quality paper and cardboard thickness tester
is a special instrument to measure the thickness of paper and cardboard, widely used in paper, cardboard and other sheet materials.It's the essential equipment for the papermaking,packing industry, research and inspection department.
Standards
ISO 534 ISO3034 GB/T 451.3 GB/T6547
Main technical parameters
Mode | ZBH-4 | ZBH-20 |
Measuring range | 0-4mm | 0~20mm |
Accuracy | 0.01 or 0.001mm | 0.01 |
Contact pressure | 100±10 kPa | 20±0.5 kPa |
Contact diameter | 16.0±0.5 mm | 35.7±0.5 |
Error of depth of parallelism | 0.005mm or 1% | 0.03 |
.Indication error | ±0.0025mm or±0.5% | |
Indication variability | ≤0.0025mm or≤0.5% | |
Dimension | 233*160*120 mm | |
Net Weight | About 5.5kg | |
