zhuodi ceramic tile panels production line

Product Overview

Description





CALIBRATING & POLISHING SYSTEM PARAMETERS

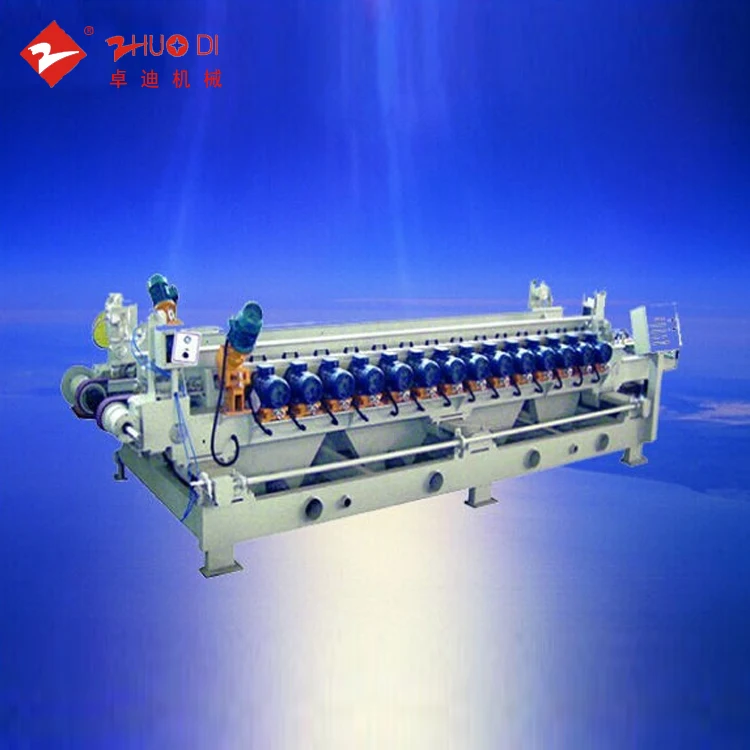

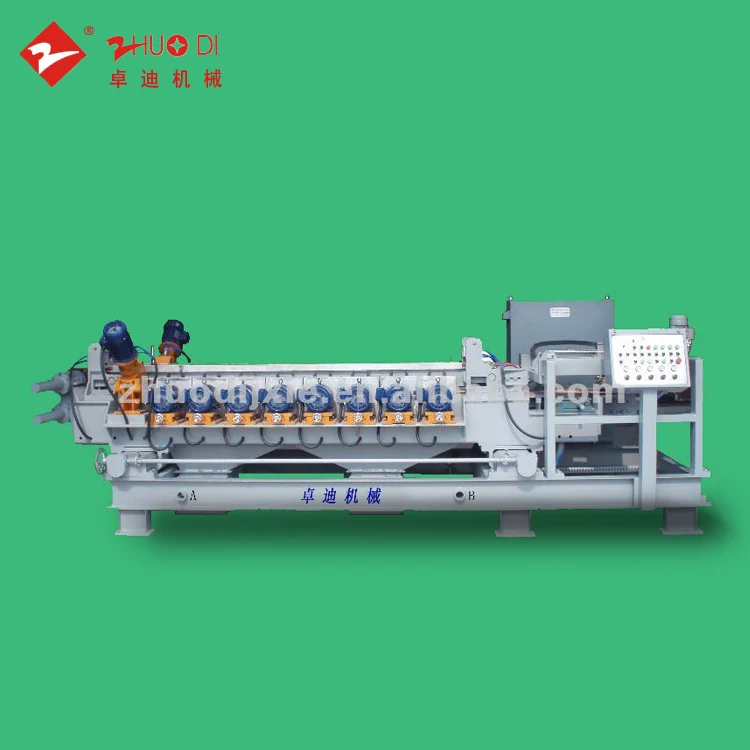

Oscillating Calibrating Machine
Item Code		ZYD800	ZYD1650
Grinding Segents		4-10	6-12
Work Width		600-800mm	600-1660mm
Work Thickness		10-40mm	10-40mm
Conveying Speed		1-3m/.min	0.8-1.5m/.min
Conveyor Motor Power		1.5-3kw	2.2-5.5kw
Swing Motor Power		2*4kw	2*4kw
The Grinding Head Motor Power		22kw	22kw
Water Consumption		210L/min	320L/m



POLISHING SYSTEM PARAMETERS

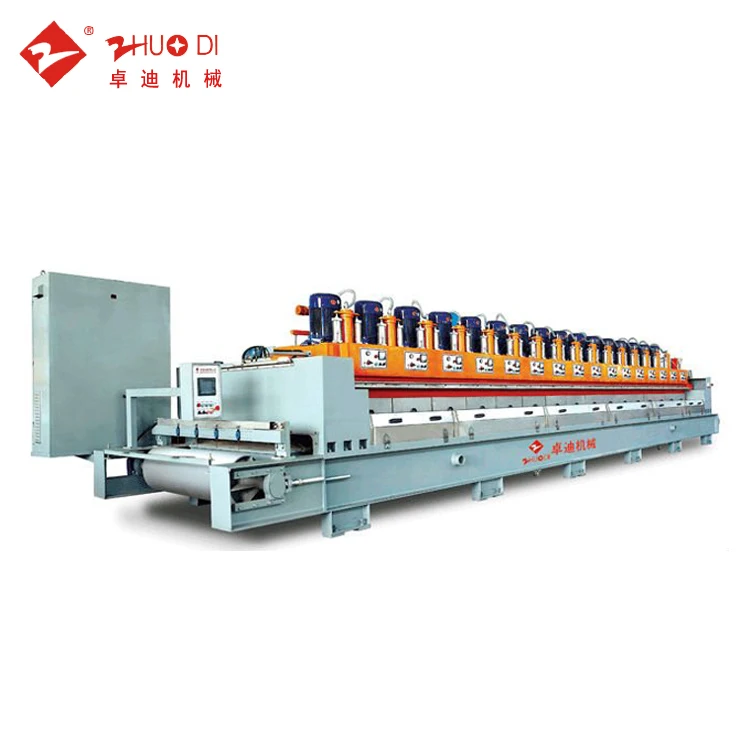

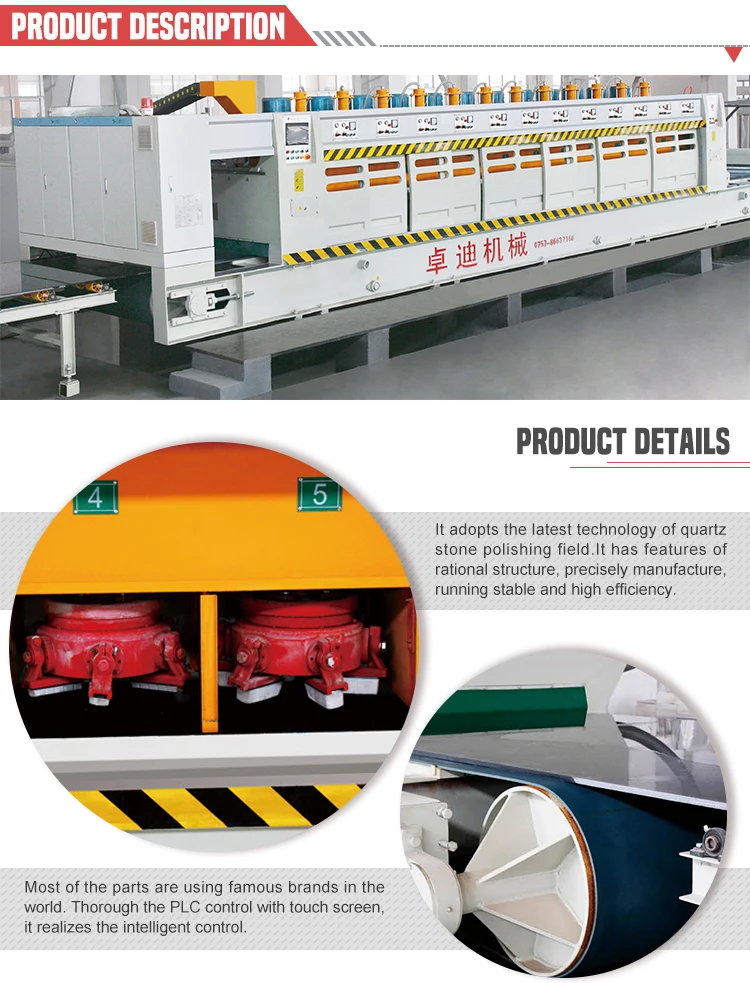

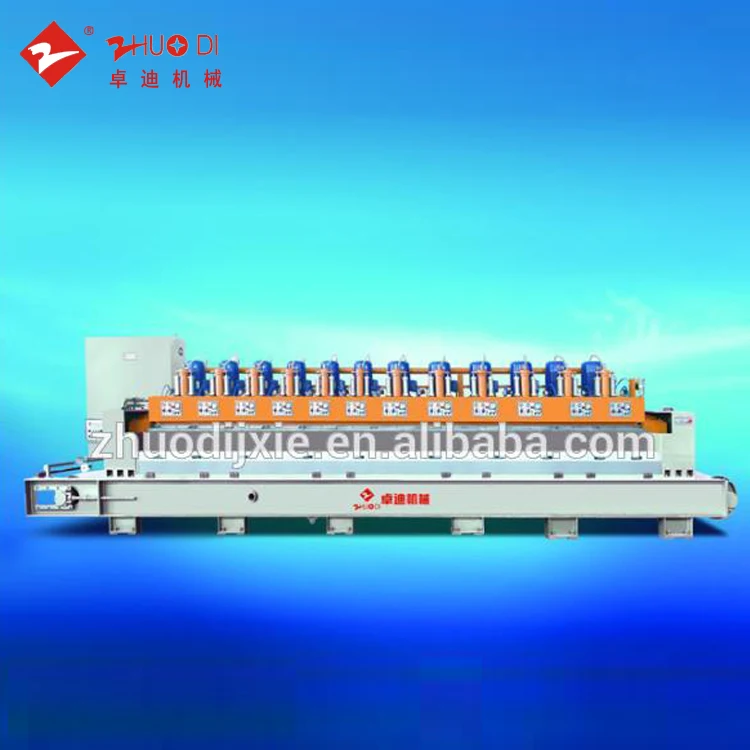

Crank Structure Polishing Machine
Item Code	ZPSY1650
Grinding Heads	12
Grinding Heads Power	11kw
Swing Power	2*4kw
Main Driving Power	3kw
Water Consumption	400L/min
Gas Consumption	260L
Dimension	13210*3300*3000mm









1. Can you provide me with the product parameters

one polishing line two press lines semi-Auto distribution.

full production line dimension:117800*76840*14300mm(L*W*H)

Final slab dimension:760*2440mm;800*3100mm

thickness:10-30mm

daily capacity:360 slabs/day(20 hours)

annually capacity:260.000sqm/year



3. What is the size of the whole factory



one polish line can support 2 press lines

whole line dimension:136250*98280*10500mm(L*W*H)

Final slab dimension:1600*3200mm

thickness:10-40mm

daily capacity:480 slab/day(20hours)

annual capacity:720.000sqm/year

4. Do you have a perfect after-sales service system

with professional R&D team,providing pre-sales services,and timely solution.

12 year in engineered quarts stone production experiences,we can provide full training and technical support for our customers.we will

grow with our customers and develop new products with our customers.

with zhuodi machinery ,it's possible to produce any design of quartz.we also can customize and design the machine according to the actual demand,

ensure the easy operation during the production with the low cost,high production and high quality.
