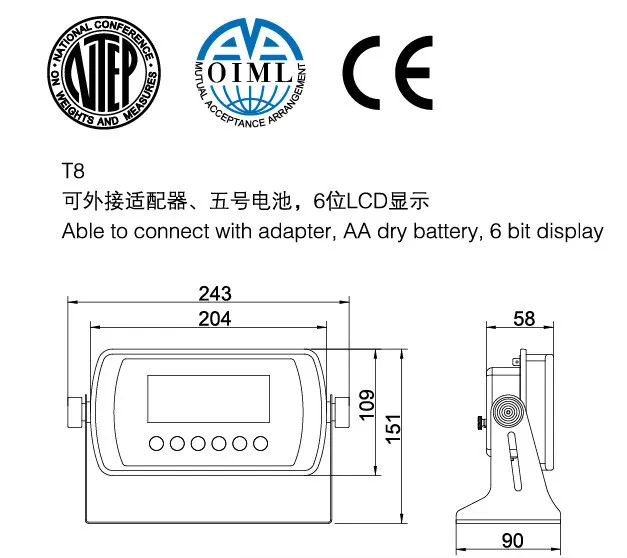

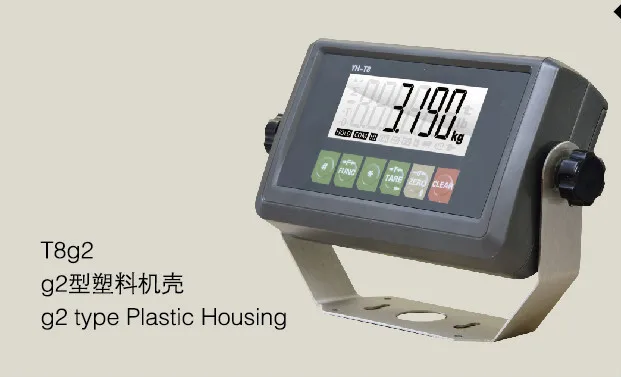

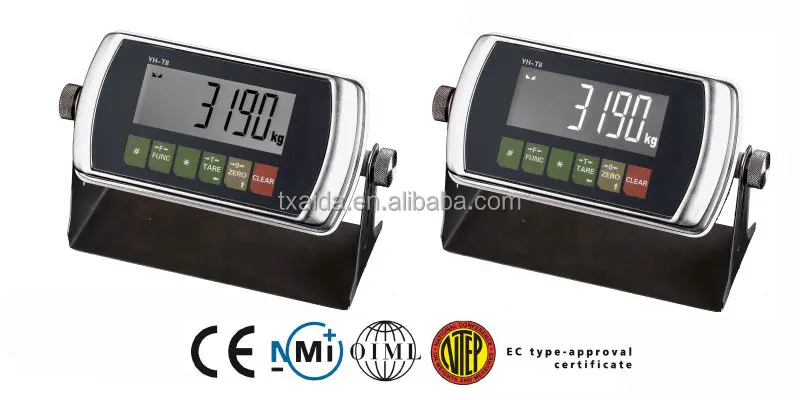

T8 Platform scale digital weighing indicator

tandard Function:

Single window, multi-function LCD display

Peak value holding function

Live-stock weighing function

External Serial printer interface

Multi-weighing-unit switch function

Manual and auto accumulative adding

Pre-set TARE function

Hi-low alarm function: HIGH-OK-LOW status indicating

Four level battery indicating, low battery alarm and auto-off function

Auto sleep and multi-level power saving mode

Multi-level back-light brightness adjustment

10 times of precision auto-zoom function

High-precision AD conversion, readability of 1/30000

Able to use 4pcs of 5# Alkali dry battery or NI-MH rechargeable Battery

Able to use AC adapter for power supply

RS232C and RS485 as optional interface, baud rate is selectable

Scoreboard interface selectable, 20mA current loop transmitting method.

Accuracy class: Class 3

Max verified counts: 3000

Input signal range: -19mV ~ 19mV

Load cell excitation: DC 5V

Division: 1/2/5/10/20/50 optional

Communication interface ( optional ): RS232, RS485, 20mA current loop scoreboard interface.

Power supply: AC 100~240V;50~60Hz ( AC adapter )

DC 3.6 ~ 6 V ( optional 4 pieces of triple A dry battery

Scoreboard interface ( optional ):

Signal output method: serial output with current loop

Baud rate: 600

Serial communication ( optional )

RS232C and RS485

Baud rate: 600/1200/2400/4800/9600 optional
