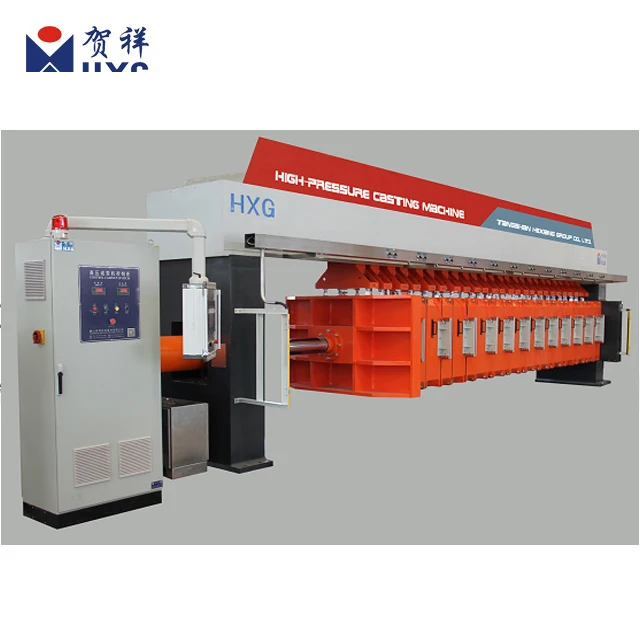

Hi-pressure ceramic Casting and Forming machine for wash basin
Model number: HX1030-washbasin
Patent No.: ZL 2010 2 0173679.1 ZL 2010 1 0159039.X
1---Hexiang factory introduction:
Now, in Hexiang factory, we have a advanced and hi-automatic lab testing line for producing sanitary ware, which include Mould making, Hi-pressure casting machine for cabinet basin, tank, toilet and rim, drying chamber, cycle glazing line, shuttle kiln, packaging and testing machine. The producing and testing line had been successfully runned.

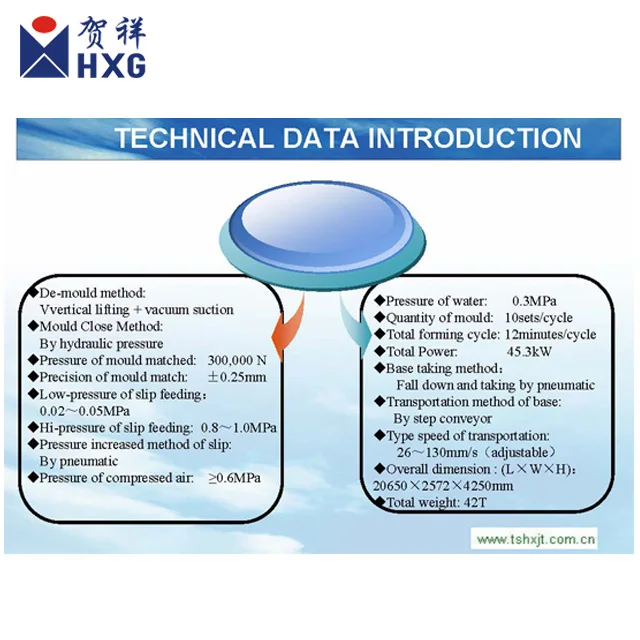

2---Technical data:
8 Mold Hpcm-basin Main technical data | ||
Mould type | ||
Working mould type | Twin working mould | |
Mould parts | 2 parts without loosen parts | |
Max products size | ||
Length | 550 | mm |
Thickness | 230 | mm |
Above products size depends on model. | ||
Max mold frame outside size | ||
Length | 1600 | mm |
Width | 1100 | mm |
Thickness | 400 | mm |
Max mold frame inside size | ||
Length | 1600 | mm |
Width | 1100 | mm |
Thickness | 180 | mm |
Main Parameter | ||
Demolding means | Horizontal opening mold+ vacuum adsorption | |
Closing mould mean | Hydraulic closing mold | |
Mold closing pressure | 784~1176 | KN |
Diameter of hydraulic cylinder | 280-180 | mm |
Stroke of cylinder of pressing mold | 1200 | mm |
Model clamping accuracy | ±0.25 | mm |
Casting pressure of low pressure casting | 0.15~0.2 | Mpa |
Casting pressure of high pressure casting | 0.8~1.0 | Mpa |
Slip pressurize means | Hydraulic pressurize | |
Pneumatic pressurize | ||
Compressor air pressure | 0.6~ 0.8 | Mpa |
Air consumption quantity | 1.6 | m³/h/8 mould |
Water source pressure | 0.3 | Mpa |
Water consumption quantity | 0.16 | m³/h/8 mould |
Mold quantity | 8 | Single resin working mold |
Total casting cycle time | 20~30 | mins/cycle |
Total power | 17.35 | kW |
Taking base means | By manual | |
Total weight include mold | 35~40 | T |
Working condition | ||
Slip temperature | 35±2 | ℃ |
Absorption slip thickness | 8-9mm | 45mins |
Casting workshop temperature | 30±2 | ℃ |
Relative humidity | 65±2 | ° |
Air source pressure | ≥0.6 | Mpa |
Water pressure | ≥0.3 | Mpa |
Water condition for cleaning mold | 1 | μm |
Water source filter | 10 | μm |
3---Quality control:
3.1---Simple frame-structure application, and modular-design, which leads to the easy maintenance in short time.
3.2---Individual working station/modular-design, which avoid occurrence of group-stop caused by certain individual fault.
3.3---Top global-grade brand adopted in HPCM for a quality running, detail as following:
3.4---For PLC component: the brand is SIMENS from Germany
3.5---For Pneumatic components (except little ones such as plastic hose): 100% brand is SMC from Japan, including auxiliary solenoid valves

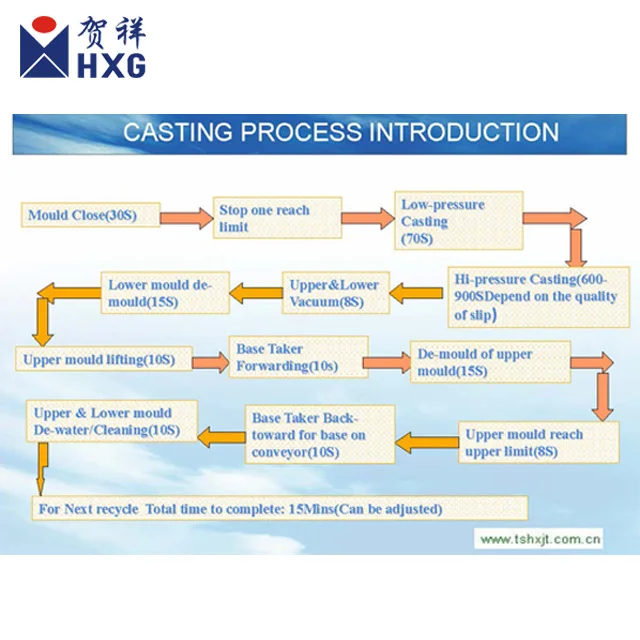

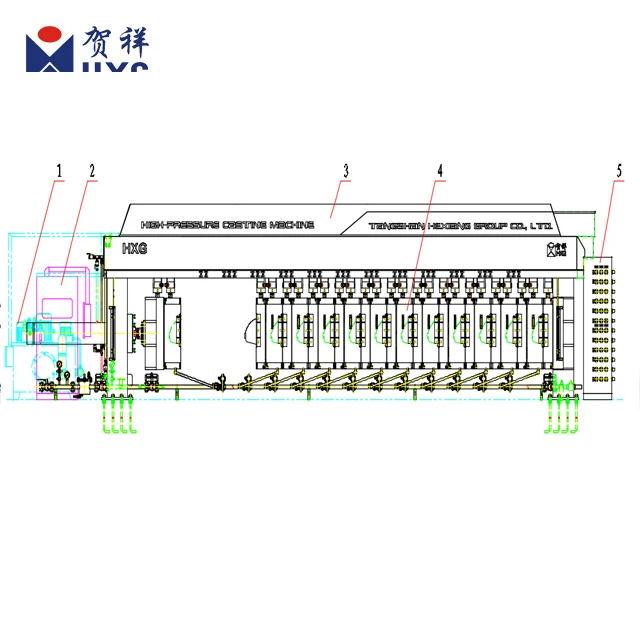

4---Picture for your reference
