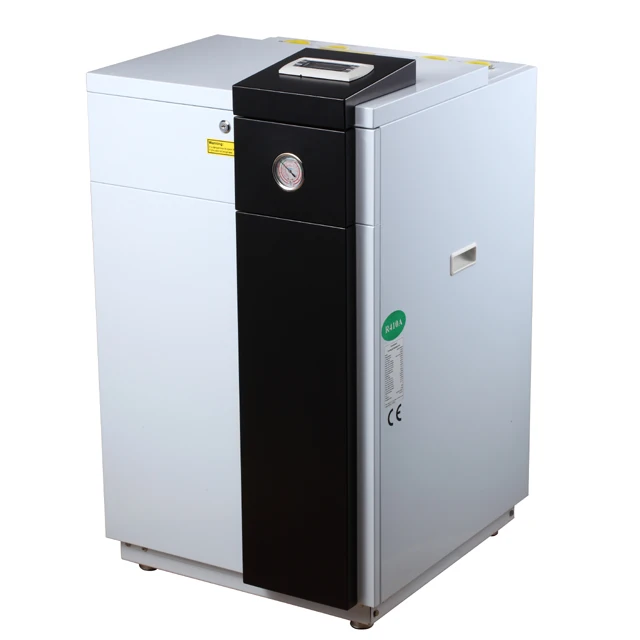

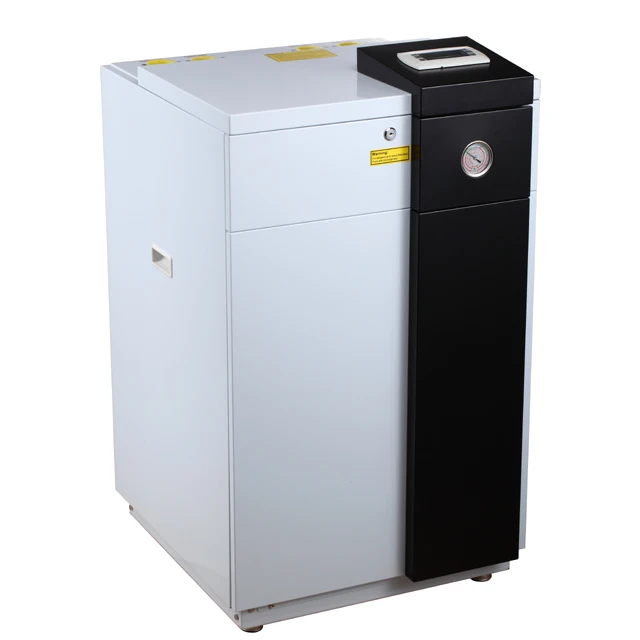

20KW Electric water source heat pump water heaters anti corrosion brine water geothermal ground heat pump

Share on (60033501719):


Price:$3,000.00 - $3,200.00

Quantity:


Product Overview

Description



Product Description


Overview

brine to water Heat Pump takes use of the natural energy stored in the earth to heat your home. There is no fuel deliveries, no chimney, no waste deliveries from the ground source heat pump.

brine to water Heat Pump adopts world famous parts approved by TUV:
· Siemens controller
· Daikin or Hitachi compressor
· Swep plate type heat exchanger
· Schneider A/C contactor
· Emerson thermal expansion valve
· Saginomiya low pressure switch
· Honeywell 3 way revert valve
· Honeywell R410a refrigerant




brine to water Heat Pump Three functions:
Heating
Cooling
Domestic hot water

brine to water Heat Pump Distinguish Feature:
1.Cost saving. ( High effiiency, Low maintenance costs)
2.Health and Comfort. ( Very quiet; No exposed equipment outdoors; No open flame; No noise fan)
3.Environmental friendly. ( Providing climate control efficiently and lowering emissions)

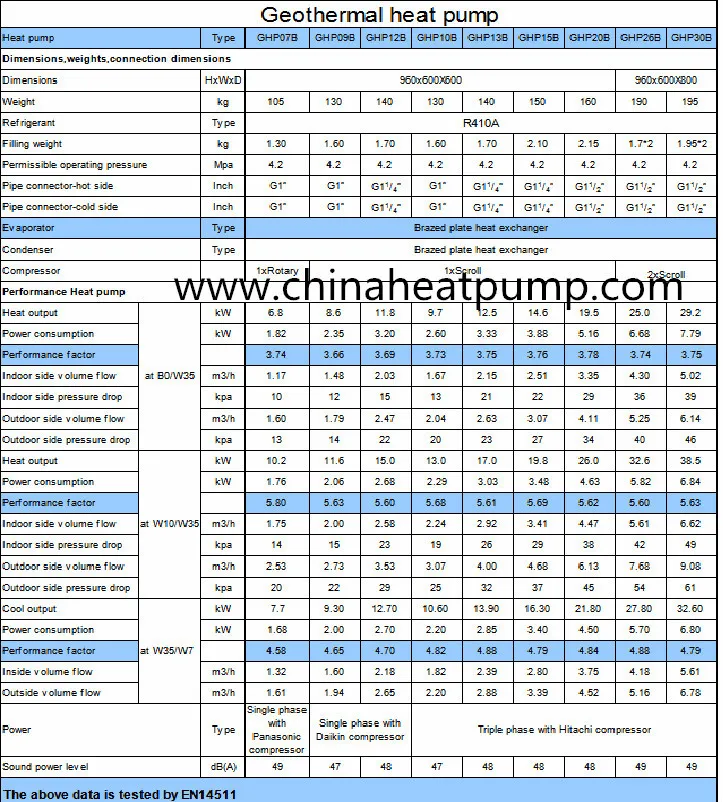

brine to water Heat Pump Technical data:

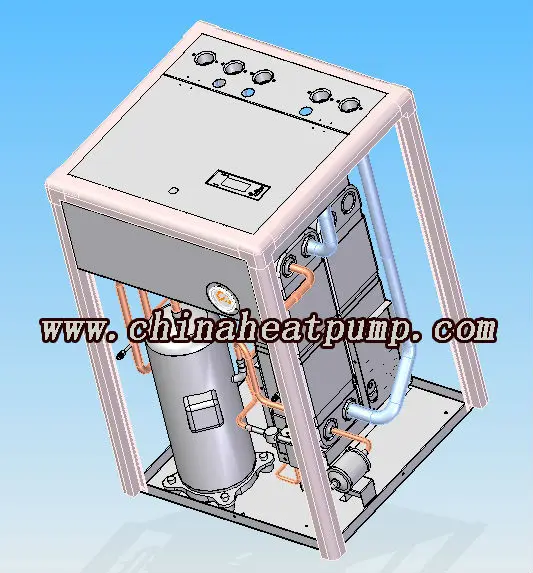

brine to water Heat Pump Inside:

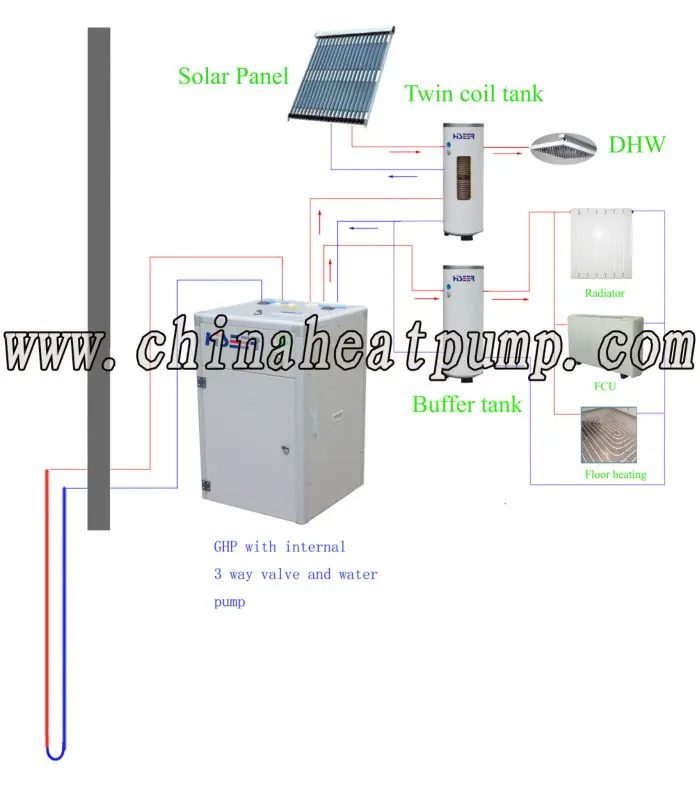

brine to water Heat Pump Installation diagram:

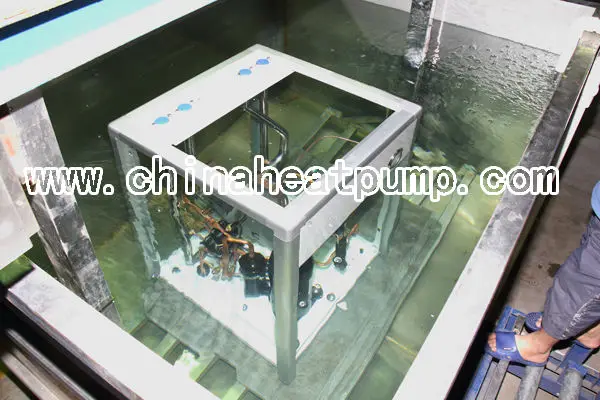

brine to water Heat Pump Leak test:

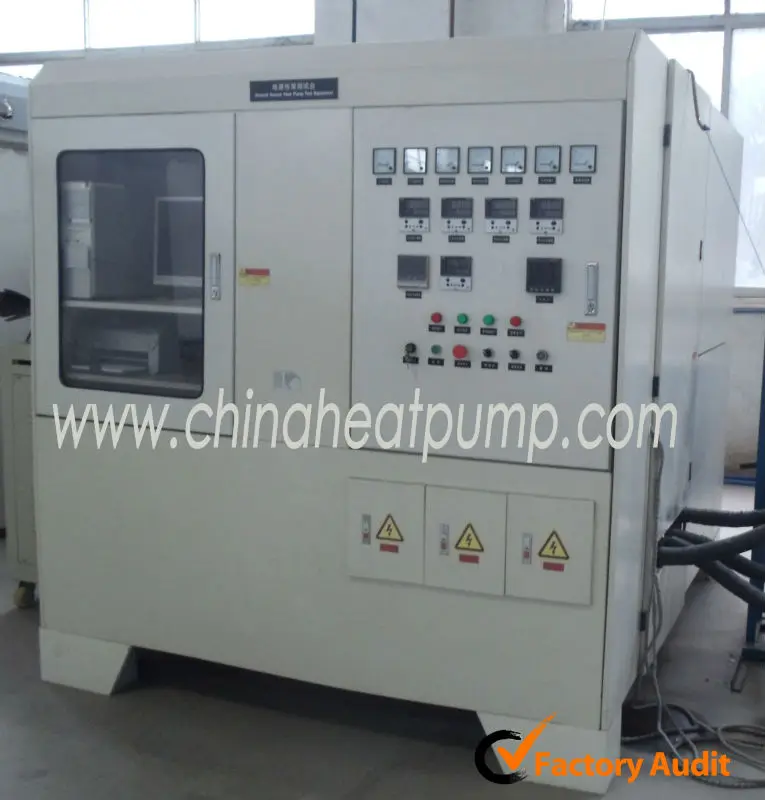

Geothermal source (water/brine to water) Heat Pump Test device:

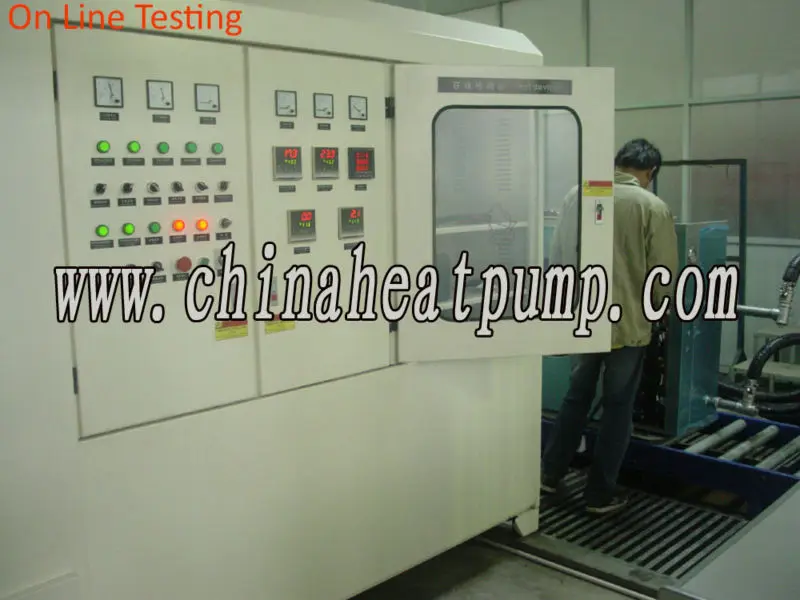

brine to water Heat Pump online test:

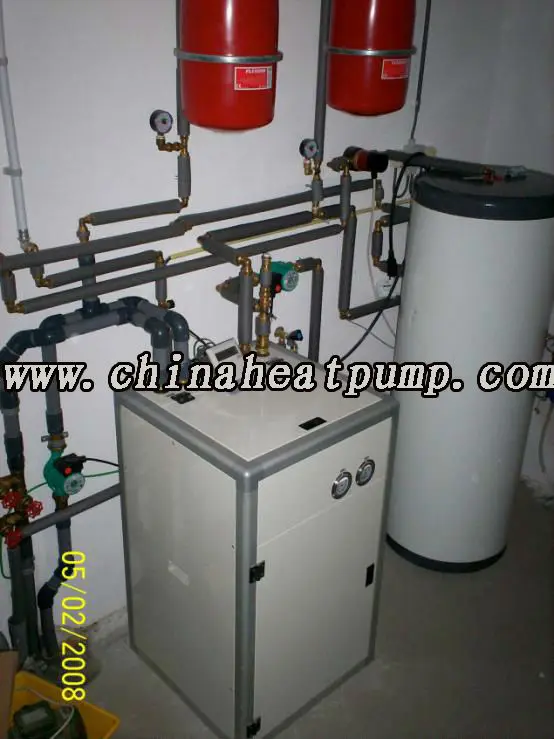

Geothermal source (water/brine to water) Heat Pump installation demo:




Specification


item
value
After-sales Service Provided
Free spare parts
Warranty
1 Year
Application
Hotel, Garage, Household
Power Source
Electric
App-Controlled
NO
Type
Water Source Heat Pump
Installation
Freestanding
Storage / Tankless
Storage
Housing Material
galvanized is standard, stainless steel is optional
Use
Room
Place of Origin
China
Guangdong
Brand Name
Hiseer
Model Number
GHP20B
Compressor
Hitachi
Function
heating/cooling/domestic hot water
Refrigerant
R410a
Cabinet
aluminum frame with galvanized sheet
Controller
Siemens
Plate heat exchanger
Swep or GEA
Expansion valve
Emerson
Sound power level
48dB(A)


Company Profile








Product packaging




FAQ


1. who are we?
We are based in Guangdong, China, start from 2003,sell to Northern Europe(35.00%),Eastern Europe(25.00%),Western Europe(10.00%),Southern Europe(10.00%),South Asia(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Southeast Asia(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Heat Pump,Inverter Air Source Heat Pump,Evi Air To Water Heat Pump,Ground Source Heat Pump

4. why should you buy from us not from other suppliers?
We are heat pumps, chillers (water cooler), water tanks, fan coils manufacturer in China, with 18 years production and developing experience.
The main export market is Europe.
The products designed by European standard EN 14511, approved by TUV with its

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
