PVC Film Tensile Strength Tester Film Tensile Testing Machine

Product Overview

Description

PVC Film Tensile Testing Machine ZME-1007E



 Equipment Summary:

PVC Film Tensile Strength Testercombined with the electronic technologyand mechanical transmission,it has accurate load speed, range of force measurement,  Has high accuracy and sensitivity for the load, displacement measurement and control. This series of machine using single-space structure, operational space at the bottom,it is mainly applied to test non-metallic and metallic material,which the load is lessthan 1kN, it has the parameters, such as stress,strain, control mode of displacement ,calculated max force,tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others.



Main Function:

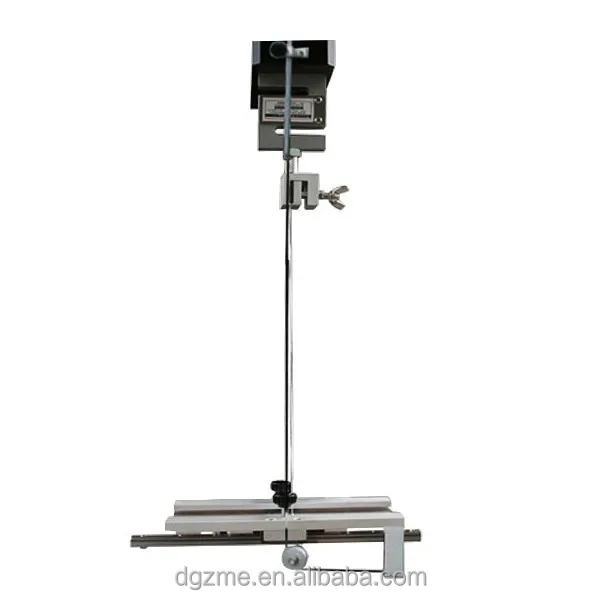

PVC Film Tensile Strength Testercan be applied to test lots of materials in tension,compression, tear, peel(can 90 degrees and 180 degrees) and other mechanical test, such as rubber, tires, belt, shoes, plastic,film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles,wire and cable, paper,gold foil,ribbons,thread,spring,wood,medicine packaging materials,tapes etc.



Main Features:

1. Adopt  Panasonic servo motor,the beam moves up and down to test the load through the transmission.

2. The whole control system is safe and high reliability.

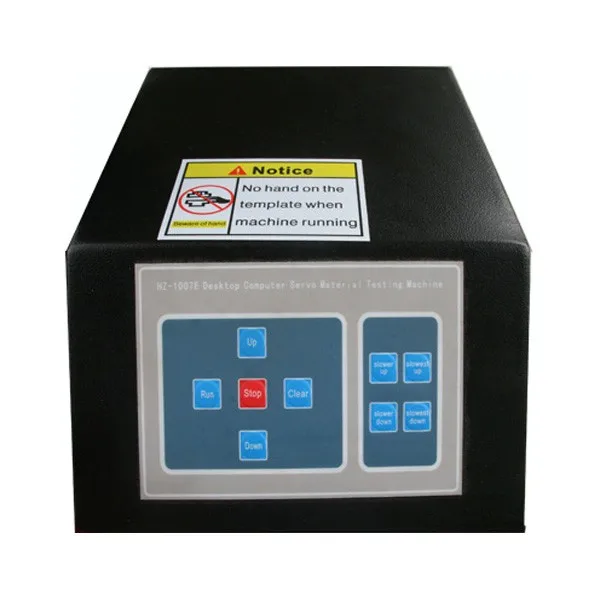

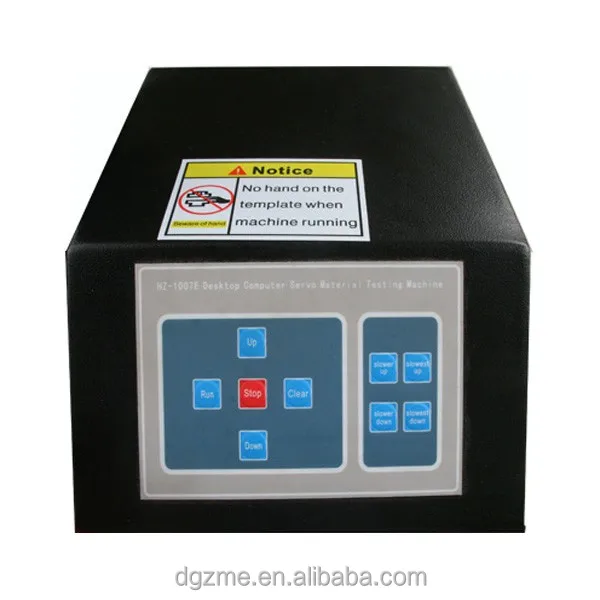

3. Microcomputer control the whole testing process, real-time dynamic display the load values,

     displacement values, deformation,testing speed and testing curves.

4. Microcomputer for data processing and  analysis, testing results can be saved automatically, testing

    curvers can be transferred out after the test, you can know the testing process through the testing

    curvers,or compare with others curves, or amplify the curvers.

5. The testing software of the Window, with strong processed capabilities of data and graphics, it can

    immediate print out a complete testing report and testing curves.

6. Has limit protection, overload protection, emergency stop and other safe protective functions.



Applicable Industry:

PVC Film Tensile Strength Testeris widely used in wire and cable, hardware, electronic and electrical equipment,packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes,

rubber and plastic products, colleges and universities; research laboratories; inspection arbitration,

technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested..



Technical parameters:

Model	ZME-1007E PVC Film Tensile Strength Tester
Maximum load	50N,100N,200N, 500N, 1KN,2KN(optional )
Accurate grade	1grade / 0.5 grade
Effective measuring range	Force from 0.2% to 100% / from 0.4% to 100%
Measuring accuracy	the value ±1% /  the value ±0.5%
Tester resolution	Max load: 1/200000, constant the resolution
Load sensor	Basic configuration sensor max load: one
Effective tensile space	400, 500mm (can be increased the tensile space  according to customers requirement )
Testing speed	From 0.001 to 500mm/min
Accruacy of displacement measurement	Tolerance:±0.5% / tolerance: ±0.2%
Safety	Electronic-limit protection
Testing platform moving  device	Fast /slow( two speeds to control ),can jog
Return Back	Manual or automatic operation, After the test, themoving iron return to initial position with the highest speed by manual or automatic operation
Overload protection	Overload 10%, automatic protection

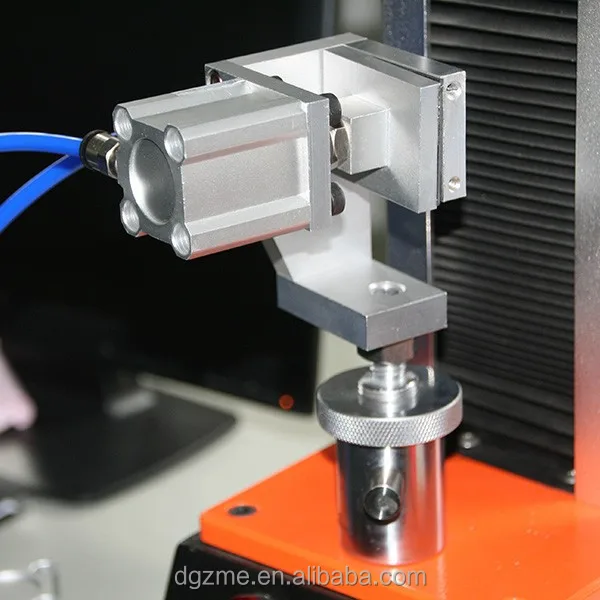

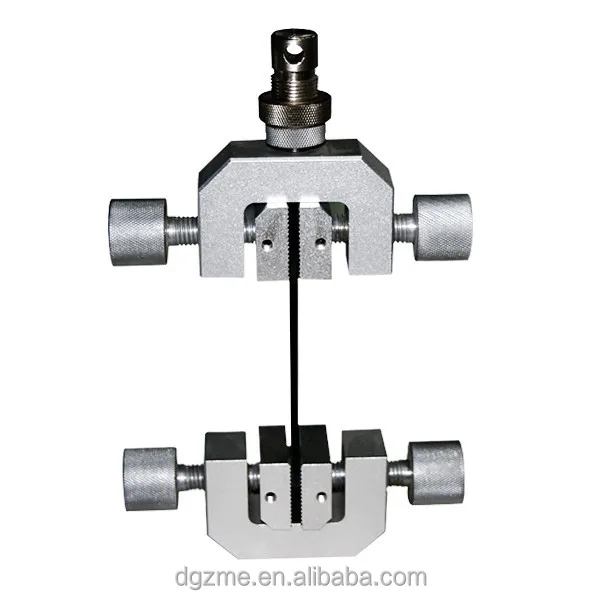

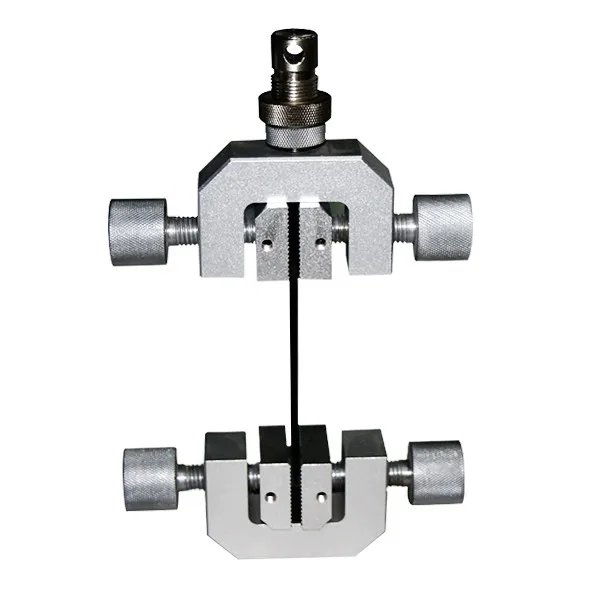

Fixture	A set of tensile clamp
Machine dimension	450*550*1400 mm (L*W*H)
Motor	Zhongyuan  AC  servo motor and drive
Power supply	220V , 50HZ or according to the requirement
Power	0.4KW ( depending on different demand of force, using different motor)
Weight	About 50Kg
