Semi Automatic Pneumatic Metal Pipe Disc Saw Blade Cutting Machine Universal Circular Sawing Cutter Machine with Carbide Blade
- Category: >>>
- Supplier: Dongguan Chine Chern Machinery Manufacturing Co. Ltd.
Share on (60033616657):
Product Overview
Description
Semi-Automatic Pneumatic Metal Pipe Disc Saw Blade Cutting Machine Universal Circular Sawing Cutter Machine with Carbide Blade
Feature:
1. Two-way clamp sawing will make the surface smooth, without burrs. The cutting precision is much more higher than before.
2. Sawing angle:(left) 90°~0°,(right)90°~45°.
3. Automatic loops cooling system enables the smoothness of the cut surface
4. Applicable sawing material: stainless steel, steel tube, carbon steel, iron. The furniture field, sports equipment, highting industries are also available.
5..Vertical slideway for advance and retreat blade up and down.Cutting feed is steady and cutting tools are of long use life.High precision of saw cutting.
6.Equipped with electric saw protection device.
7. Cutting centralism processing, maintenance is easy.
8.Sawpieces are centralized for disposal which is convenient and clean.
9. The clamping and cutting adopts pneumatic type.
| Model | JC-325-2A | ||
| Head rotating angle | 90° | 45° | |
| Cutting capacity area | Solid bar | 55mm | 45mm |
| Round tube | 110mm | 110mm | |
| Angle steel | 100mm×100mm | 90mm×90mm | |
| Square tube | 95mm×95mm | 95mm×95mm | |
| Through-shaped steel | 100mm×100mm | 90mm×90mm | |
| Retangular steel | 90mm×110mm | 90mm×90mm | |
| Host motor | 2.4KW/2.0KW-2/4P | ||
| Spindle speed | RPM100/50 | ||
| Cooling pump motor | 1/8HP | ||
| Compressed Air pressure | 4-6kg/cm2 | ||
| Saw blade(Diameter) | 250mm-350mm | ||
| Feeding length | 3mm-650mm(Standard),can feed three times,total 1950mm | ||
| Machine weight(KG) | 240kg | ||
| Machine size(L×W×H) | 1000×850×1420mm | ||
| Standard fittings | HSS Saw blade 275mm | ||
HSS Saw blade ,One scale,one tool box ,One set of clamping mould | |||

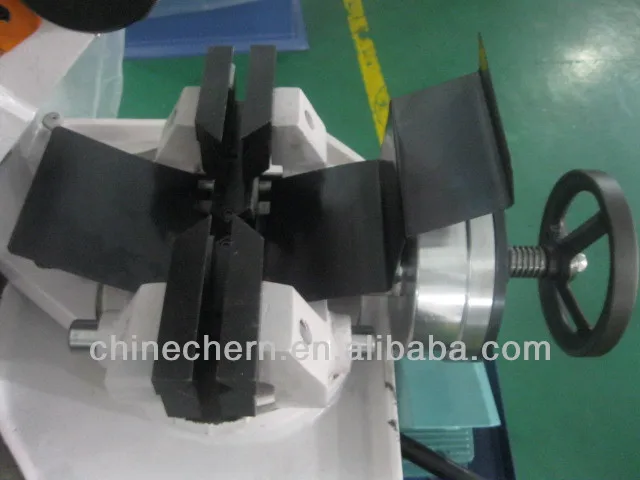

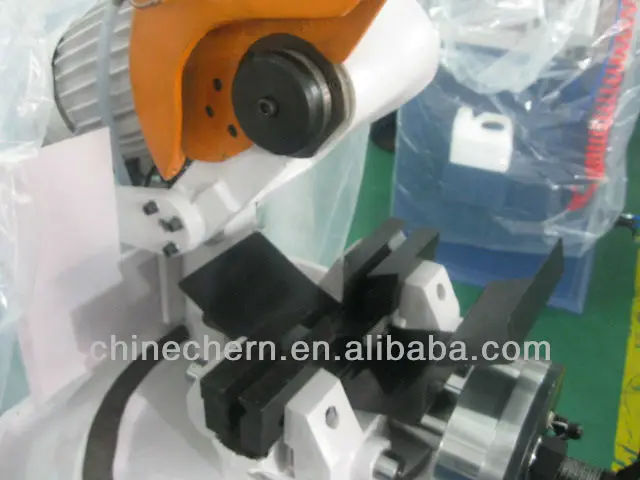

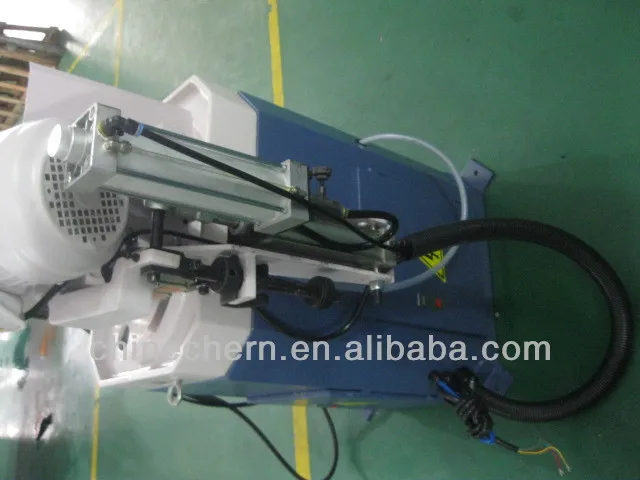

Machine Structures :

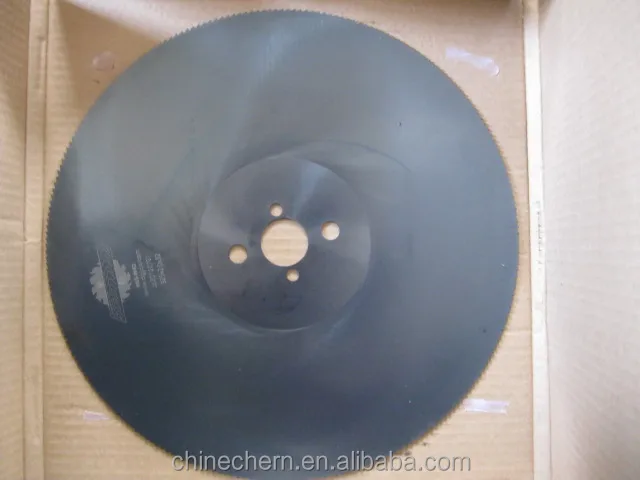

HSS Saw Blade :

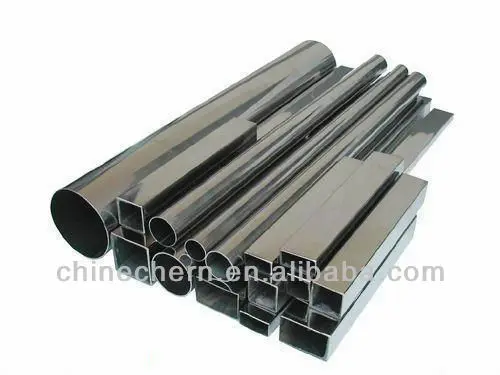

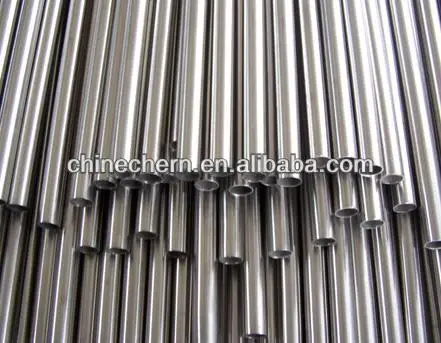

Metal Pipes Cutting Sample :

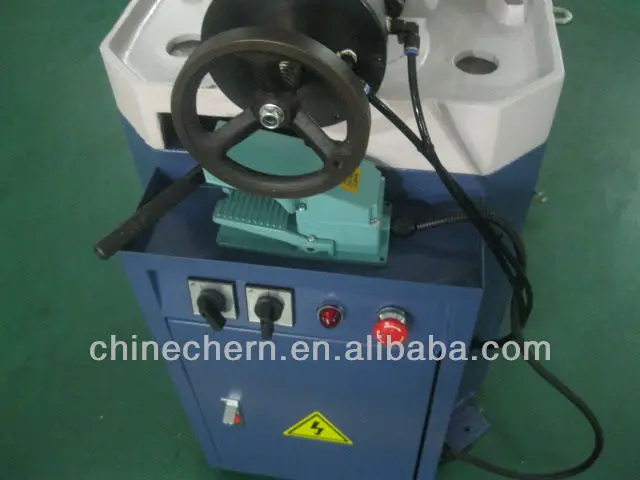

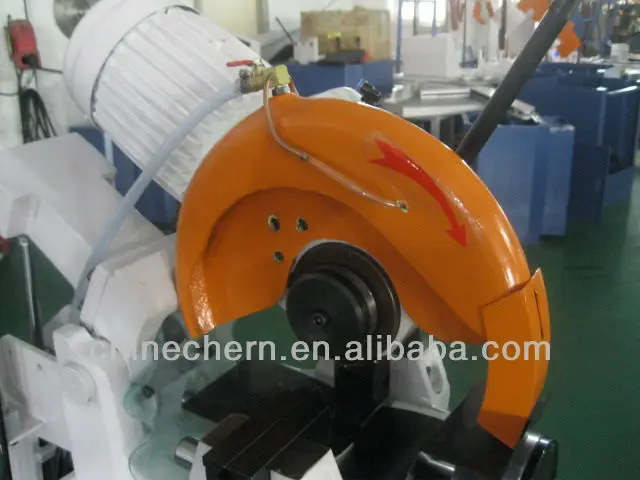

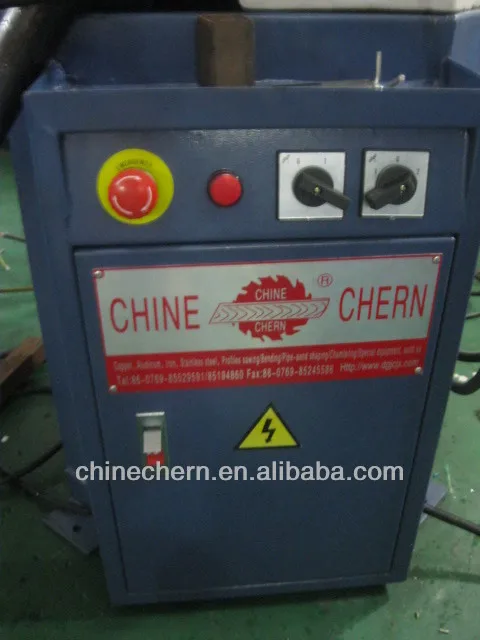

Machine Photo :

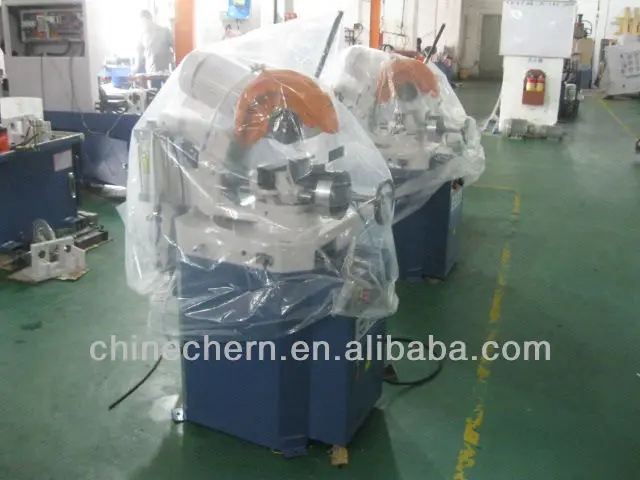

Package :
Q1 What is the brand of your machine main component?
1. Touch Screen: Japan FUJI
2. Spindle Motor: Taiwan FUKUTA, Taiwan TATUNG, Germany SIEMENS
3. Servo motor: Japan Yaskawa/ FUJI
4. Hydraulic system: Taiwan CML
5. Ball screw: Taiwan HIWIN / TBI
6. Convertor: Taiwan SHIH LIN
7. PLC: Japan Mitsubishi
Q2 How to choose the machines? pls advise below details to save time:
* The material name
* The material size
* The material name
* The material size
Q3 What are your main machines?
* Copper/Aluminum metal high speed precision circular sawing machine
* Super hard metal bars cold sawing machine
* Metal pipe scrapless circular blade cutting off machine
* Pipe/Bar end chamfering machine
* Circular saw blade sharpening machine
* Automatic pipe bending machine. Tube end forming machine.
* HSS circular saw blade/ TCT cold saw blade/ Tipped tungsten carbide circular saw blade.
* Automatic lift, arrange, rack, feed and cut off, chamfer, get rid of burrs, measure, composite processing line.
