BT40L diesel fuel burners,oil burner

Product Overview

Description

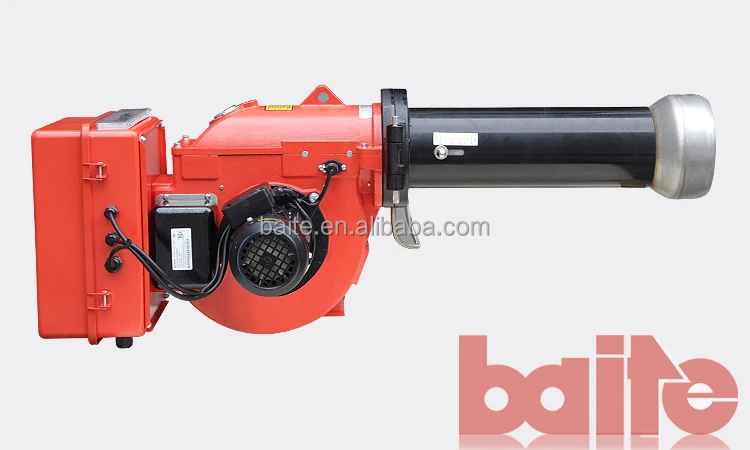

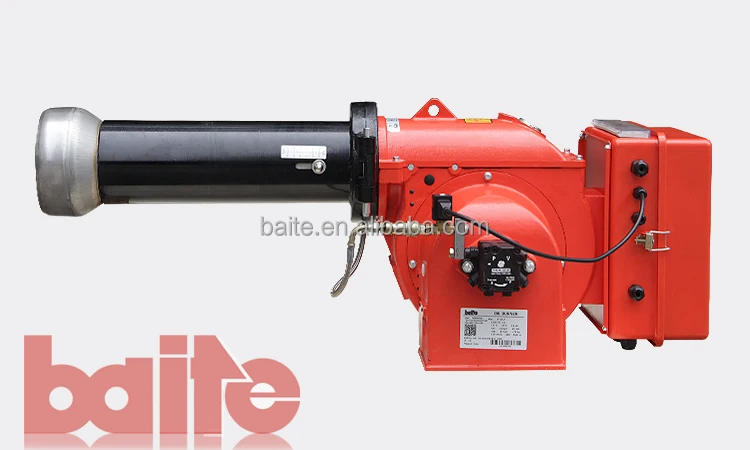

Baite BT40L diesel fuel burners



 Technological performance & structural descriptions





1.Light oil burner.

2.Single stage operation (on/off).

3.High pressure mechanical atomisation of fuel using nozzJe.

4.Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.

5.Maintenance   facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.

6.Manual    flow adjustment.

7.0ne flange and one insulating seal for boiler fastening.

8.Combustlon air intake with air flow adjustment device.

9.Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.



11.Threo-phase electric motor to run fan and pump.

12.Flame presence check by photoresistance.

I plant protection rating Ip40.





 Specification



Model	POWER	Output min.	Power supply	Motor	Packing size	weight
	KW	°E@20°c	V	KW	LxPxHmm	Kg
BT40L	237~534	1.5	380V/50HZ	0.37	860X680X600	59.5
