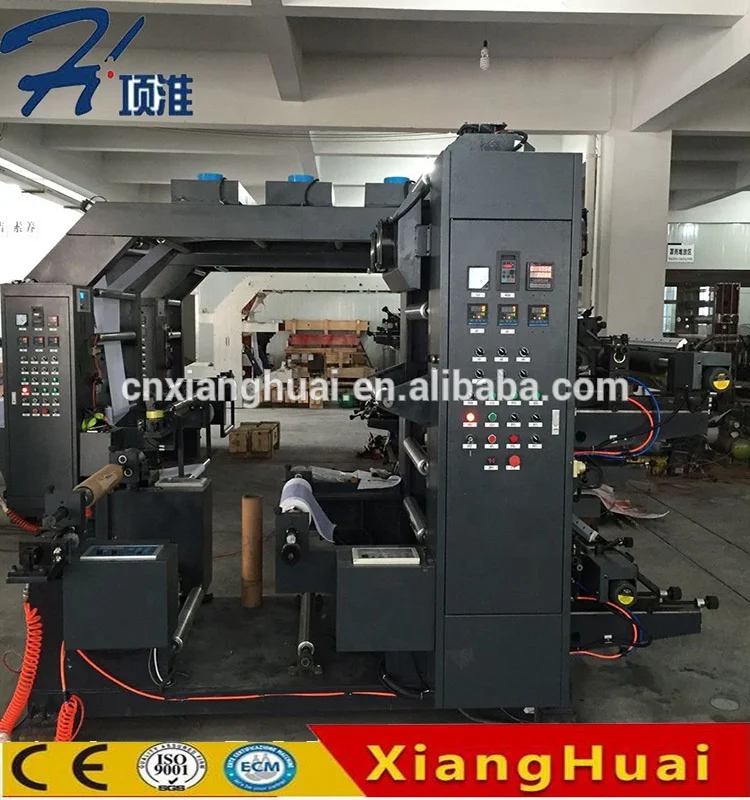

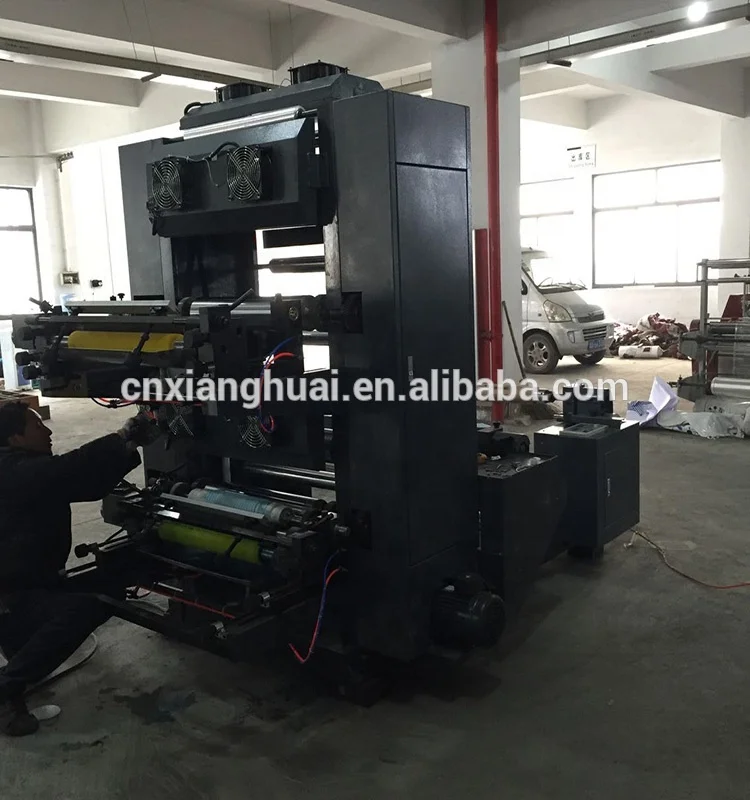

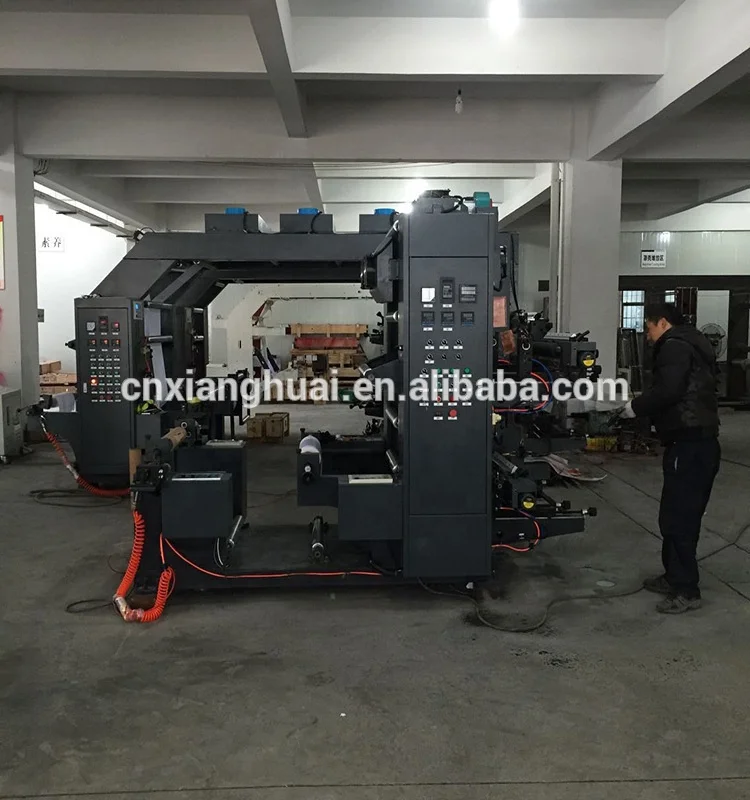

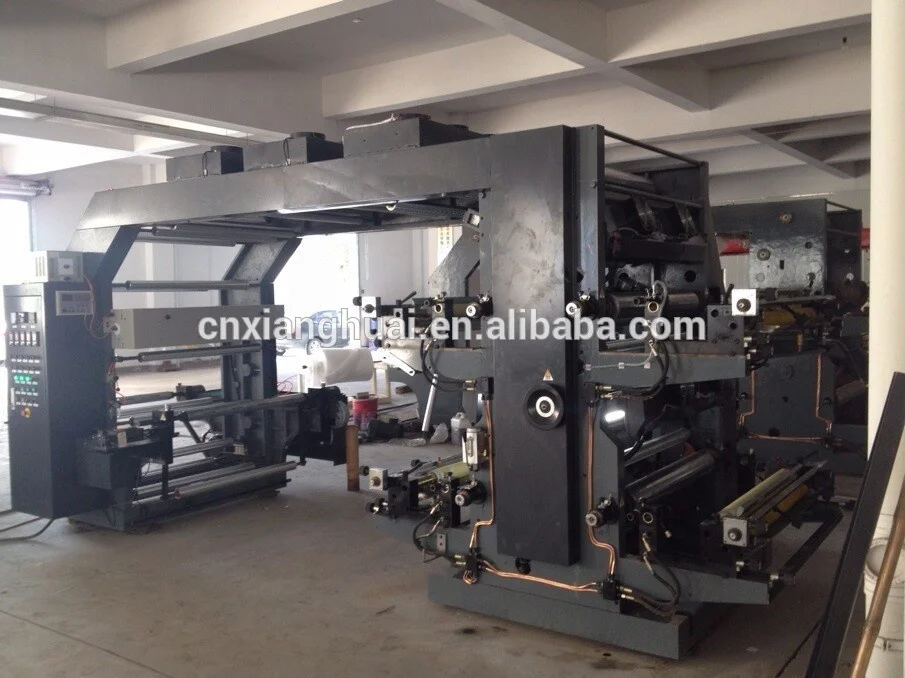

Letterpress Type Printer Plastic Packaging Film Printing Machine
1. Machine Introduction
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass
paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food,
supermarket handbag, vest bag and clothes bag, etc.
2. Machine Advantages
1. We use stronger steel plate for machine body, which make machine more stable.
2. Helical gear for whole machines, which make the printing quality more accurate and precise.
3. EPC, which adjust the edge of film or paper.
4. Automatic tension controlling, easy to operate.

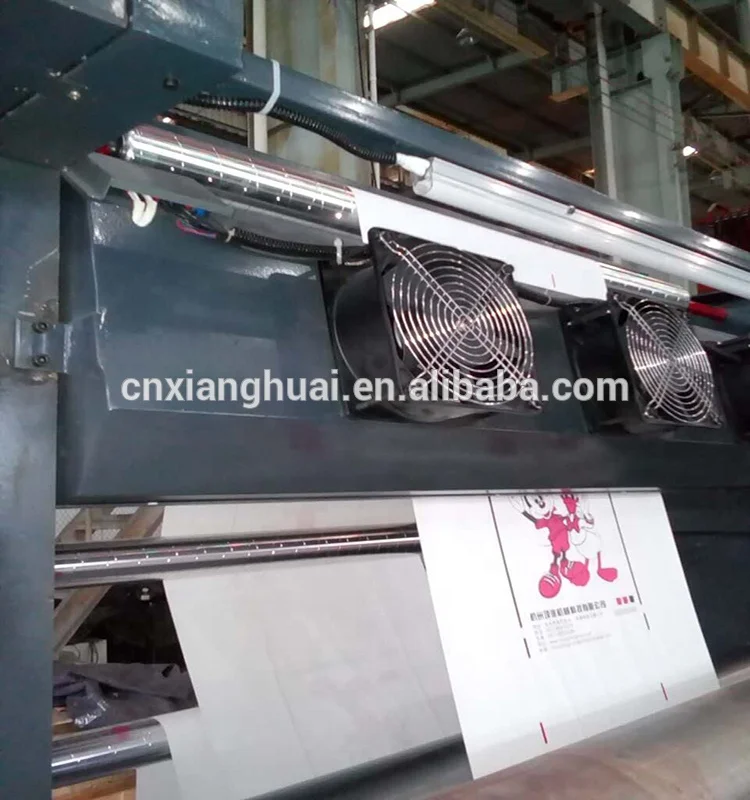

5. Longer heating oven, improve the printing speed.

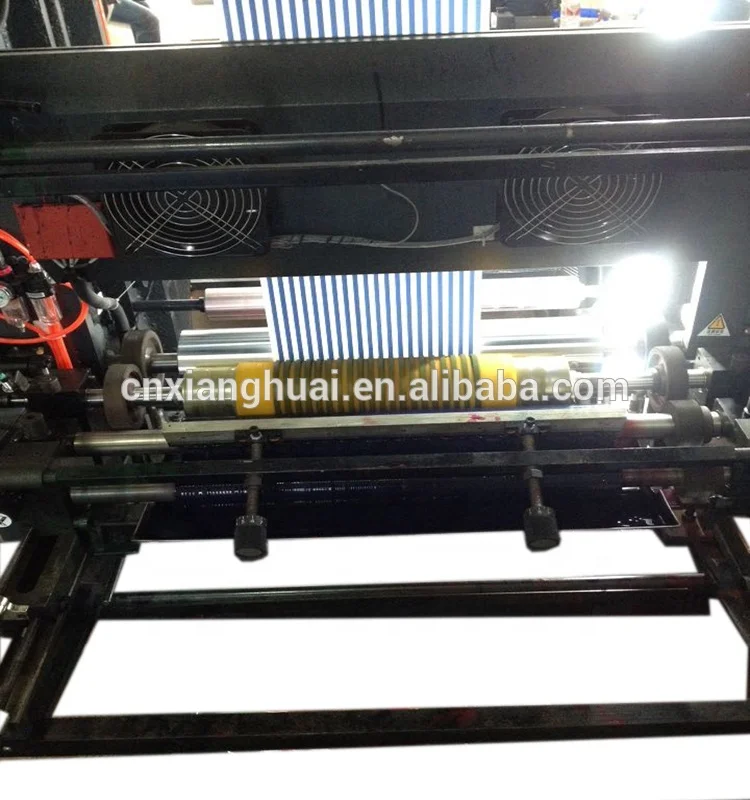

6. Doctor blade, which make the ink more equal. Double doctor blade is optional.
7. Separate ink motor to control the ink roller.
8. Ink pump is optional.
3. Machine Parameters
Model of Machine | YT-4600 | YT-4800 | YT-41000 | YT-41200 |
Max.Width of Printing Material | 600mm | 800mm | 1000mm | 1200mm |
Max.Printing With | 560mm | 760mm | 960mm | 1160mm |
Length Range of Printed Product | 300-1100mm |
300-1100mm |
300-1100mm | 300-1100mm |
Max.Diameter of Roll Material | φ1200mm | φ1200mm | φ1200mm | φ1200mm |
Printing Speed | 10~80m/min | 10~80m/min | 10~80m/min | 10~80m/min |
Thickness of plate(Including Two-sides Glue Paper) | 2.38mm | 2.38mm | 2.38mm | 2.38mm |
Total Power | 18kw | 20kw | 22kw | 24kw |
Weight of Machine | 4000kg | 4200kg | 4400kg | 4600kg |
Overall Dimensions(mm) | 4800×1600×2300 | 4800×1800×2400 | 4800×2000×2400 | 4800×2000×2400 |
4.Printing sample
Payment and service
Payment | TT, LC at sight for narrow web flexo printing machine |
Mini order | 1 Set |
Delivery time
| 30 days after receive the deposit (different machine has different produce time). |
Packing and Marking
| By standard export packing. If have Mark, please tell us before shipment. |
Installation
| If need our engineer go to your country to install, please repare the material and bulid machine firstly. Also buyer should take charge the tickets go and back, live, food and salary of our engineer. |
Guarantee
| One year, machine trouble is caused by nature not by human force from delivery time . Easily wear parts also is one year. after sale service for all life. |
Packaging & shipping
Company show
Hangzhou XiangHuai Machinery Technology Co., LTD. was founded in 2008, is a science and technology enterprise specialized in the production of flexible packaging equipment and related equipment, R & D, manufacturing flexographic printing machinery and equipment. Our company’s main products are: roll paper printing machine, four-color printing machine, paper printing machine, woven bag printing machine, printing machine, garment printing machine, heat transfer machine, garment printer, and related equipment etc. At present, our products have been widely used in printing, packaging, pharmaceutical and other related industries, the products are sold throughout the country and exported to the United States, Canada, Russia, Argentina, India, Brazil, Egypt, South Africa, Southeast Asia, dozens of countries and regions.
The company since its inception, and constantly improve the process equipment, technical team has continued to grow, with independent research and development, the printing industry related equipment independent design, manufacturing and installation debugging capabilities, access to the domestic and foreign customers praise. Customer service customer service based on the needs of the company established a perfect customer service platform technology consulting service system, welcome to cooperation with us!
