Product Overview

Description

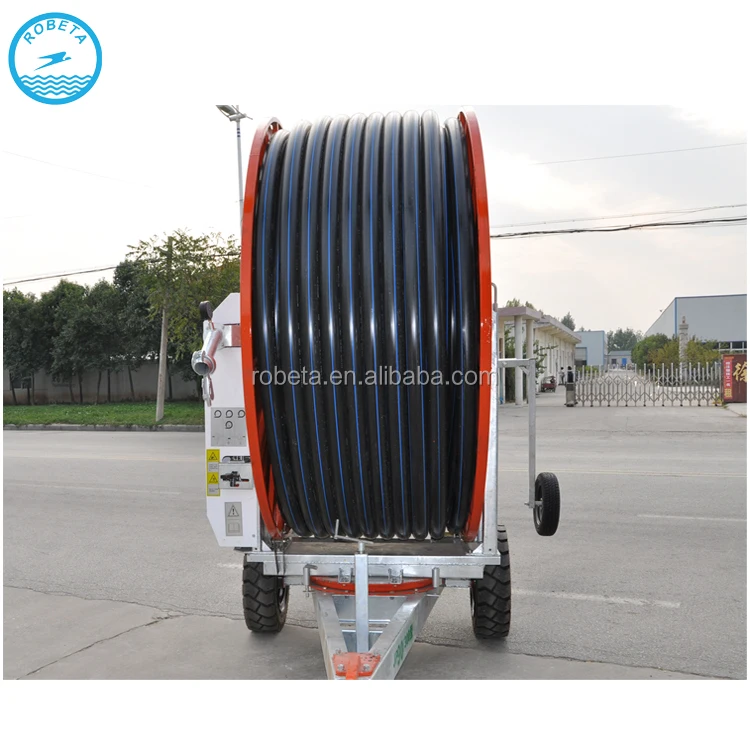

Mobile Stably mini sprinkler for irrigation

Introduction mini sprinkler for irrigation

This farm irrigation sprinkler machine mainly adapted to focus on contiguous irrigation of crops such as  grains, vegetables, herbs, potatoes and other crops.

It also can spray fruit trees, nursery, and you can spray fertilizers, pesticides and herbicides.



Features of mini sprinkler for irrigation

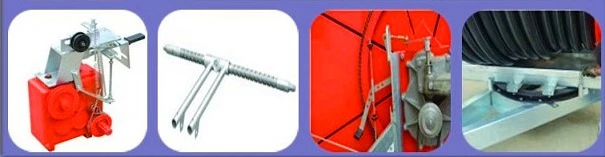

*Water turbine using pressure cast aluminum to ensure the smooth of the flow channel and beautiful appearance.
*Frame with hot dip galvanized, 30 years does not rust.
*Guide bar adopts automatic direction, "8" the word screw guide system, effectively guarantee the reliability of the reversing.
*Rack using laser cutting technology, to ensure the size of the parts precision and smooth and beautiful appearance



The advantage of  mini sprinkler for irrigation

a.Lower investment and labor saving.

b.Suitable in all types of soil.

c.Water saving up to 30% - 50 %.

d.Yield increasing.

e.Reduces soil compaction.



The main data of  irrigation sprinkler system

Model	PE Diameter (mm)	PE Length (m)	Maximum Length Of Tube	Floe (m3/h)	Sprinkler Diameter  (mm)	The connection Pressure  (mpa)
JP65-220	65	220	2×260	13-32	14-22	3.5-10.0
JP65-250	65	250	2×290	13-32	14-22	3.5-10.0
JP65-300	65	300	2×340	13-32	14-22	3.5-10.0
JP75-200	75	200	2×250	13-50	14-26	3.5-10.0
JP65-340	65	340	2×380	13-28	14-22	3.5-10.0
JP75-250	75	250	2×300	13-50	14-28	3.5-10.0
JP75-270	75	270	2×315	13-45	14-28	3.5-10.0
JP75-300	75	300	2×345	13-38	14-26	3.5-10.0
JP75-320	75	320	2×365	13-38	14-24	3.5-10.0
JP75-350	75	350	2×390	13-38	14-22	3.5-10.0
JP75-400	75	400	2×435	13-30	14-20	3.5-10.0
JP90-230	90	230	2×280	17-65	16-30	3.5-10.0
JP90-250	90	250	2×300	17-65	16-30	3.5-10.0
JP90-280	90	280	2×320	17-65	16-30	3.5-10.0
JP90-300	90	300	2×350	17-65	16-30	3.5-10.0





Service of Robeta:
Before sale: Help customers choose the most suitable equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the site.
On sale: Inspect the product seriously before out of the factory; invite customer for commissioning in the spot and raising the objection; organize to delivery according to the contract.
After sale: Company can send technical datas for guiding to install debug the machine.  We also can provide 24-hour telephone or message service.
