DIMENSIONS(Dimensions shown are nominal and subject to tolerances)
MODEL
|
CAP
|
Div
|
A(mm)
|
B(mm)
|
C(mm)
|
D(mm)
|
φ(mm)
|
H(mm)
|
Material
|
DL-W3-1
|
1t
|
0.5kg
|
245
|
112
|
37
|
190
|
43
|
335
|
Aluminum
|
DL-W3-2
|
2t
|
1kg
|
260
|
123
|
37
|
195
|
51
|
365
|
Aluminum
|
DL-W3-3
|
3t
|
1kg
|
260
|
123
|
37
|
195
|
51
|
365
|
Aluminum
|
DL-W3-5
|
5t
|
2kg
|
285
|
123
|
57
|
210
|
58
|
405
|
Aluminum
|
DL-W3-10
|
10t
|
5kg
|
320
|
120
|
57
|
230
|
92
|
535
|
Alloy Steel
|
DL-W3-20
|
20t
|
10kg
|
375
|
128
|
74
|
260
|
127
|
660
|
Alloy Steel
|
DL-W3-30
|
30
|
10kg
|
420
|
138
|
82
|
280
|
146
|
740
|
Alloy Steel
|
DL-W3-50
|
50t
|
20kg
|
465
|
150
|
104
|
305
|
184
|
930
|
Alloy Steel
|
DL-W3-100
|
100t
|
50kg
|
570
|
190
|
132
|
366
|
229
|
1230
|
Alloy Steel
|
DL-W3-200
|
200t
|
100kg
|
720
|
265
|
183
|
440
|
280
|
1362
|
Alloy Steel
|
WEIGHTS
Model
|
DL-W3-1
|
DL-W3-2
|
DL-W3-3
|
DL-W3-5
|
DL-W3-10
|
Unit Weight(kg)
|
1.6
|
2.1
|
2.1
|
2.7
|
10.4
|
Weight with shackles(kg)
|
3.1
|
4.6
|
4.6
|
6.3
|
24.8
|
Model
|
DL-W3-20
|
DL-W3-30
|
DL-W3-50
|
DL-W3-100
|
DL-W3-200
|
Unit Weight(kg)
|
17.8
|
25
|
39
|
81
|
210
|
Weight with shackles(kg)
|
48.6
|
73
|
128
|
321
|
776
|
Profile:

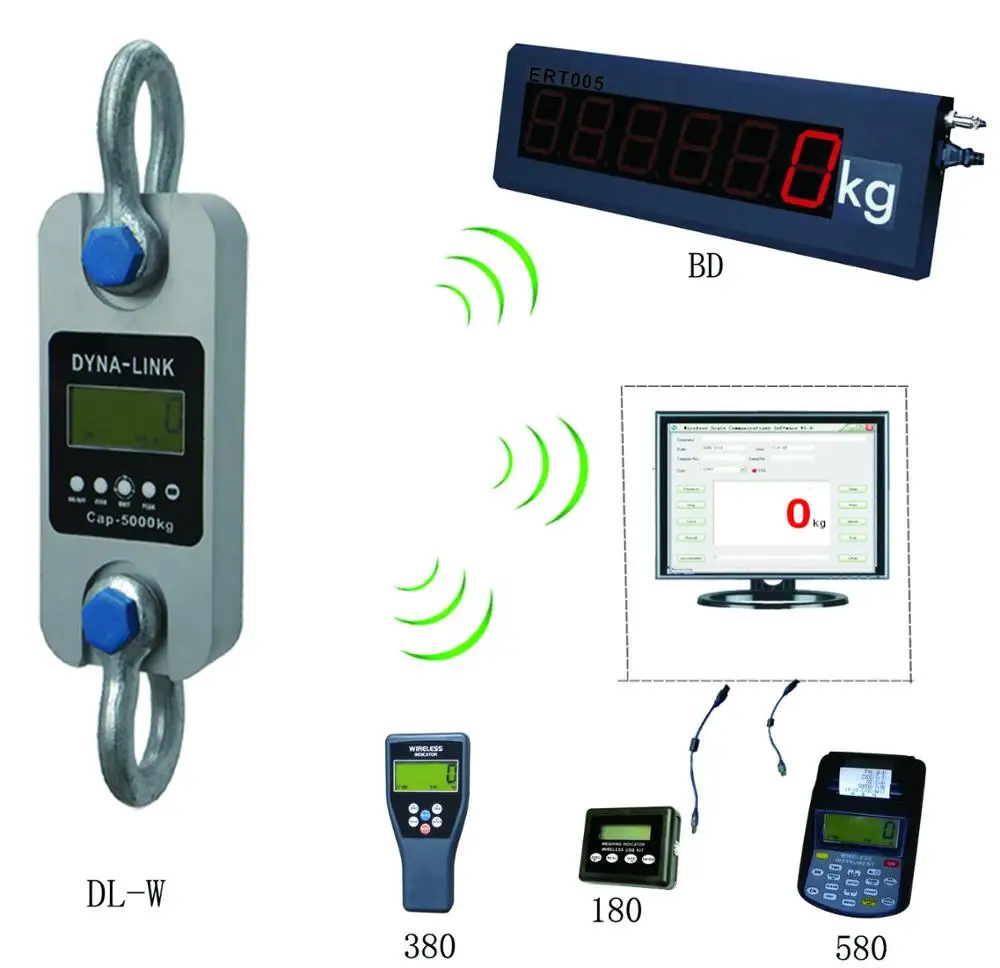

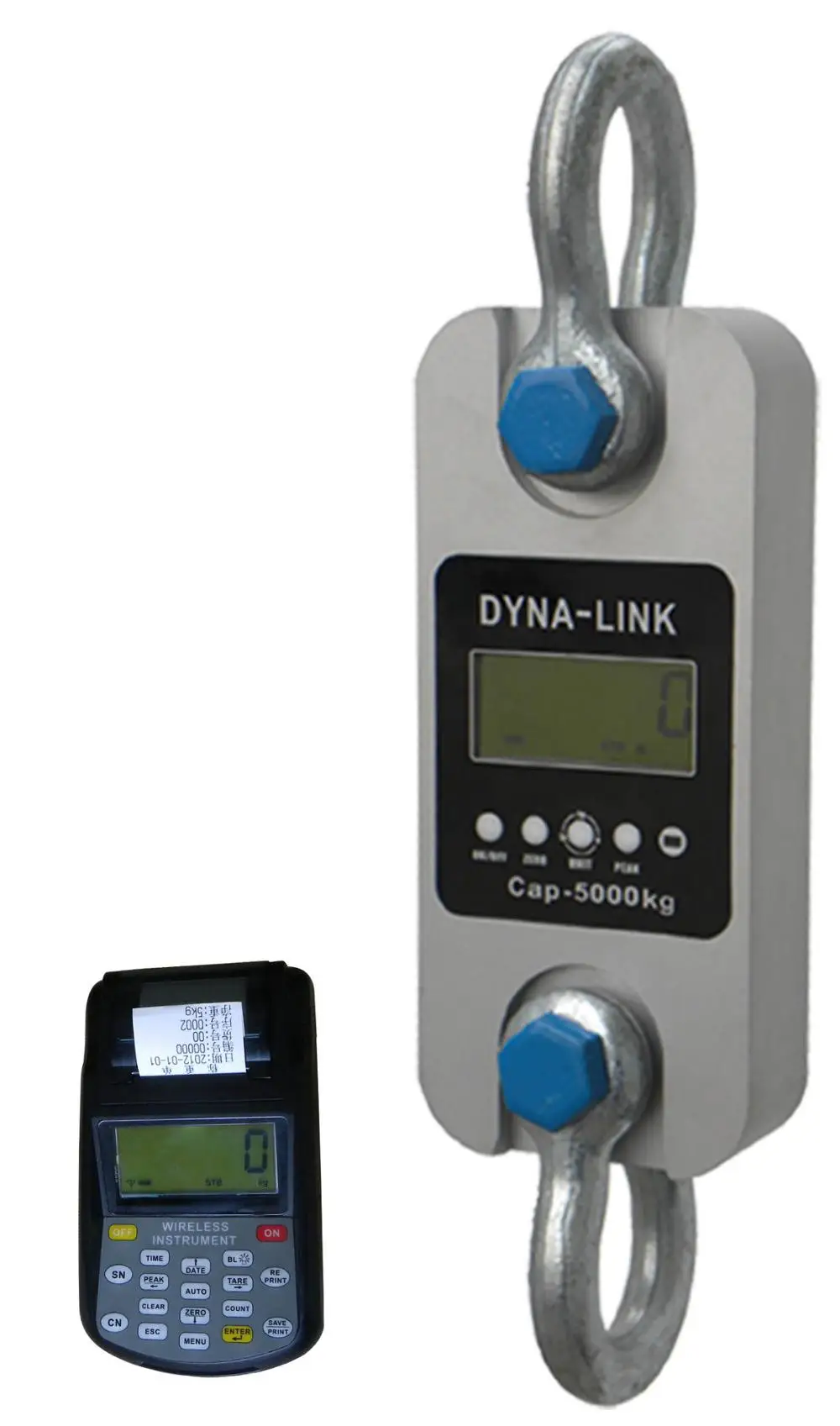

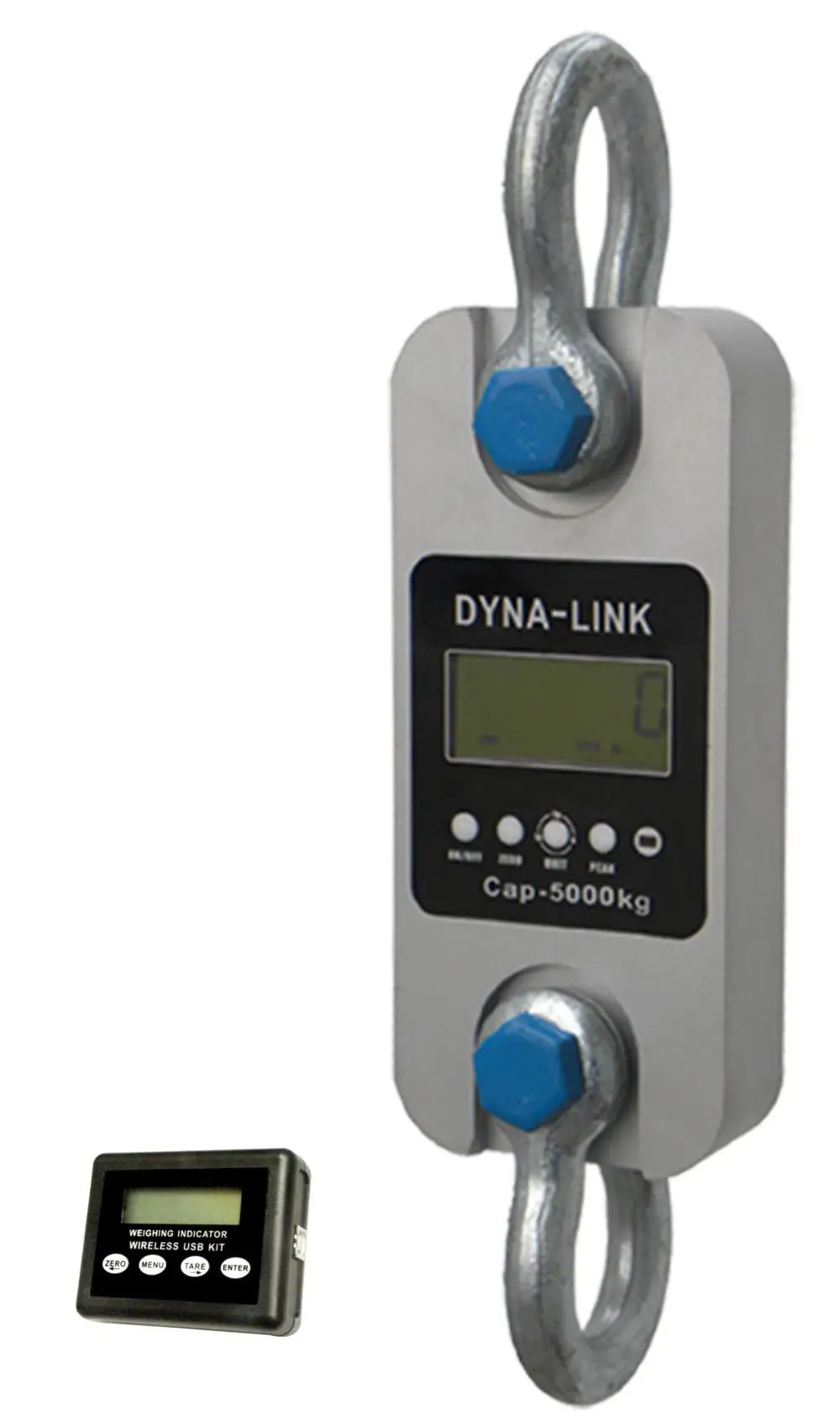

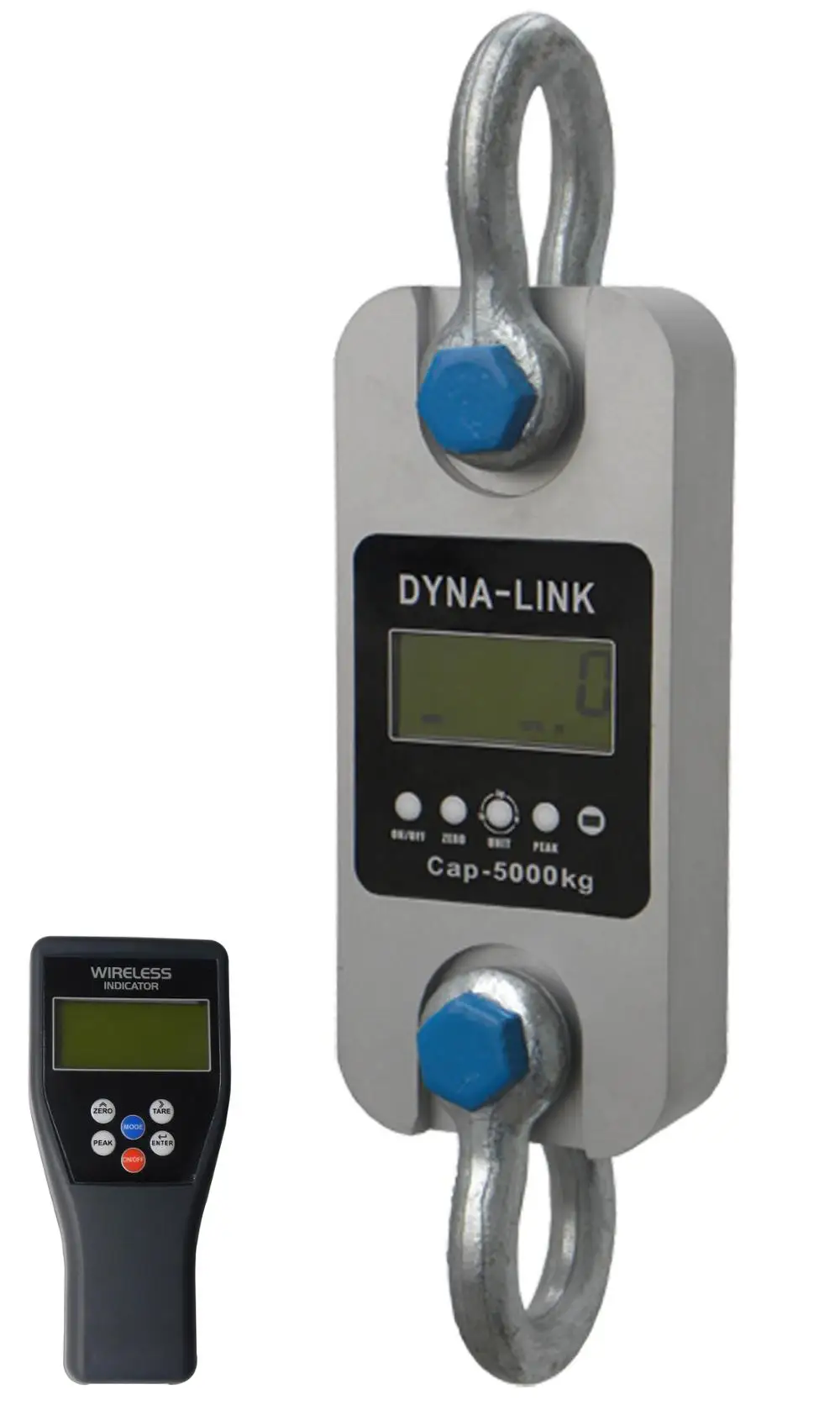

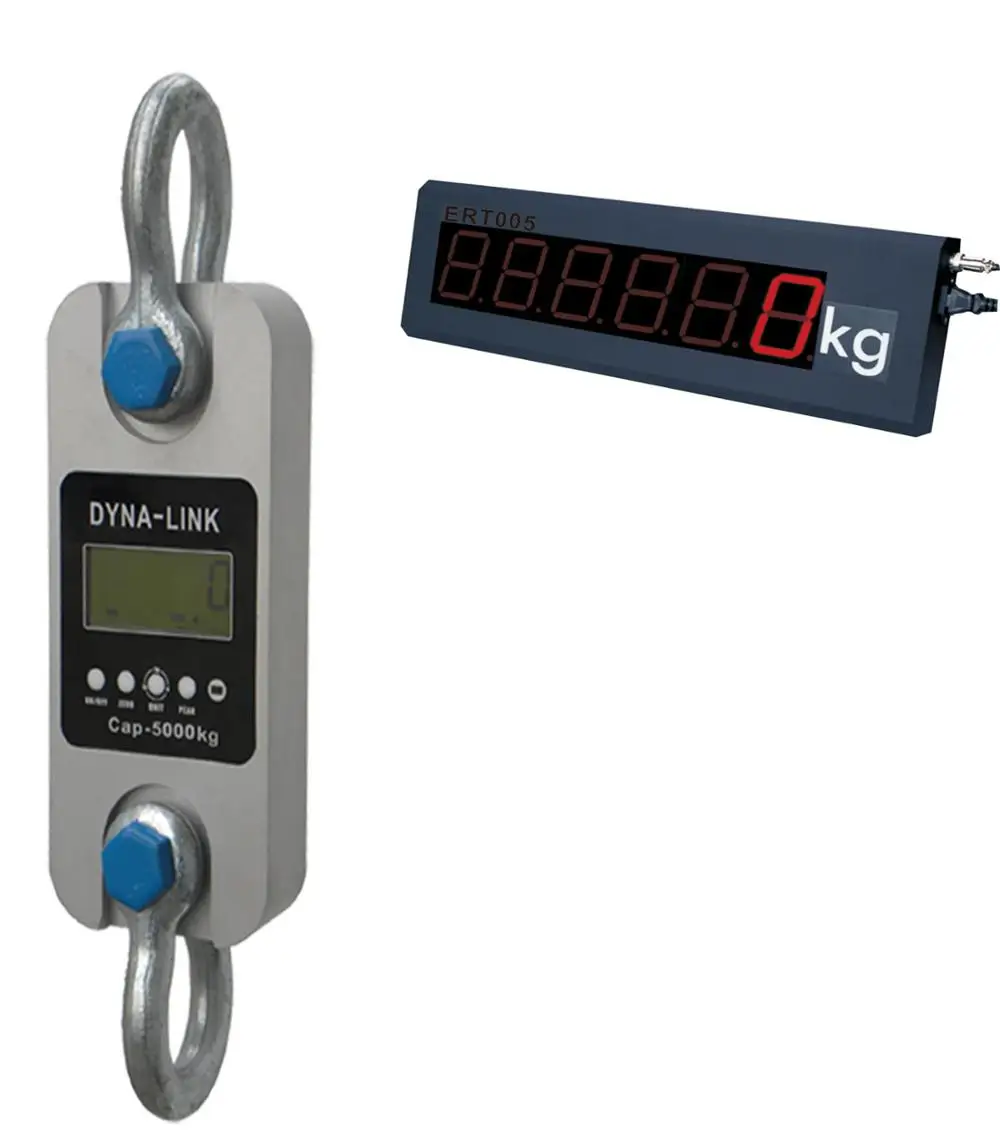

DL-W3 wireless dynamometer is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications,Whether used as conventional crane weigher or to measure force, DL-W3 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator 380.
Body protection: Aluminum and alloy steel capacities are powder coated.
Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
Units: Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN)
Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places value.
Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password).
Set-Point:Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.

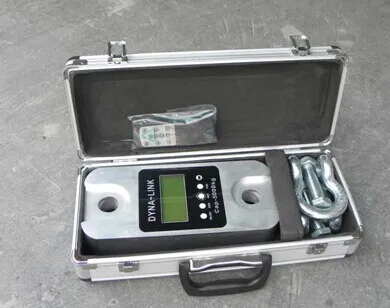

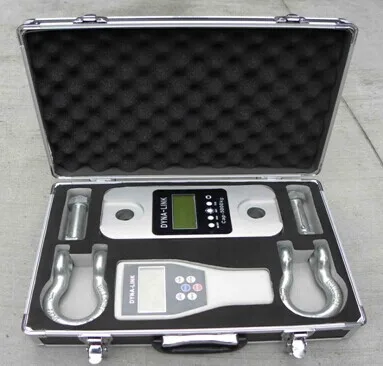

Package: Packed with carry case, easy to bring.
Indicator key:4 local mechanical keys:”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.
Main technical data:
Body Display
|
25mm (1’’) 5digits LCD with backlight
|
380 Indicator Display
|
25mm (1’’) 5digits LCD with backlight
|
Power on zero range
|
20% F.S.
|
Manual Zero Range
|
4% F.S.
|
Tare Range
|
100% F.S.
|
Stable Time
|
≤5 seconds
|
Overload Indication
|
100% F.S. + 9e
|
Max. Safety Load
|
125% F.S.
|
Ultimate Load
|
400% F.S.
|
Battery Life
|
≥50 hours
|
Body Battery
|
“LR6(AA)”size alkaline batteries. 1.5Vx3
|
Indicator Battery
|
“LR6(AA)”size alkaline batteries. 1.5Vx4
|
Operating Temp.
|
- 20°C ~ + 50°C
|
Operating Humidity
|
≤85% RH under 20°C
|
Wireless Distance
|
Min. 80m(default) [200m(optional)]
|
Wireless Frequency
|
2.4GHz(default),433MHz,868MHz(optional)
|

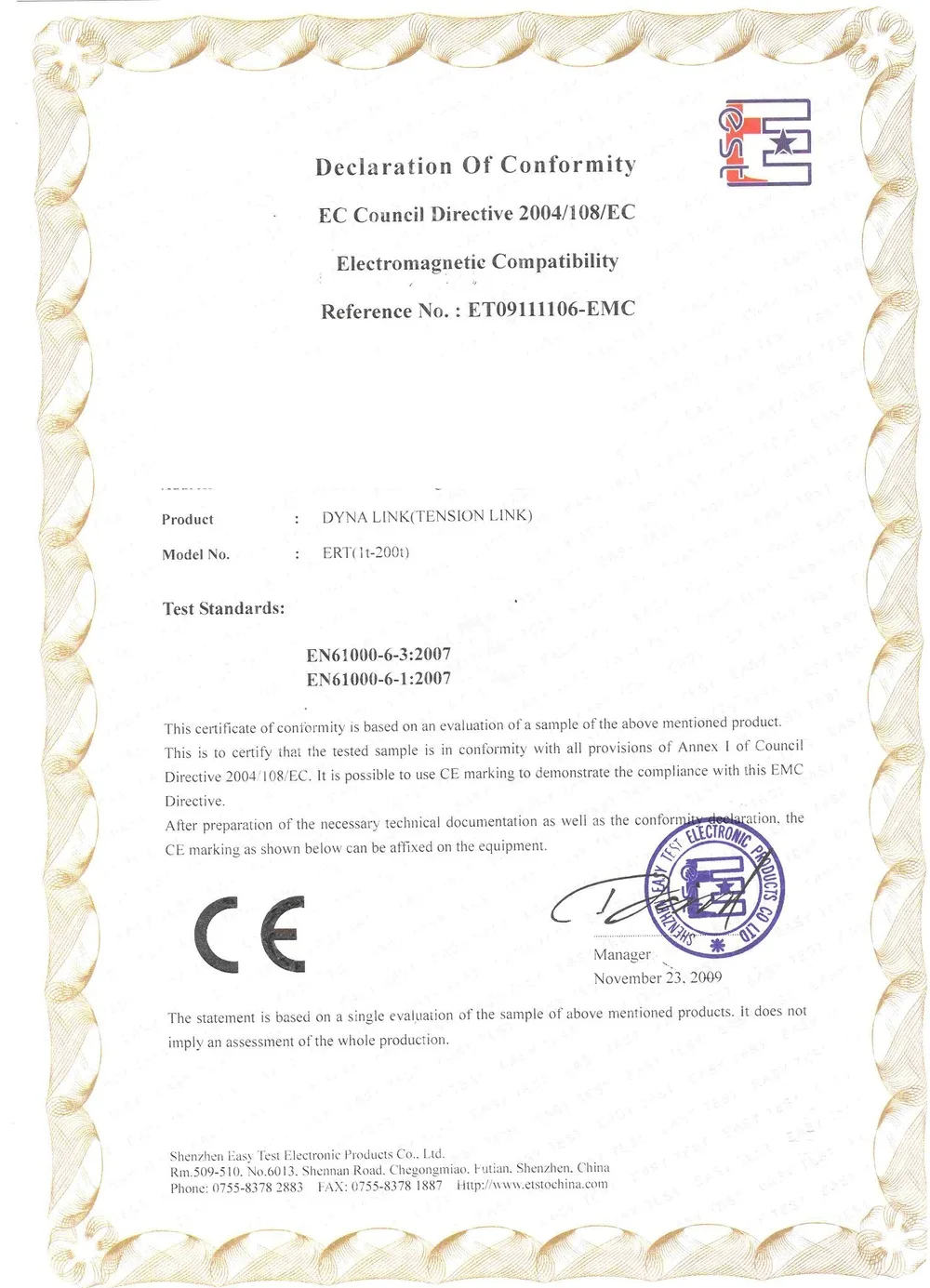

Ceritifcation :
|
