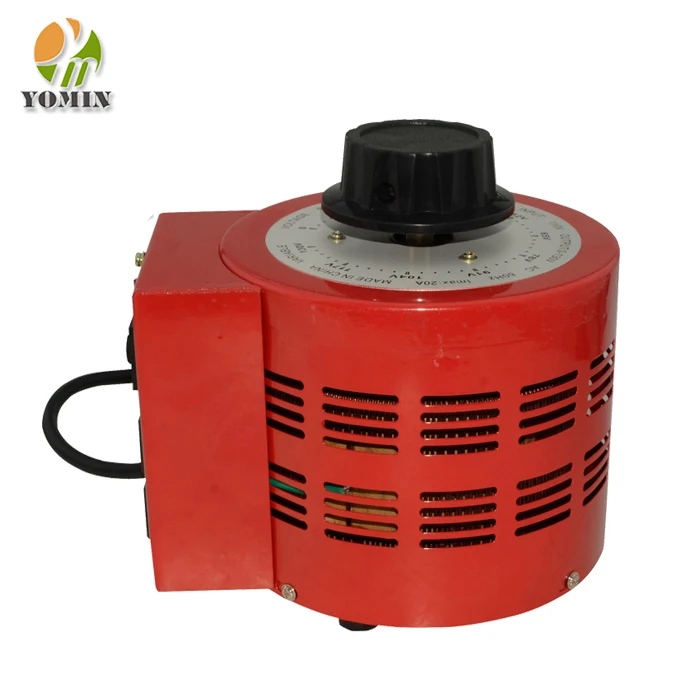

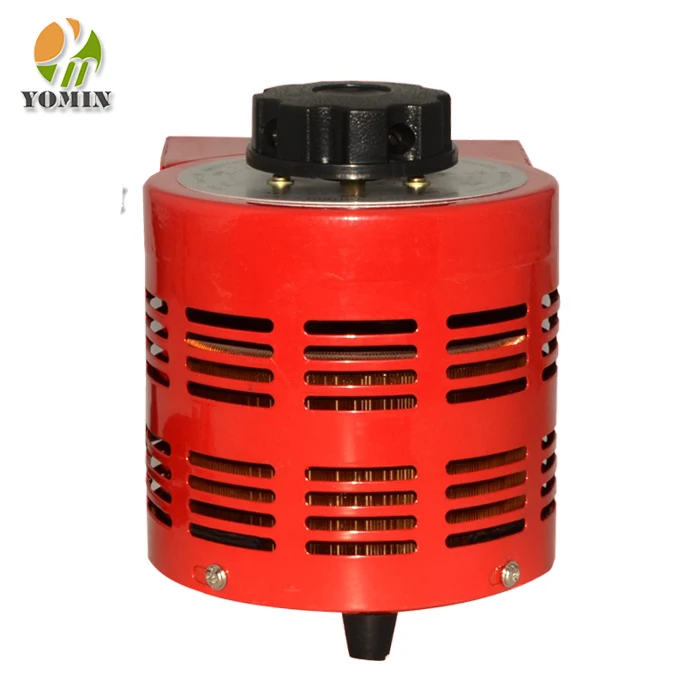

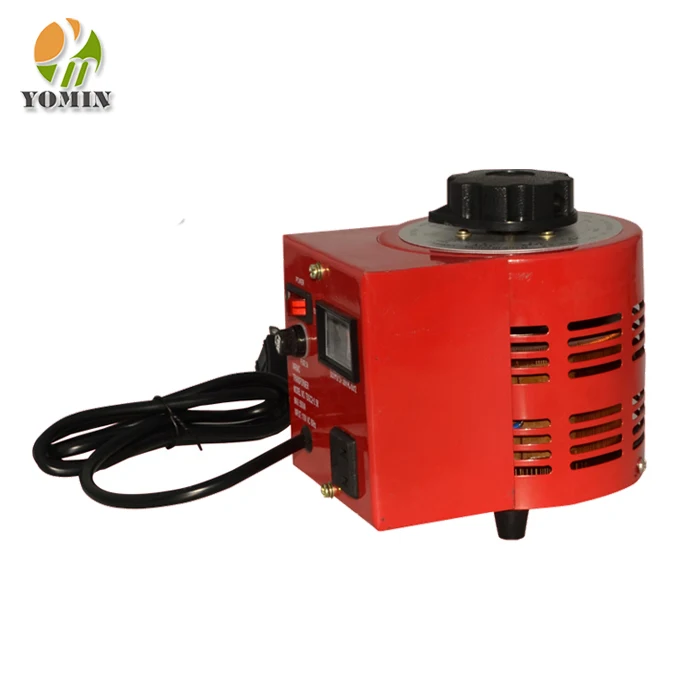

Manufacturer 0 250V Out 2A Voltage Regulator , (Variac) Single Phase 500VA Regulator Voltage
- Category: >>>
- Supplier: Yueqing Yomin Electric Co. Ltd
Share on (60034433587):
Product Overview
Description
0-250V Out 0.8A Voltage Regulator (Variac) Single-Phase
Model: TDGC2-0.5
Product Description
The Voltage regulators (Variac) are used to adjust the voltage from 0 volts up to
the maximum voltage for which they have been designed and among the most
usuall applications. No additional wave from distortion. The main applications are:
- Laboratory control equipment.
- Lighting equipment.
- Temperature controls.
- Motor speed control.
- Controlling of other transformers.
- Etc.

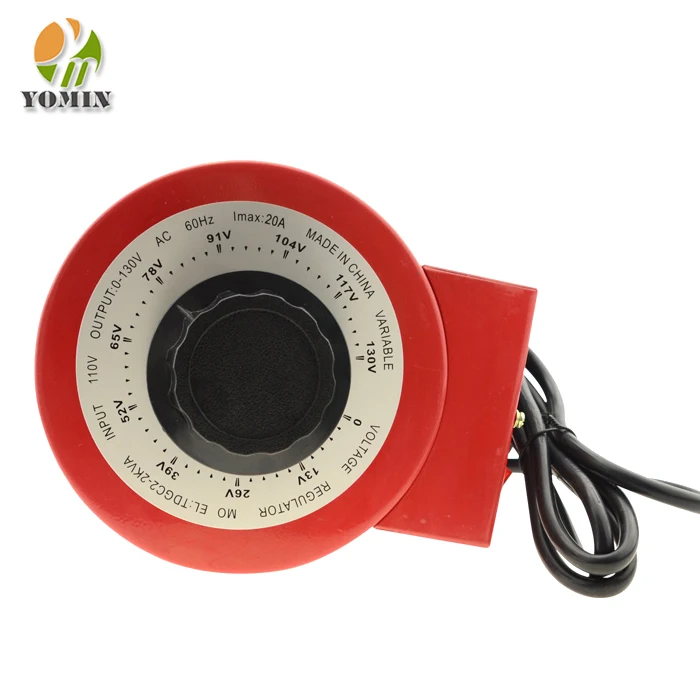

Manually Operated Rotary Knob to control output voltage, by means of a control
button on the shaft of the voltage regulator (Variac) which allows to act on the
brush and achieve the desired voltage. The voltage can be smoothly varied
between turns as the brush has a relatively high resistance (compared with a
metal contact) and the actual output voltage is a function of the relative area of
brush in contact with adjacent windings.
Specifications
- Capacity.............................................................500VA
- Output Current..................................................2A
- Output................................................................0~250V AC
- Frequency..........................................................50/60Hz
- Input...................................................................220V AC
- Insulation Resistance......................................>5MΩ
- No. of Phase......................................................Single-Phase
- Winding Material...............................................100% Copper
- Max.Temperature..............................................60℃
- Insulation Class................................................Class B (130 ℃)
- IP/NEMA Rating.................................................IP20
- Variable Operation............................................Manually Operated Rotary Knob
- Portable Carrying Grip.....................................Provided
- Pollution Rating................................................Class III

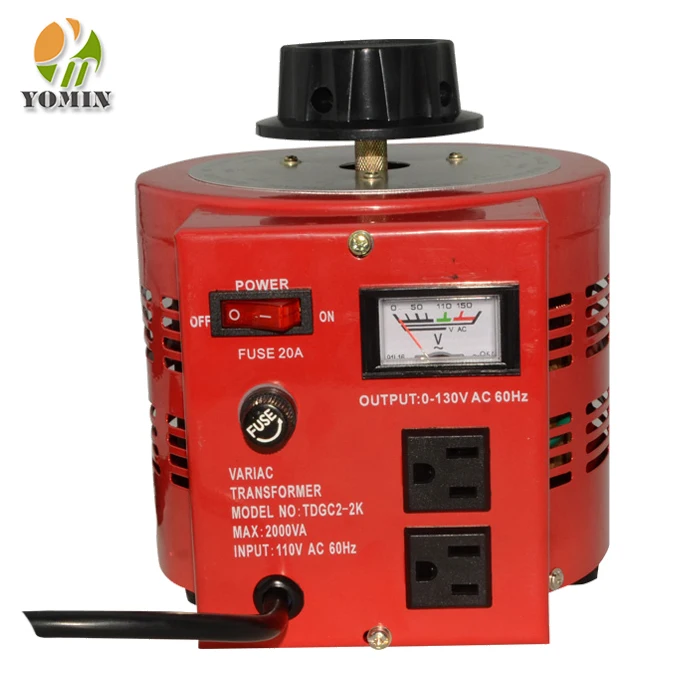

- Analog Voltmeter Display.................................Provided
- Housing Material...............................................Shock-Proof Metal
- Voltage Setting..................................................Manual Control
- Standards..........................................................VDE0550,IEC204-1,IEC61588,EC439
- Sample Service.................................................Pay to Provide
- Quality Assurance............................................18Months
- Item Condition...................................................Brand-New
Selection Form
| Item | Capacity | Input Voltage | Output Voltage | Output Current | Case Qty. |
| Model | (kVA) | (V) | (V) | (A) | (Pcs.) |
| TDGC2-0.2 | 0.2 | 220 | 0~250 | 0.8 | 12 |
| TDGC2-0.5 | 0.5 | 220 | 0~250 | 2 | 6 |
| TDGC2-1 | 1 | 220 | 0~250 | 4 | 4 |
| TDGC2-2 | 2 | 220 | 0~250 | 8 | 4 |
| TDGC2-3 | 3 | 220 | 0~250 | 12 | 2 |
| TDGC2-5 | 5 | 220 | 0~250 | 20 | 1 |
| TDGC2-7.5 | 7.5 | 220 | 0~250 | 30 | 1 |
| TDGC2-10 | 10 | 220 | 0~250 | 40 | 1 |
| TDGC2-15 | 15 | 220 | 0~250 | 60 | 1 |
Packaging & Shipping
Packaging voltage regulator always be very important to our customers,
especially when we tranport these expensives devices from our location to
customer's locations, We make each voltage regulator packaged by tailor-made
foam which have enough support to our voltage regulators.
All means of shipping are supported, by Air, by Sea, by courrier.
