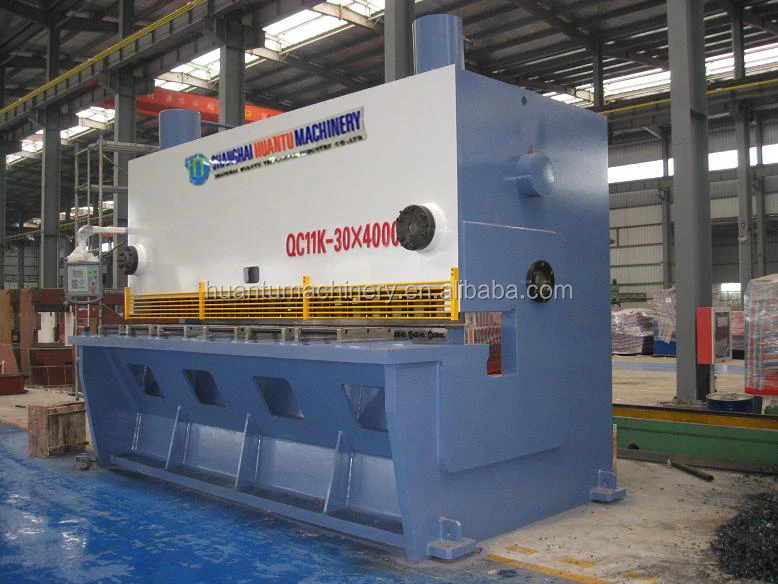

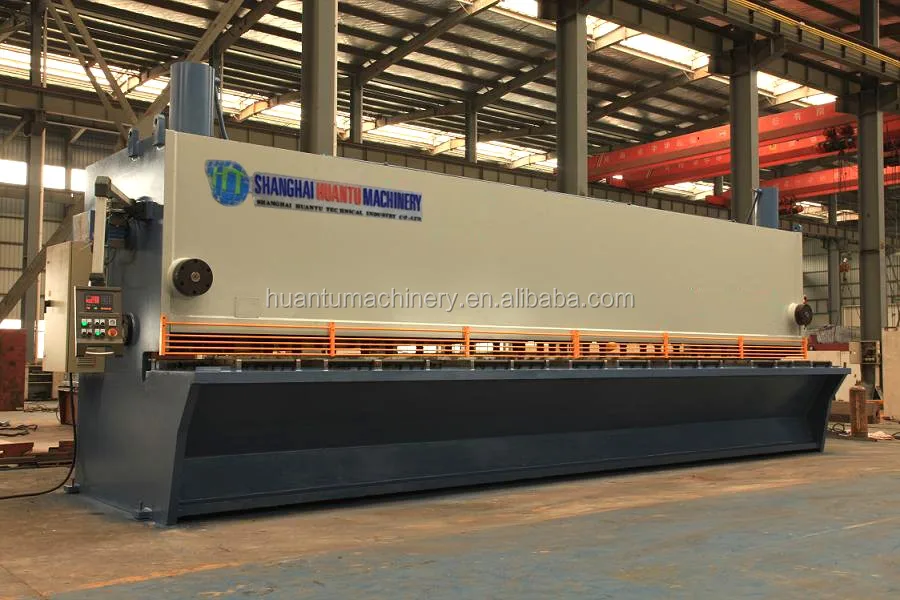

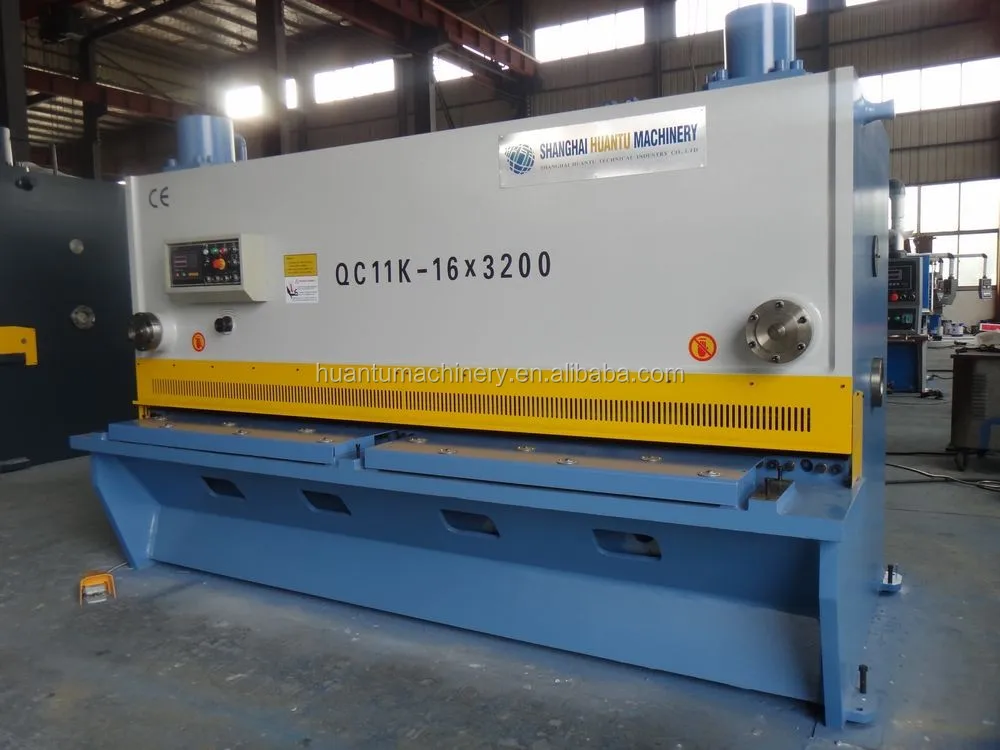

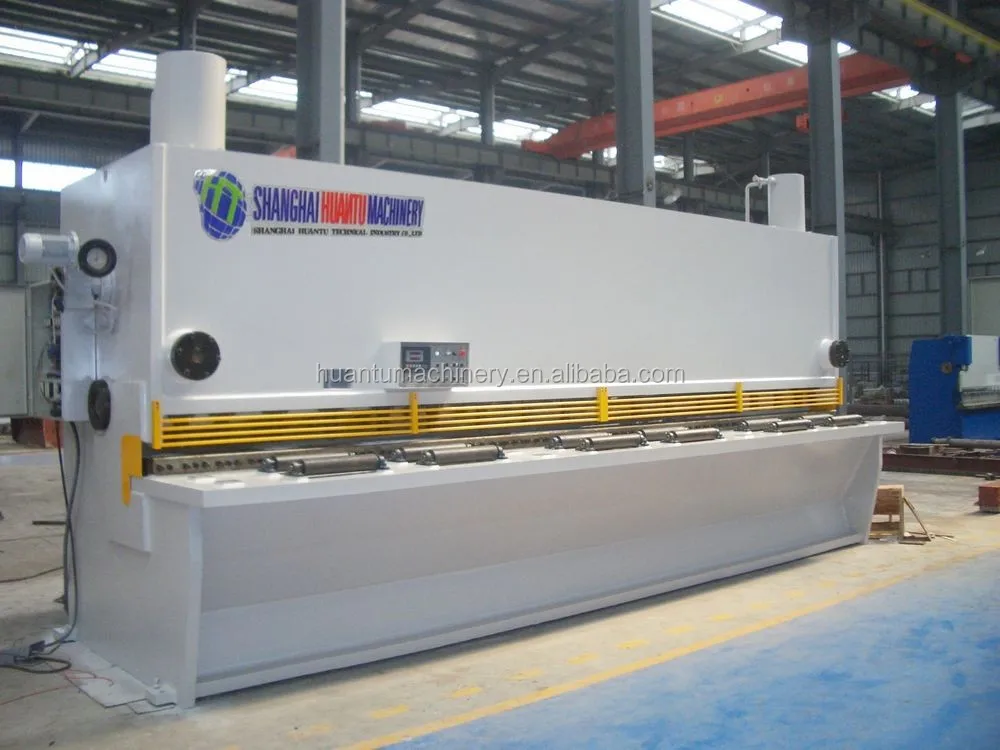

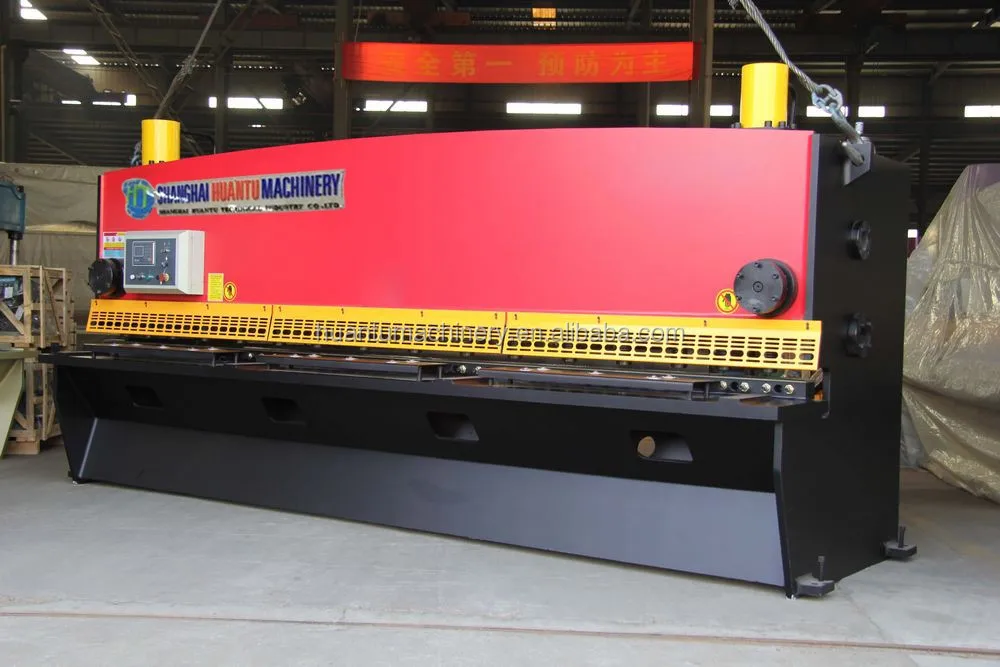

QC11Y Hydraulic hand sheet cutter , manual sheet metal cutting machine , bench shear

1. Using fabricated steel structure, with compact,construction and good rigidity stability

2. Integrated hydraulic transmission system, with good reliability

3. Using Back gauge using intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers

4. Moving orbit of the blade beams inclines forwards to the supporting surface of the bottom blade, so you can gain fine shear surface. Jacking screws of the top blade provide a fine adjustment to minimize “rag” or “burring” on the sheared edge of the material. The hold-down assembly adopts the butterfly springs. There are antiskid heel block on the hold-down device of hold-down plate. The pressure is bigger, but it doesn’t damage the sheet-metal surface.

5. Drived by a self-contained, totally enclosed gearbox mounted directly on the main shaft. Its construction is compact and the gear is well lubricated with low noise and long life.

6. Our Machine hasn’t the clutch and the flywheel. It shears the sheet-metal directly drived by the magnetic brake motor. This reduces the idle time of the motor and saves the energy.

7. Front and back gauges are provided with the scale plate displaying the scale. The back gauge may be easily adjusted in synchronism

1. Our guarantee time is 2 years from B/L date.  If any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.


2. Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.


3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service.
