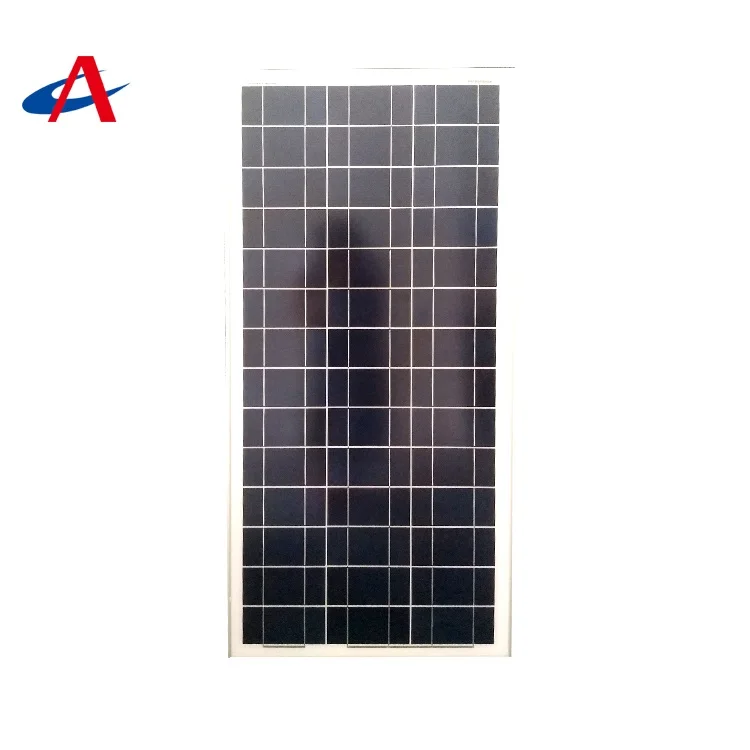

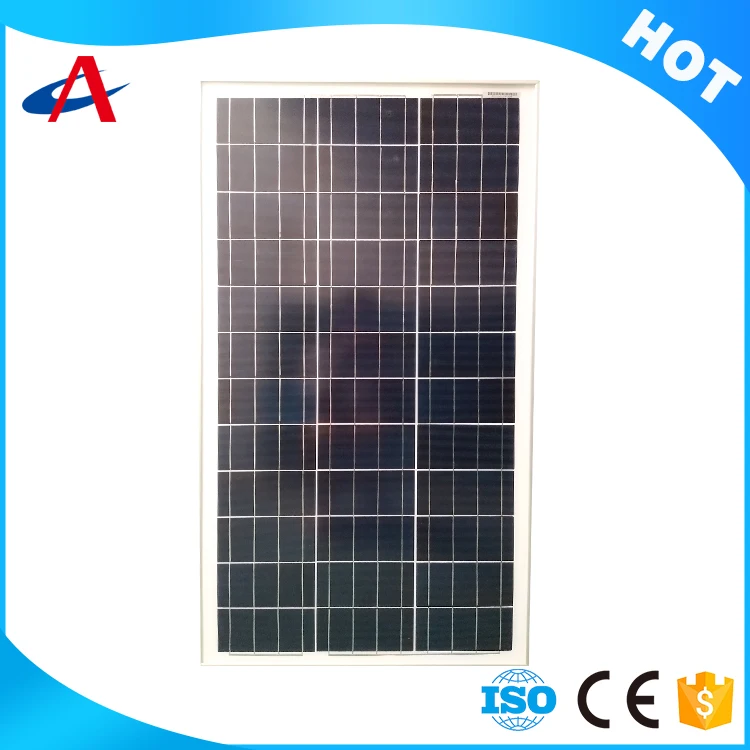

brown frame solar panel 10000 watt solar panel system

Product Overview

Description

Applications:

1) Providing realiable and economical solar electric systems for remote power solutions;

2) Designed for use on residential and small commercial buildings;

3) Ideal for solar – electric water pumping systems;

4) Logical solution for the remote energy needs of the oil & gas industry;

5) Solar lighting system;


Features:

1. 0 to +5W positive tolerance power.


2. Module certified to withstand high snow loads, up to 5400Pa.


3. Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.


4. Anodized aluminum frame improving corrosion resistance.


5. Our IP67 rated junction box improves module performance and stability.


6. introduces the new generation of solar modules. Providing more power by utilizing high efficiency solar



cells. Their outstanding performance on energy yield helps our customers to maximize returns on investment



specially on grid tie allplications.


7. solar modules are manufactured according to IEC standards. each module goes to a strict quality



verification on through an EL testing process, The EL tester works like a X-ray scanner that immediately



exposes every possible hidden defect in the solar panel. This way you can get a crystal clear picture of the



good operation of the solar panel.


8. Our solar modules are designed to offer worry free used in the harshest climates. For example, the



strong and robust 40mm frame allows installation in multiple configurations, making an easy, safe and faster



installation in harshest climates. The water drains holes prevent frame breakage due to freezing



temperatures.

Mechanical Characteristics:
Module type	80W-36P
Size	1200*540*30mm
Weight	8 kg
No. of Cells	36(12*3) pcs
Cell dimension	Poly 156*93mm
Front cover	3.2mm tempered glass
Frame	Anodized aluminum alloy
Junction Box	IP67/IP65 rated
Connectors	MC4

Temperature coefficient:
NOCT cell	46±2°c
Temperature coefficient Voc(%)	+0.04±0.015%/°c
Temperature coefficient Pm(%)	-0.3±0.02%/°c
Temperature coefficient Im(%)	-0.45±0.05%/°c
Temperature coefficient Vm(%)	+0.04%/°c
Operating temperatures	-0.32±0.02%/°c
Operating temperatures	-40°c~+90°c
Surface pressure	60m/s(200kg /m² )
