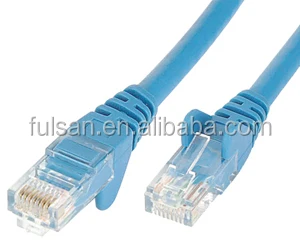

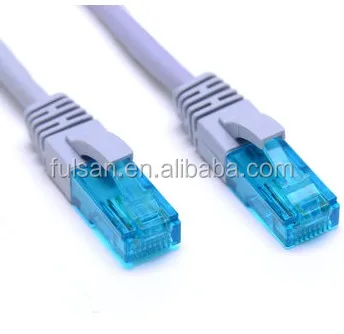

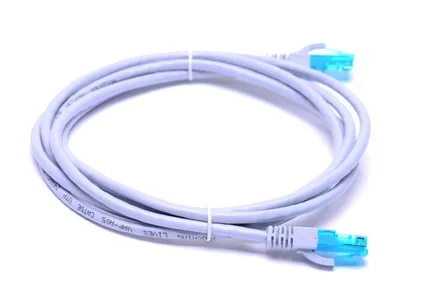

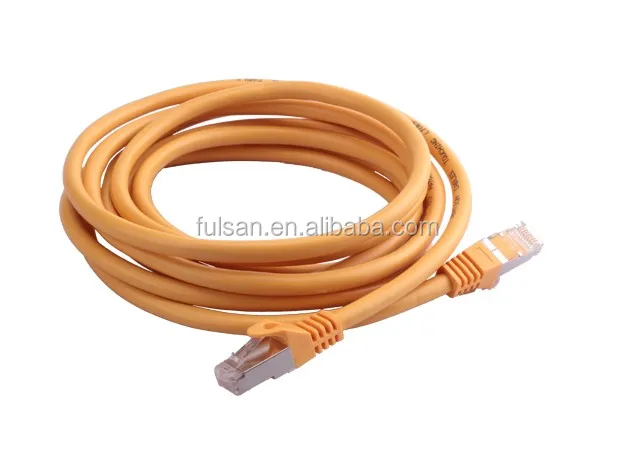

26AWG 24AWG RJ45 Patch Cord Cable cat5e/cat6 1m 2m 3m with CCA or Bare Copper conductor
- Category: >>>
- Supplier: Ningbo Fulsan Technology Co. Ltd.
Share on (60035189352):
Product Overview
Description
Snag Free Cat5e/Cat6 UTP RJ45 8p8c Patch Cord Cable/ UTP RJ45 Cat5e cat6 network patch cable

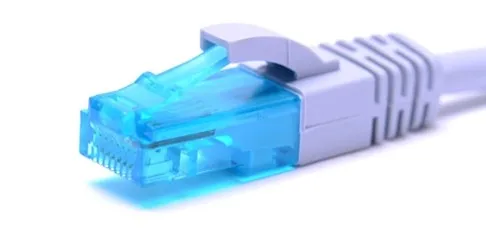

Connector: RJ45, shield
Cable Spec: Cat 5e/6 Cable
Meet TIA/EIA-568-A
Pin Out: 568A-568A
568B-568B
568A-568B
Cat5e/cat6 patch cord cable 26awg/24awg
1. CE, ROHS, ISO,
2. CU, CCA, CCAM, CCA+CCS
3. Free OEM design
4. UTP/FTP cat5e/cat6 cable
Specification:
1), Rated Temperature: 60° C or 75° C

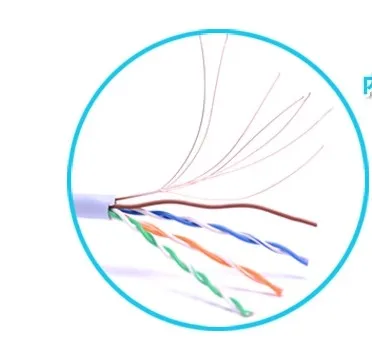

2), Unshielded twisted pairs
3), Conductor: 26AWG or 24AWG Stranding or Solid Bare copper
4), Insulation: HD-PE(High density polyethylene), minimum thickness of 0.18mm
5), Jacket: PVC or LSNH, minimum thickness of 0.55mm
6), Impedance: 100± 15%Ω At 1~100MHz
7), Print Legend: CM or CMR
8) Reference standard: YD/T1019-2001, ISO/IEC11801, ANSI/TIA/EIA-568B, UL 444
Features:
1. Solid Copper Conductor Allows High Performance
2. Fast and Reliable Connection
3. Twisted Pairs with Bright Color for Easy Recognition
4. Ripcord and Footmark for Convenient Use
5. Smooth Jacket for Easy Pulling in Tight Space
6. Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement
Applications:
1. Computer Network Cabling Project.
2. Broadband Network Communication.
3. Digital ISDN Network and ATM 155Mbps Network
4. Ethernet Network
5. Audio and Data Transmission
1. Conductor: 24AWG/26AWG Copper, CCA, (8*7*0.12, 8*7*0.16mm etc)
2. Insulation: 0.92mm+/- 0.06 HD/PE
3. Pairs: 4 pairs
4. Jacket: PVC

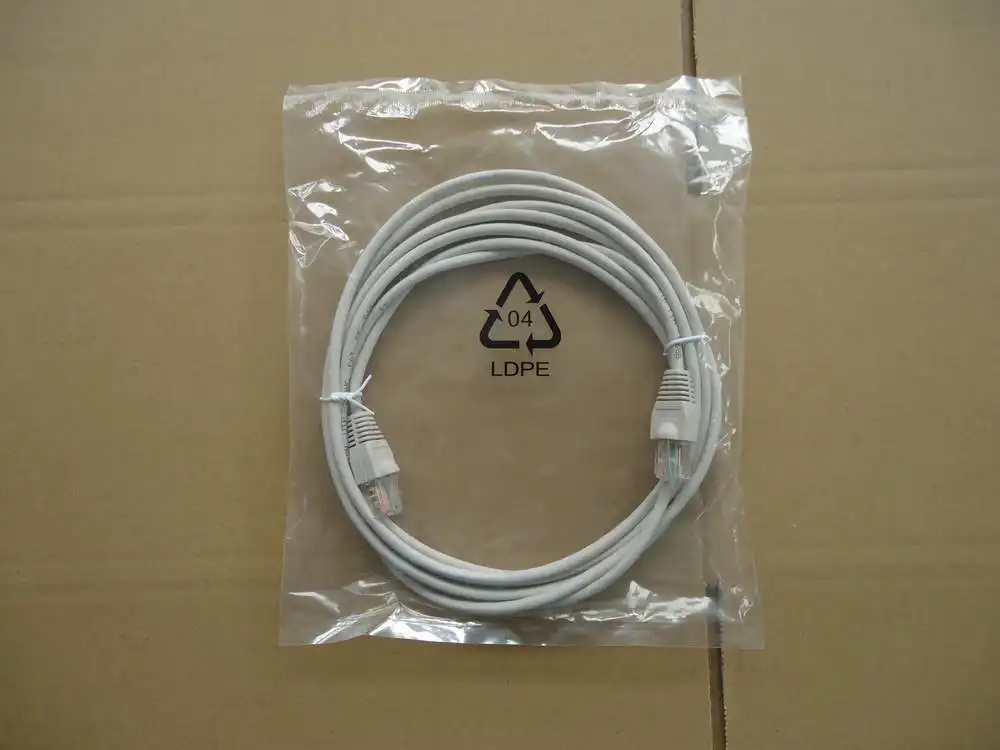

5. Packing: 1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m...100m, 1pcs/poly bag.
6. Any length is availabe
7. Temperature Range: -20 up to +75c
8. Conductor Resistance: Max. 9.38 ohm/100m
9. Resistance Unbalance: Max. 2%
10. Insulation Resistance: Max. 150 ohm/Km
11. Mutual Capacitance: Max. 5600pF/100m
12. Capacitance Unbalance: Max. 330pF/100m
13. Impedence: 100+/-15
14. Spark Test: 2000V
15. Velocity of propagation: 67%
Complies with Enhanced Cat. 5 Cabling Specification TIA/EIA-568B-2
OEM AVAILABLE
Certificate: CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
| Product: | Patch cord |
| Category: | Cat 5e, Cat6, Cat 6a, Cat7 |
| Shirleding: | UTP, FTP, SFTP, SSTP |

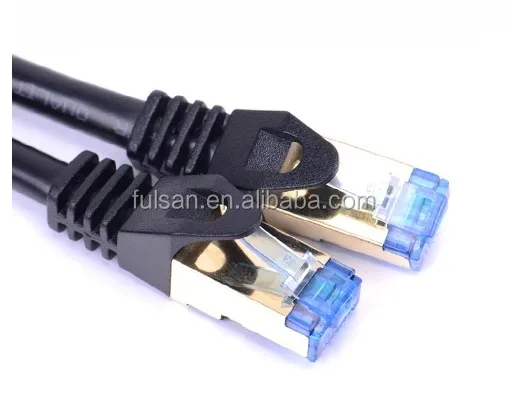

| Connector | RJ 45 connector |
| Conductor | Bare copper, CCA ( copper clad alunimum) or CCS ( copper clad steel) |
| Guage | 22AWG, 24AWG, 26AWG, 28AWG, 30AWG |
| Insulation | HDPE |

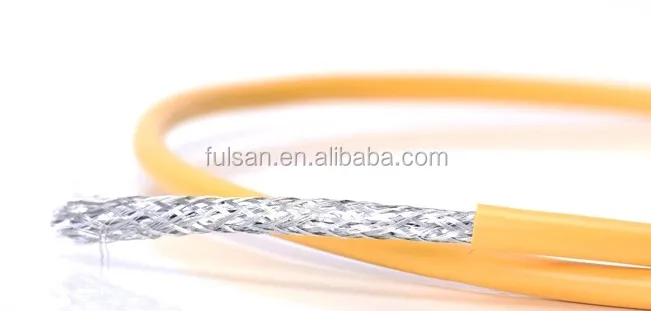

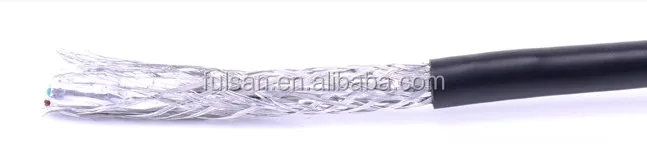

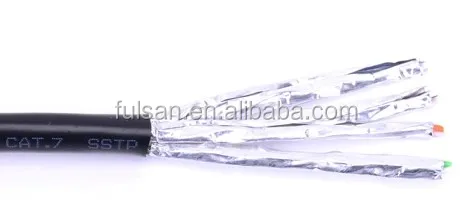

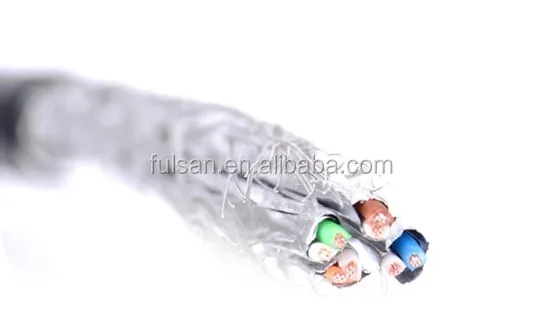

| Shirleding | Aluminum foil and Braiding |
| Jacket | PVC, LSZH. |
| Color | Black, white, grey, blue, red, orange ,yellow, purple,green ,transparent ^ |
| OD | 5.0mm, 5.2mm, 5.4mm, 5.7mm ... |
| Length | 0.25m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, 50m, 80m,100m,etc |
| Compliance | ATC, ETL, CE, RoHS, REACH |

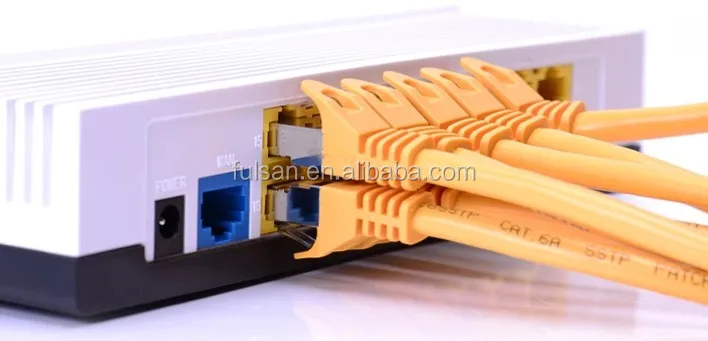

| Application | 1.PC with Switch, Hub, ADSL, Router, Wall Socket, Network Module Plate,etc. 2.Connect 2 XBOX consoles for multi player gaming 3.ADSL, Modem with Hub or Router |
| Compatibility | 100 Base-T4 100 Base-TX 100VG-AnyLAN 1000 Base-T(Gigabit Ethernet) 155 Mbps ATM 622 Mbps ATM |
| Package | Polybag,Zip bag,OPP bag, bag with paper card, gift box, blister or Customized |
| ELECTRONICS | |
| QC | 100% open and short test |
| Voltage | DC300V 5M ohm/10ms |
| Insulation Resistance | 10M ohm min |
| Contact Resistance | 3 max |
| Working Temperature | -25C-80C |
