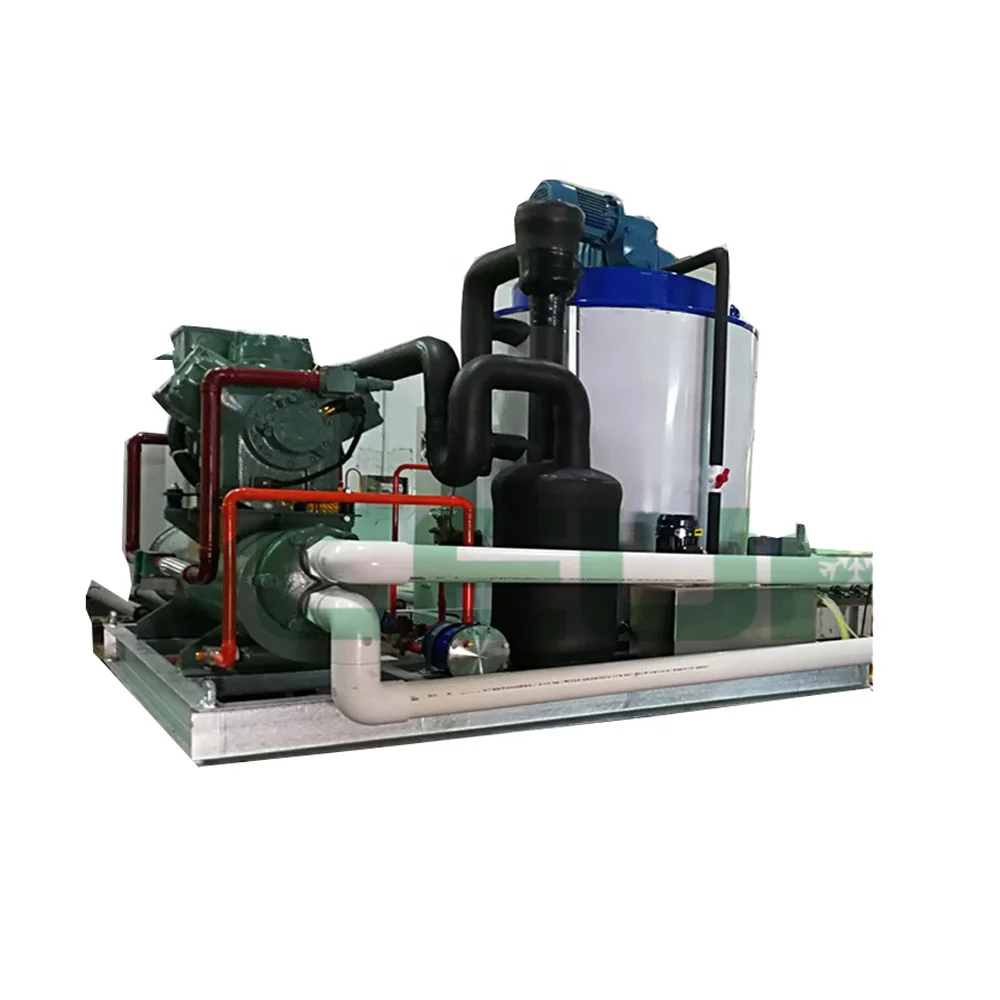

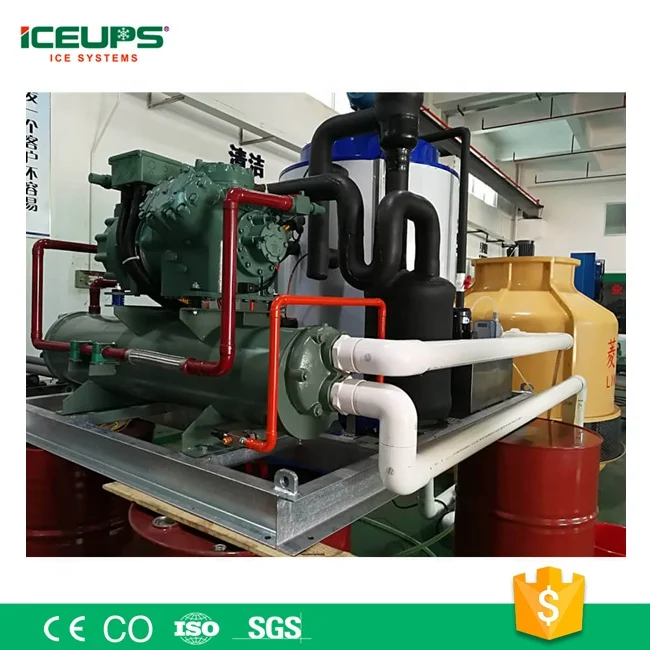

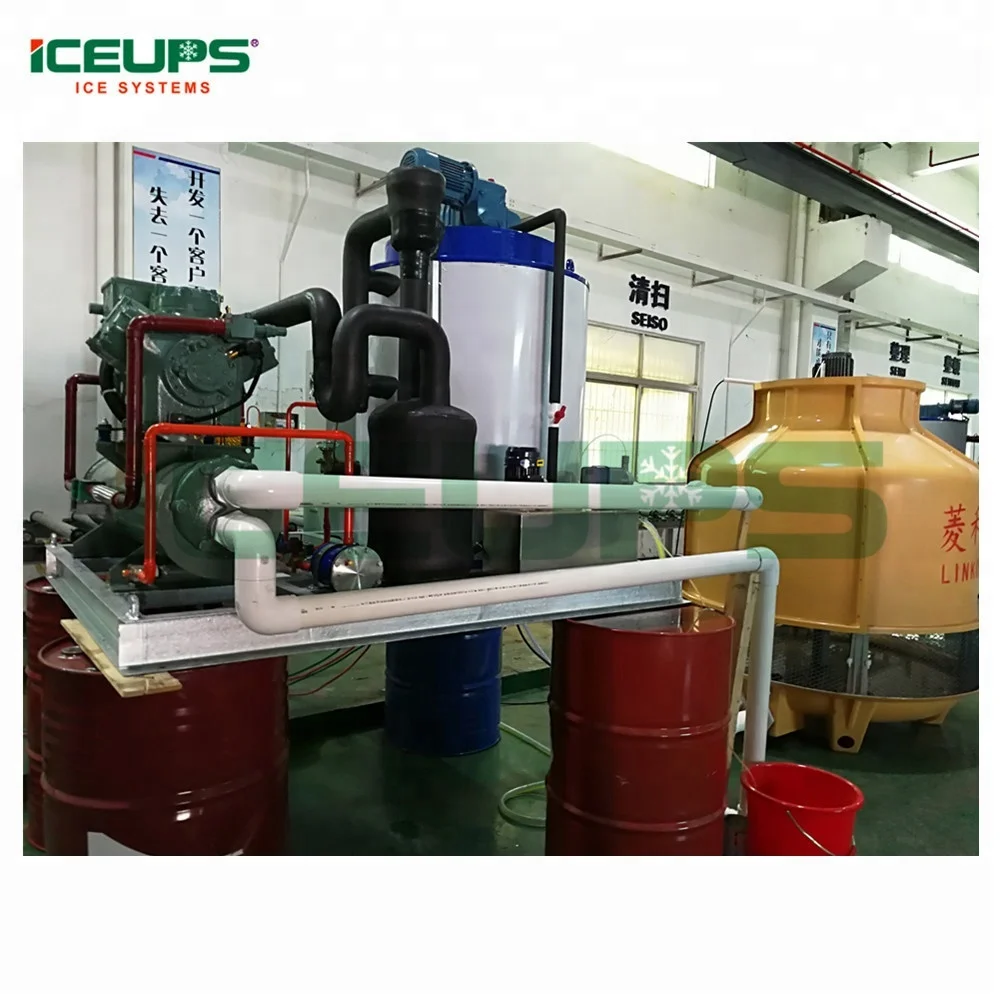

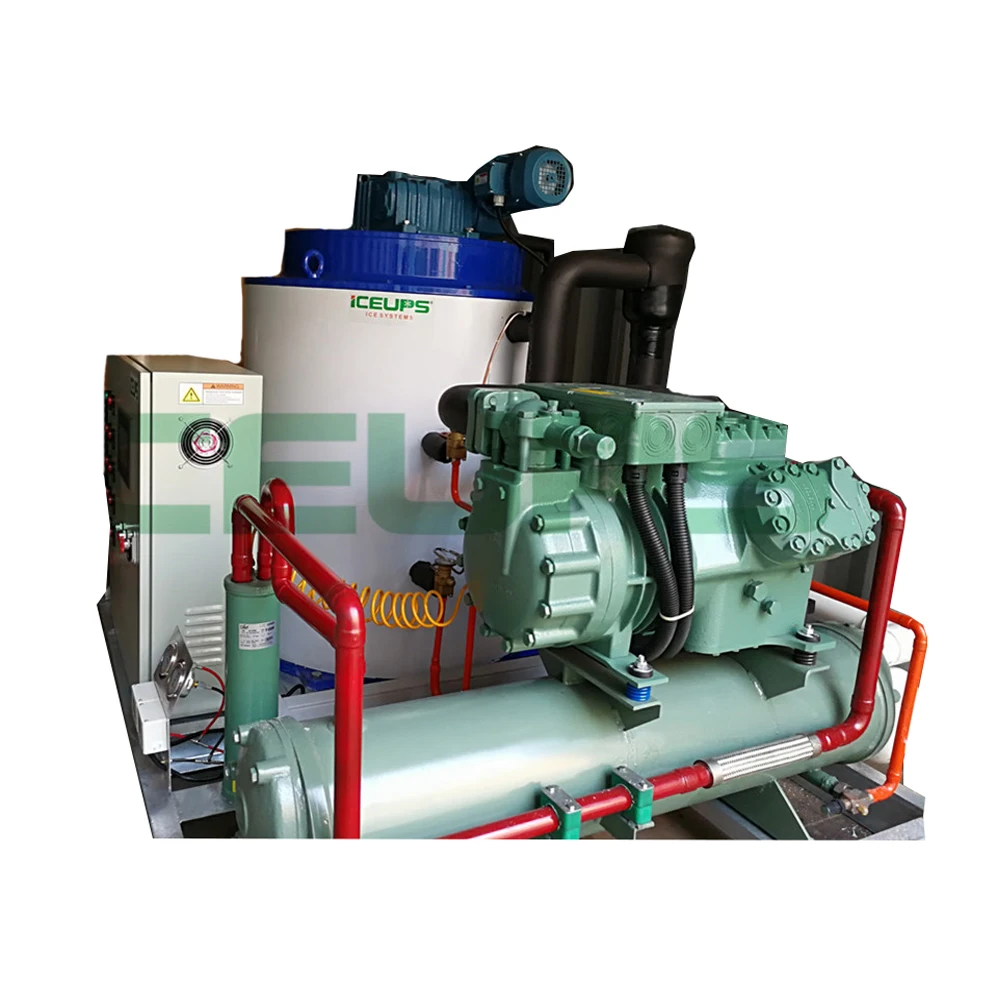

China factory supply 5 ton/24hr industrial ice making machines for fish and vegetables

Product Overview

Description

China factory supply 5-ton/24hr industrial ice making machines for fish and vegetables





High Quality Flake Ice

The flake ice is  dry, pure, clean,  not easy to block, thickness is about 1.2mm--2.2mm, without edges or corners which would avoid damage to products. So it is widely used in refreshing vegetable/fruit and freezing fish and meat, and other field like slaughter processing, fishing, concrete cooling etc.







Main Refrigeration Parts are all use international Famouse brand

Main configuration list:

NO.	Component name	Brand name	Country
1	Compressor		Germany
2	Refrigeration parts		Danmark
3	Ice Drum(Evaporator)	ICEUPS	Shenzhen
4	Water cooling condenser		Wuhan
5	Electrical components		South Korea
6	PLC controller		South Korea













Technocial Parameters of KMH5T:

NAME	PARAMETERS
DAILY CAPACITY(24H)	5000KG/day
REF.CAPACITY(KW)	30/H
EVAPORATING TEMP.	-22℃
CONDENSING TEMP.	40℃
COMPRESSOR TYPE
COMPRESSOR BRAND
TOTAL POWER(KW)	24.5
COMPRESSOR IN-POWER(KW)	21
POWER SUPPLY	380V-50Hz-3P   (Other voltage also available)
WATER PRESSURE	0.1-0.5Mpa
REFRIGERANT	R404a
ICE TEMP.	-5℃
FLAKE ICE THICKNESS	1.5-2.2mm
AMBIENT TEMP.	25℃
WATER TEMP.	18℃
SUPPLY WATER WAY	Salt water
COOLING WAY	Water  cooling
RUNNING NOISE(dB)	≤50dB
ICE DENSITY	400-450KG/m3
ICE MACHINE DIMENSION(LxWxH)	1500x1800x1600mm
ICE STORAGE CAPACITY	2800KG
GROSS WEIGHT	1500KG



Configuration explanation:



1)         Actual ice-making capacity will be changed according to variance of water as well as the chiller power and the working enviroment and dosing temperature.

2)         Referance power supply is dynamice electricity with 380v /50HZ, however, If necessary, It can be changed into 60hz/220v/200v/440v/400v/415V/480V according to different requirement of clients.

3)         If you have any demand for the refrigerant agent, we can supply as your requested, however, you should inform us in advance .

4)         If you have any other special request, please inform in advance, we will give our best advice and try our best to meet with your request.





Warranty:

12 Months after B/L date. Any failure occurred within the period due to our responsibility, we’ll supply you the spare parts for free, and permanent technical support & consultation all life long for the machines.





Flake ice application fields:

Aquatic products processing

Meat processing

Fishery industry

Long range fishing

Vegetable preservation

Supermarket or other commercial usage

Cold storage project

Temperature reduction project

Artificial snow ice skating rink

Slaughter processing

Concrete cooling

and more.

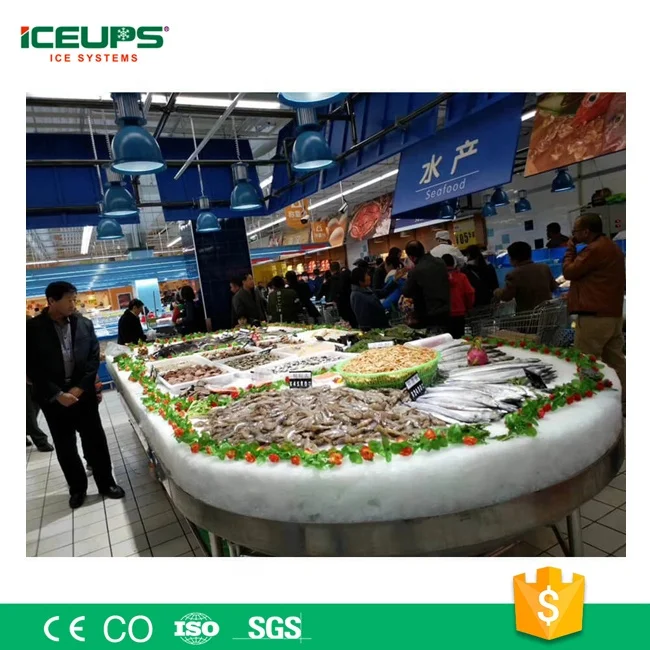

Application Case:









Features:

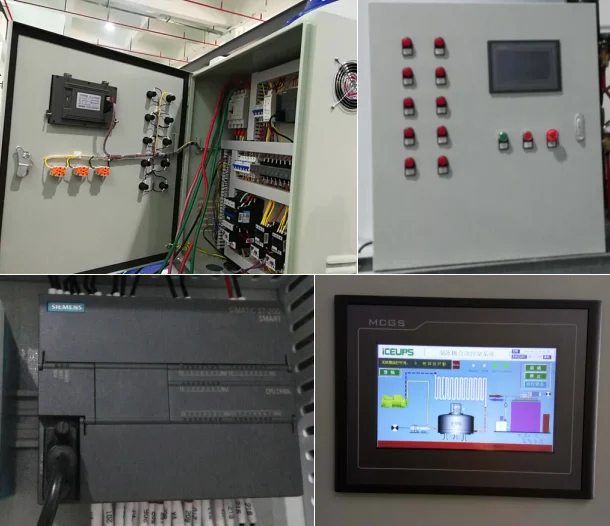

1. Intelligent Control System

The intelligent screen can display the operating status information of the machine while working, easy for users to know how the machine works and handle the machine well.









2. Automatic Diagnosis System of PLC Board

ICEUPS ice machines are controlled by LG PLC board, the whole unit was divided into different working sections. If they work normally, the lights will be on, any of the sections break down, the light will be off, and will show the error code on PLC board. Easy for users to find the problem, save time and money.





 3. Energy-saving, Stable, Durable



ICEUPS ice machines can fully meet with the requirements of Europe energy-saving standards. Most of our parts are imported world famous brand, like COPELAND/BITZER/DANFOSS/ALCO/EMERSON...etc. Good quality, stable and durable.
