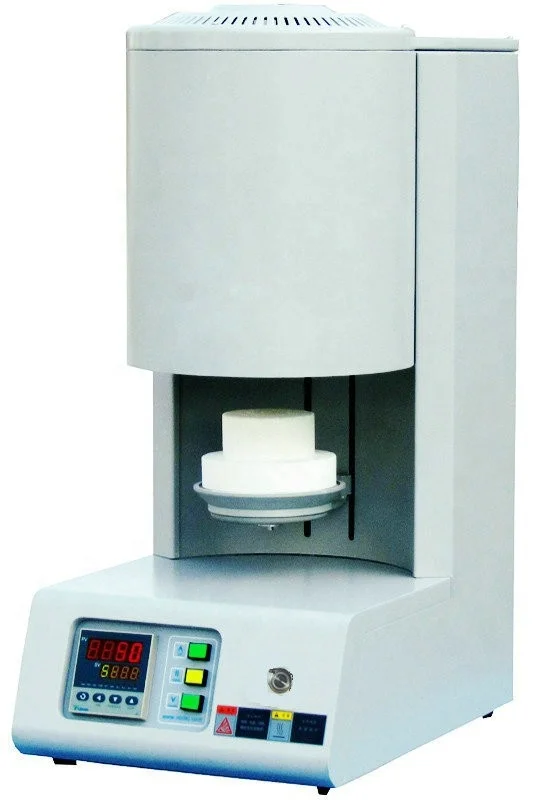

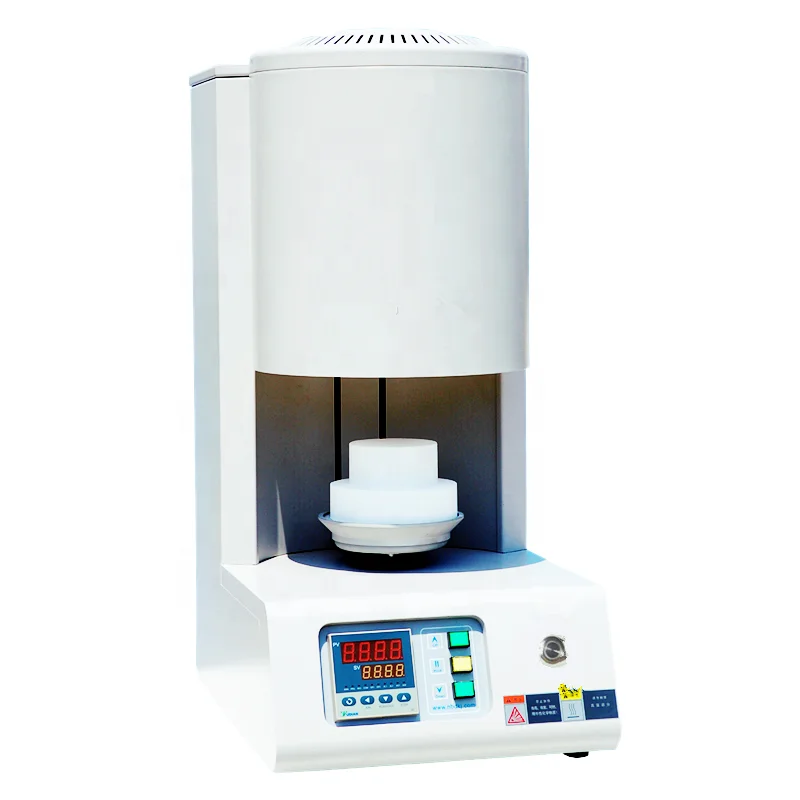

CE 1700C Bottom Loading lab ceramic Furnace Elevator dental furnace

Product Overview

Description

Features for  lab bottom load  Elevator furnace :



1. Operation Temperature: 1700°C/1600°C.



2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.



3. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.



4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).



5. Power control with 30 segments programmable.



All the chamber  material are made by the imported Morgen fiber, and its effect of energy-saving is more that 80% of the old furnace.

Our products have  the advantages warming faster 20-40 mins, energy saving, high precision temperature control, heat preservation performance , the microcomputer control, programmable automatic temperature, temperature at furnace wall to such high interest conditions, Widely used in ceramic industry, chemical industry, electronic, metallurgy, new materials, machinery, fire-proof material, building materials, special materials of experiment and production. welcome old and new customers.

Double layers steel casing with fan cooling, to ensure the surface of furnace below 50 °C.

Lifting bottom controlled by electric, freely lift or down.

Up and down limited switch, double safety for bottom moving.



We offer OEM service for you!



Model	YF-1700BL Approved by CE certificate, ensure the safety operation of the machine.
Furnace chamber size	150*150*150mm 300*200*200mm 400* 300* 300mm  Dia120*130mm Dia220*250mm(Customizable)
(D x W x H)
Furnace chamber	Imported high pure polycrystalline alumina fiber, excellent heat preservation
Heating element	High quality Silicon molybdenum rod
thermocouple	B-type
Temperature controller	The temperature control system uses artificial intelligence technology,  self - tuning function,  50 steps programmable and PID automatic control
Maximum operating temperature	1700C
Standard Working Temperature	1600oC ( continuous )
Constant temperature accuracy	±1C
Max heating rate	40C/min
Suggest heating rate	≤20C/min
Rated power	4/10/16KW
Voltage	AC220/380V  50HZ/60HZ
Standard accessories	Oven gloves 1pair, crucible clip 1pc,heater 2pcs furnace door block 1pc
Optional purchase accessories	All kinds of Alumina crucible, computer control software and paperless recorder





Package: Plastic paper inside, Polyfoam filled, Wooden box outside.

Payment: L/C T/T, West union,etc.

Shipping and Delivery: by air or sea , in 15 days after receiving the payment



Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
