40 футов, контейнер для солнечной энергии, холодильная камера

Share on (60036107715):


Price:

Quantity:


Product Overview

Description


introduction

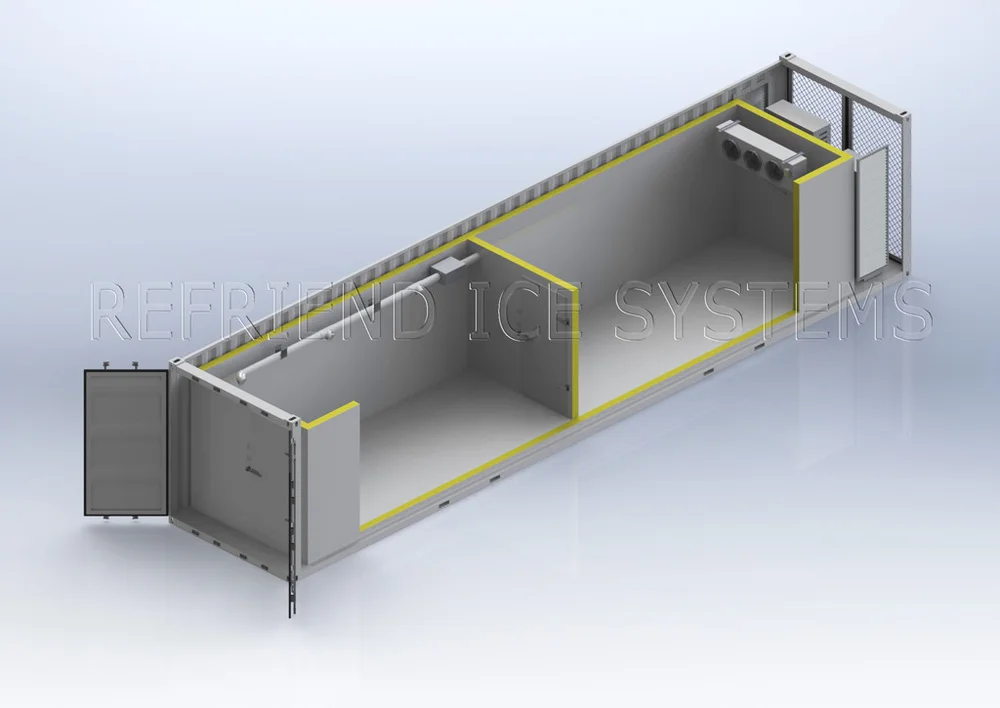

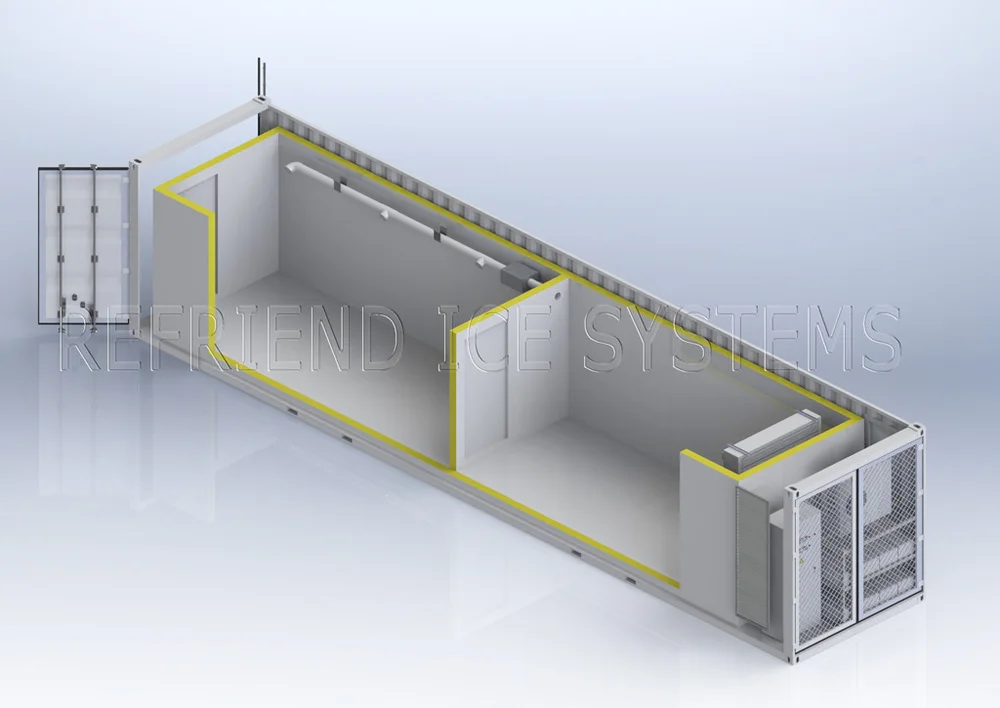

The solar power containerized cold room is that we put cold room and refrigeration unit in one ISO container.we use solar power to drive refrigeration unit without city power supply. it is plug-ready, it can put everywhere as long as there is enough sun.



  • it can use everywhere where is enough sun.
  • as it is the standard container , it is easy to transport
  • Room Temperature: -18°C to 5 °C, automatic controled
  • Freezer or Chiller Room
  • 120mm PU cold room panel.
  • Air direct cooling.
  • it has everything that a cold room must have
  • You can customize the door on the container, for example the side,  dimenions, number
  • Batteiries are gel sealed type, no maintenance
  • low voltage and over voltage proection
  • Automatically controlled
 Specification



ModelCCM-40-S-2C3-18S-24B
Container40ft
Container ColorWhite
Freezer5100 x 2100 x 2100mm
Chiller5100 x 2100 x 2100mm
Freezer Temp.-18oC to -22oC
Chiller Temp.0oC to 5oC
Cold Room Panel120mm Thick
Swing Door800 x 1800mm

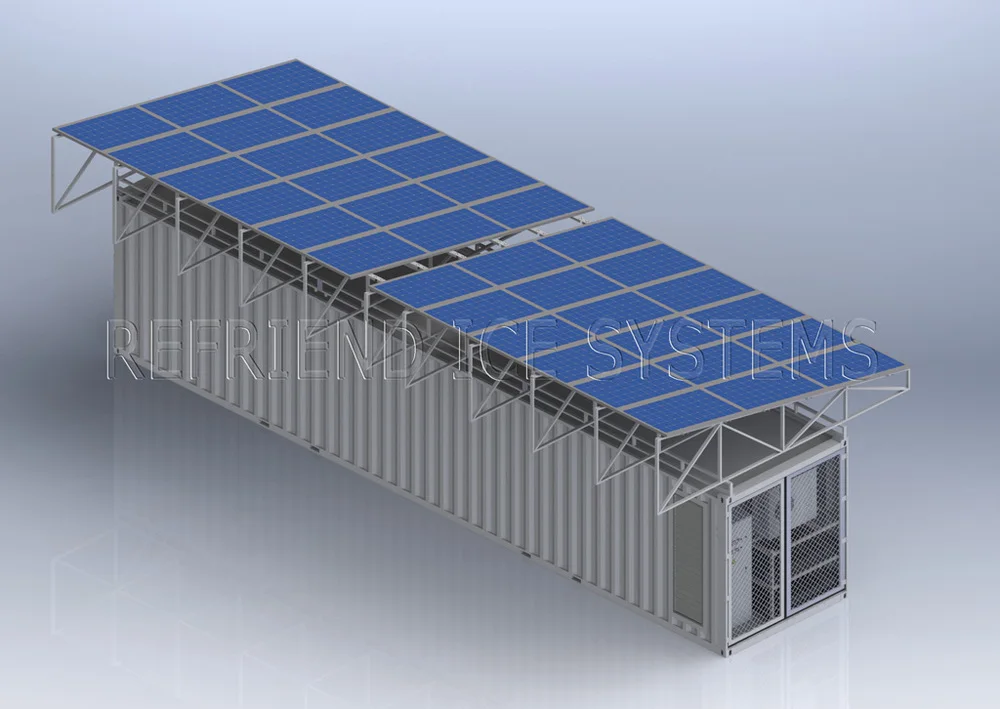

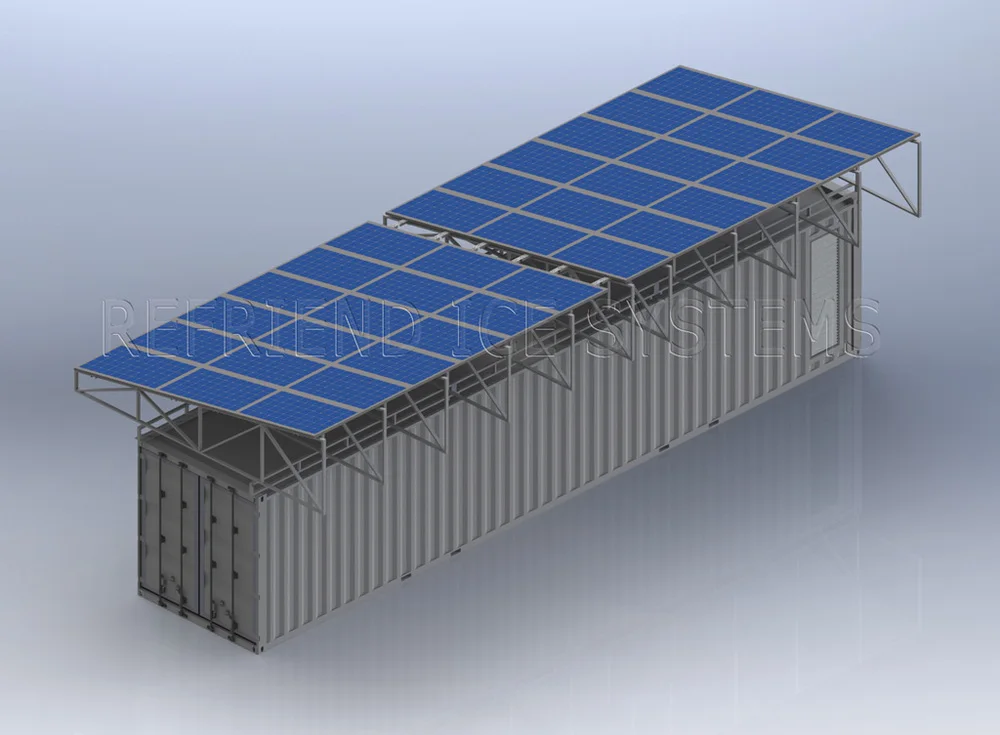

Solar panels250W x 36pcs
Battery12V 100Ah x 24pcs
Rain Day1 day







  pictures

 40FT-140904-1-600

 40FT-140904-2-600

40-140902-1-600

140904-5-600

140904-4-600

140904-3-600
