Pleated air filter hepa filter h13 hepa filter 30x40 cm
- Category: >>>
- Supplier: AIR CLEAN DEVISER TAIWAN CORP.
Share on (60036200789):
Product Overview
Description

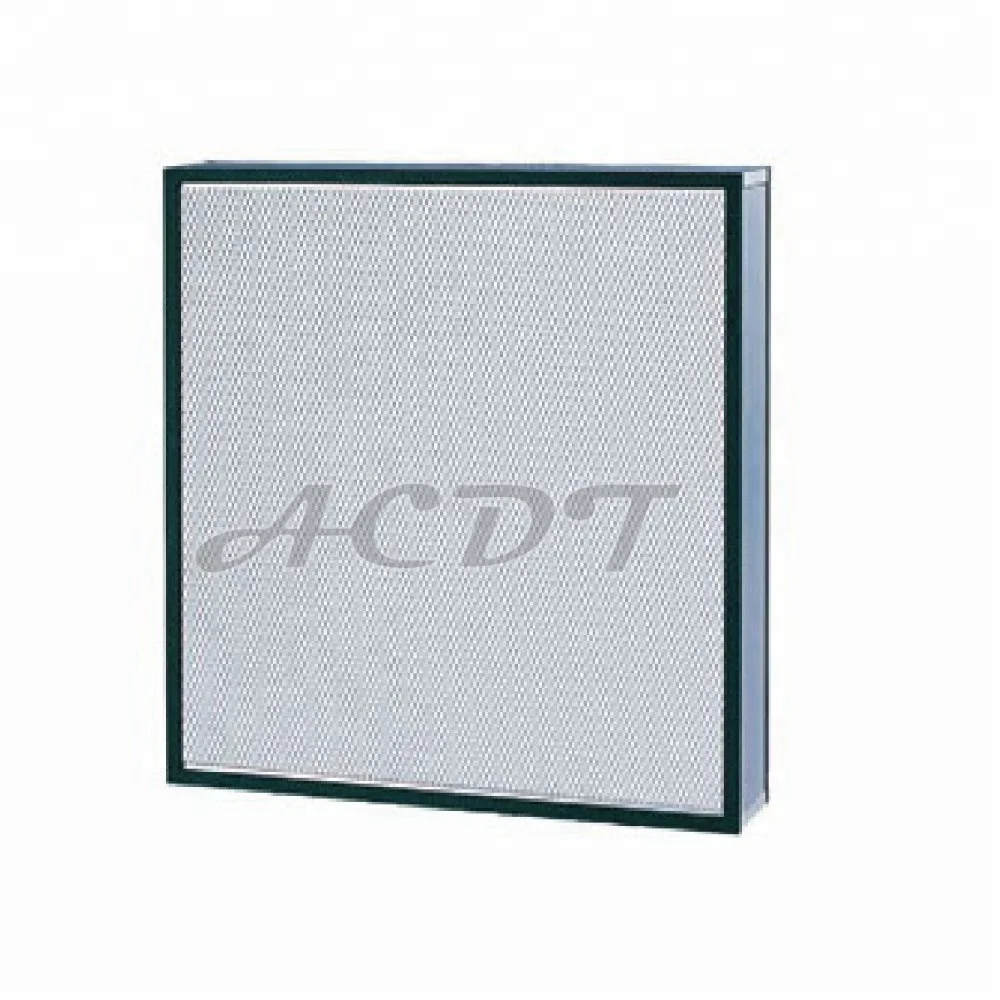

HEPA ULPA Filter
Products Description
Mini Pleat HEPA / ULPA Filter is made with high-quality, pleated glass fiber media. Has low pressure drop, and superior filtration efficiency. The HEPA / ULPA Filter is widely applied in air filtration equipment such as Fan Filter Units, Air Showers, HEPA / ULPA Modules, and more.
HEPA Filter
Features
Efficiency: PAO 99.99%, 99.995% at 0.3 um
Test Standard: EN1822, Class H13/H14
Operating conditions
Temperature: 80°C
Humidity: 100% RH (no dew)
Dimension W x D x H (mm) | Air Volume | Pressure Drop | ||||||||||||||
H13 | H14 | Initial P.D. | Final P.D. | |||||||||||||
CMM | CFM | CMM | CFM | mmH2O | Pa | mmH2O | Pa | |||||||||
305 x 610 x 50 | 9 | 321 | 8 | 287 | 25.4 | 249 | 50.8 | 500 | ||||||||
610 x 610 x 50 | 19 | 677 | 17 | 606 | ||||||||||||
760 x 610 x 50 | 24 | 852 | 22 | 762 | ||||||||||||
915 x 610 x 50 | 29 | 1033 | 26 | 924 | ||||||||||||
1220 x 610 x 50 | 39 | 1389 | 35 | 1243 | ||||||||||||
570 x 570 x 50 | 7 | 247 | 6 | 216 | 10 | 98 | 20 | 200 | ||||||||
1170 x 570 x 50 | 15 | 522 | 13 | 456 | ||||||||||||
1170 x 870 x 50 | 23 | 811 | 20 | 710 | ||||||||||||
1470 x 720 x 50 | 24 | 842 | 21 | 737 | ||||||||||||
1170 x 1170 x 50 | 31 | 1101 | 27 | 963 | ||||||||||||
◎ 70 mm height is available as an option ◎ Gel seal is available as an option ◎ Customized size available | ||||||||||||||||
ULPA Filter
Features
Efficiency: PAO 99.9995%, 99.99995% at 0.1 ~ 0.12 um
Test Standard: EN1822, Class U15/U16
Operating conditions
Temperature: 80°C
Humidity: 100% RH (no dew)
Dimension W x D x H (mm) | Air Volume | Pressure Drop | ||||||||||||||
U15 | U16 | Initial P.D. | Final P.D. | |||||||||||||
CMM | CFM | CMM | CFM | mmH2O | Pa | mmH2O | Pa | |||||||||
305 x 610 x 50 | 7 | 253 | 6 | 220 | 25.4 | 249 | 50.8 | 500 | ||||||||
610 x 610 x 50 | 15 | 534 | 13 | 463 | ||||||||||||
760 x 610 x 50 | 19 | 673 | 17 | 583 | ||||||||||||
915 x 610 x 50 | 23 | 815 | 20 | 707 | ||||||||||||
1220 x 610 x 50 | 31 | 1096 | 27 | 950 | ||||||||||||
570 x 570 x 50 | 6 | 216 | 5 | 185 | 12 | 117 | 24 | 235 | ||||||||
1170 x 570 x 50 | 13 | 456 | 11 | 391 | ||||||||||||
1170 x 870 x 50 | 20 | 710 | 17 | 608 | ||||||||||||
1470 x 720 x 50 | 21 | 737 | 18 | 631 | ||||||||||||
1170 x 1170 x 50 | 27 | 963 | 23 | 826 | ||||||||||||
◎ 70 mm height is available as an option ◎ Gel seal is available as an option ◎ Customized size available | ||||||||||||||||
Our Products
Company Profile
About Us
Air Clean Deviser Taiwan Corp. is a professional designer & manufacturer of cleanroom equipment.
Our services include product & project engineering design, consultant & inquiries, project planning & management, and professional cleanroom equipment & facilities manufacturing.
We have clients from all industries, such as IC Electronics, TFT Institutes, IAQ Environmental, Auto Packing & Material Handling Equipment, Biological, Biochemical, Biotechnology, Food, Optics, Medical & Pharmaceuticals, and Laboratories.
The motto of ACDT is to serve with the best quality and guarantee every employee carries it out.
Our services include product & project engineering design, consultant & inquiries, project planning & management, and professional cleanroom equipment & facilities manufacturing.
We have clients from all industries, such as IC Electronics, TFT Institutes, IAQ Environmental, Auto Packing & Material Handling Equipment, Biological, Biochemical, Biotechnology, Food, Optics, Medical & Pharmaceuticals, and Laboratories.
The motto of ACDT is to serve with the best quality and guarantee every employee carries it out.
Certificate
Manufacturing license of the medical devices
License No. QMS2094
In order to get the manufacturing license, our company has passed the inspection against the Medical Device Quality Management
System Regulations.
QMS, Quality Management System also known as GMP.
It is to ensure our device is able to be consistently produced and controlled by the proper quality standards.
We are the only Taiwan company in our industry to pass the QMS inspection.
In order to get the manufacturing license, our company has passed the inspection against the Medical Device Quality Management
System Regulations.
QMS, Quality Management System also known as GMP.
It is to ensure our device is able to be consistently produced and controlled by the proper quality standards.
We are the only Taiwan company in our industry to pass the QMS inspection.
ISO 13485: 2016
ISO 13485 is an international standard that specifies requirements for quality management systems for manufacturers.
The purpose is to ensure the we can provide high standards of quality assurance and product safety for our products and services,
increase consumer trust and loyalty, and enhance corporate image and market competitiveness.
Less than 1% of Taiwan companies in our industry register.
The purpose is to ensure the we can provide high standards of quality assurance and product safety for our products and services,
increase consumer trust and loyalty, and enhance corporate image and market competitiveness.
Less than 1% of Taiwan companies in our industry register.
ISO 9001: 2015
ISO 9001 is an international standard that specifies requirements for quality management system.
This standard helps us to provide products and services with consistent quality.
This standard helps us to provide products and services with consistent quality.
ISO 14001: 2015
ISO 14001 is an international standard that focuses on how businesses and organizations manage their environmental impacts.
The standard provides a framework for establishing an effective Environmental Management System (EMS) to help us achieving
environmental objectives and reduce the impact on the environment.
The standard provides a framework for establishing an effective Environmental Management System (EMS) to help us achieving
environmental objectives and reduce the impact on the environment.
UL 507
UL 507 is a standard issued by Underwriters Laboratories for electric fans and electric fan accessories.
Our FFU is a critical product widely used in cleanroom environments, such as medical, semiconductor, and other high-purity
applications.
By achieving this certification, our FFU proves that it meets the strictest safety and performance requirements, providing
customers with higher quality and more reliable products.
Our customers can confidently use our product, knowing that it meets the highest safety and performance standards.
Our FFU is a critical product widely used in cleanroom environments, such as medical, semiconductor, and other high-purity
applications.
By achieving this certification, our FFU proves that it meets the strictest safety and performance requirements, providing
customers with higher quality and more reliable products.
Our customers can confidently use our product, knowing that it meets the highest safety and performance standards.
SEMI
The SEMI Standard is internationally used in aspects of semiconductor, photovoltaic (PV), LED, MEMS, and flat panel display (FPD) manufacturing industries. By achieving this standard, it ensures our reliability and productivity.
SEMI S8 - Safety Guideline for Ergonomics Engineering of Semiconductor Manufacturing Equipment
SEMI S22 - Safety Guideline for the Electrical Design of Semiconductor Manufacturing Equipment
EN 12469
In laboratories, safety is very important. EN 12469 is an international standard to ensure our equipment meet the safety regulations. This standard makes sure that our Biological Safety Cabinets provide a safe and controlled environment for working with dangerous biological agents.

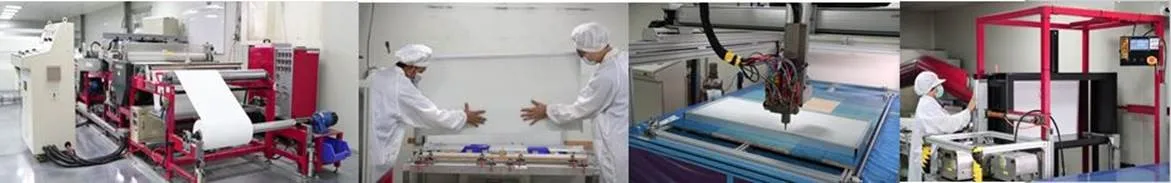

Equipment & Technique
