NEW generation collet manufacturer SE16 Collets better than ER 16 collet with long life span
- Category: >>>
- Supplier: Dongguan Yasam Cutting Tools Co. Ltd.
Share on (60036243610):
Product Overview
Description
NEW generation collet manufacturer SE16 Collets better than ER collet with long life span
Our Services
| Why choose YASAM | |
| 1. Professional | Commited to the Cutting tools market more than 11 years. With professional R&D team and more than 40 Chain stores in China. And also many distributors. |
| 2. High quality | 100% test every product. We design new products every year. All products are sold by our Chain stores first. Stable quality products will be sold to Distributors then Export them to other countries. |
| 3.Customer services | We have many non-standard products and we can also help customers design and produce non-standard products. |
| 4. OEM services | We have our own laser marking machine, can make the products with customers' LOGO easily. |
| 5.Trusted Partner | We are big company, offer good quality products and are responsible for all the prouducts that we sold. |
| 6. Payment terms | Telegraphic transfer(T/T), Western Union, Paypal, Credit Card and Escrow available |
Product Description

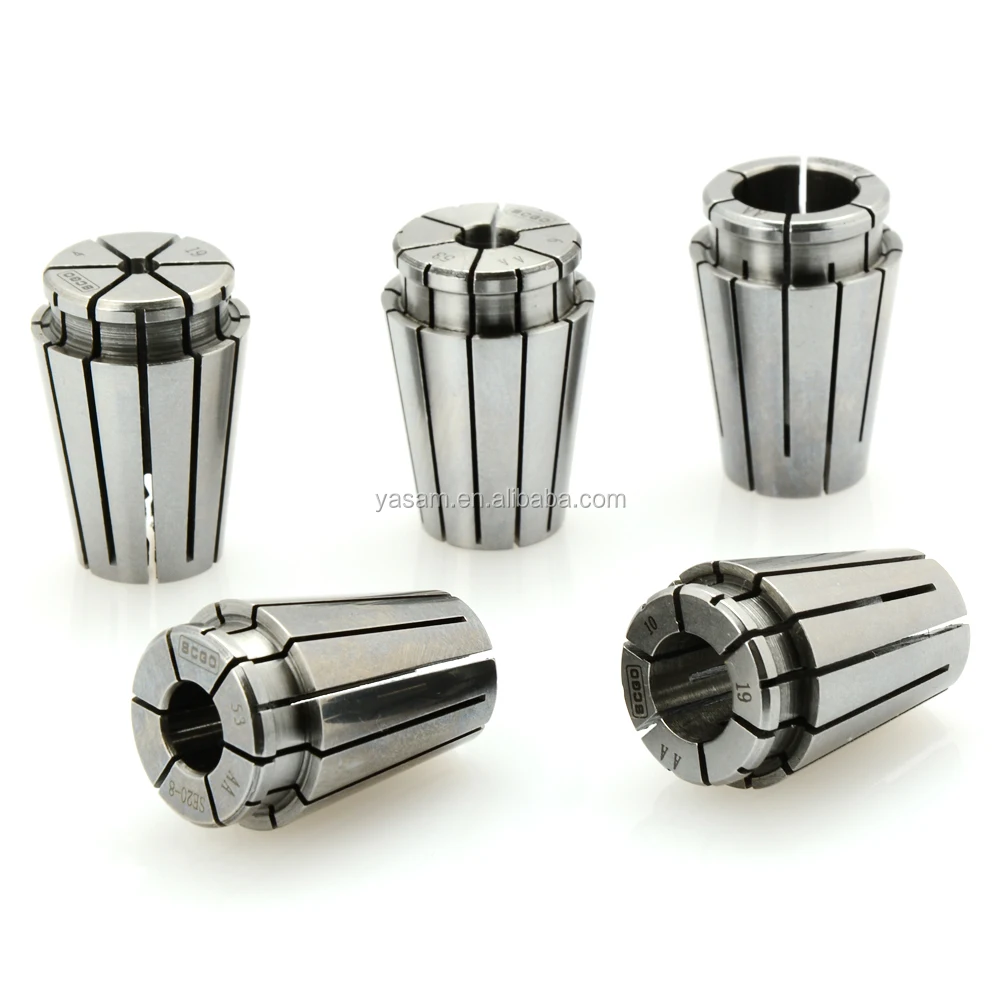

SE Collet, we have these dimensions. Most of them are Metric Dimensions(mm), except--1/8" inch.
| SE08 series | ||||||
| SE08-3 | SE08-3.175 (1/8") | SE08-4 | ||||
| SE08-2 | SE08-2.25 | SE08-2.5 | SE08-2.75 | SE08-3.25 | SE08-3.5 | SE08-3.75 |
| SE11 series | ||||||
| SE11-3 | SE11-3.175 (1/8") | SE11-4 | ||||
| SE11-5 | SE11-6 | SE11-2 | SE11-2.5 | SE11-3.5 | SE11-4.5 | SE11-5.5 |
| SE16 | SE20 |
| SE16-2.00 | SE20-2.00 |
| SE16-2.50 | SE20-2.50 |
| SE16-3.00 | SE20-3.00 |
| SE16-1/8" | SE20-1/8" |
| SE16-3.50 | SE20-3.50 |
| SE16-4.00 | SE20-4.00 |
| SE16-4.50 | SE20-4.50 |
| SE16-5.00 | SE20-5.00 |
| SE16-5.50 | SE20-5.50 |
| SE16-6.00 | SE20-6.00 |
| SE16-6.50 | SE20-6.50 |
| SE16-7.00 | SE20-7.00 |
| SE16-7.50 | SE20-7.50 |
| SE16-8.00 | SE20-8.00 |
| SE16-8.50 | SE20-8.50 |
| SE16-9.00 | SE20-9.00 |
| SE16-9.50 | SE20-9.50 |
| SE16-10.00 | SE20-10.00 |
| SE20-10.50 | |
| SE20-11.00 | |
| SE20-11.50 | |
| SE20-12.00 | |
A/AA/UP Grade
SE Collet:
A-- Run out tolerance at 4d distance(system tolerance) is 0.015mm
AA-- Run out tolerance at 4d distance(system tolerance) 0.01mm
UP-- Run out tolerance at 4d distance(system tolerance) 0.005mm
The price is based on A grade, if you need other grade, you can contact me.
SE16 series collet are similar size as ER16 collet, if your milling chuck or extension holder can use standard ER16 collet, then my SE16 is also suitable for it. just you need my special SE16 clamping nut.
Advange of yasam SE series collets:
1.because of their special structure (self-centering), when you change the tools,take less time to get good precison
2.made by good mateiral,so the collets can be used for a long time (most of customers use the collet more than 1 year in Chinese market).
M22XP1.5 are most popular SE16 clamping nut
Other thread size of SE16 nuts:
M19XP1.0
M24XP1.0
