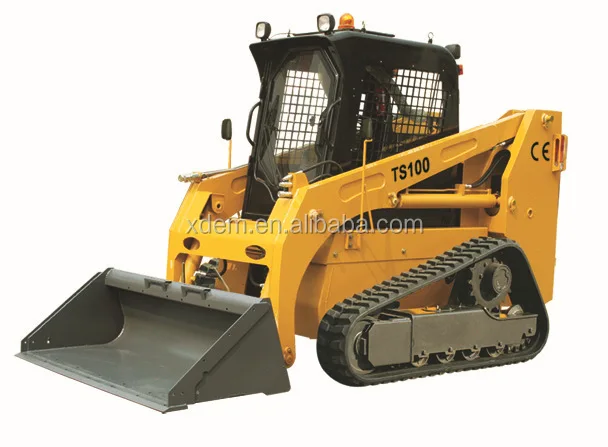

TS100 100hp 2t Crawler Skid Steer loader with1500kg Rated Load for sale
- Category: >>>
- Supplier: Nanyang Xinda Electro-Mechanical Co. Ltd.
Share on (60036389925):
Product Overview
Description
Features of TS100 100hp 2t Crawler Skid Steer loader
• Compact structure,maneuverable movement suitable for narrow space operation
• Close cabin with joystick control system
• Double accelerograph control
• Auto-leveling system
• Multi-function with a wide range of attachments
• Hydraulic brake
Parameter of TS100 100hp 2t Crawler Skid Steer loader
Rated Operating Capacity | 1500 |
Tipping load(Kg) | 3000 |
Bucket Capacity(m3) | 0.6-0.7 |
Lifting Force(Kg) | 2200 |
Hydraulic Pump Flow(L/min) | 100/150 |
Engine power(HP) | 100 |
Weight(Kg) | 4280 |
Max.Travel Speed(km/h) | 8/16 |
Grade ability(°) | 20 |
Fuel/hyd.oil capacity(L) | 85 |
Dimensions | |
Height to top of ROPS(mm) | 2110 |
Ground clearance(mm) | 205 |
Max.lift height, at hinge pin(mm) | 2920 |
Length of undercarriage(mm) | 1938 |
Machine length without bucket(mm) | 2676 |
Machine length with bucket(mm) | 3385 |
Machine width(mm) | 1850 |
Track width(mm) | 320 |
Length of track on ground(mm) | 1500 |
company infermation
Our factory is China first one that introduce foreign technology to develop and manufacture steer skid loader. We started cooperation with European company to manufacture steer skid loaders and attachments from 1993.
Our factory covered an area of 300,000 square meters, building area 120,000 square meters. We have the full procedure line of cutting welding, assembling, testing and praying equipments, and can produce whole machine and attachments over 3000 sets.
After 15 years developing, we developed JC45,JC50,JC60,JC70,JC75,JC80,JC100series wheel type steer skid loader, and TS100,TS80, TS60 series crawler type steer skid loader. All the main parts are famous international brand.
Machine power are from 30-120 HP, control method have manual, hydraulic, electrical, drive cab has opening type, close type and air conditioner type. Our factory has passed CE, GOST certificate, 90% are exported to North America, European, Australia and Russia market.

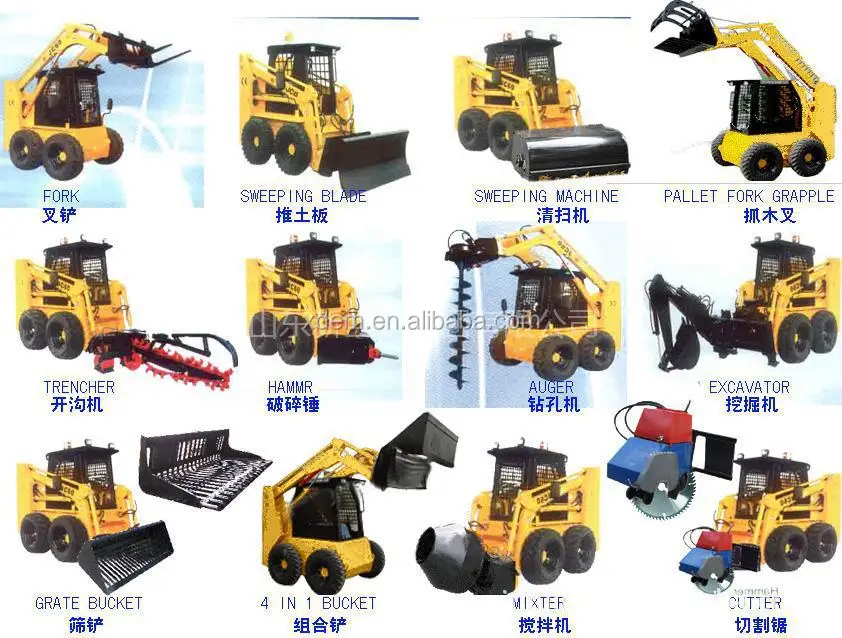

Attachments:
